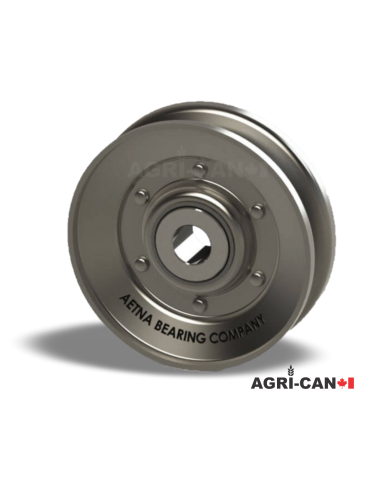

Aetna V-Belt Idler - A Section

Aetna V-Belt idler for size A. Bolt hole 1/2'' or 5/8’’.

Bore Size

1/2''
5/8''

In Stock

$23.77

Depending your choice at checkout. As fast as next day 8am

Notify me when this product is in Stock

RUSH

Quantity:

Email:

Resource Center

Description

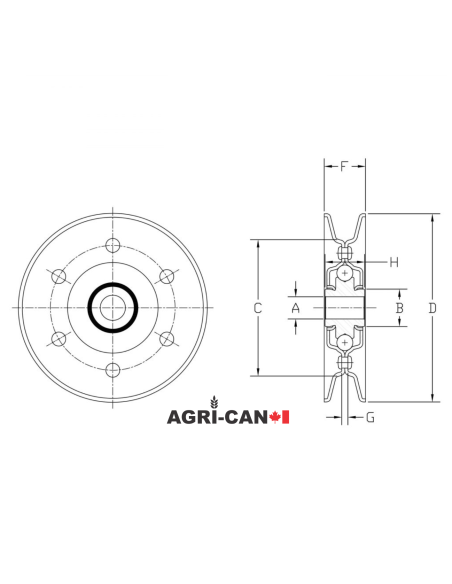

A – Bolt hole	0.516’’/0.522’’ OR 0.643/0.649’’
Required bolt	1/2’’ or 5/8’’ depending on selection
B – Roller outside diameter	1-3/16’’
C – Inside groove diameter	2-1/4’’
D – Outside diameter	3-1/4’’
Belt type and size	Type V Size A Section
F – Total width	7/8’’
G – Flange total thickness	0.144’’
H – Width of roller bearing	0.750’’
Weight	0.75 lbs
Bearing type	Sealed

Provide long life under demanding conditions. They are installed with standard 1/2″ or 5/8″ bolts. Applications include agricultural, power transmission equipment, and conveyor systems. Aetna V-belt idlers are generally used as tensioners or direction changers. Permanently lubricated and sealed against grime and dirt. Fit into existing designs with little or no engineering changes, or are readily adapted to new designs.

Advantages

Over-size, factory packed lubricant chamber assures maximum life and operating efficiency without troublesome relubrication
Case hardened to resist belt abrasion
Available for most common V-belt sizes
Bearing races are hardened to resist wear, outers and inners are accurately formed for smooth running
Aetna’s self-contouring, free-running, self-wiping seal provides positive contact under all conditions of misalignment
Full ball complement for high durability
