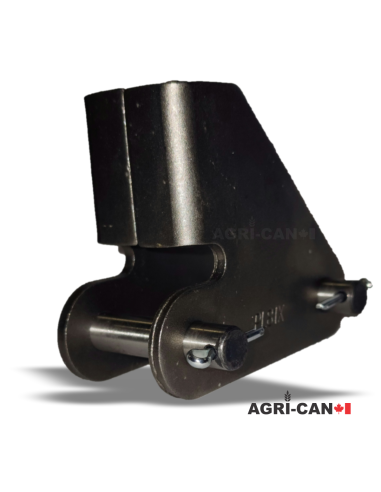

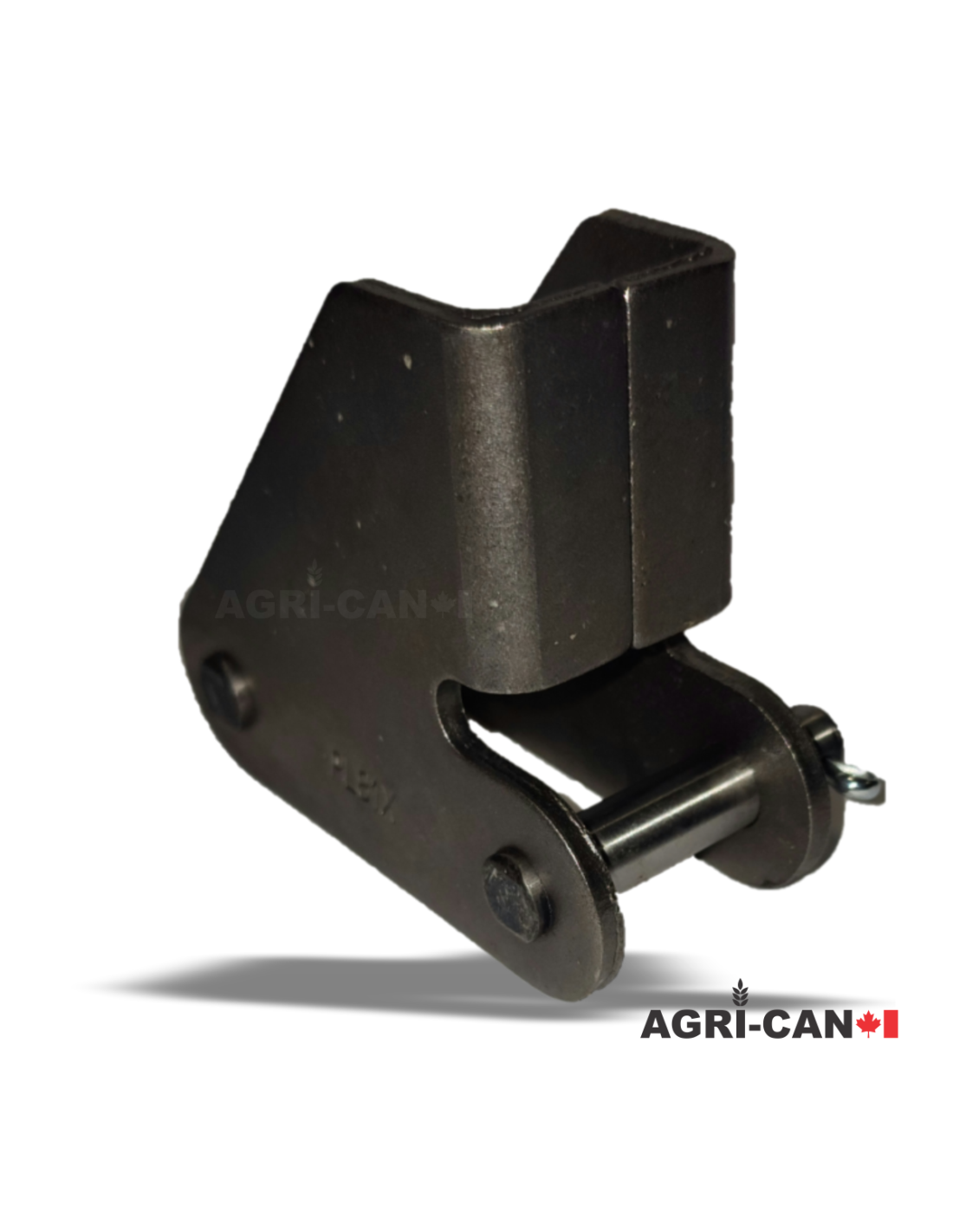

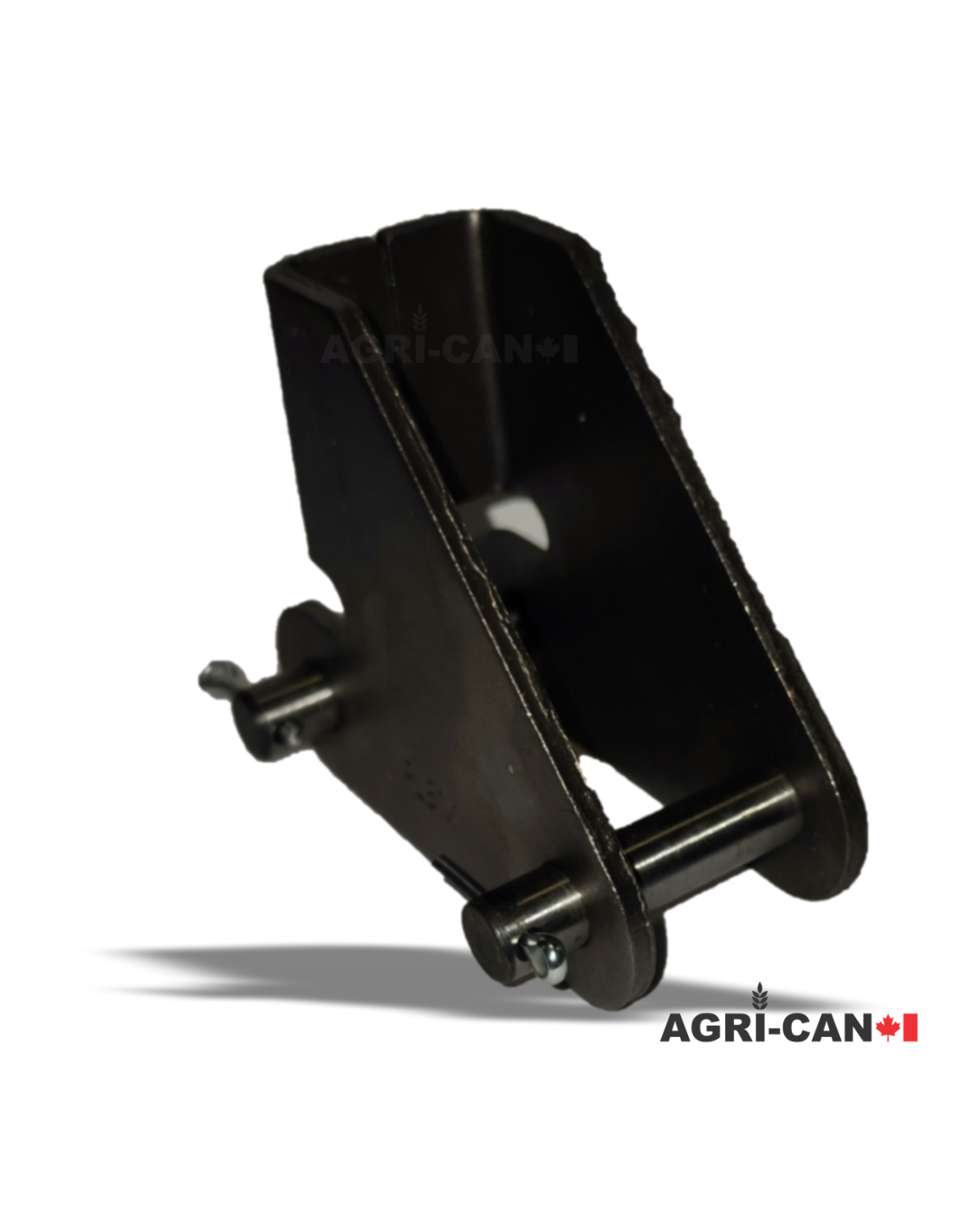

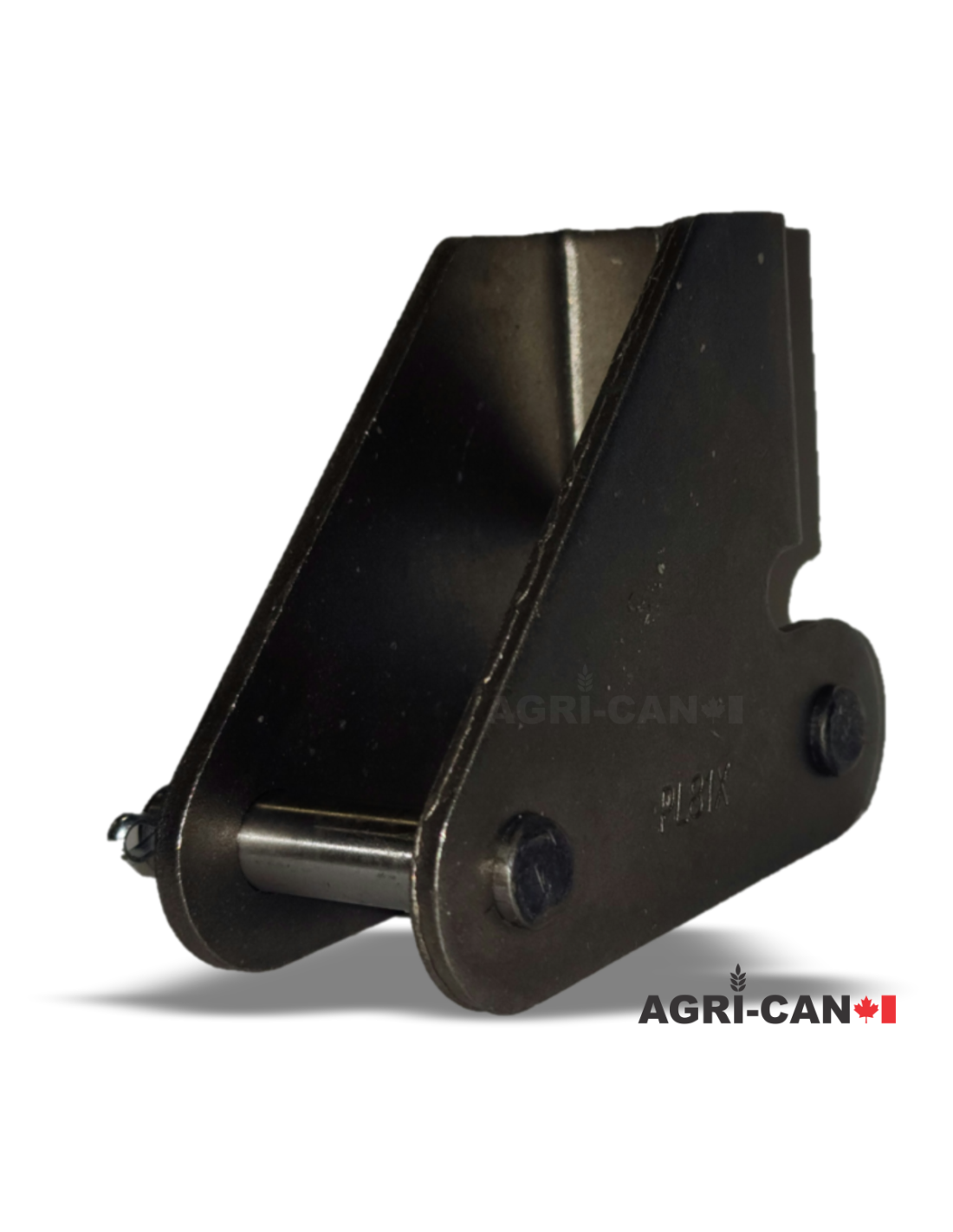

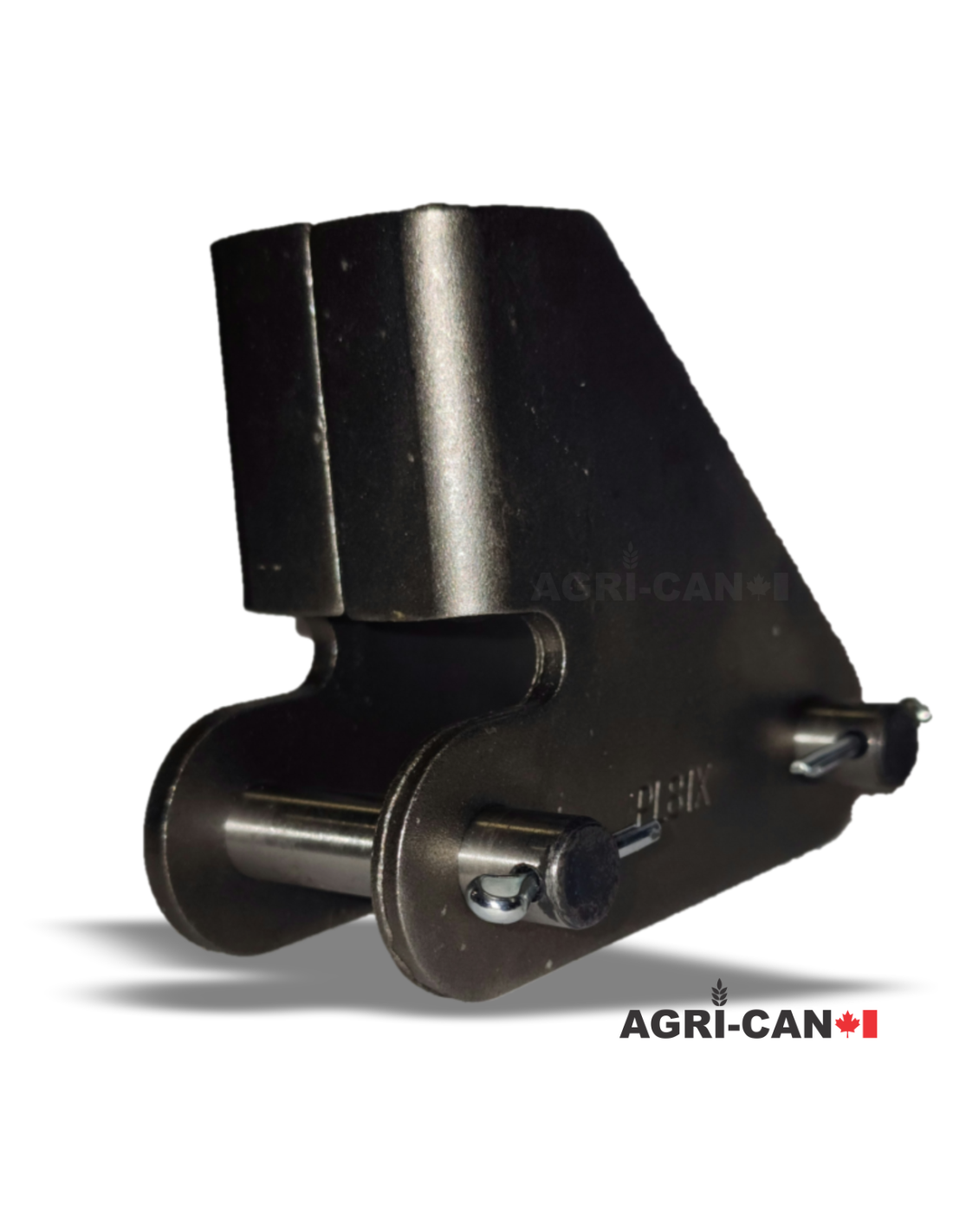

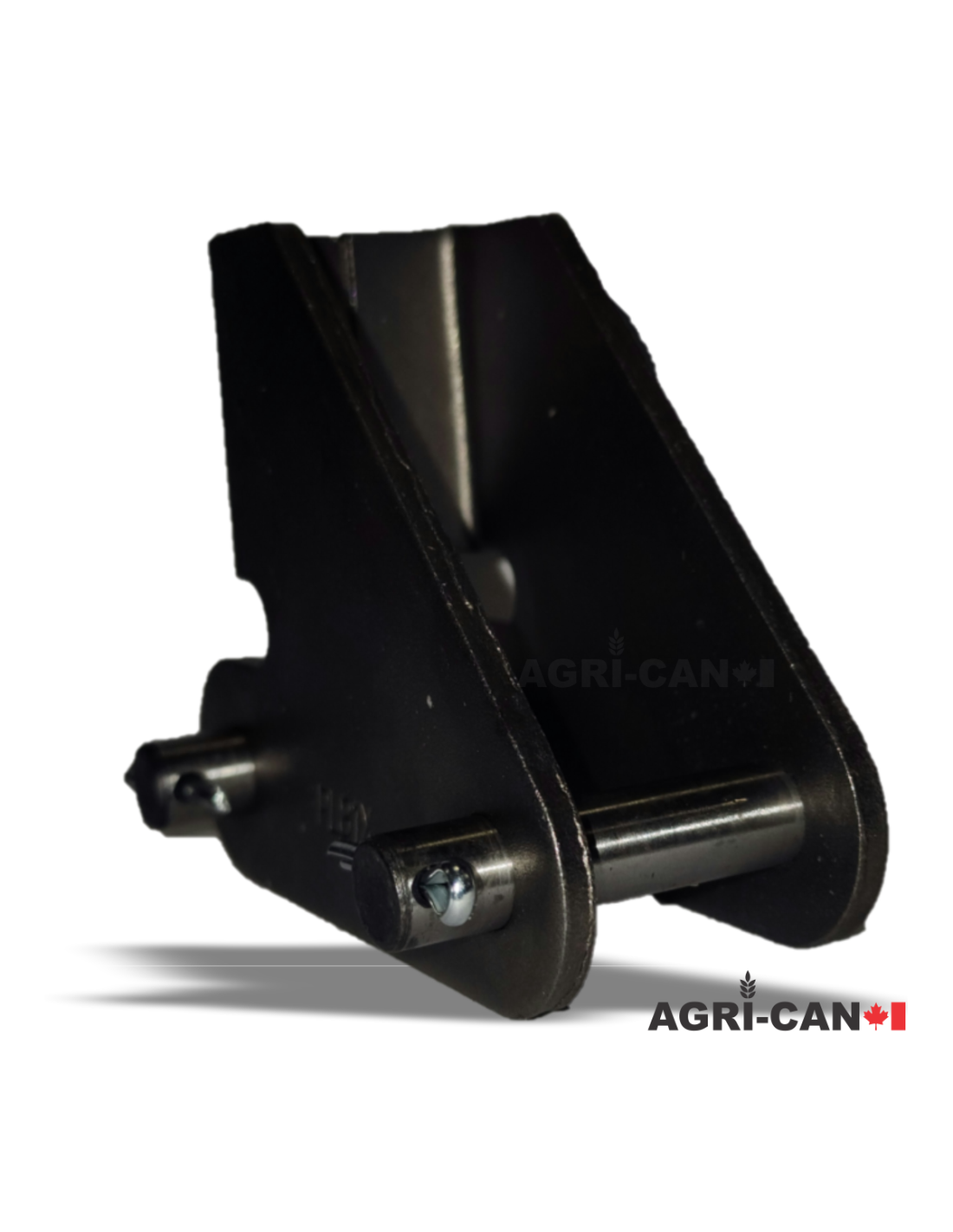

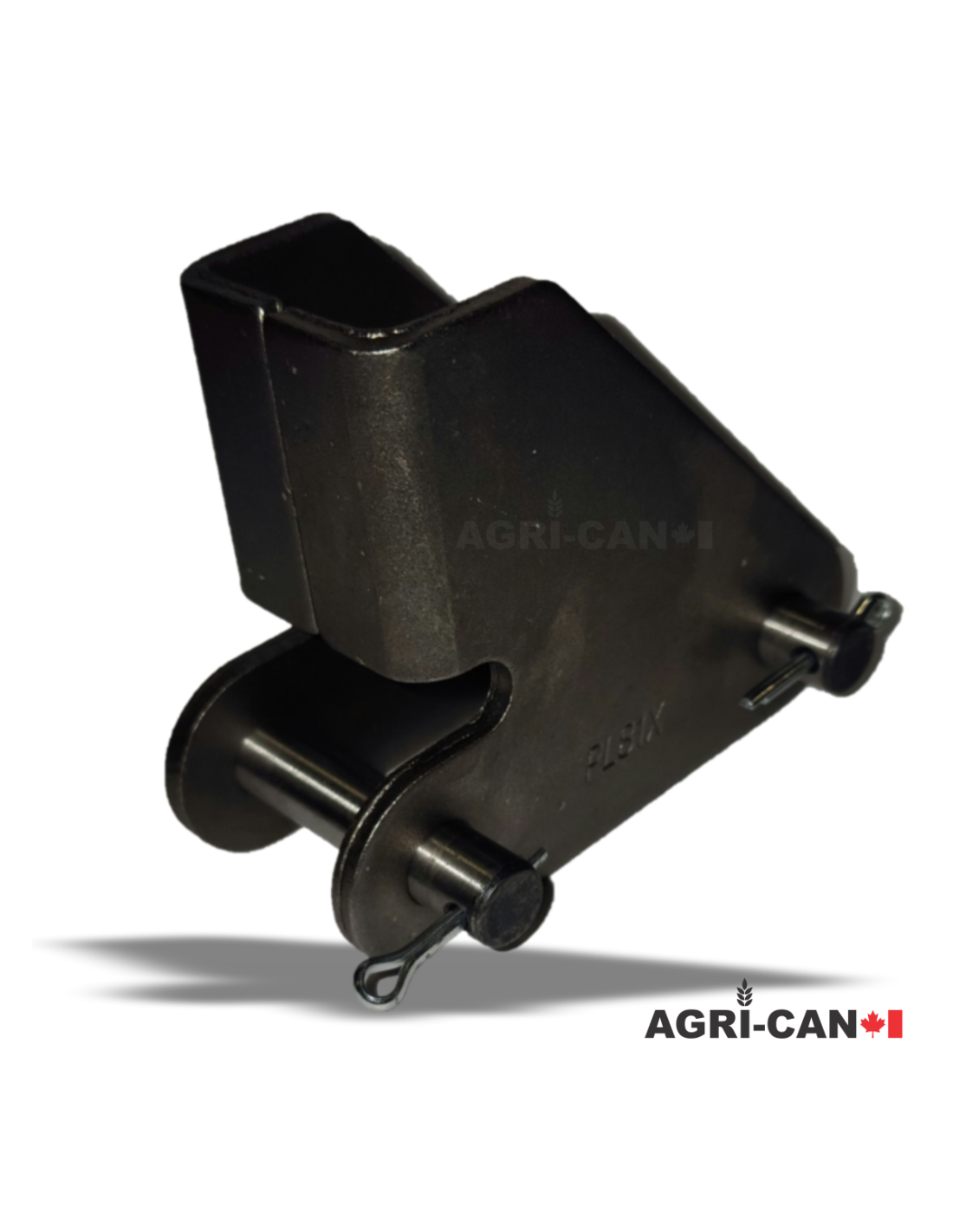

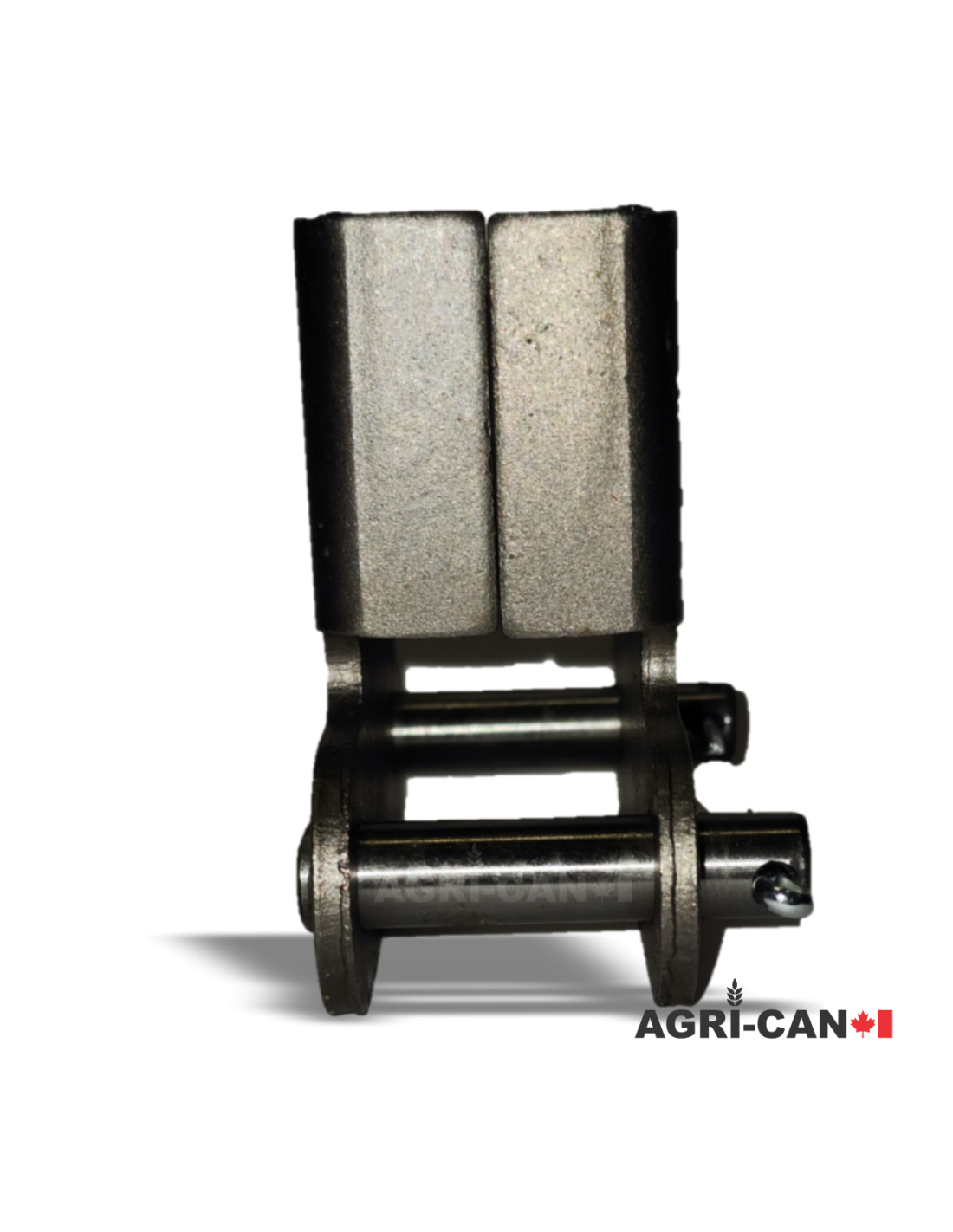

High-quality 81X Pusher Lug conveyor chain attachment link designed for wood mills and grain conveyors or other heavy-duty applications.

In Stock
$19.39

Quantity Unit discount You Save
12 10% $23.27
Resource Center

Description

High-quality 81X conveyor chain attachment link designed for wood mills and grain conveyors or other heavy-duty applications.

Includes: 1 Pusher Lug attachment link 81X

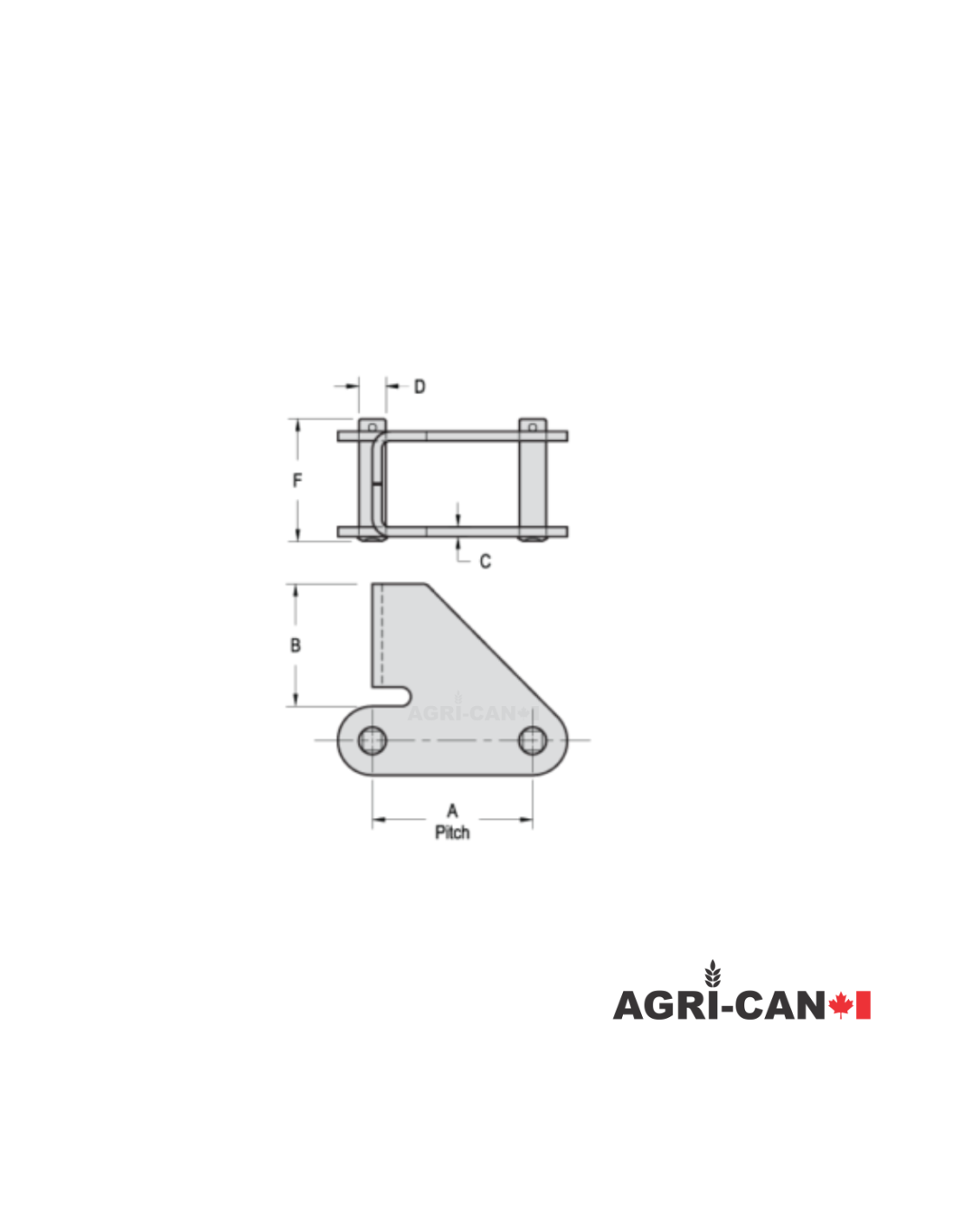

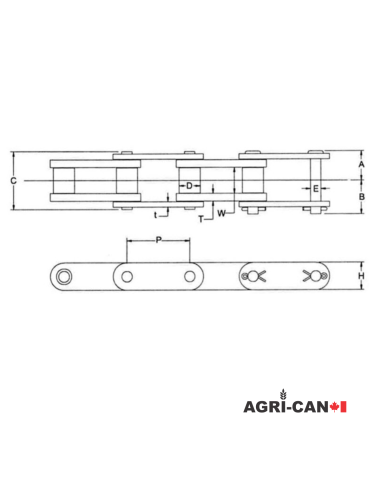

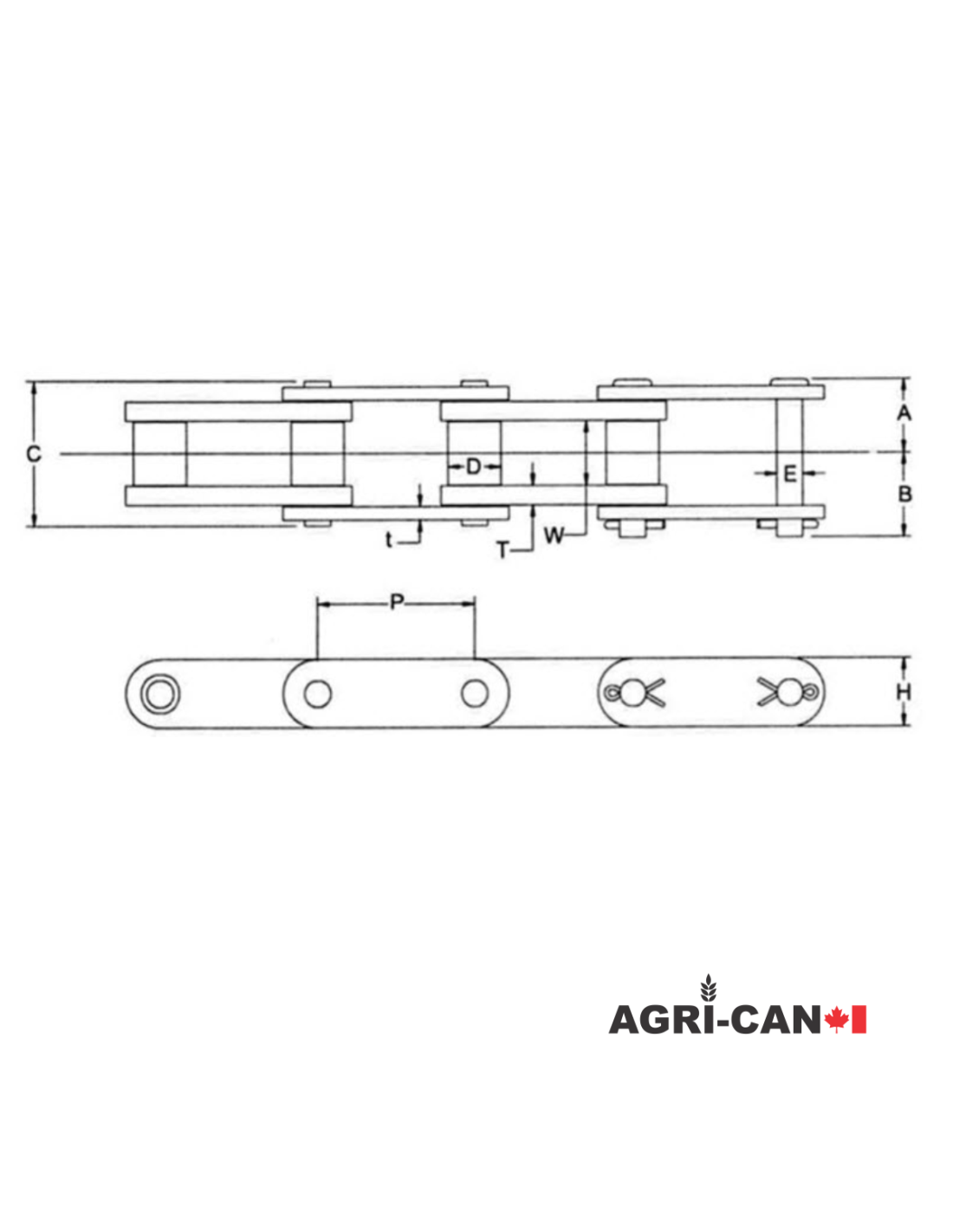

SPECIFICATION

Pitch (P)

2.609in

Roller Diameter (D)

0.906in

Inner Plate (W)

1.06in

Pin Dimension (E)

0.437in

Pin Length (C)

1.929in

Plate Height (H)

1.125in

Plate Dimension (A)

0.975in

Plate Dimension (B)

1.16in

Outer Plate Thickness (t)

0.157in

Inner Plate Thickness (T)

0.157in

No. of links per 10ft

46

Average Weight per Foot

2.5 lbs

Ultimate Strength

24,200 lbs

Compatibility

Click on a brand to see compatible models

Machinage Piché

  • Various
CASA

  • Various
Morbark

  • Various
Fabmec

  • Various
Mellott

  • Various
Wood-Mizer

  • Various
Timber Automation

  • Various
American Built Machinery Co.

  • Various
Meadows Mills

  • Various
Cleereman Industries

  • Various

81X Models

The 81X conveyor chain is available from Agri-Can in different models including the 3 most popular below.
