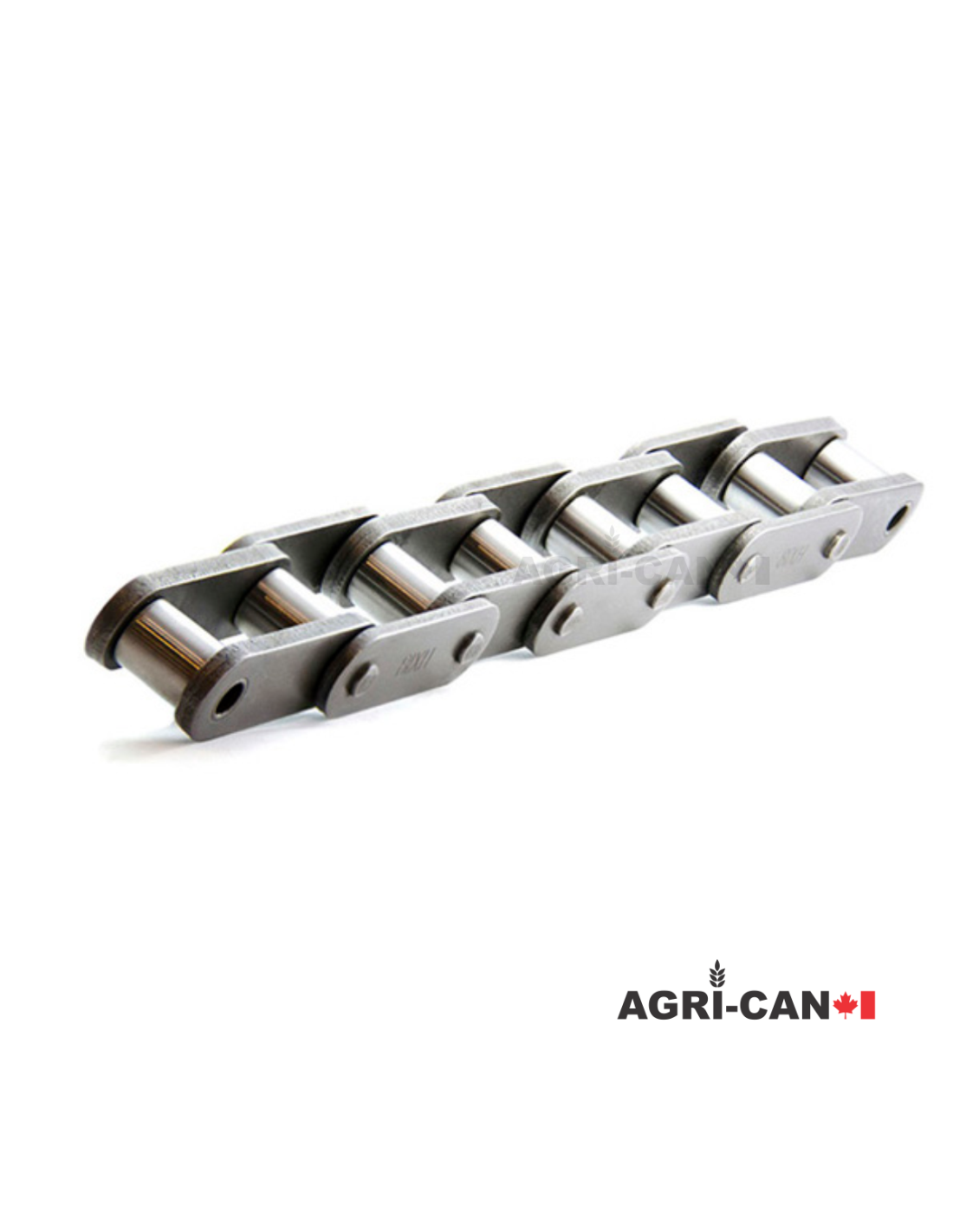

High-quality 81XH conveyor chain link designed for wood mills and grain conveyors or other heavy-duty applications.
Includes: 10ft roll of 81XH Premium conveyor chain – Pusher Lug attachment links NOT included

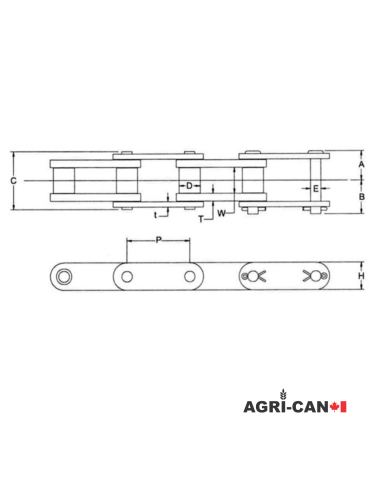

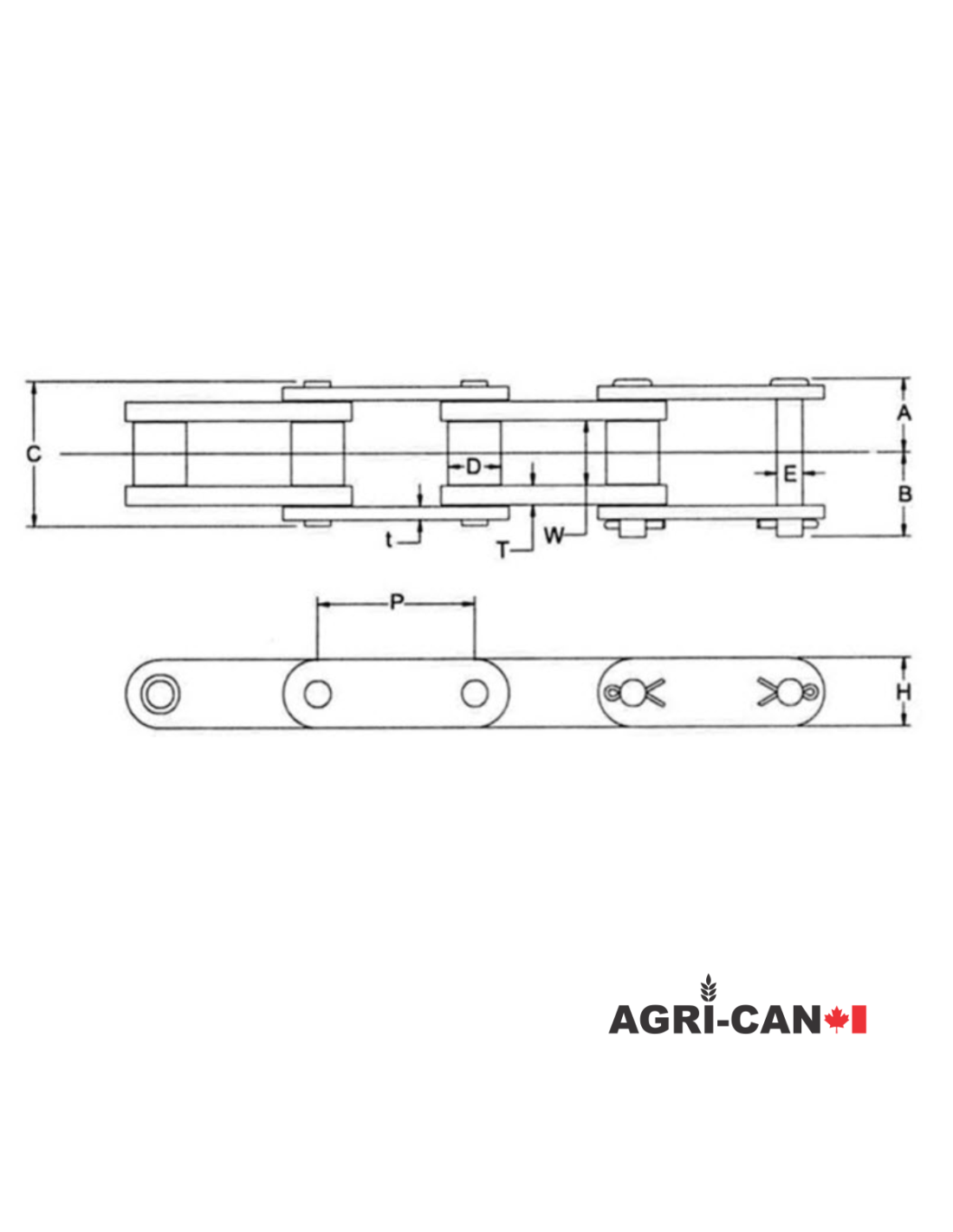

SPECIFICATION
|
Pitch (P) |
2.609in |
|
Roller Diameter (D) |
0.906in |
|
Inner Plate (W) |
1.06in |
|
Pin Dimension (E) |
0.437in |
|
Pin Length (C) |
2.389in |
|
Plate Height (H) |
1.25in |
|
Plate Dimension (A) |
1.196in |
|
Plate Dimension (B) |
1.381in |
|
Outer Plate Thickness (t) |
0.219in |
|
Inner Plate Thickness (T) |
0.313in |
|
No. of links per 10ft |
46 |
|
Average Weight per Foot |
4.12 lbs |
|
Ultimate Strength |
34,500 lbs |
Compatibility
Click on a brand to see compatible models
Machinage Piché
- Various
CASA
- Various
Morbark
- Various
Fabmec
- Various
Mellott
- Various
Wood-Mizer
- Various
Timber Automation
- Various
American Built Machinery Co.
- Various
Meadows Mills
- Various
Cleereman Industries
- Various
81X Models
The 81X conveyor chain is available from Agri-Can in different models including the 3 most popular below.
