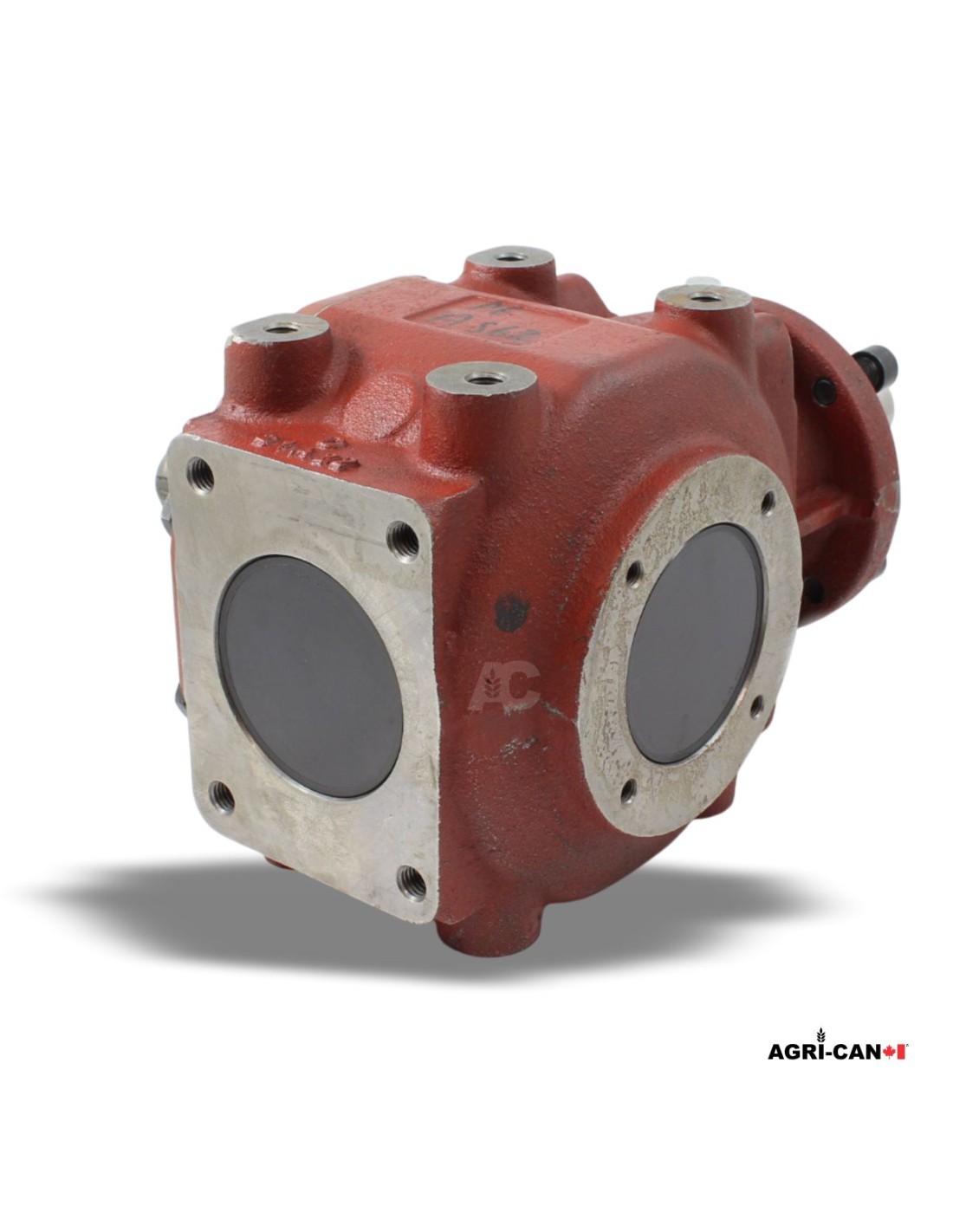

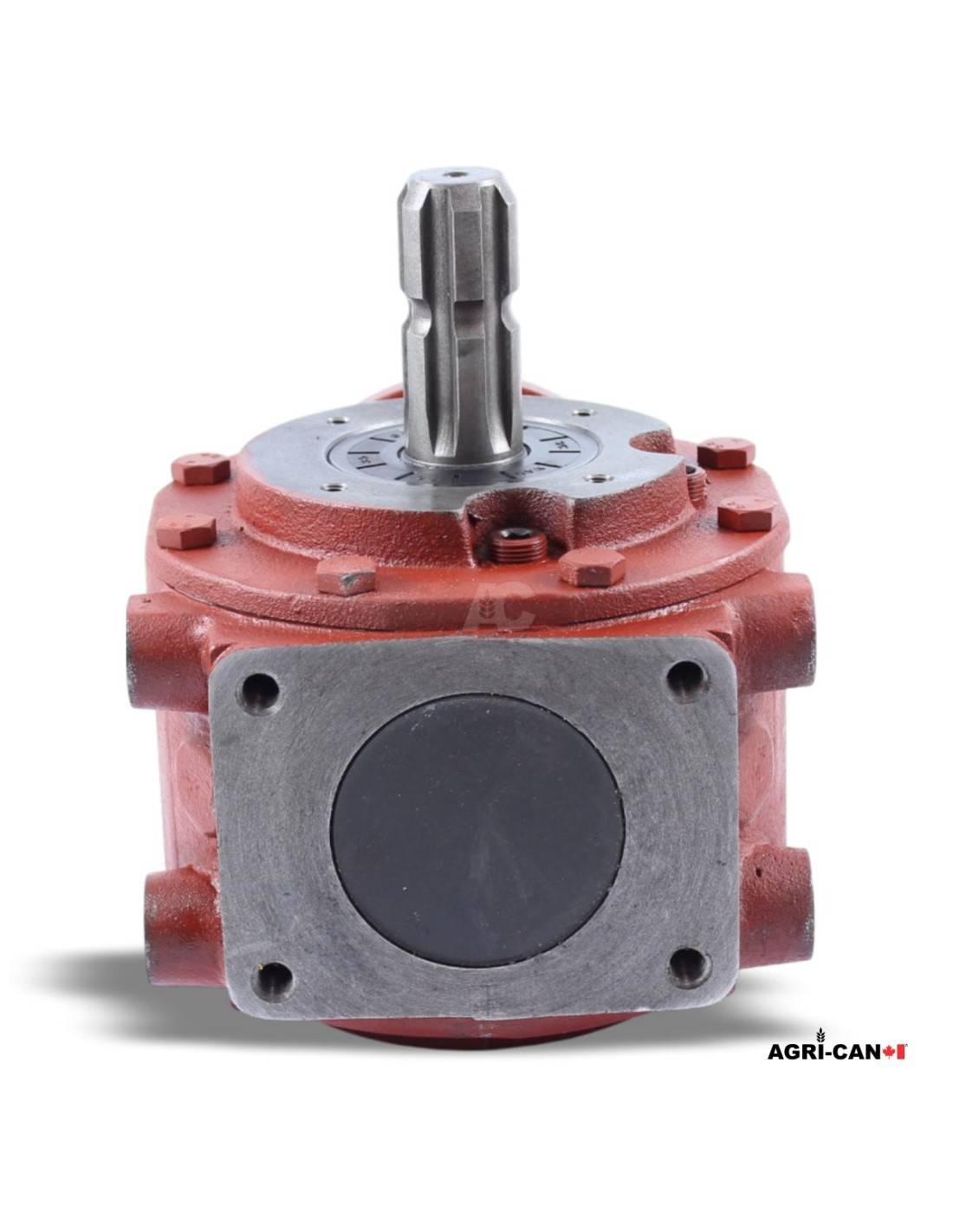

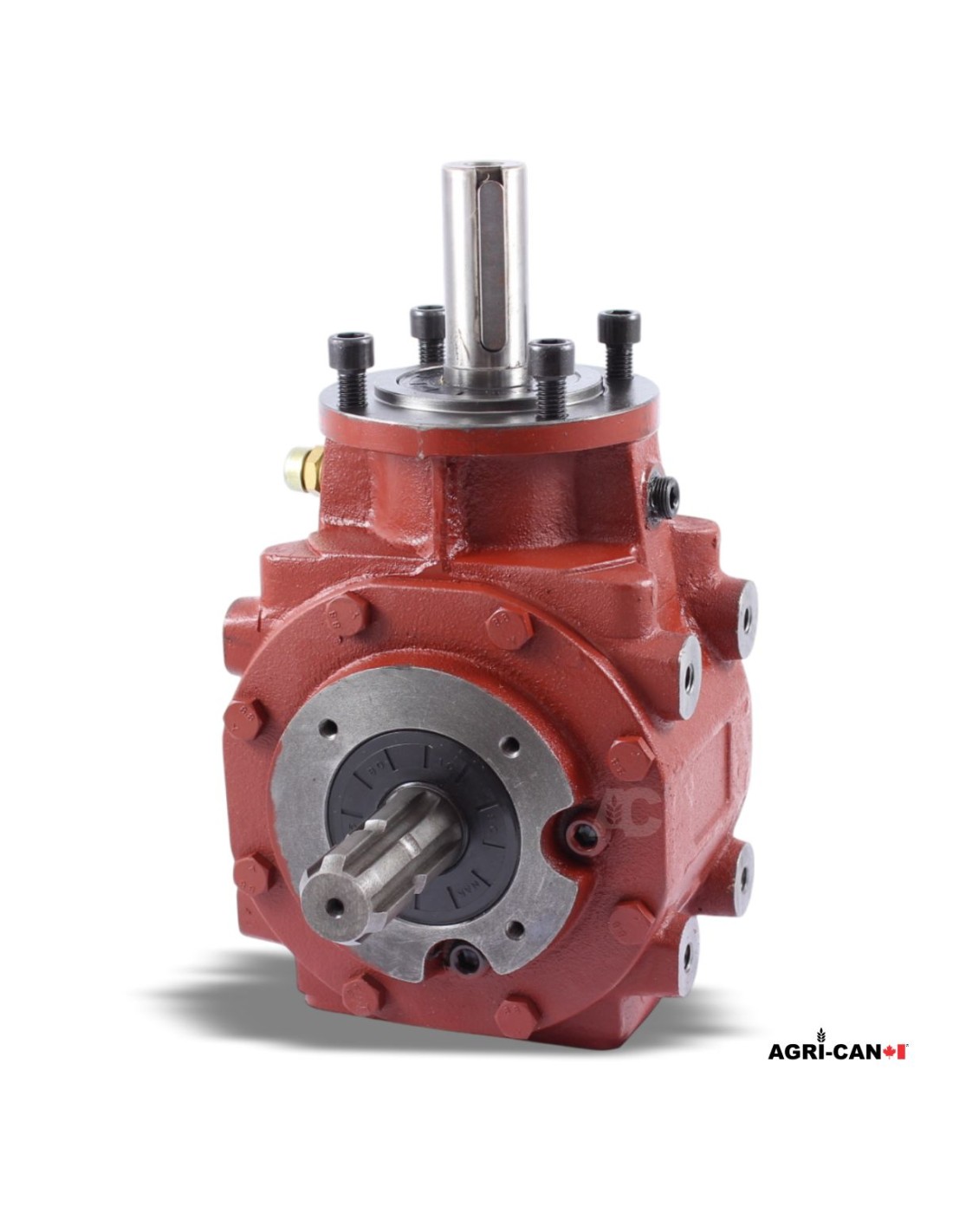

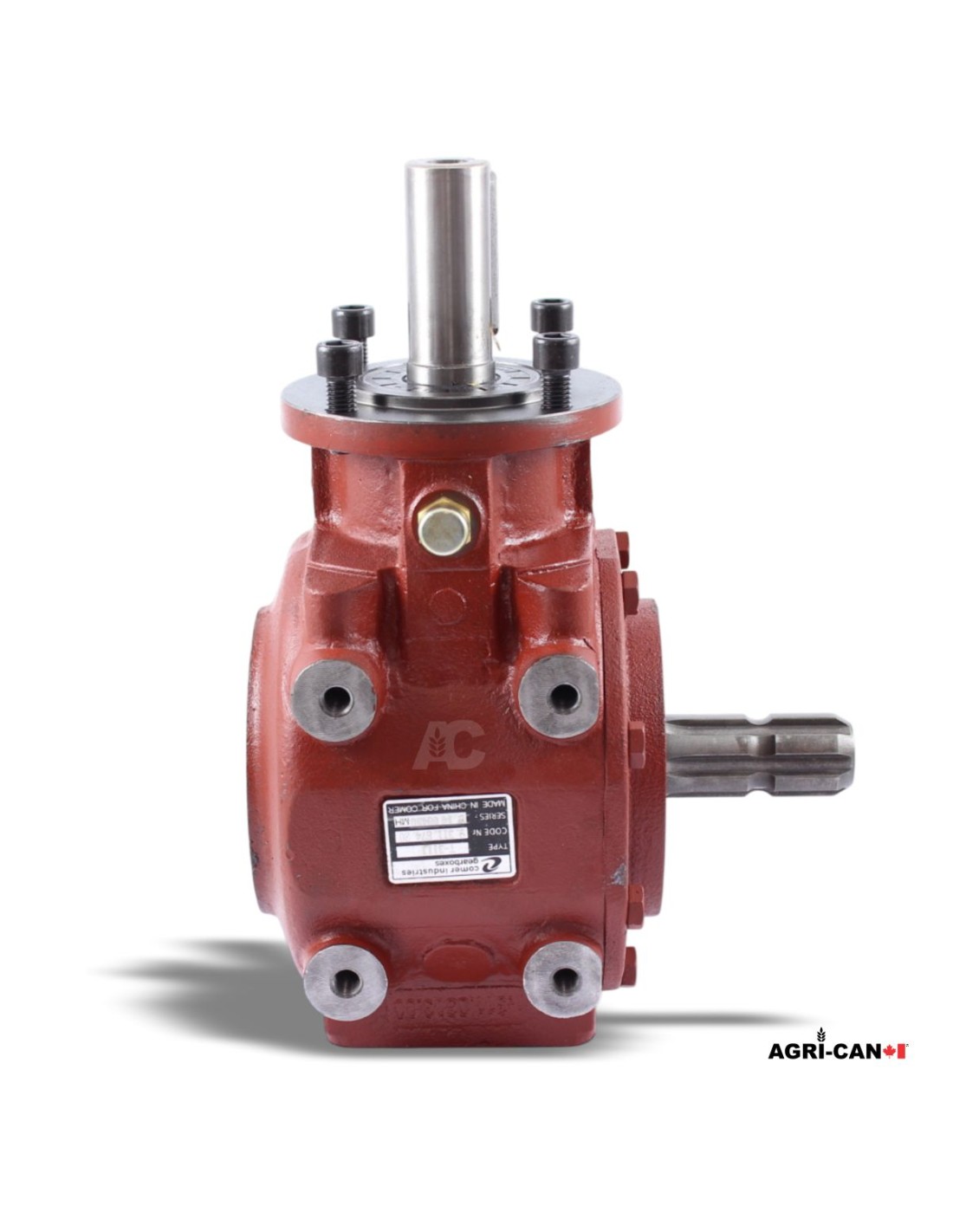

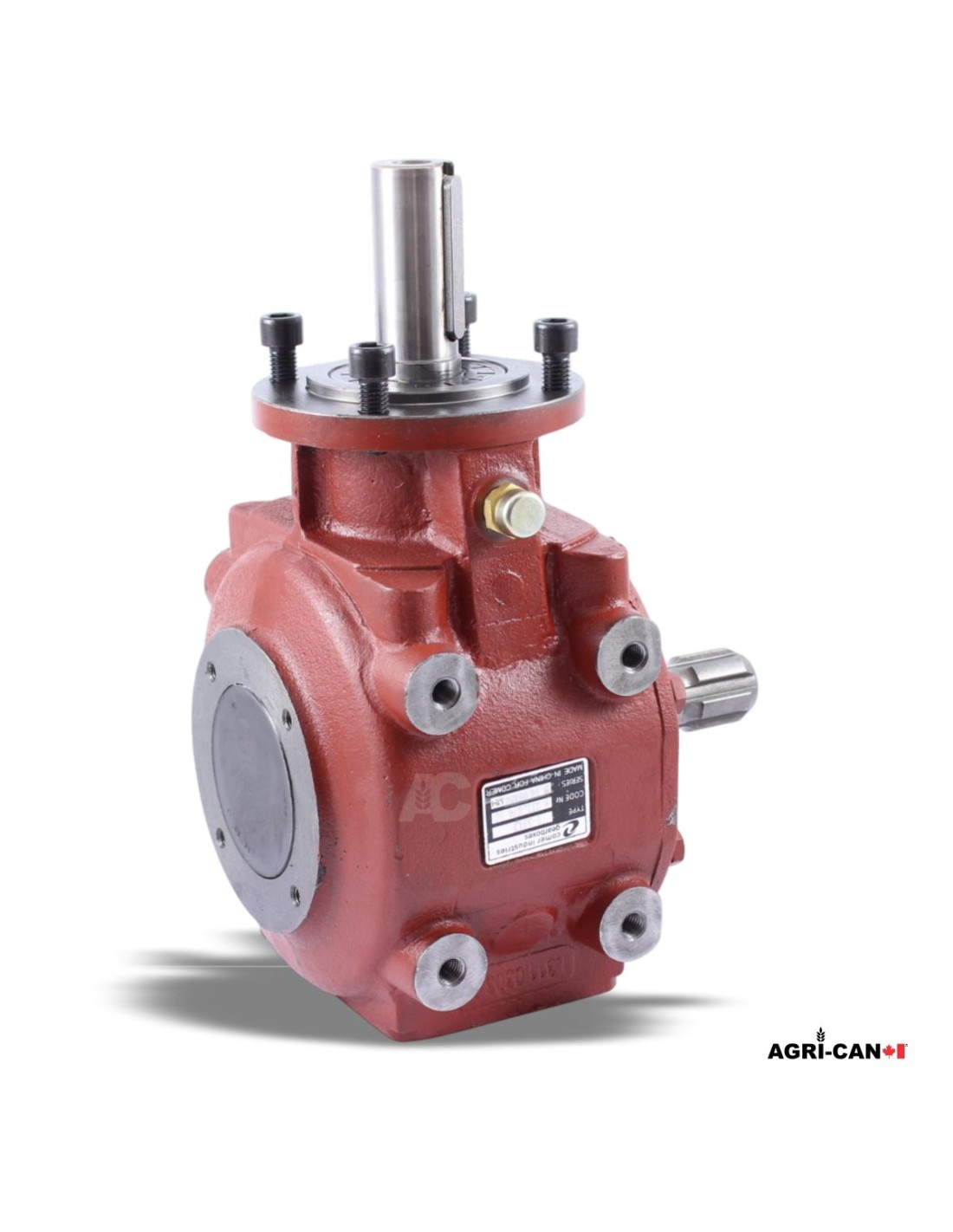

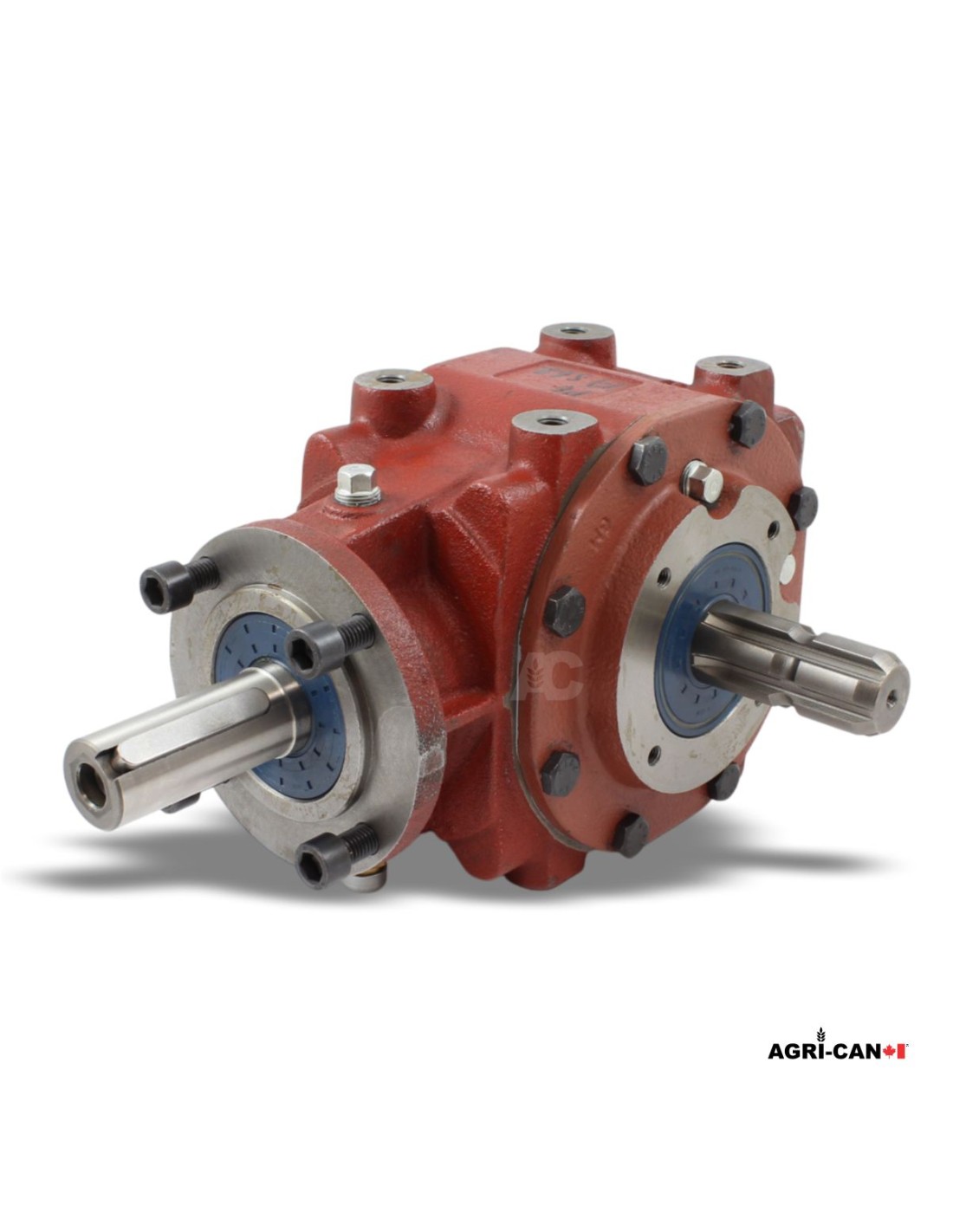

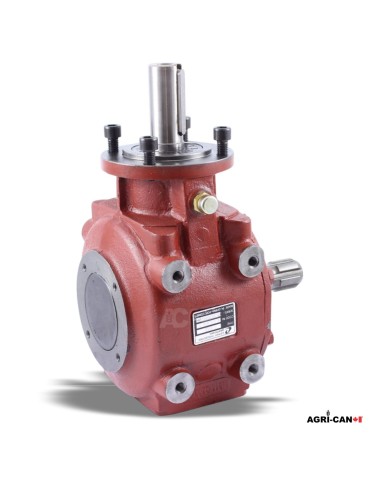

Comer T-311J gearbox for Maschio flail mowers, replacing part numbers M07400201R and M07400201.

Last items in stock
$993.26

Description

Comer T-311J gearbox designed to replace the original Maschio M07400201R / M07400201 gearbox used on several Maschio flail mower models.

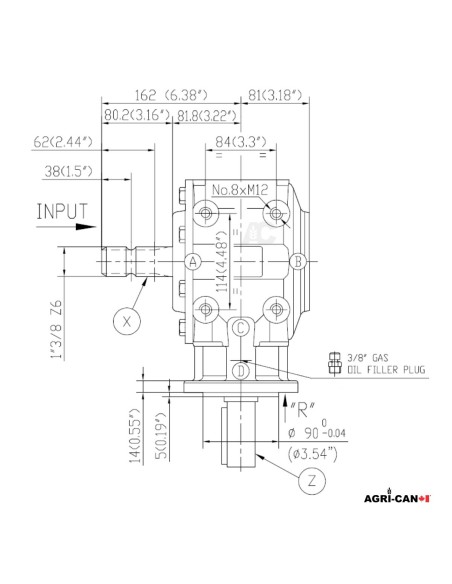

SPECIFICATION

Ratio factor

1:3

Shaft X

1-3/8”- 6 splines

Shaft Z

33.00 mm (1.29”)

Shaft Z

Keyway + Bolt M14x32

Model

T-311J

Max. input power

36,8 kW

Max. input rotation speed

540 r/min

Max. output power

50 HP

Max. output torque

210 N·m

Gear arrangement increasing

21-22

Contains oil

No

Max. oil capacity

1,2 l

Max. oil change interval

500 h

Oil SAE viscosity grade

80W-90

Weight

20,5 kg

REPLACES

311874, 9.311.874.20, 9-311-874-20, 931187420, M07400201R, M07400201, 07400201R, 07400201, T-311J, T311J, 10401420, 43509311786, 43509311874, FMP-T311J, EPT-T311J

This OEM-quality Comer Industries gearbox fits various models from the GIRAFFA, BRAVA, BELLA, CHIARA, CORAZZA, VITA and TERMINATOR series, as well as certain older BL models. It provides a direct replacement for machines originally equipped with the corresponding Maschio/Comer transmission.

NOTE: Some Maschio models were also produced with Bondioli gearboxes or in different configurations. Always verify the part number on the original gearbox before ordering to confirm compatibility.

Compatibility

Click on a brand to see compatible models

Maschio

  • GIRAFFA: 160, 185, 210
  • GIRAFFA XL DX210SI
  • BELLA: 135, 155, 170, 190, 210
  • BRAVA: 100, 120, 140, 160, 180, 200, 230, 250
  • CHIARA: 140, 160, 180, 200, 230, 250
  • CORAZZA: 155, 170, 190, 210, 230
  • VITA: 120, 140, 160, 180
  • BL: 170, 190, 210
  • TERMINATOR: 180, 200
