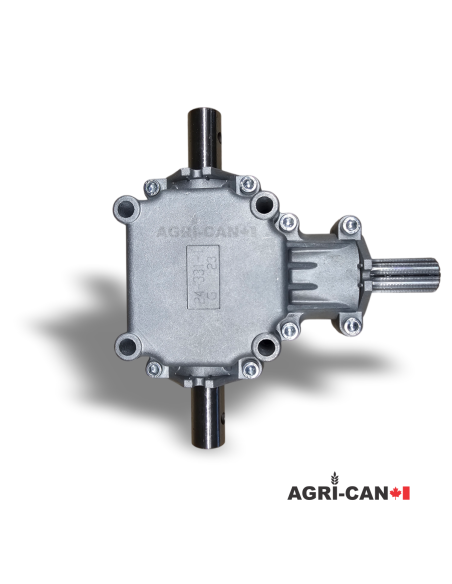

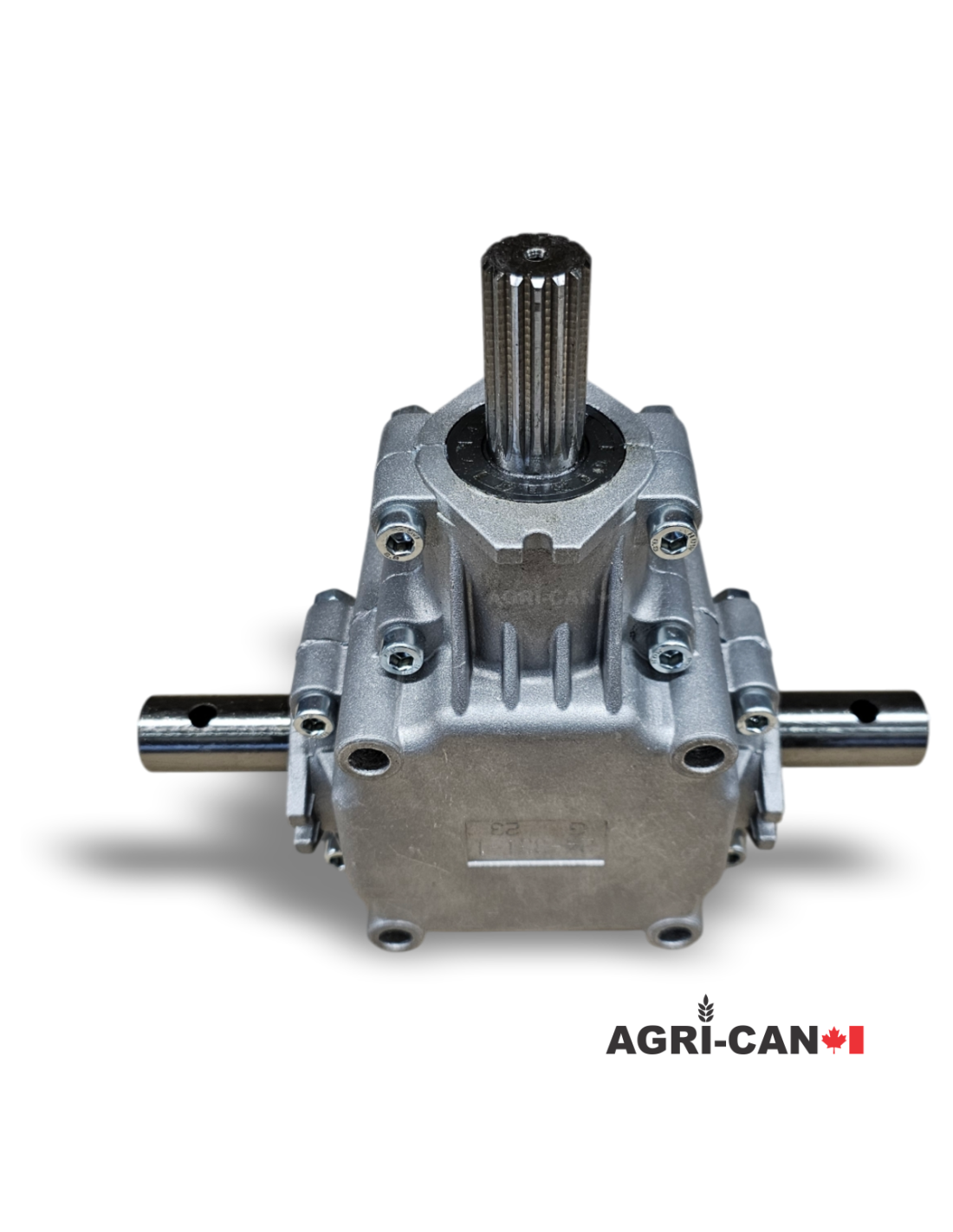

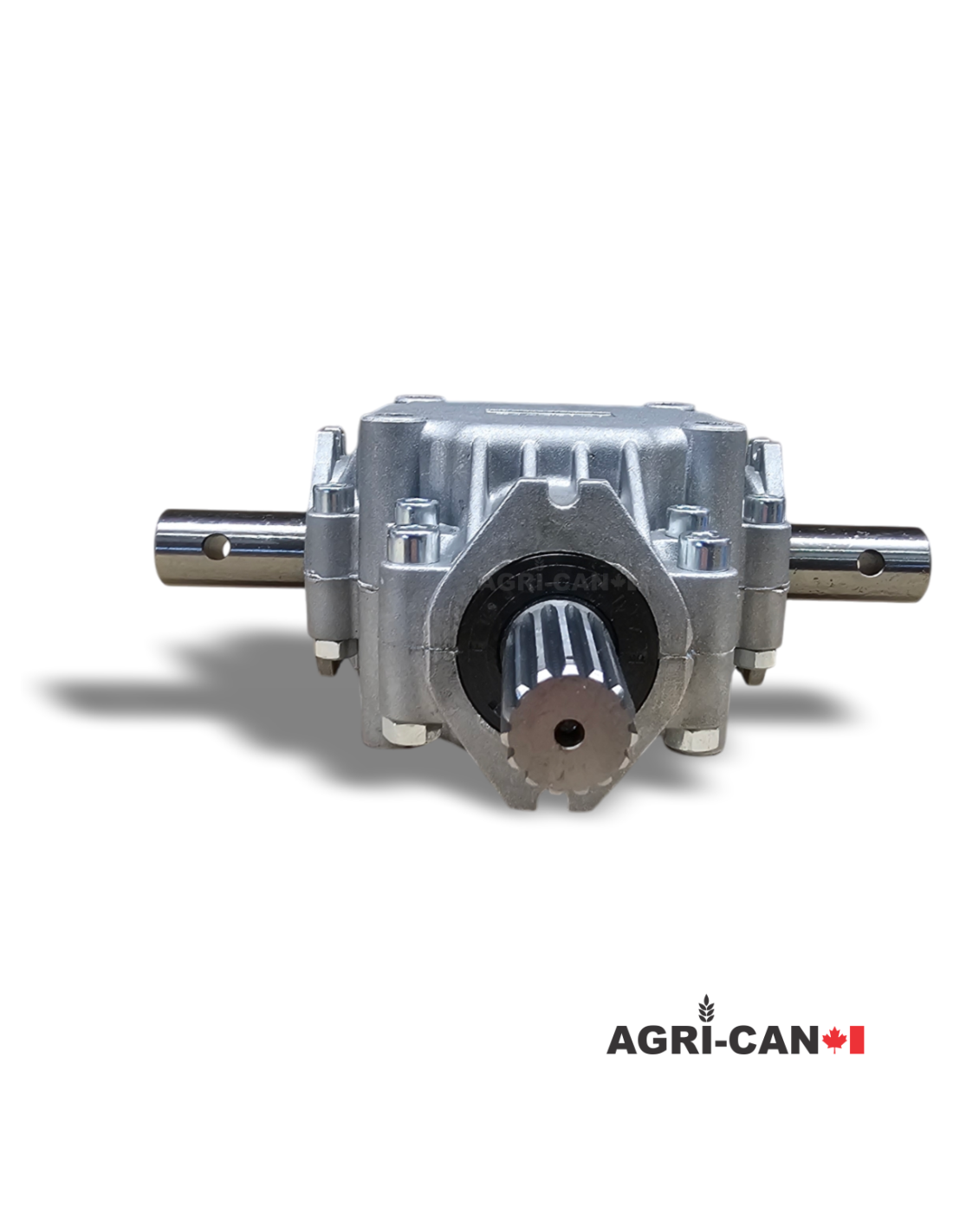

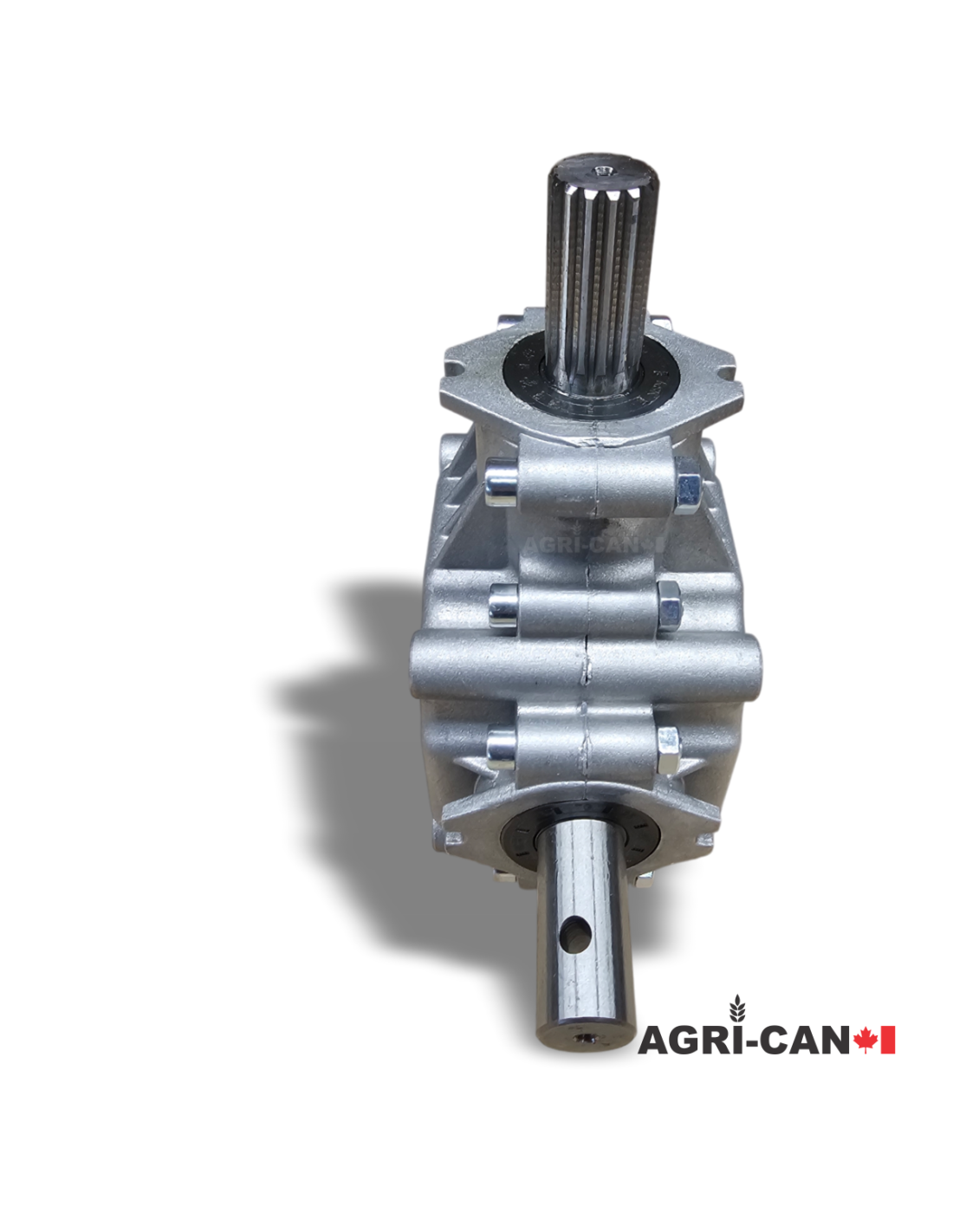

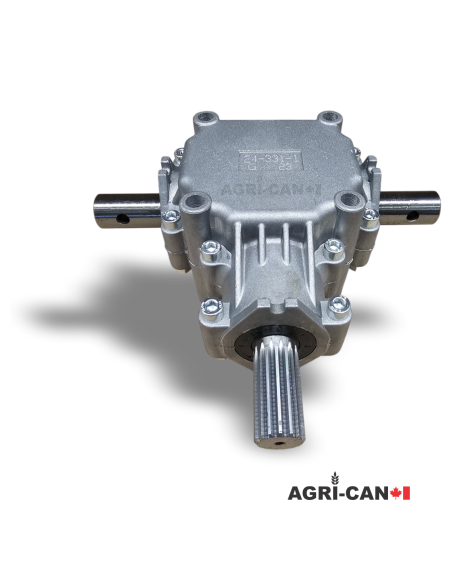

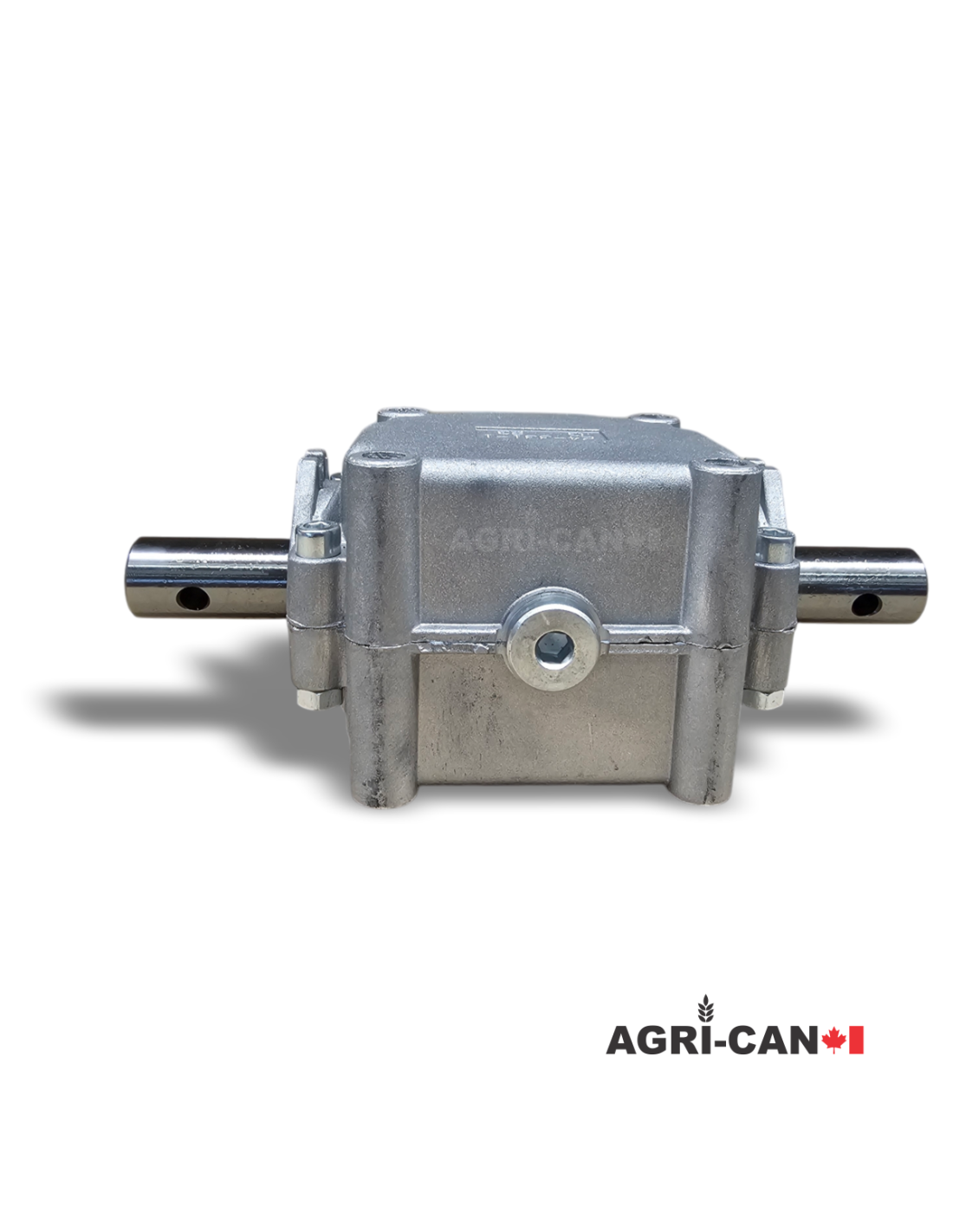

Snowblower Aluminum Gearbox - Ratio 1.5:1

OEM quality gearbox for many brands snowblowers and other applications.

• Cast aluminum housing
• Excellent quality
• Ratio 1.5:1
• 540 RPM - 11hp

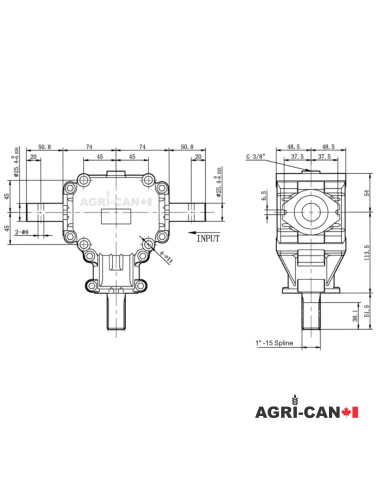

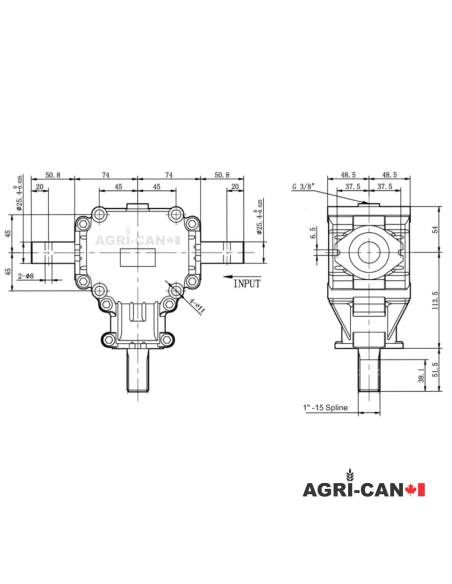

Dimension:

Tractor: 1’’ (25.4mm) – Round with 8mm hole

Auger outlet: 1'' - 15 spline (Length: 2")

Fan outlet: 1'' (25.4mm) - Round with 8mm hole (Length: 2")

Replaces OEM: L25A, 9.124.871.00, 9.124.871.10, 9.124.380.00, 9.124.380.00

IMPORTANT: The customer is responsible for verifying axle dimensions and lengths on the diagram before ordering. Returns and/or exchanges are the responsibility of the customer.

ATTENTION: The gearboxes are delivered without oil. You must fill this with SAE90 gear oil up to the height of the drain bolt behind the reduction gear once in place horizontally.
