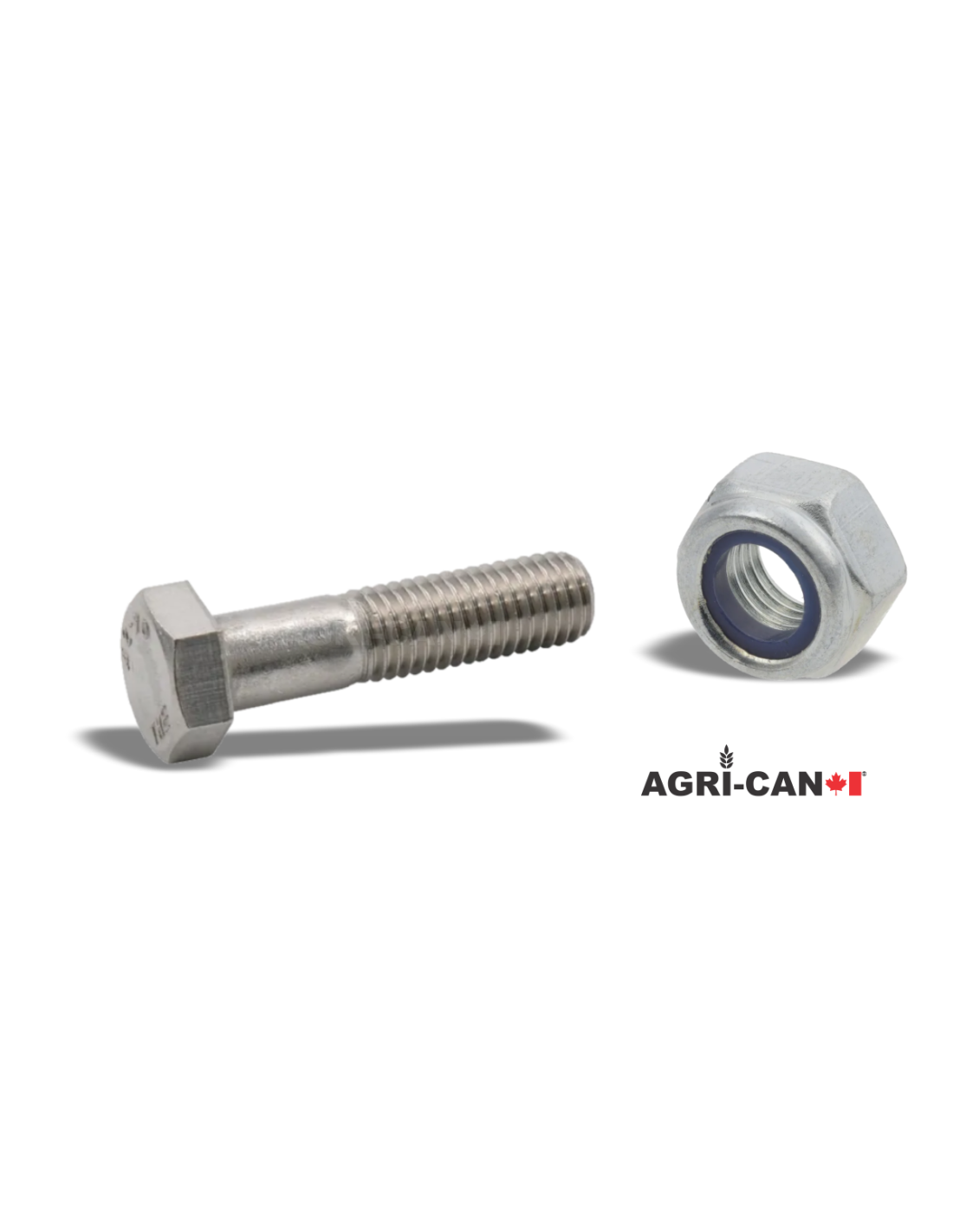

Includes: 4 bolts and 4 nylon insert locking nuts
Hexagon shoulder bolt for hammer blades, partially threaded. Length is measured below the head.

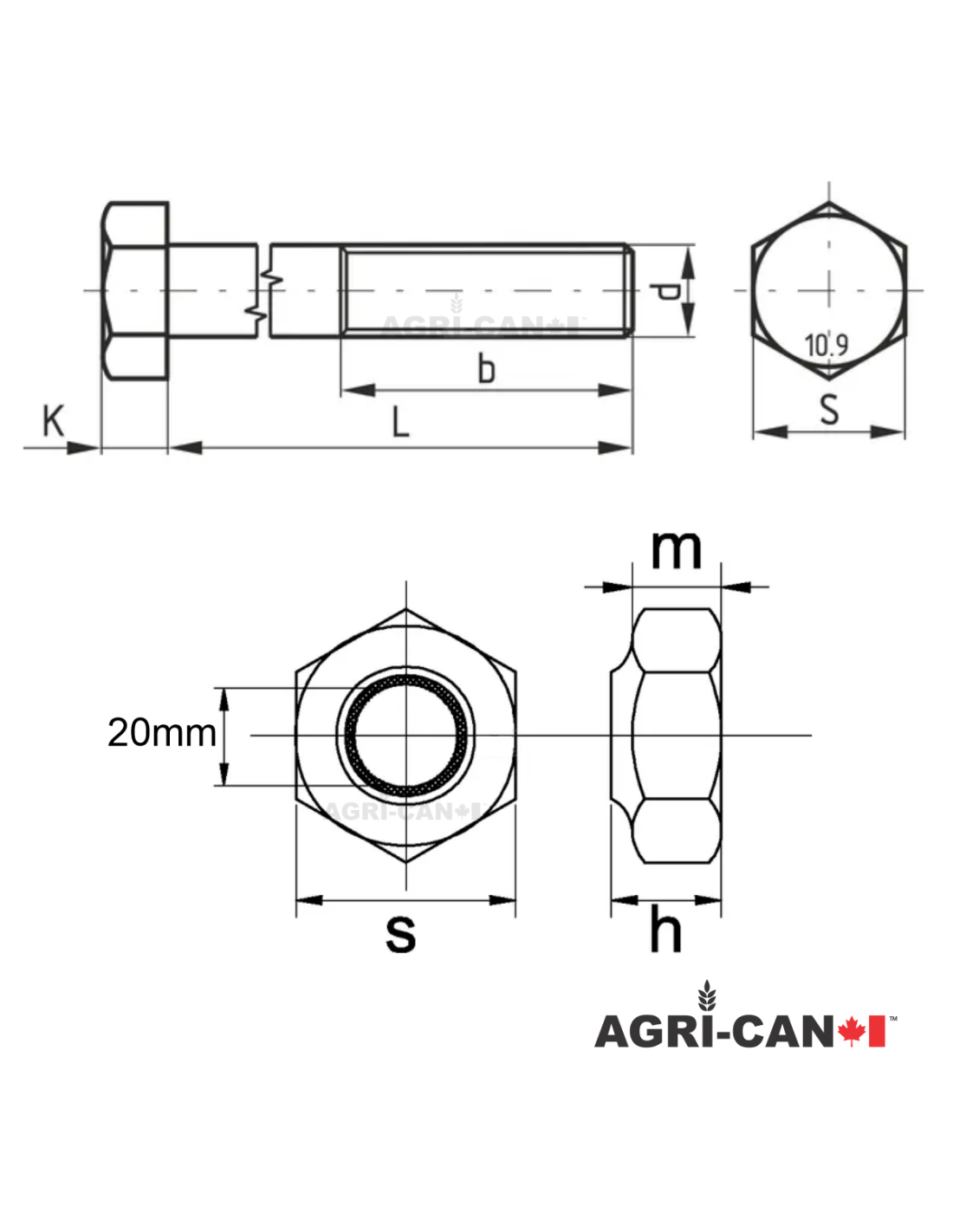

Measurements type |
Metric |
d - Thread diameter |
M20 |
Thread pitch |
1.50 mm |
l - Length |
120 mm |
b - Thread length |
46 mm |
Head shape |
Hexagon |
Thread type |
Metric |
s - Wrench/Spanner size |
30.0 mm |
k - Head height |
12.5 mm |
Quality |
10.9 |
Surface treatment |
Zinc-plated |
Material |
Steel |
DIN standard Bolt / Nut |
960 / 985 |
ISO standard Bolt / Nut |
8765 / 10511 |
OEM: F01010175, F20110092R, F20110092, 63-20121, 6320121, F01230258R, MA00551684, 014.90
