Flail Mower Bolts and Nuts - M16 X 90mm - 5/pack

Flail Mower Bolts and Nuts - M16 X 90mm - 5/pack

Name: Flail Mower Bolts and Nuts - M16 X 90mm - 5/pack
Brand: Agri-Can®
SKU: J1891003E
Price: 25.95 CAD
Availability: PreOrder

Flail mower hammer bolts and nuts kit for Berti, Maschio / Gaspardo, Rabe, Vicon, Kverneland and Other Flail Mowers. - Pack of 5 bolts and locking nuts.

Product backordered but available for orders - Will ship as soon as possible

$25.95

Resource Center

Description

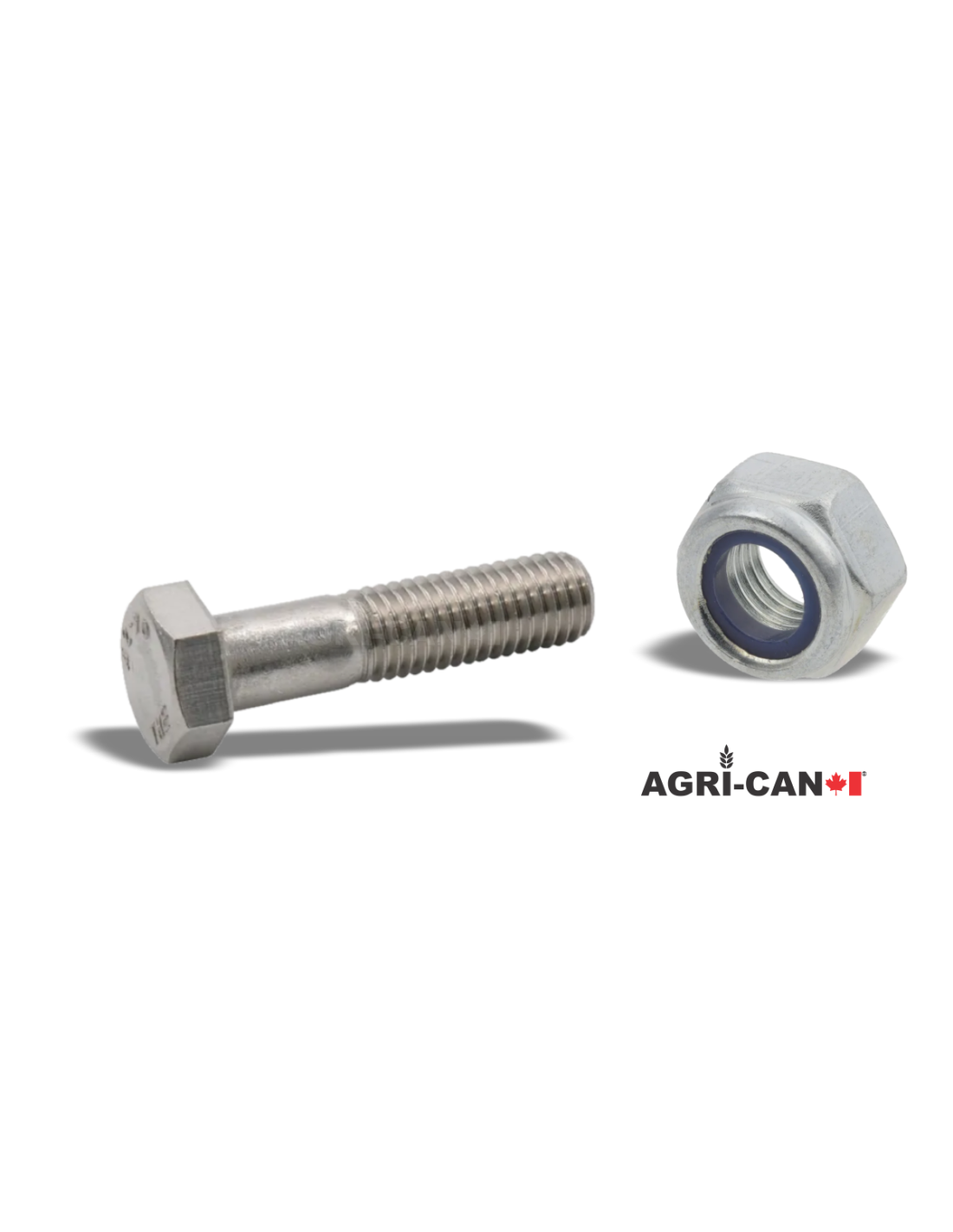

Includes: 5 bolts and 5 nylon insert locking nuts

Hexagon shoulder bolt for hammer blades, partially threaded. Length is measured below the head.

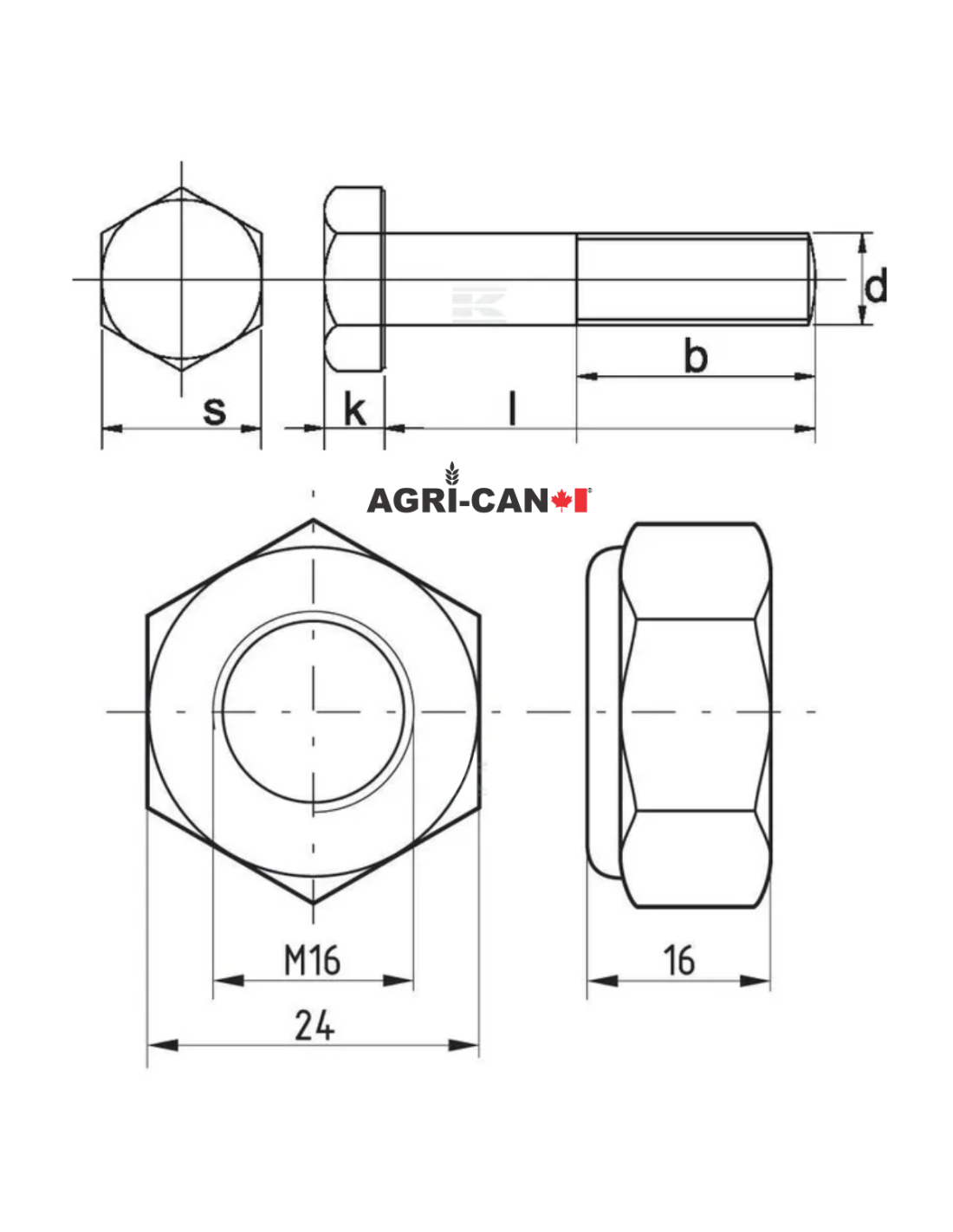

Dimension:

Measurements type	Metric
d - Thread diameter	M16
Thread pitch	2.00 mm
l - Length	90 mm
b - Thread length	38 mm
Head shape	Hexagon
Thread type	Metric
s - Wrench/Spanner size	24.0 mm
k - Head height	10 mm
Quality	10.9
Surface treatment	Zinc plated
Material	Steel
DIN standard Bolt / Nut	931
ISO standard Bolt / Nut	4014

Suitable for: Berti, Maschio / Gaspardo, Rabe, Vicon, Kverneland and Other Flail Mowers

OEM: J1891003, KG00555561, F01010121R, F01010122R, EQU000144R, EOZ000161R, F01020264R, F01020290R, F01020302R, F01030170R, G68140213R, 960D161590M, A100028300, KG00331661, KG00362662, KG00402300, 3013978, KG0481161, KK031909, KK032790, 30110322, 3013976, 3015370, 350616

Compatibility

Click on a brand name to show all compatible models

Berti

AF Series
AF/SSL Series
TA/P Series
TBM Series
TFB-R Series
TFB-Y Series
TSB Series (equipped with Y flail)
Park/P Series
Park/SB 90
Park/SB 110
EKR/S 180
EKR/S 200
EKR/S 220
EKR/S 250
EKR/S 280
EKR/S 300
TA 160
TA 180
TA 200
TA 220
TA 250

Maschio & Gaspardo

BRAVA 120F
BRAVA 140S
BRAVA 160S
BRAVA 180S
BRAVA 200S

Product Details

Compatibility by brand name: Berti
Gaspardo
Kverneland
Maschio
Vicon
Metric Diameter: 16 mm
Metric Threads: 2.00
Length - mm: 100 mm

Brand

Part Number J1891003E
