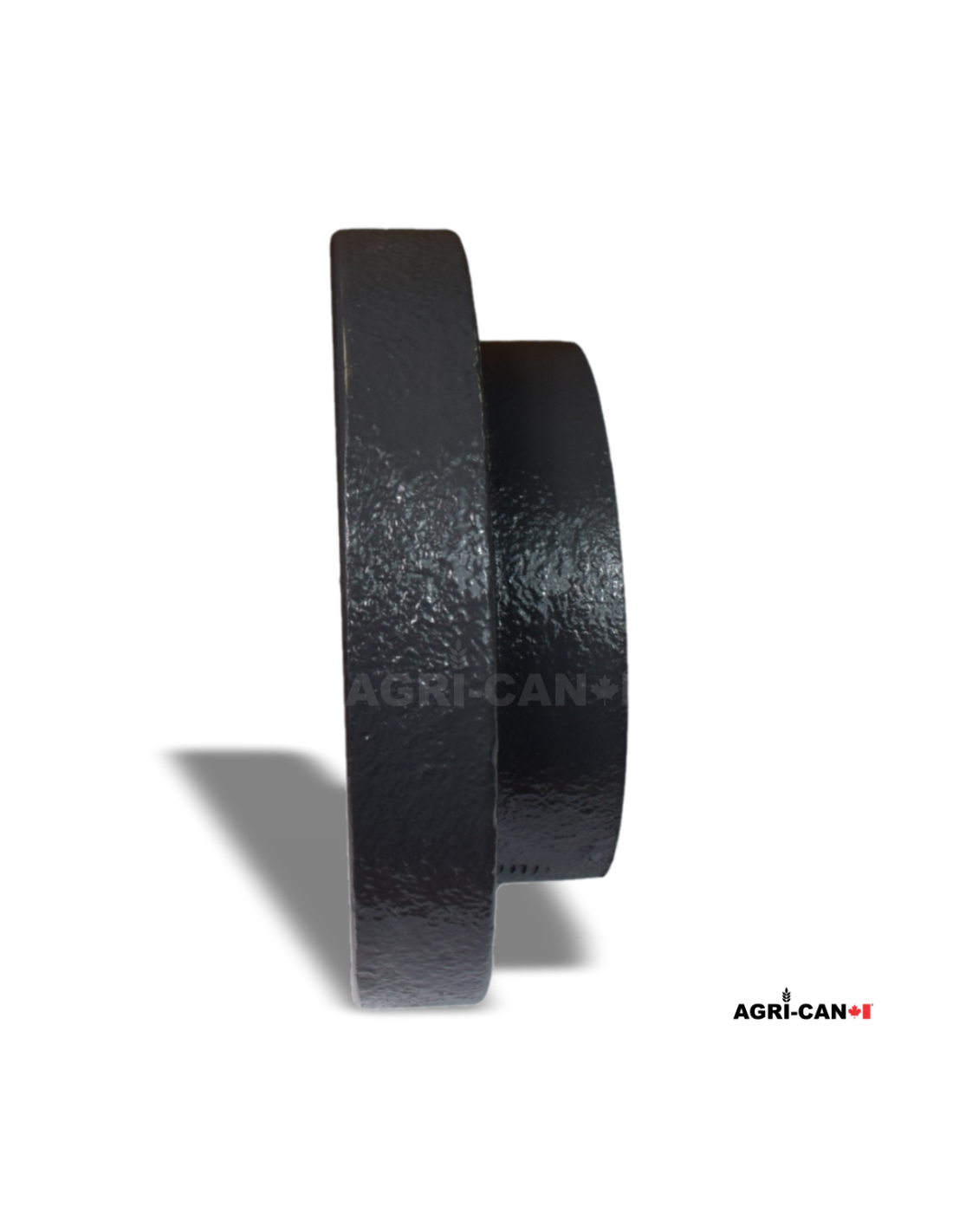

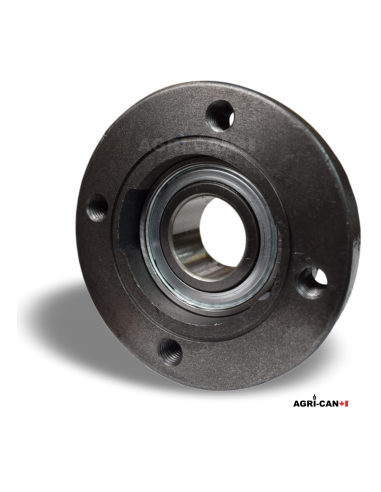

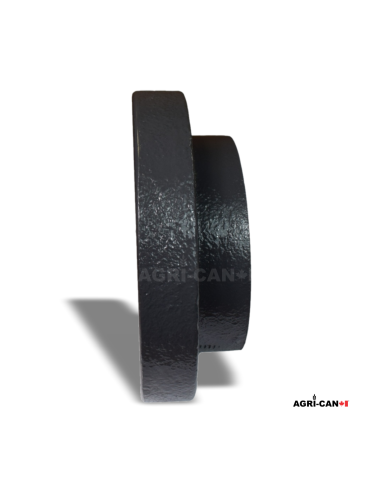

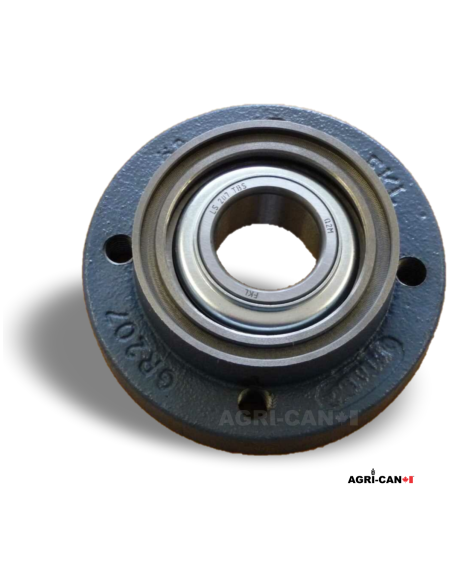

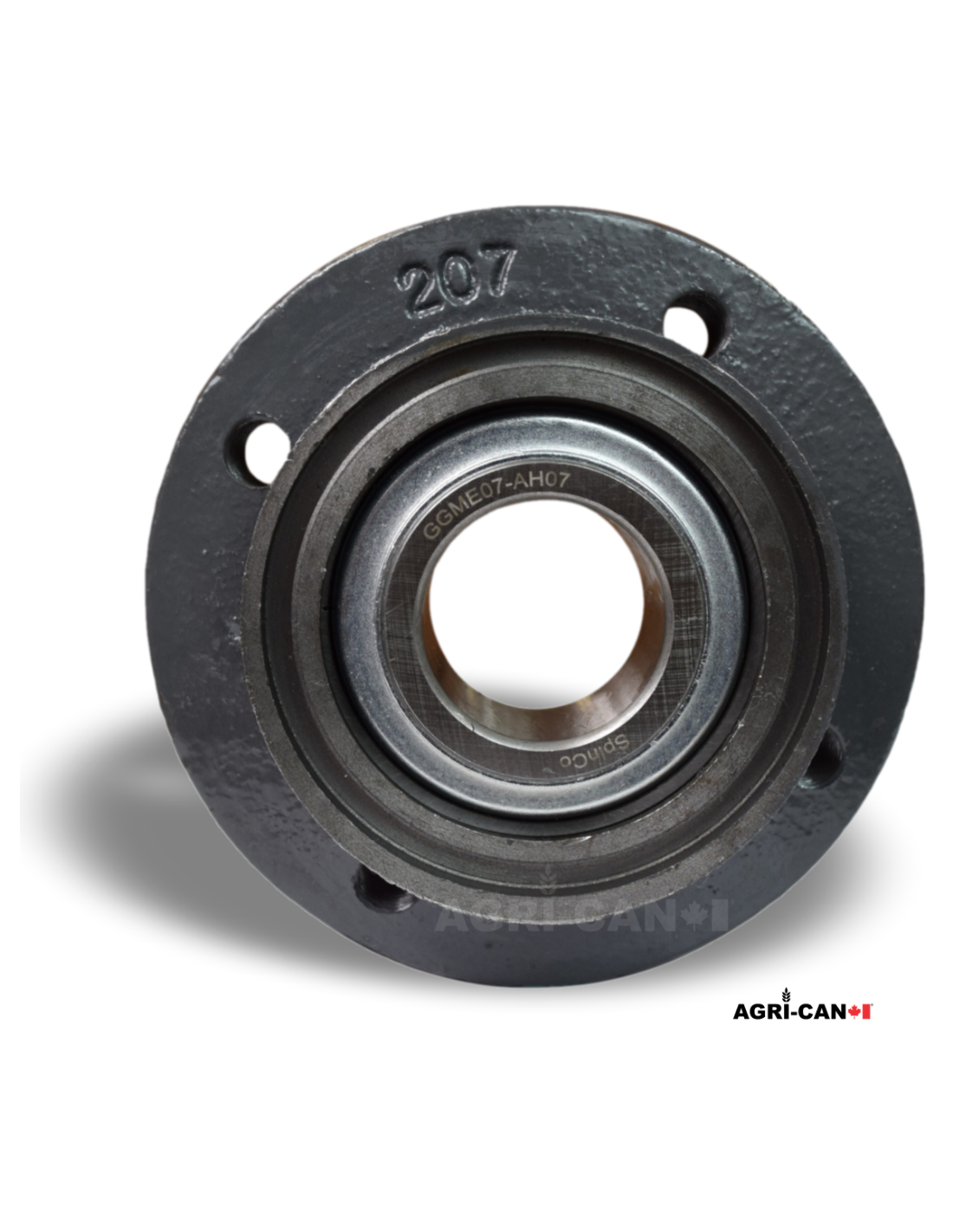

High-quality hub made in Europe for Lemken Heliodor, Karat, Kristall, and Rubin

In Stock
$79.99
Depending your choice at checkout. As fast as next day 8am

Resource Center

Description

High-quality hub made in Europe for Lemken.

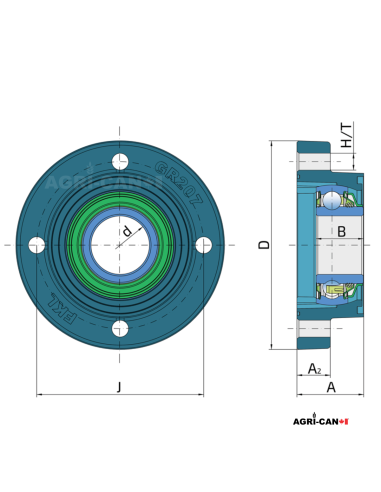

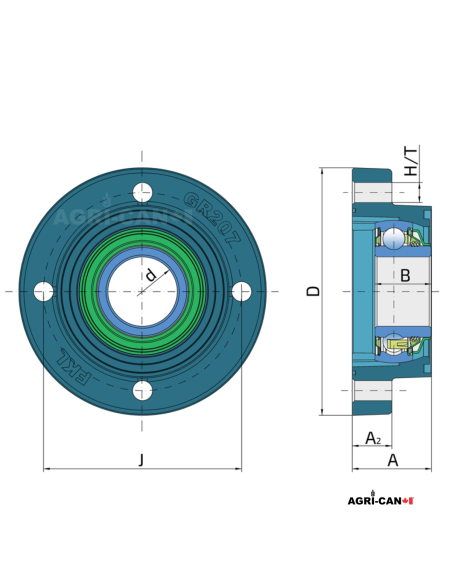

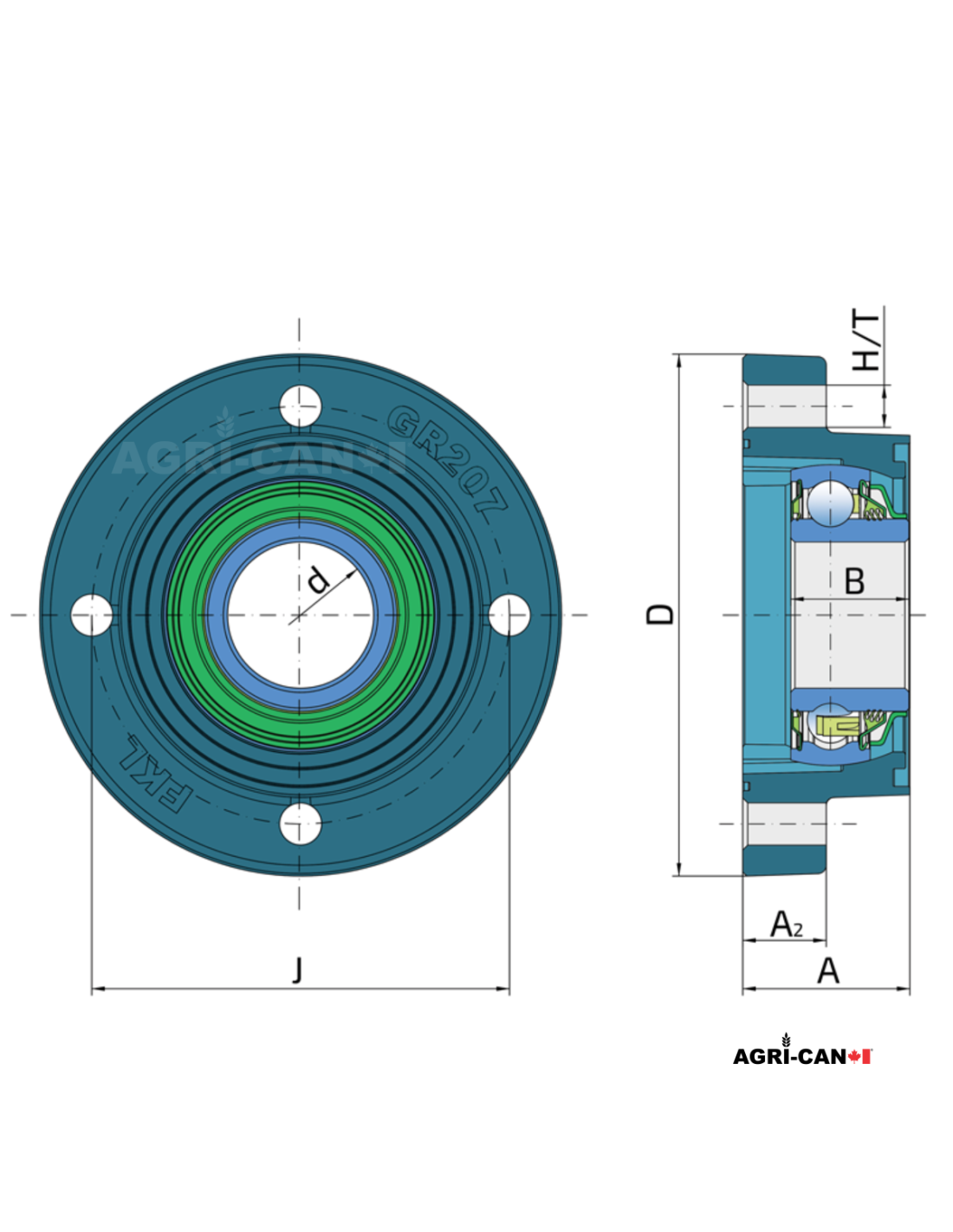

Specification

d

Bore diameter

35

mm

D

Outside diameter

125

mm

J

Pitch circle diameter

100

mm

H/T

Hole/Thread

M12

mm

A

Overall width

40

mm

A2

Housing flange thickness

20

mm

B

Width inner ring

28.3

mm

kg

Mass

1.7

kg

Co

Static load rating

15.3

kN

Cdyn

Dynamic load rating

25.5

kN

Pu

Fatigue load limit

0.64

Compatibility

Click on a brand to see compatible models

Lemken

  • Heliodor 8
  • Heliodor 9
  • Heliodor 12
  • Karat 9
  • Karat 10
  • Karat 12
  • Kristall 9
  • Rubin 9
  • Rubin 10
  • Rubin 12

Product Details

Compatibility by brand name
Lemken
3199372E
