Coupling kit for hydraulic valve SD8, DLS8, DLM140 SDM140, SDS140 - Kit TQ80 – From the original manufacturer in Italy

In Stock
$27.50
As fast as next day 8am depending on your location

Resource Center

Description

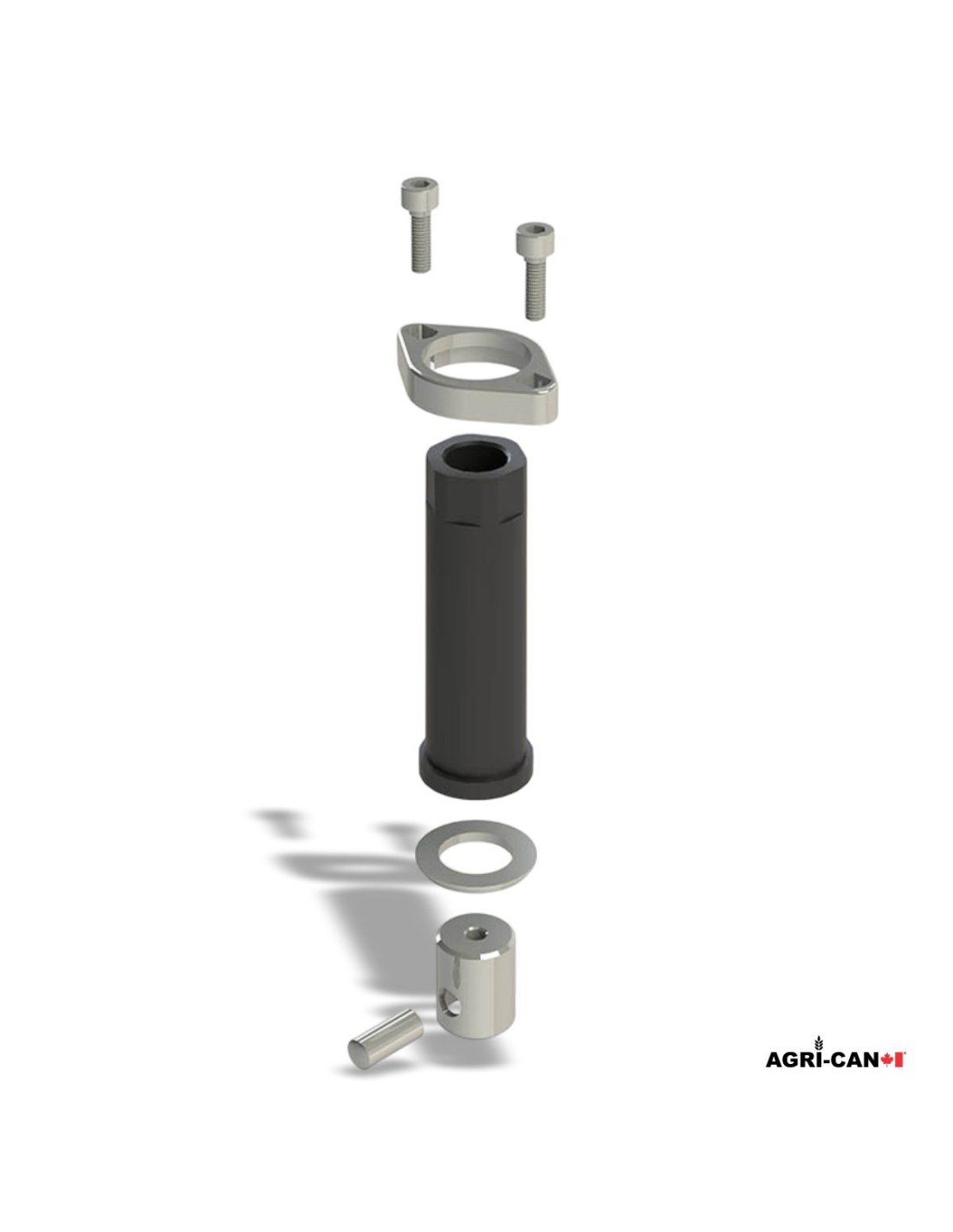

High-quality mounting kit for joystick and lever cable to hydraulic valve.

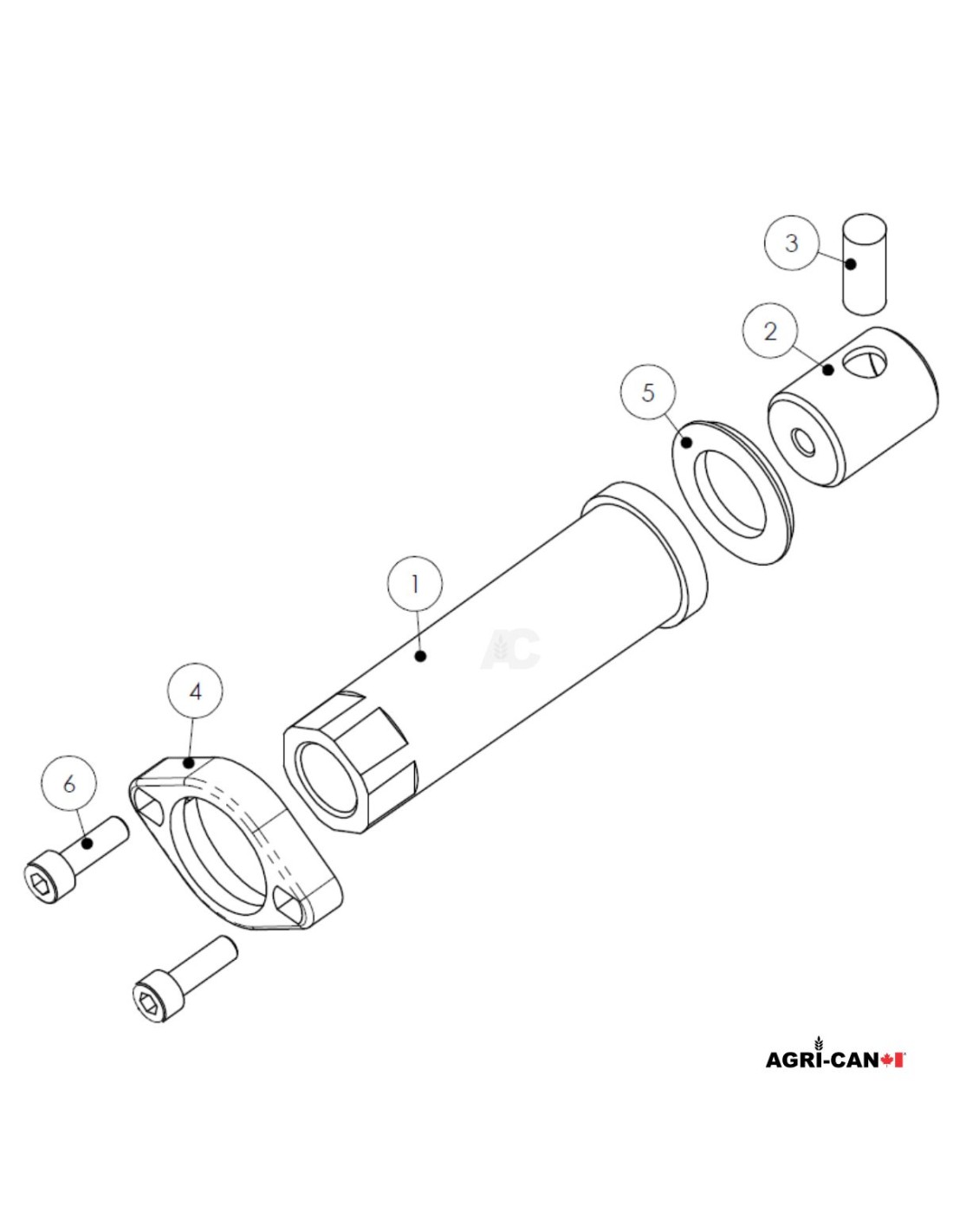

SPECIFICATION

1

Sleeve M16X1.50mm

2

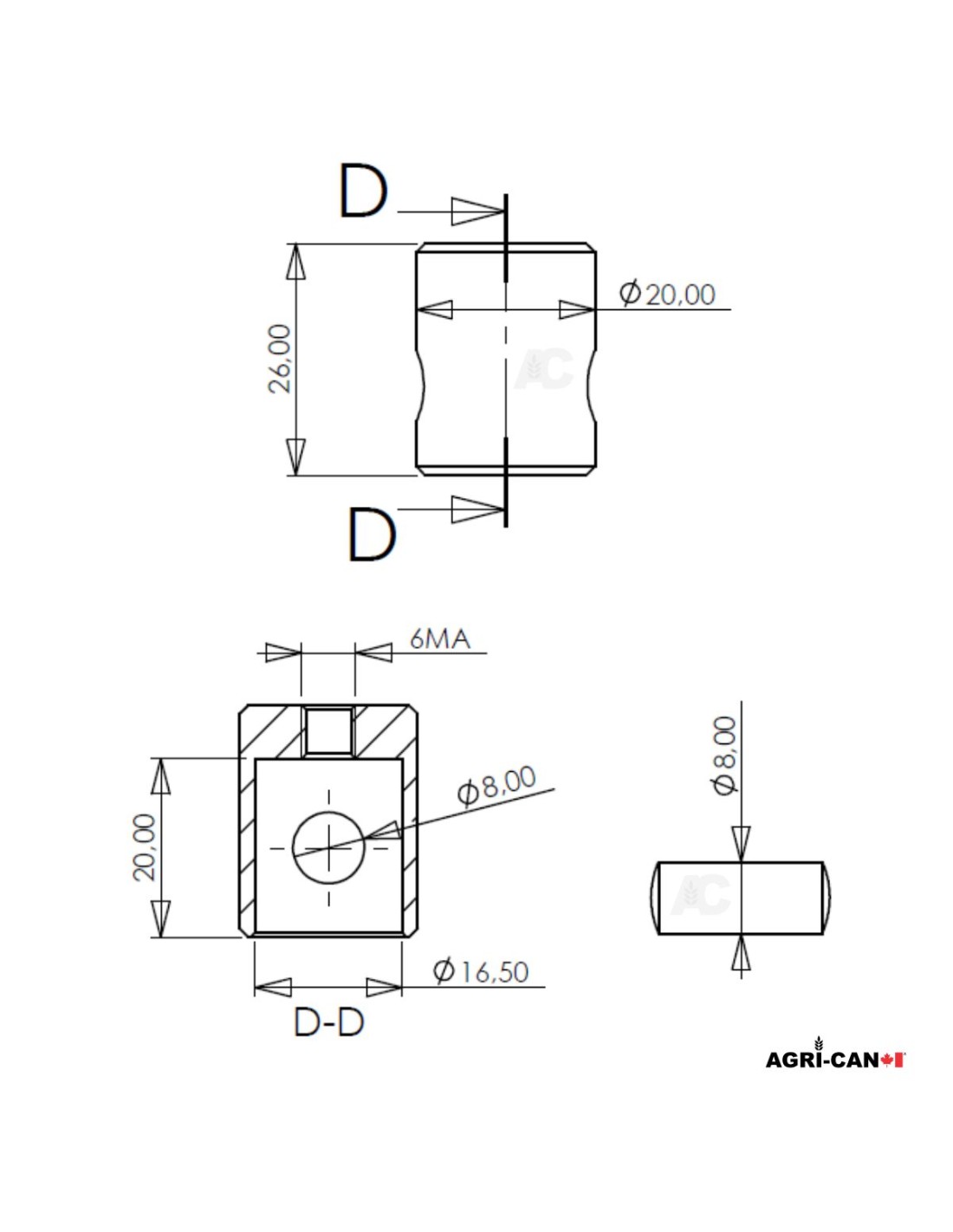

Bushing

3

Pin 8 mm

4

Flange

5

Spacer ring

6

(2x) M5x16mm Screw

DIMENSION

Center to center holes distance

36 mm

Outside diameter collar

28 mm

Total length

85 mm

Pin Size

8.0 mm

High-quality product made in Italy for Agri-Can by the original manufacturer of STOLL and ALÖ Quicke.

REPLACES OEM PARTS: 5TEL108110, TQ80, FK-212059, IMC98, HSL650-7, HSL800-7, 3CAP430951

Compatibility

Click on a brand to show compatible models

Walvoil

  • SD140
  • DLM140
  • SD8
  • DLS8
  • SDS140
  • 5TEL108110
Hyundai

  • HSL Skid Steer
  • HSL650-7
  • HSL650-7A
  • HSL850-7
  • HSL850-7A

Product Details

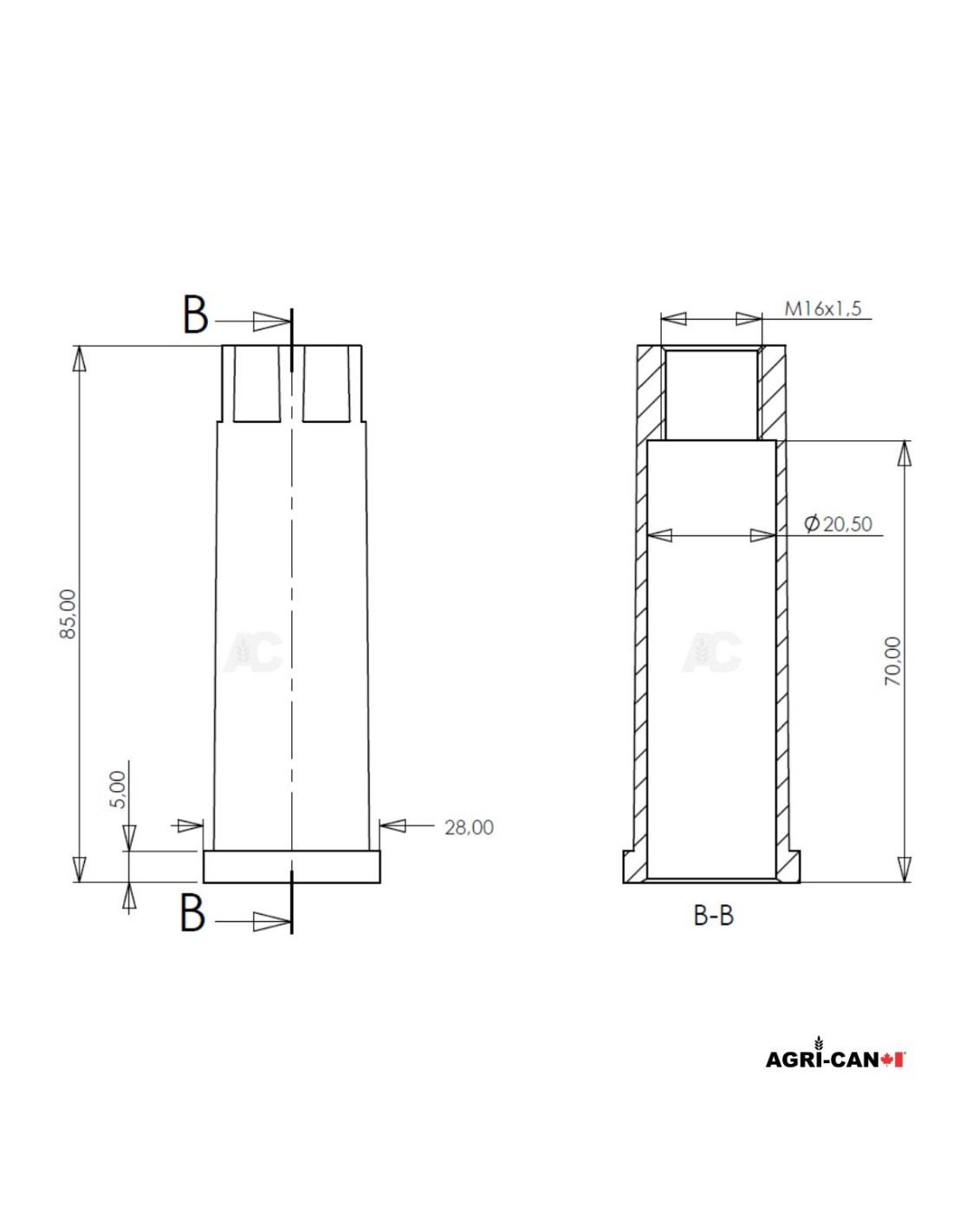

Total Length - mm
85 mm
Bushing Inside Diameter - mm
20.50 mm
Pin Diameter
8.00 mm

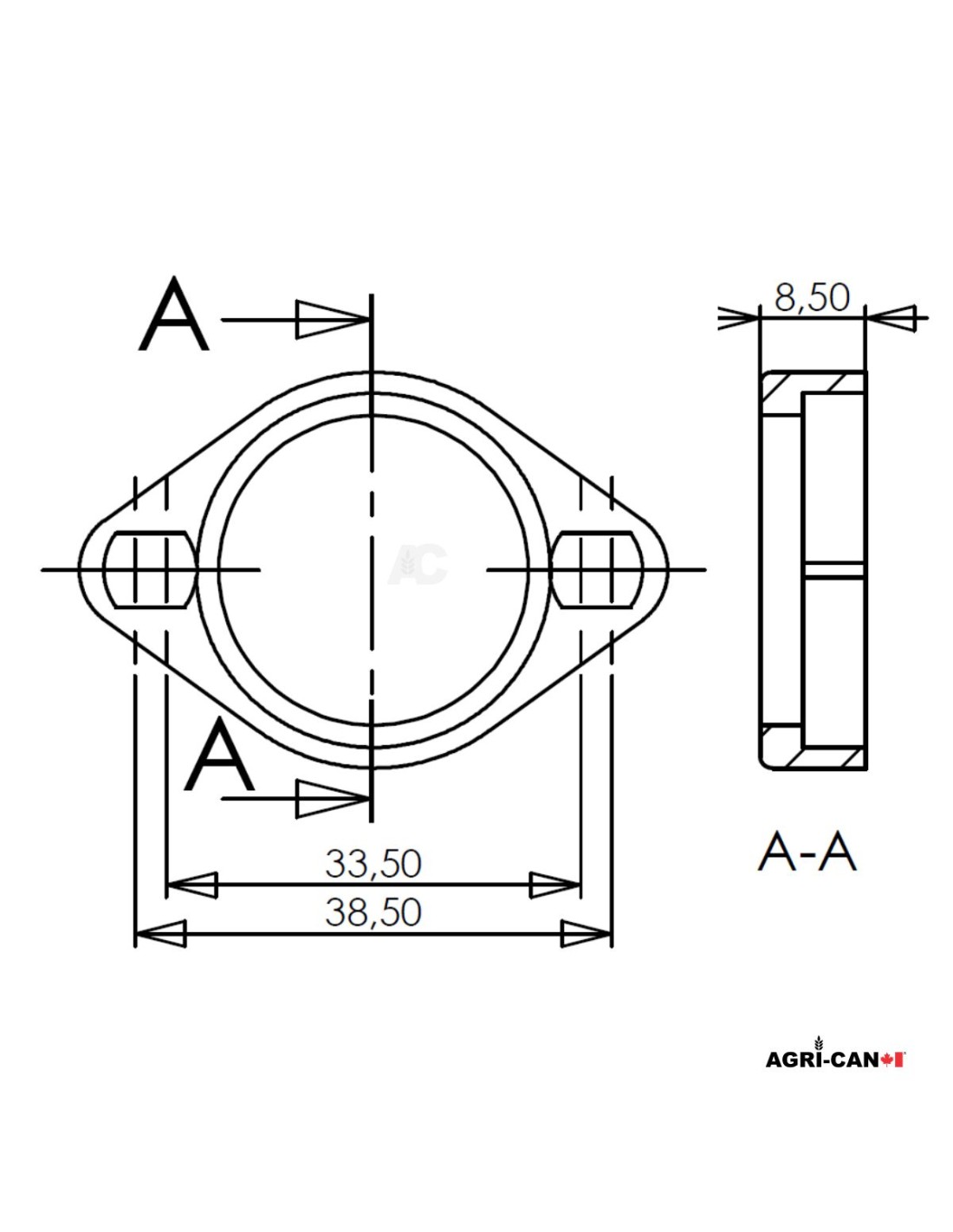

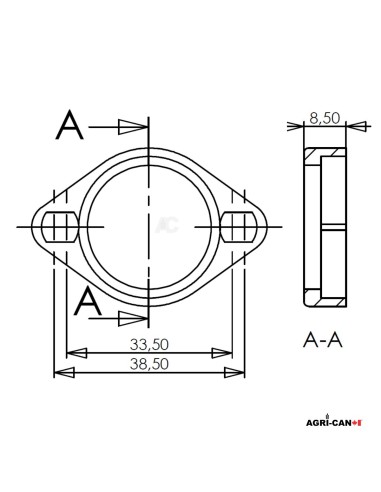

Flange bolt spacing
33.5 - 38.5 mm
FK-212059
