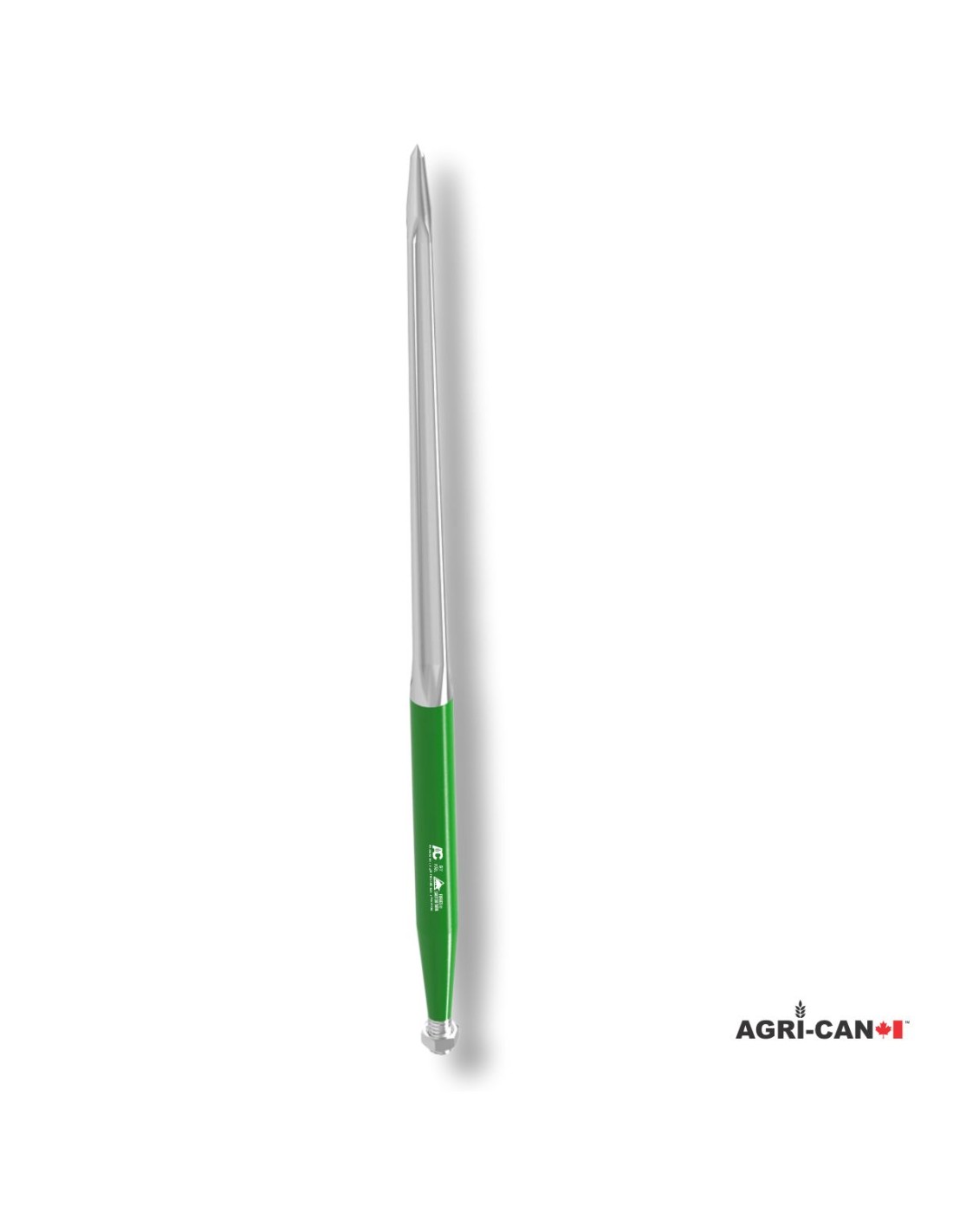

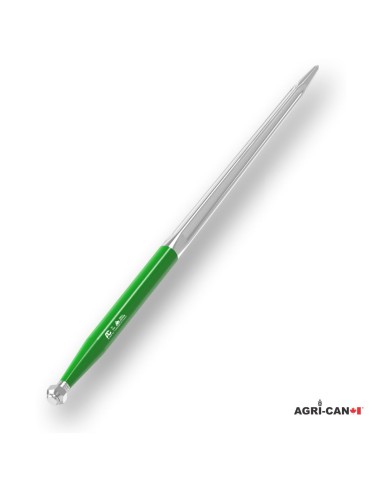

53'' Front Loader Tine for John Deere Frontier

Name: 53'' Front Loader Tine for John Deere Frontier
Brand: Forges du Saut du Tarn
SKU: 5FP0710150E
Price: 182.05 EUR
Availability: InStock

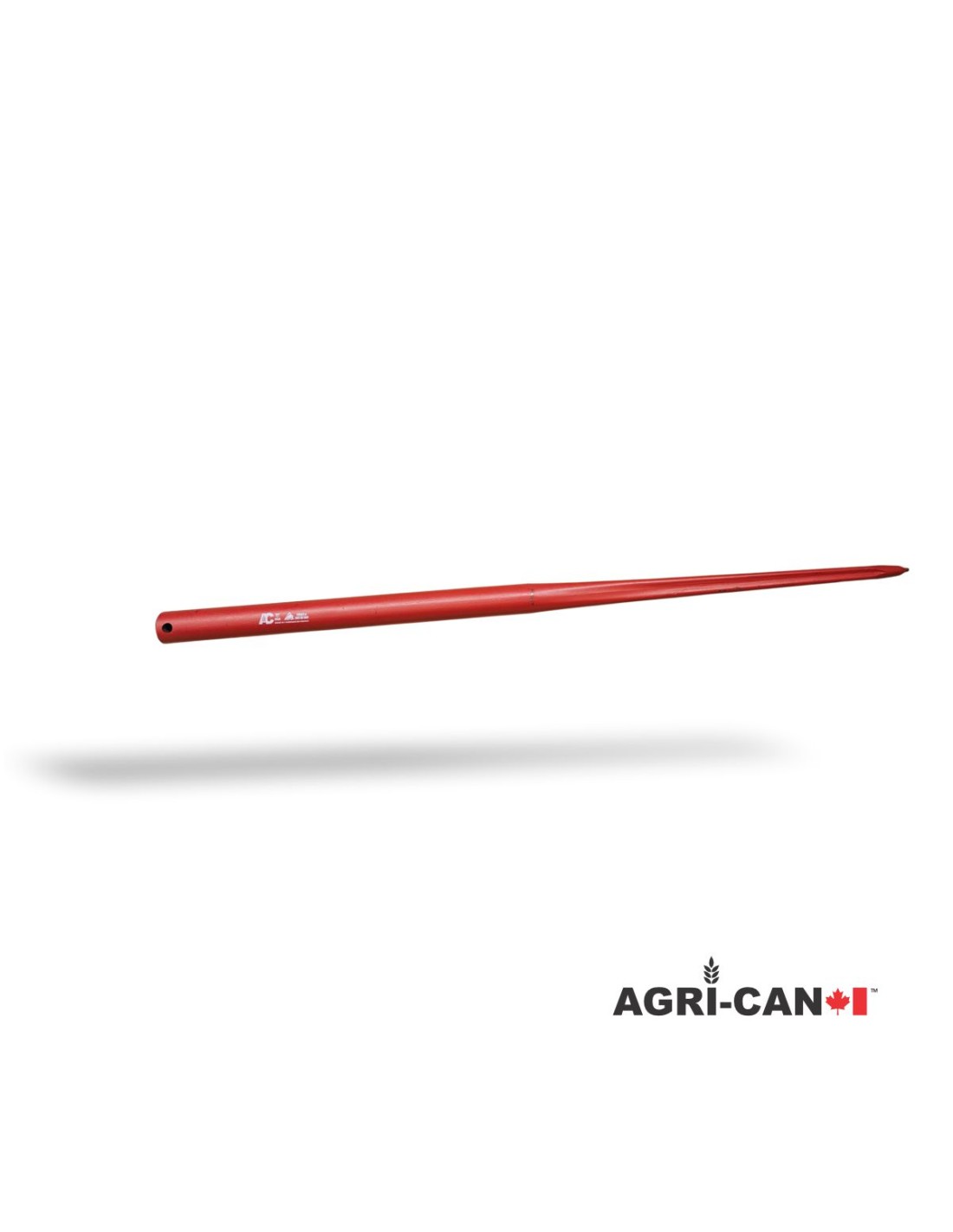

Forged round bale spear 55mm X 1250mm (2’’ X 49’’) replacement for John Deere Frontier and Paladin from the John Deere OEM forge.

In Stock

€182.05 €202.28 -10%

As fast as next day 8am depending on your location

Time left

Resource Center

Description

Straight front loader and silage tines

Manufactured in France by the same manufacturer as John Deere and Kverneland OEM parts.

Specification

Shape	Straight
Fitting type	Bolt and nut
Length	53"
Max diameter	2.25"
Profile shape	Star
Point shape	Point
Color	Red
Bolt required	5MP1124E

Replaces : 5FP0710150, 0710150, 07-10150, JD5FP0710150, AW30547

Spear profile is rolled with state-of-the-art robot technology.
Tines: hardened and tempered (hardness 45 – 49 HRC)
Tine cone and thread are CNC machined.
Each tine is straightened at the end of the production process and checked visually.
Environmentally friendly and livestock-safe high-resistance water-based coating.
Only tested products receive the double quality seal (Agri-Can and Forges du Saut du Tarn logos, and production date).
Our products are “Made in France.”

Compatibility

Click on a brand name to show compatible models

Frontier

AB11
AB12
AB13
AB14
AB15
AB15A Bale Carriage (800 Series Loaders)
AB18
AP11
AP12
AP13

Paladin

11910
11920
10712

IMPORTANT

DANGER TO YOUR LIVESTOCK

Tests conducted on our test bench by our engineers have shown that the coating used on some competing hay tines is powder-coated or thermoplastic. This type of coating tends to flake, as illustrated in the yellow-highlighted area in the photo above.

These flakes can end up in the hay and be ingested by livestock, posing a serious risk to animal health and to feed safety. The Canadian Food Inspection Agency (CFIA) strictly regulates the presence of physical contaminants in animal feed.

The lower tine shown is an Agri-Can model, tested simultaneously. Our test bench is designed to test two tines at the same time. Notice the smooth coating, with no steel or paint flaking on the Agri-Can tine.

Our high-resistance, flexible coating is a water-based formulation, free of solvents and added plastics. It is specifically engineered to adhere durably to metal and to significantly reduce the risk of flaking under real-world agricultural operating conditions.

HIGHEST-QUALITY PRODUCTS ENTIRELY MANUFACTURED IN FRANCE

Founded in 1828 in Saint-Juéry, France, Forges du Saut du Tarn (FSDT) has maintained uninterrupted steel and tool production ever since.

Through our partnership with FSDT—OES manufacturer of original John Deere and Kverneland® tines—we have developed hay tines exceeding OEM durability standards, validated by engineering tests.
Agri-Can further ensures performance through rigorous testing at our Canadian headquarters.

Below, discover a video introducing Forges du Saut du Tarn.

SEAL OF GUARANTEED QUALITY

At Agri-Can, quality is never left to chance.
Each hay tine undergoes a double series of rigorous tests to ensure performance and durability:

First inspection conducted by Forges du Saut du Tarn (FSDT), including strength and compliance testing prior to shipment.
Second verification performed at Agri-Can’s headquarters, where samples are tested on our in-house test bench to confirm and validate results.

This dual validation process makes Agri-Can the only company on the market to provide such a comprehensive quality control system, with both logos applied to each part as a guarantee of authenticity.

For complete traceability, each hay tine is steel-engraved with its batch number and production date, ensuring transparency and full compliance.

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER	CAPACITY	TORQUE
Conus I – 1-3/8’’	1300 lbs	332 lbf. ft
Conus II – 1-3/4’’	2500 lbs	516 lbf. ft
Conus III – 2’’	4400 lbs	516 lbf. ft
