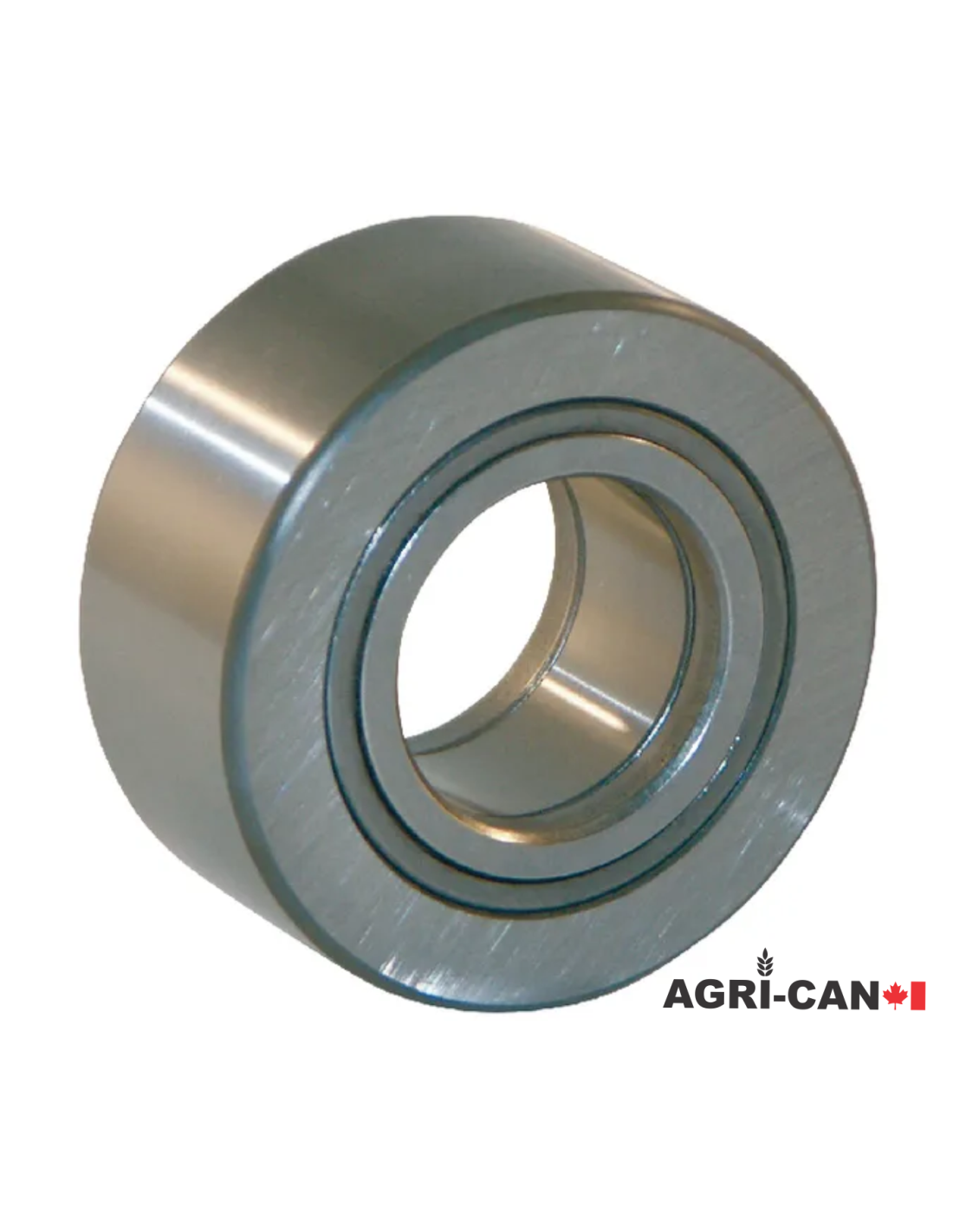

Track Roller Bearing NUTR40

Track rollers single and double-row FK Bearings, series nutR

Details

• Labyrinth seal
• Thick-walled outer ring
• Track is slightly ball-shaped

Application range

• Packaging machines
• Transport systems
• Roll-up doors
• Roller tensioners

Properties

• With axial guidance via driving disc
• Roller bearing is fully rolling

Benefits

• Reduces friction and lubricant use
• Can absorb high radial loads
• No forces on edges with uneven standing

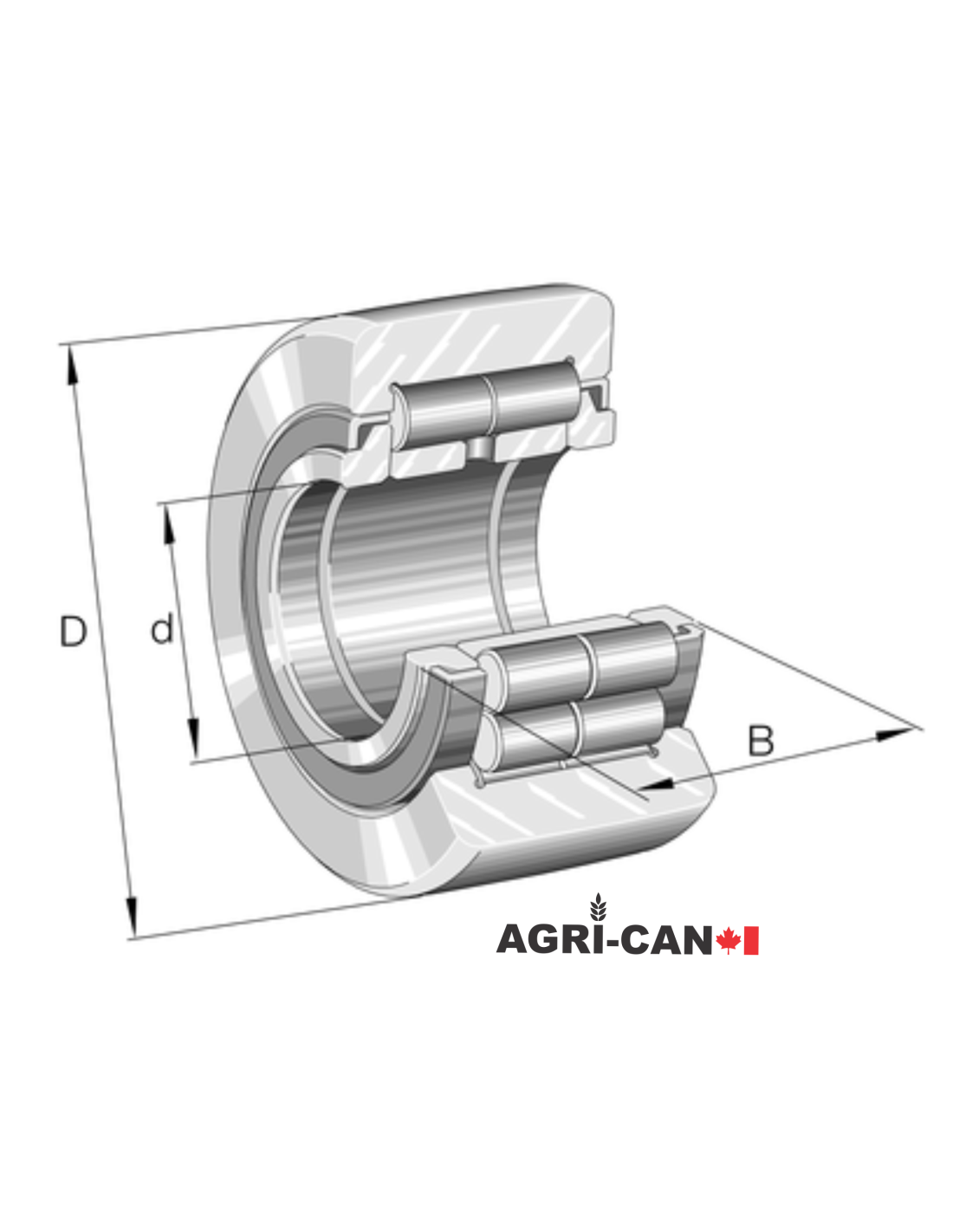

DIMENSION

d Inside diameter: 40 mm

D Outside diameter: 80 mm

B Width: 32 mm

Sealing: ZZ

Bearing model type: Track rollers - Needle bearing

Rows number: 2

Outer ring width: 30 mm

Max working temperature: 140 °C

Min working temperature: -30 °C

Regreasable: Yes

Weight: 0,816 kg

Original number equivalent: NUTR40-A
