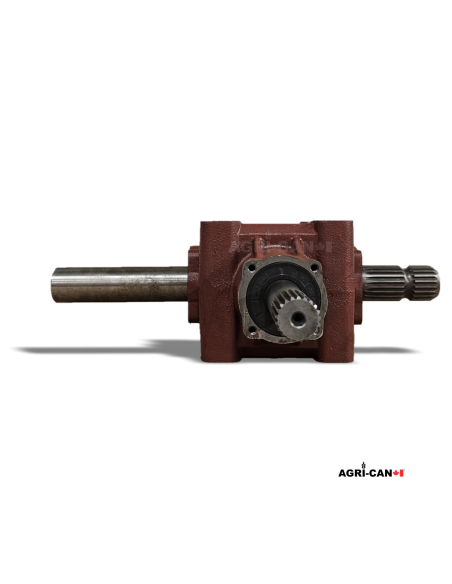

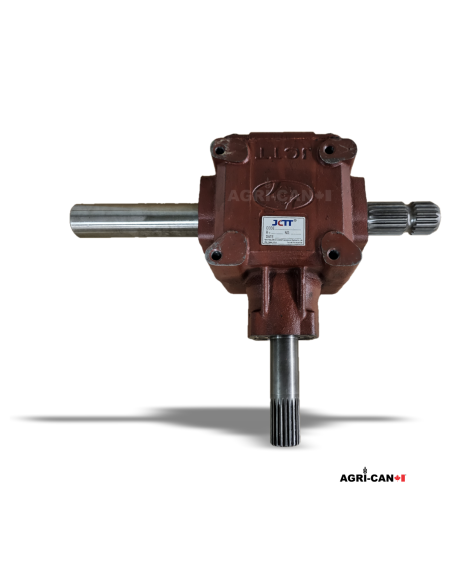

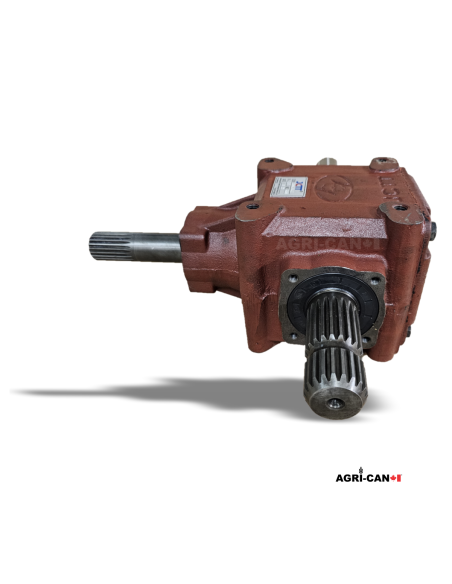

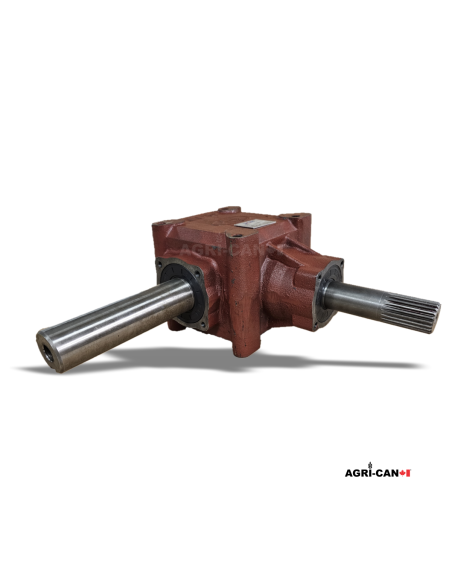

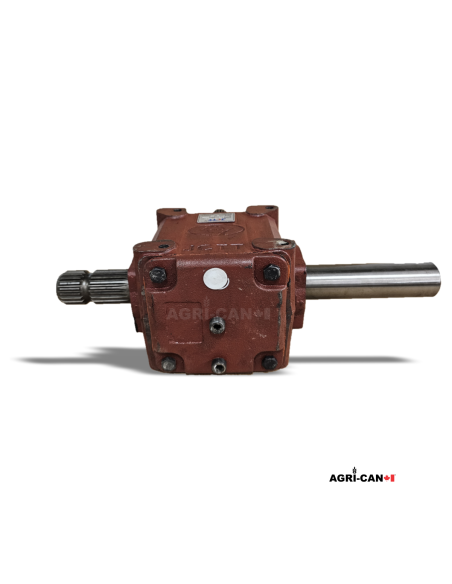

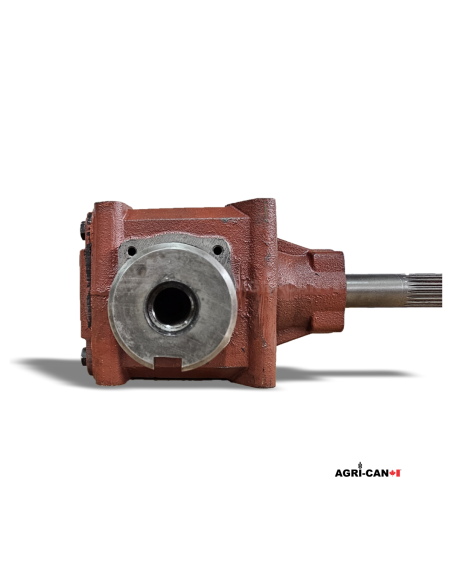

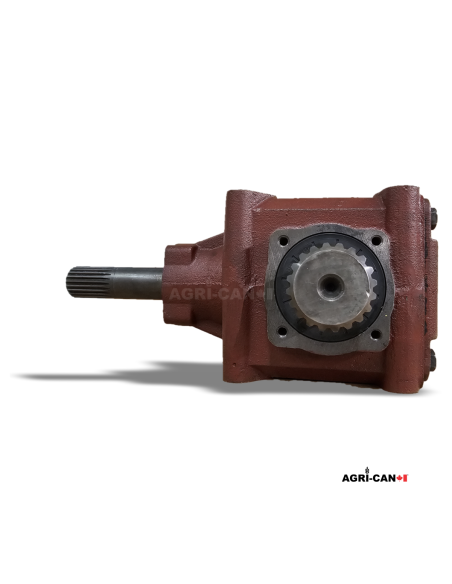

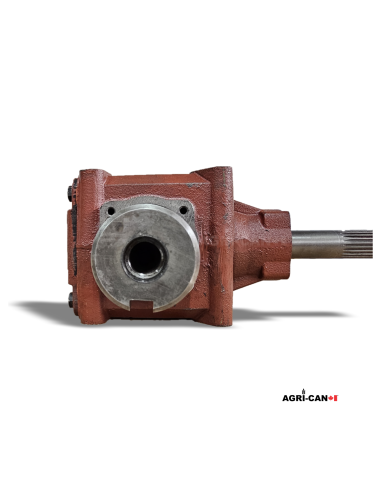

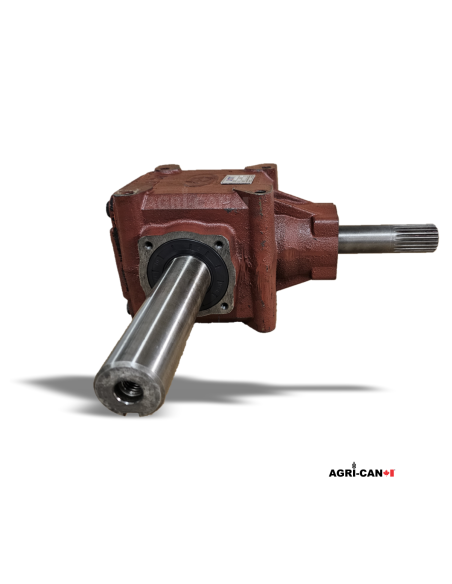

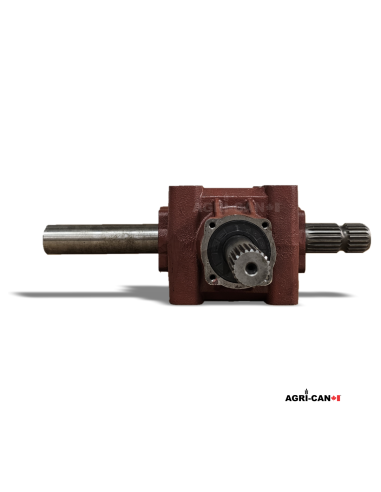

Cast Gearbox T27D - 1-3/4'' - 1000 rpm

Name: Cast Gearbox T27D - 1-3/4'' - 1000 rpm
Brand: Agri-Can®
SKU: T27D-1-3/4
Price: 599.95 CAD
Availability: InStock

PTO shaft 1¾''-20 (1000 rpm). Blower shaft 1¾'' round with ⅜’’ keyway. Auger shaft 1⅜’’-21. Perfect for snowblowers and any other application.

In Stock

$599.95

Depending your choice at checkout. As fast as next day 8am

Resource Center

Description

Gearbox ratio 1:1.
High-quality cast
PTO 1000 rpm
Weight: 52 lbs

Dimension

PTO Shaft (A): 1¾'' - 20 spline
Auger shaft (B): 1⅜’’- 21 spline
Blower shaft (C): 1-3/4’’ - Round with ⅜’’ keyway
Blower Shaft Length (C): 6.125''
Blower Shaft Locking Bolt (C): ⅝''-11
Overall Height: 6.125''
Bolt Pattern: 5.000'' center-to-center
Bolt Size: ½''-13

ATTENTION: The gearboxes are delivered without oil. You must fill it with SAE90 gear oil up to the height of the drain bolt behind the gearbox once in place horizontally.

Product Details

Compatibility by brand name: Comer
John Deere
Kubota
Pronovost
Bolt Center-toCenter Length (e): 5.00''
Ratio: 1:1
PTO Shaft: 1-3/4'' - 20 Spline

Brand

Part Number T27D-1-3/4

In stock 98 Items
