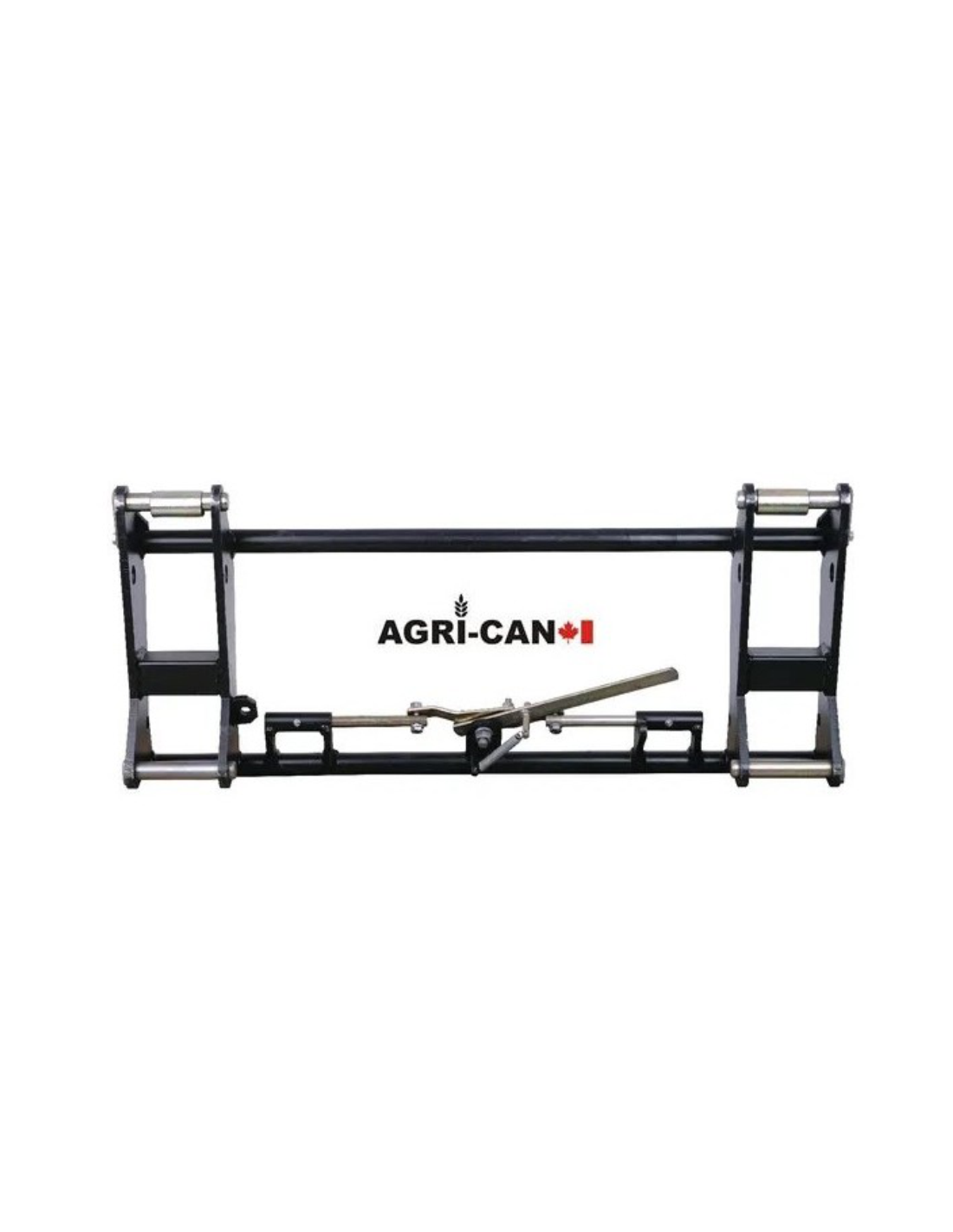

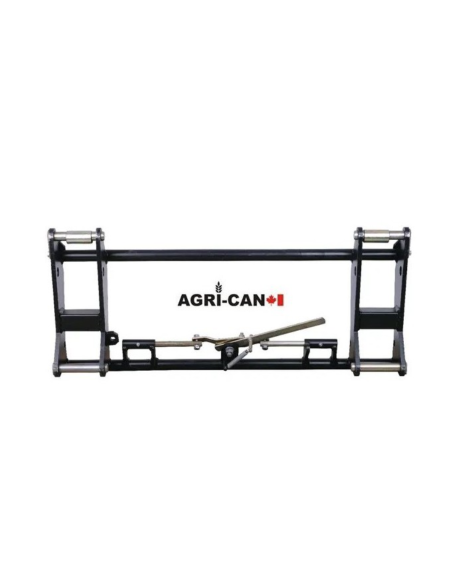

Quick change frame - Mechanical locking for tractor loader (ALO Euro) - Fits most
Homologated: CE Approved
Compatible: ÄLO, Euro-Norm, STOLL, Quicke and others
Specifications |
Equipment can be quickly and easily attached using the quick attach system Equipment is locked in place with just one movement of a lever |
|
Benefits |
Saves time Safe operation |
|
Application |
Suitable for virtually all front loaders and small-wheeled loaders Equipment with European standard mounting |
|
Maximum load capacity |
2.000 kg (4400 LBS) |
|
Connection |
ALO Euro |
|

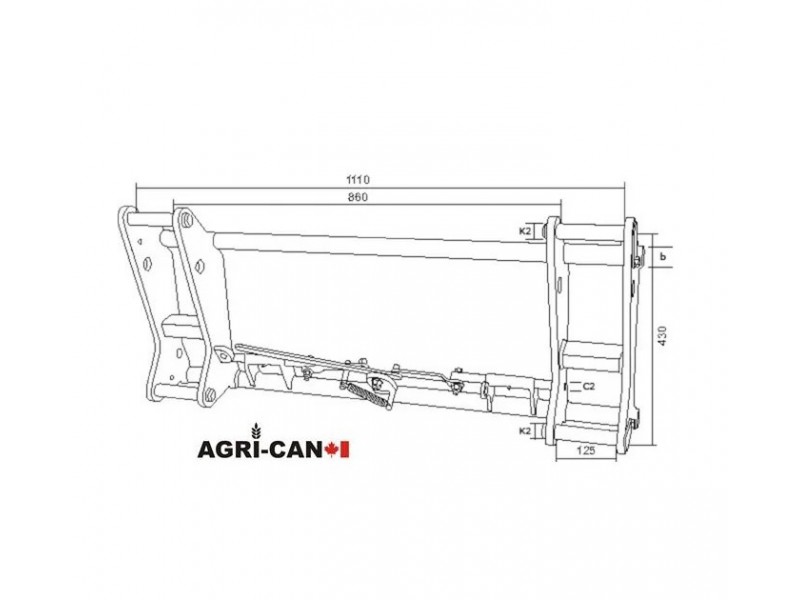

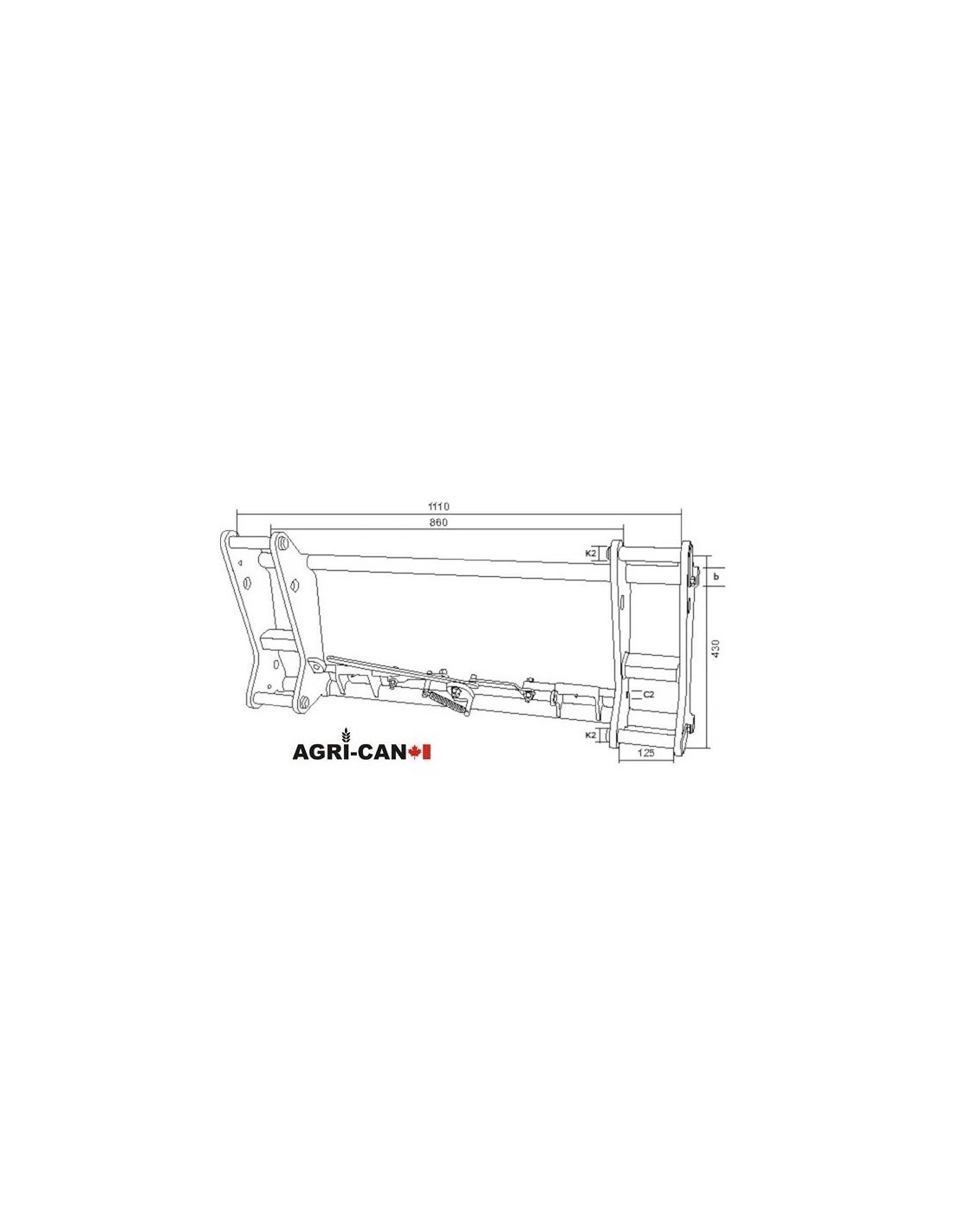

k2 Pin above Ø |
30 mm |
|
c2 Pin under Ø |
20 mm |
|
b Thickness |
40 mm |
|
Width |
1110 mm |
How to ensure proper fitting:
Remove any harness that may be in place on your loader. Measure the total width outside the arms of the loader. Then measure the distance between the 2 loader arms. (Inside the arms)

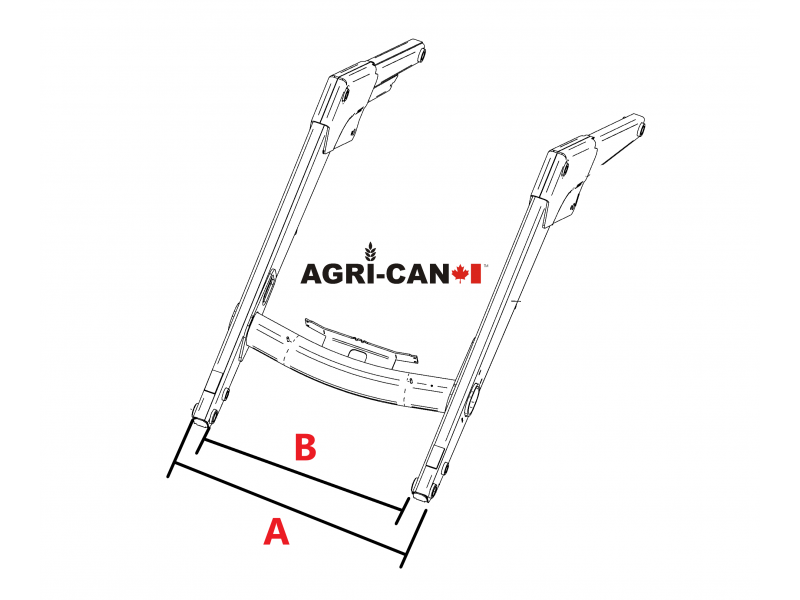

The outside measurement should not exceed 1110mm (43-1/4'') - Measure A on picture
The inside measurement should not be shorter than 860mm (33-7/8'') - Measure B on picture
The 4 pins that hold the Quick-Change Frame in place are 30mm (1-3/16''). If the holes on your loader are larger, you can still fit the harness with bushings (not included).
If measurements are within these parameters, the harness will fit your tractor front loader.
