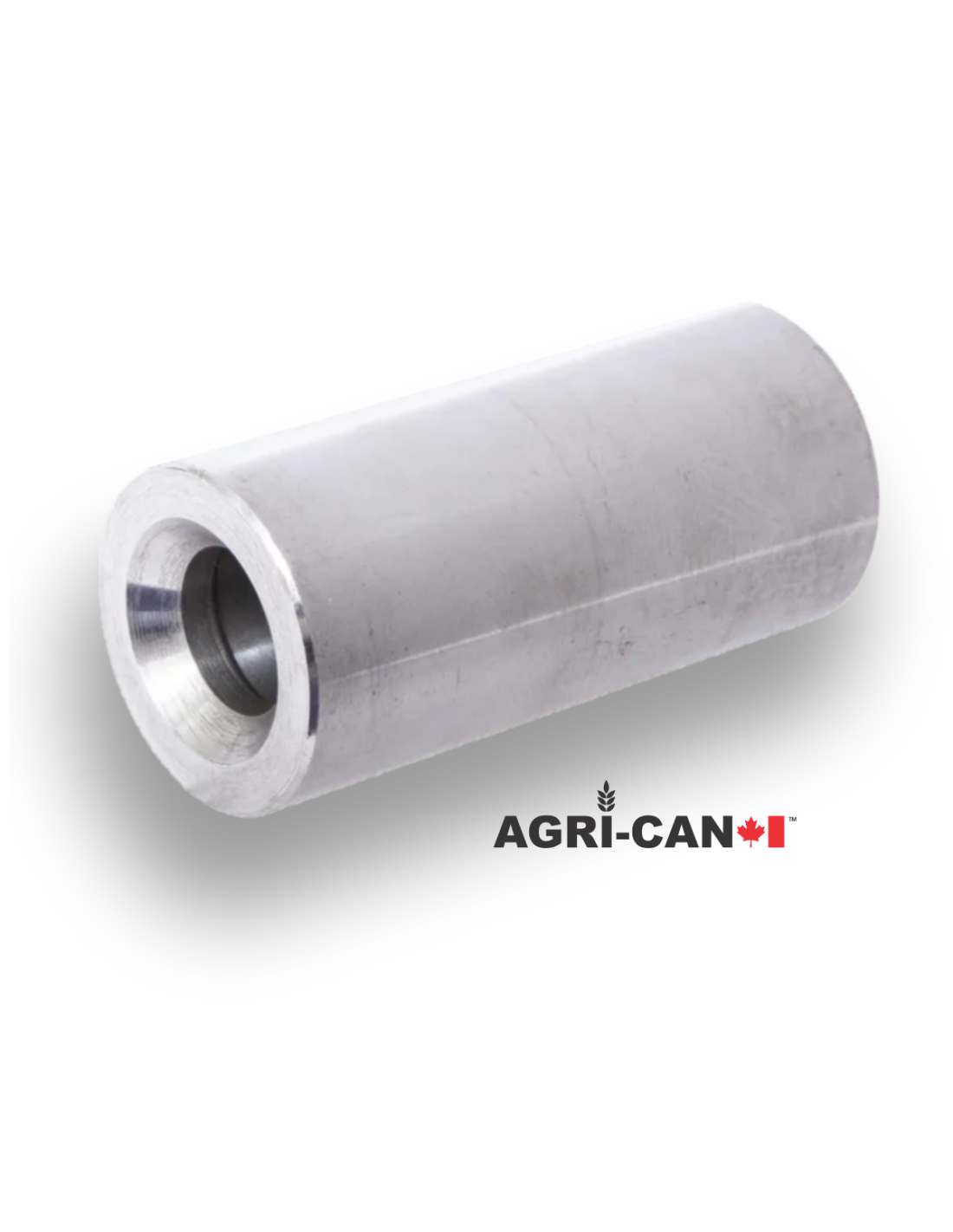

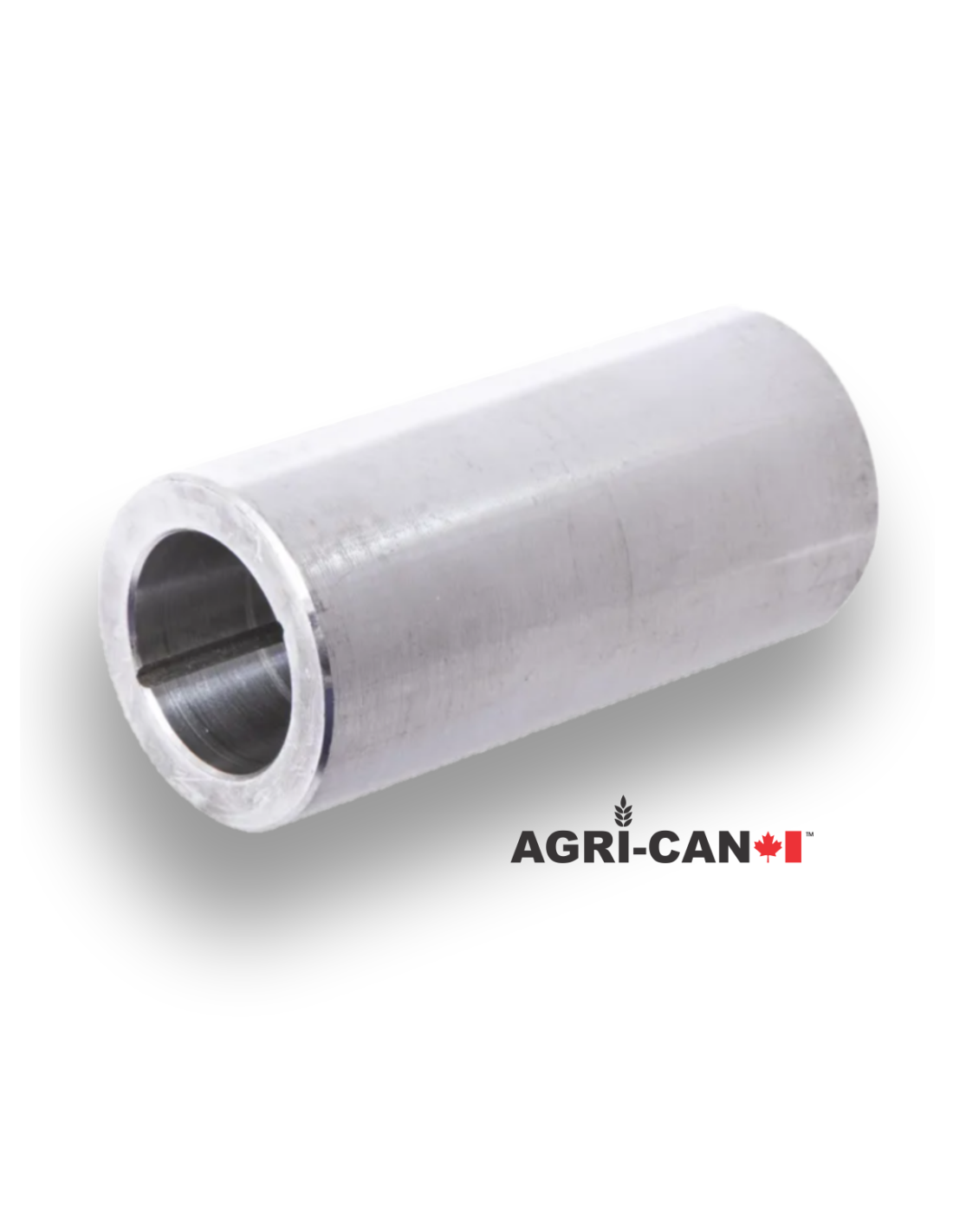

Bush for Kverneland Tine Conus III

Name: Bush for Kverneland Tine Conus III
Brand: Agri-Can®
SKU: KK221098
Price: 59.99 CAD
Availability: InStock

Quality bushing to replace Kverneland Conus III bushing

In Stock

$59.99

Depending your choice at checkout. As fast as next day 8am

Description

European quality bushing to fit Kverneland Spears Conus III

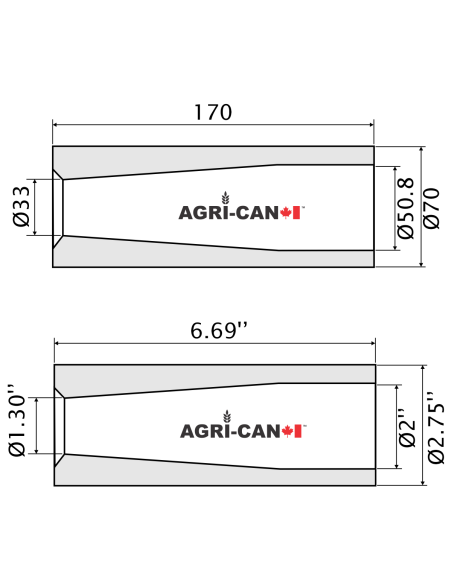

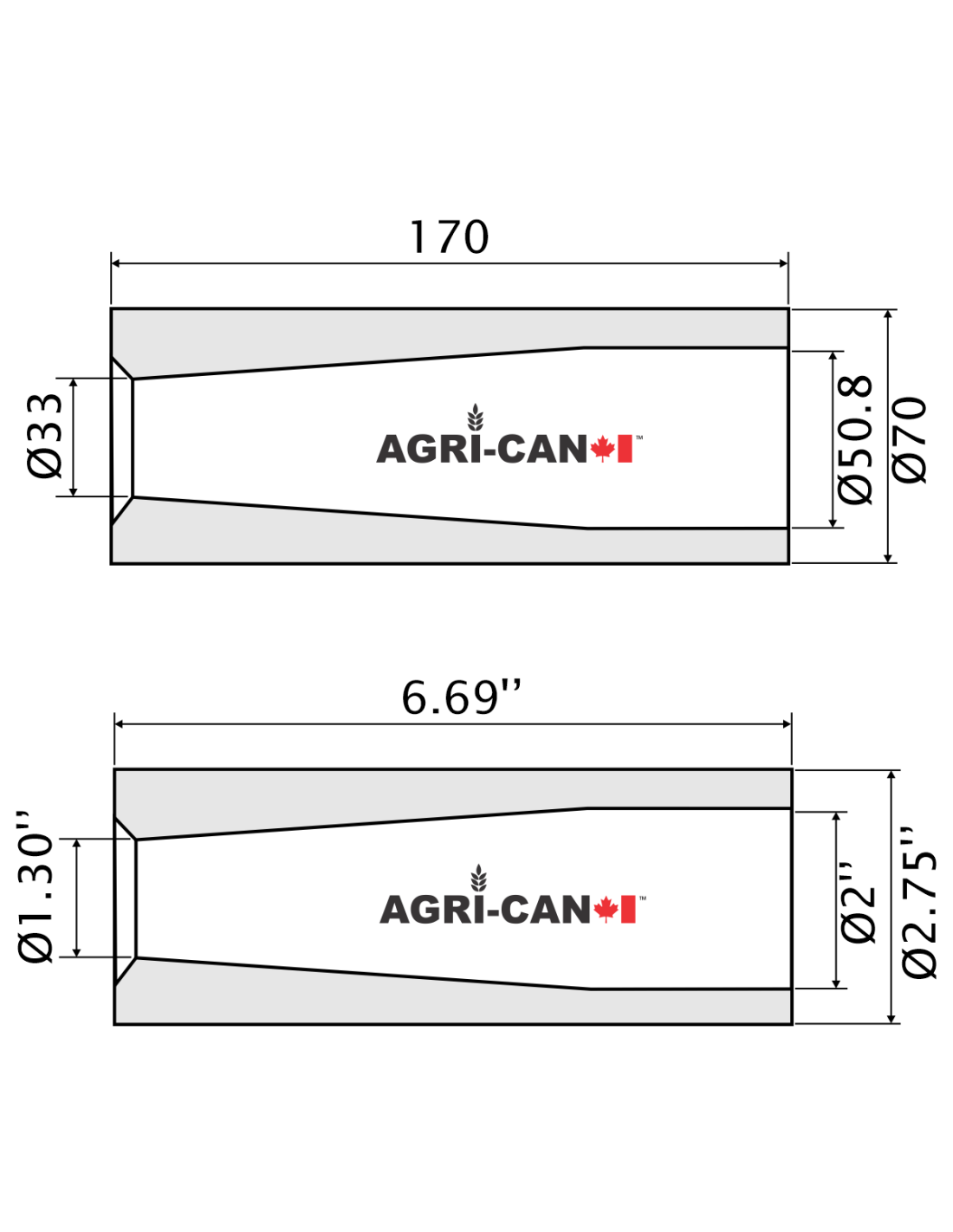

Outside diameter

70 mm

Inside diameter

33 mm

50.8 mm

Length

170 mm

Replaces: Conus 3, C3 Sleeve, 221098, KK221098

Compatibility

Kverneland

Conus III

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER	CAPACITY	TORQUE
Conus I – 1-3/8’’	1300 lbs	332 lbf. ft
Conus II – 1-3/4’’	2500 lbs	516 lbf. ft
Conus III – 2’’	4400 lbs	516 lbf. ft

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Agri-Can, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

Product Details

Compatibility by brand name: ALÖ Quicke
Case IH
Deutz-Fahr
John Deere
Kubota
Kverneland
Massey Ferguson
New Holland
Length - mm: 170 mm
Length - inch: 6.69''
Kverneland® Series: Conus III
Bushing Inside Diameter - mm: 33 mm
50.8 mm
Bushing Inside Diameter - Inches: 1.30''
2.00''
Busing Ouside Diameter - mm: 70 mm
Busing Ouside Diameter - Inches: 2.75''
