Name: 32'' (820mm) Silage Tine - Cranked - Kverneland Conus I
Brand: Forges du Saut du Tarn
SKU: KK221195E
Price: 84.95 CAD
Availability: InStock

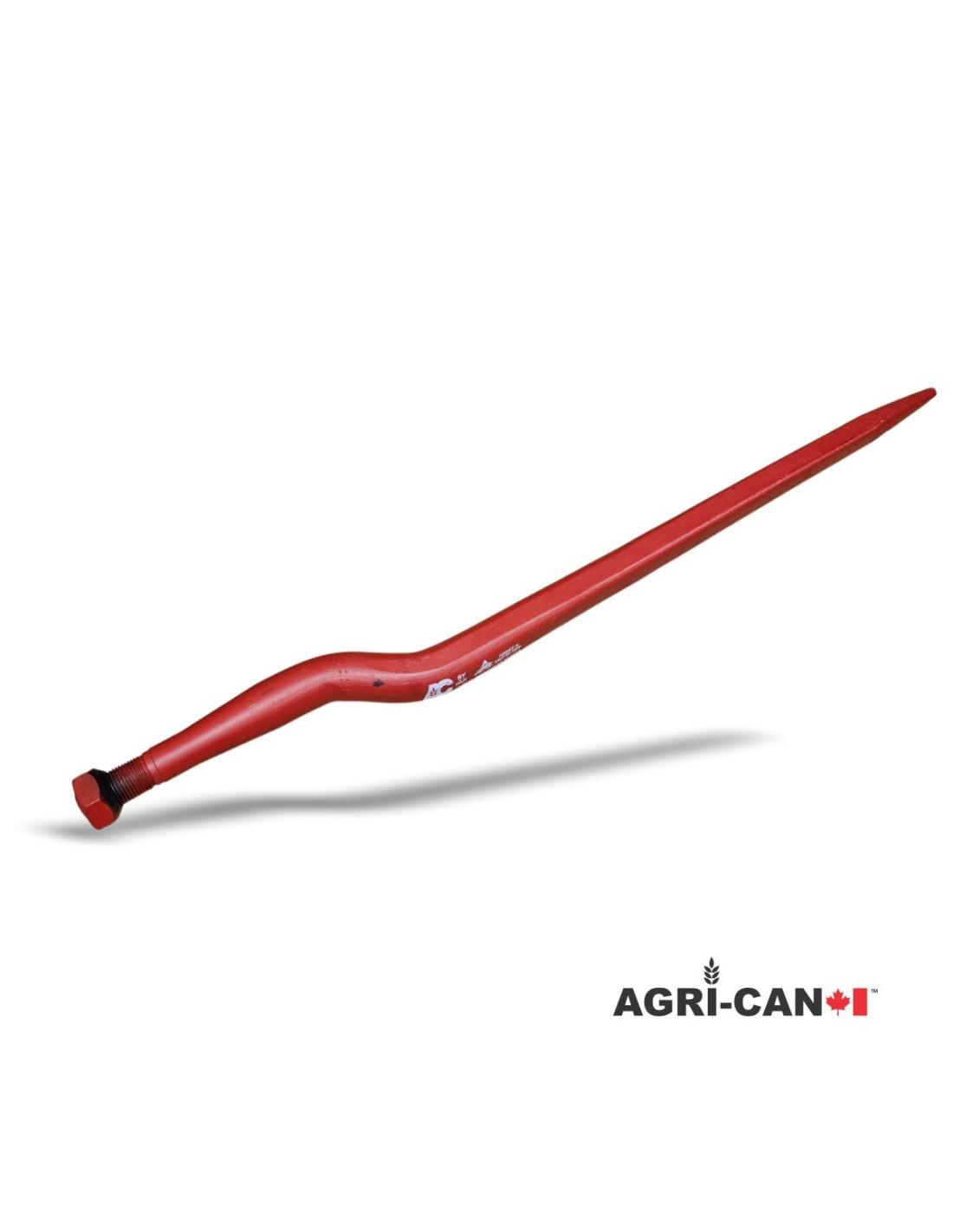

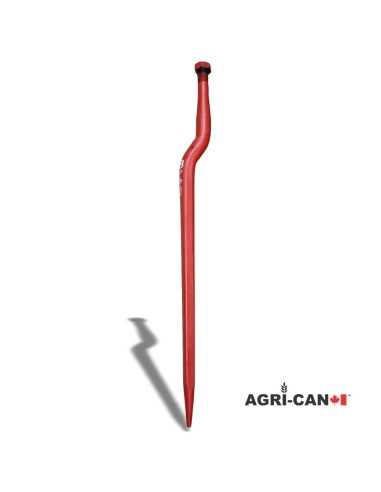

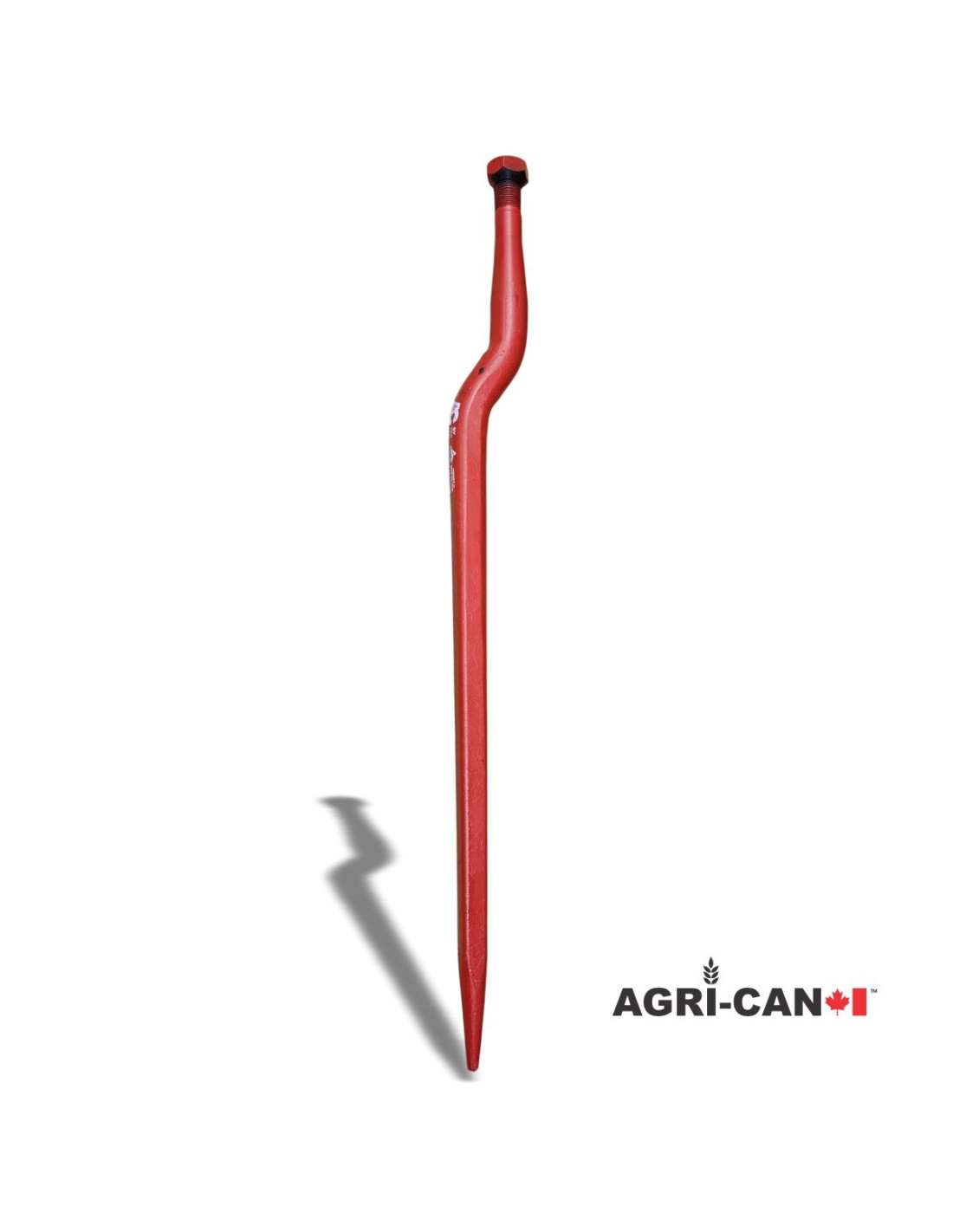

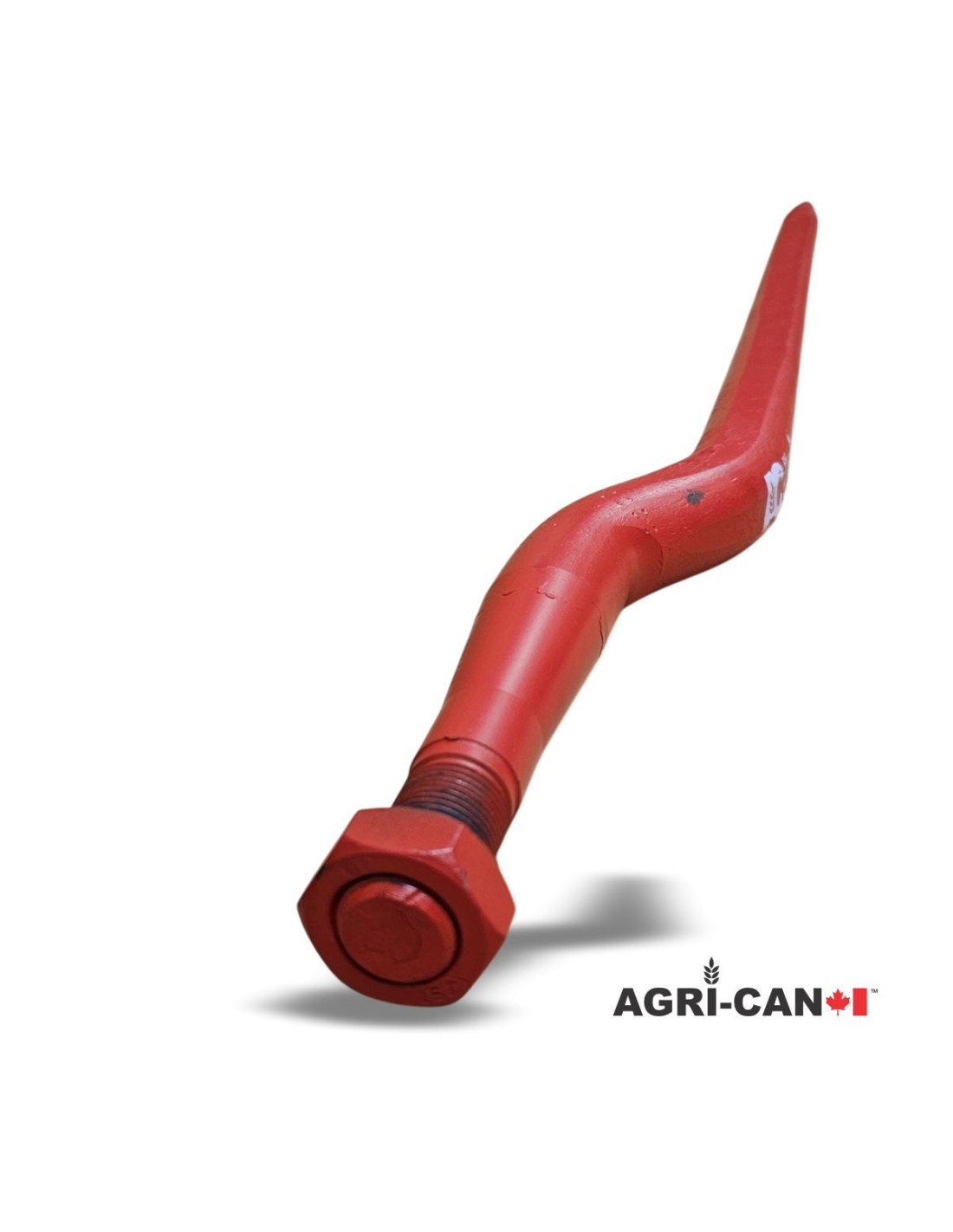

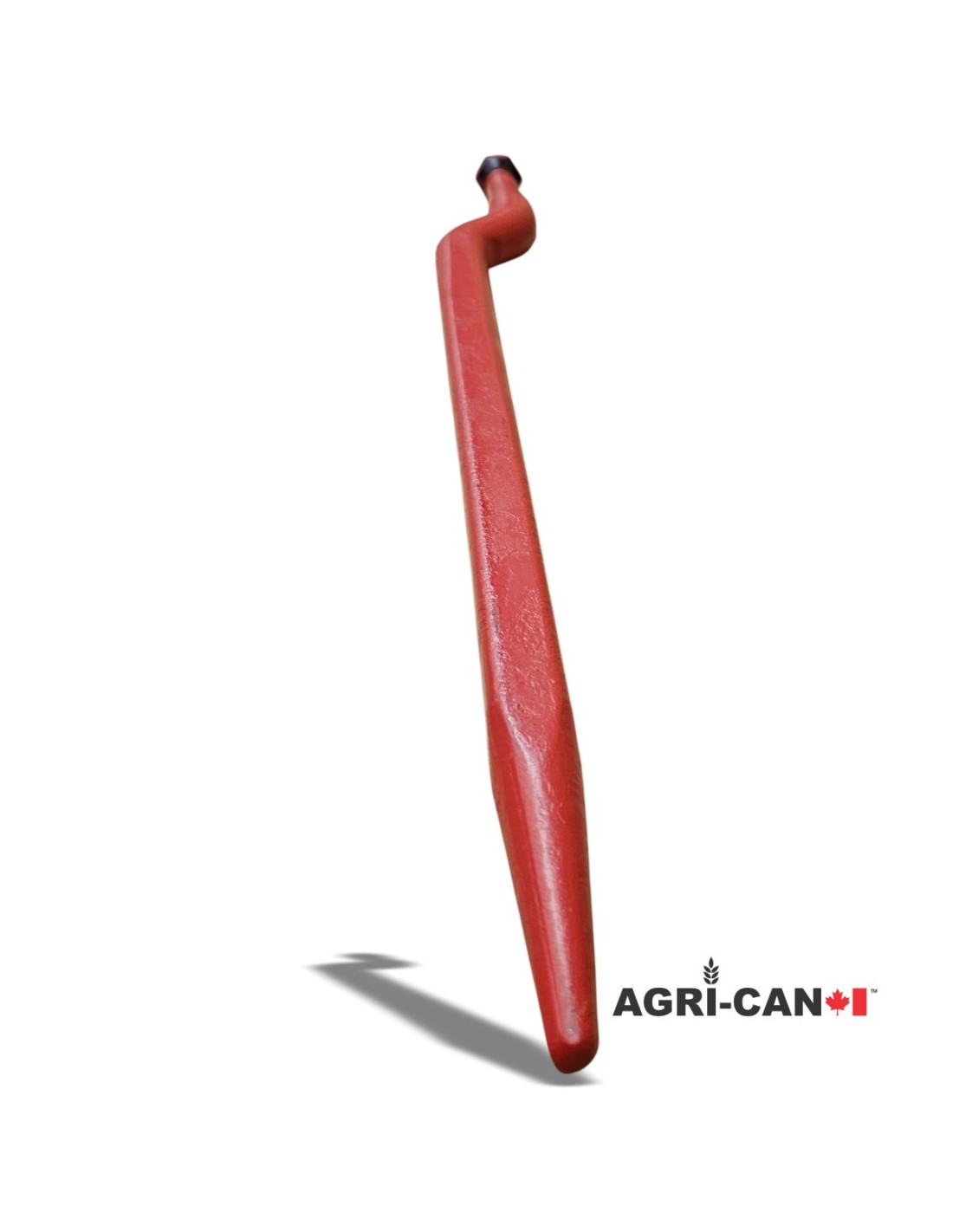

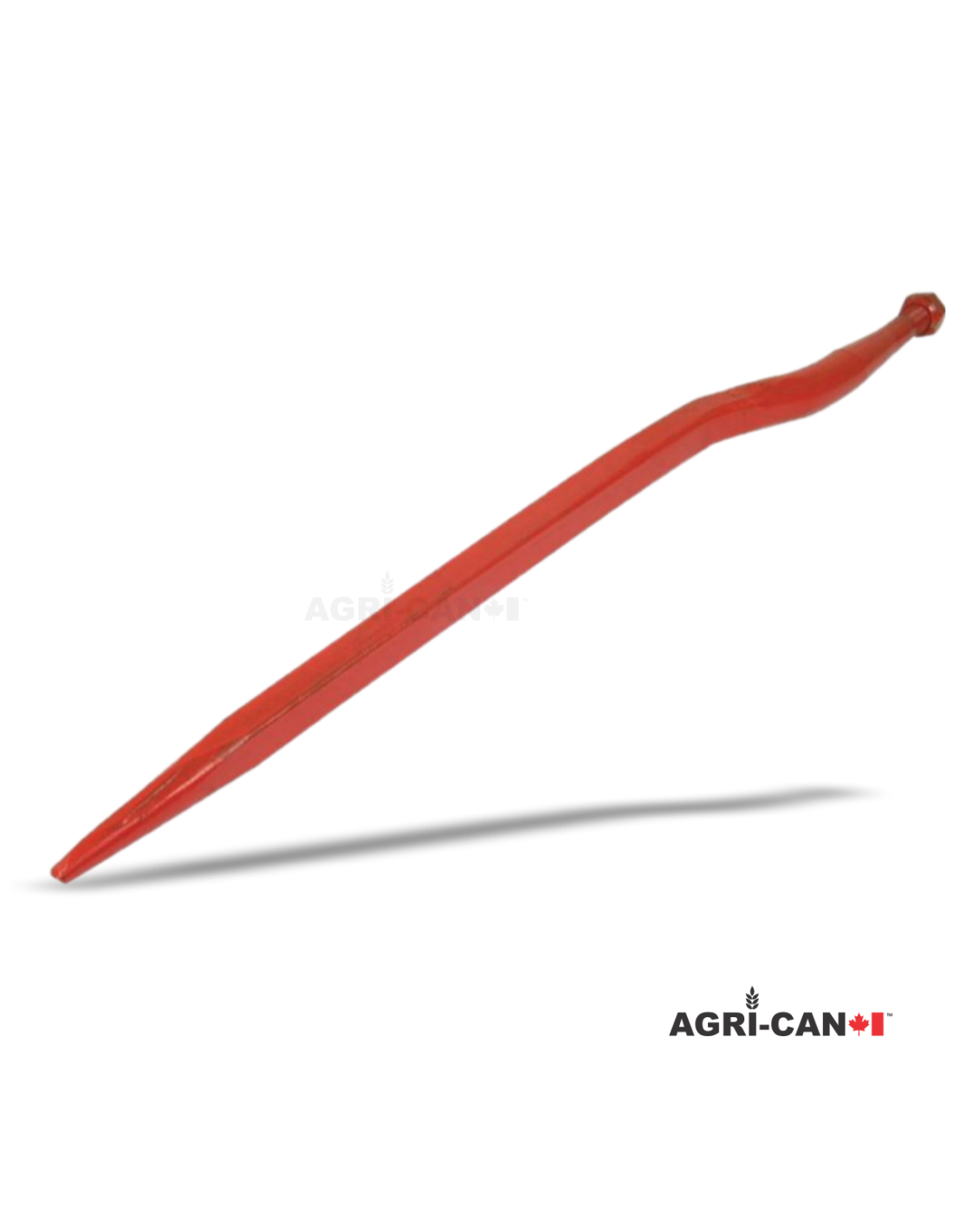

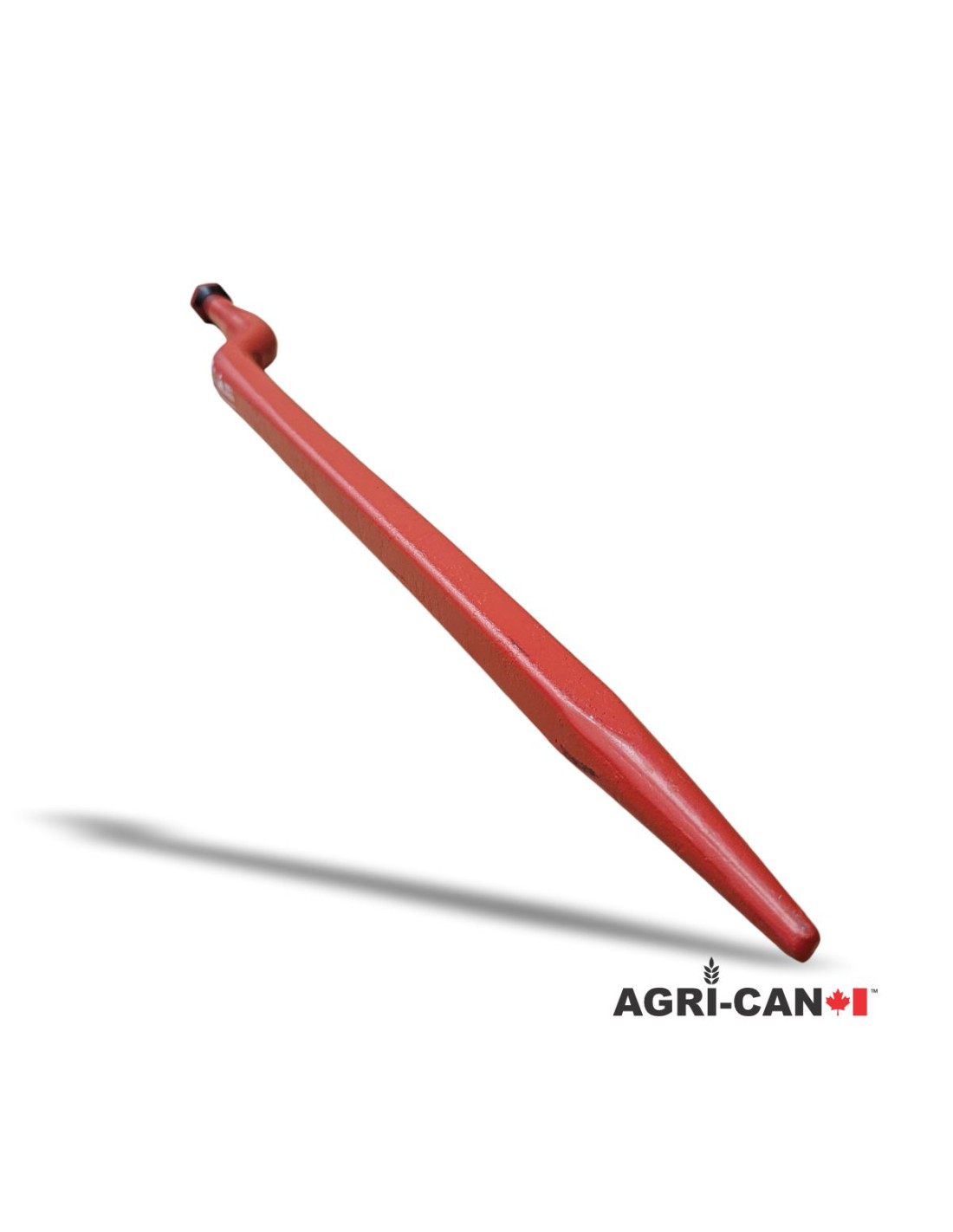

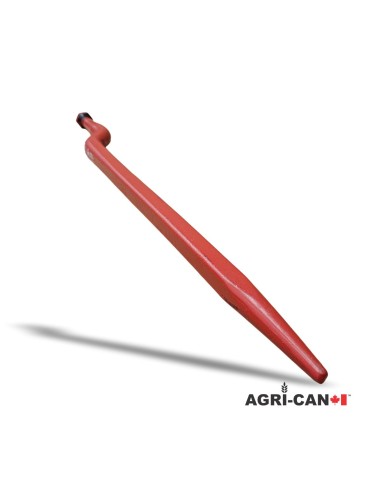

Forged Cranked Silage Tine 32’’ (820mm) for Kverneland Conus I, ALÖ Quicke, Redrock, and Valpadana

In Stock

$84.95

As fast as next day 8am depending on your location

Resource Center

Description

Manufactured in France by the same manufacturer as Kverneland OEM parts.

Includes the nut

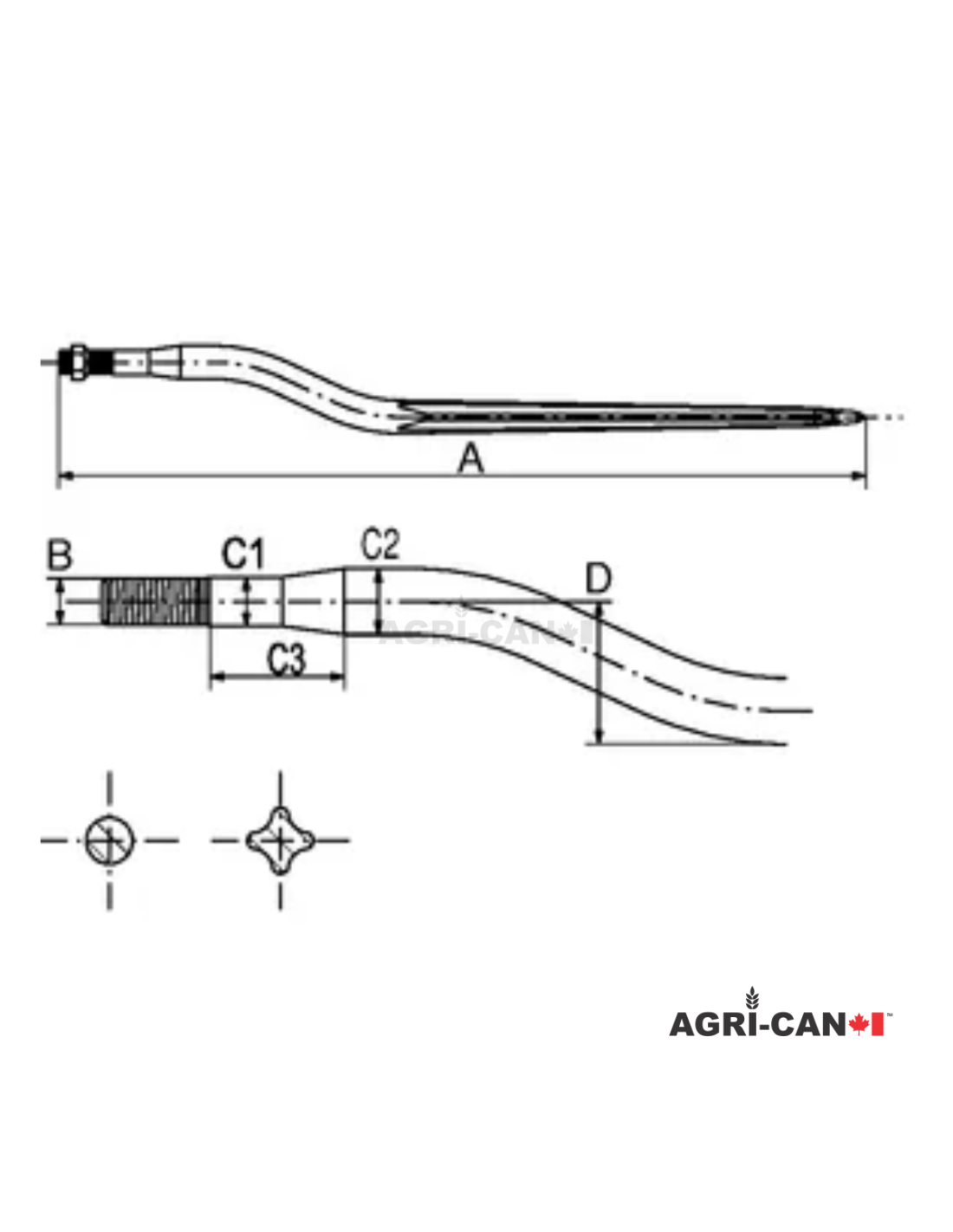

Dimension :

A - Length	820 mm
C2 - Max diameter	36 mm
C1 - Min connection diameter	25 mm
Max connection diameter	36 mm
C3 - Cone length	85 mm
D - Crank height	58 mm
Profile shape	Square
Point shape	Point
Colour	Red
B - Thread diameter	24 mm
Pitch of thread	2.00 mm
Thread type	Metric

Replaces OEM Part #: KK221195, 221195

Compatibility

Click on a brand name to show compatible models

Kverneland

Conus I

HLA Attachments

LDFE Series
MFE Series (OEM uses 35'')
MFE.GRS Series (OEM uses 35'')

ALÖ Quicke

Various

Stoll

ROBUST SERIES
FC
FZ
1.3m
1.5m
1.7m
2.05m
2.4m
3718550
6678240
3611810
Various

Valpadana

Various

IMPORTANT

DANGER TO YOUR LIVESTOCK

Tests conducted on our test bench by our engineers have shown that the coating used on some competing hay tines is powder-coated or thermoplastic. This type of coating tends to flake, as illustrated in the yellow-highlighted area in the photo above.

These flakes can end up in the hay and be ingested by livestock, posing a serious risk to animal health and to feed safety. The Canadian Food Inspection Agency (CFIA) strictly regulates the presence of physical contaminants in animal feed.

The lower tine shown is an Agri-Can model, tested simultaneously. Our test bench is designed to test two tines at the same time. Notice the smooth coating, with no steel or paint flaking on the Agri-Can tine.

Our high-resistance, flexible coating is a water-based formulation, free of solvents and added plastics. It is specifically engineered to adhere durably to metal and to significantly reduce the risk of flaking under real-world agricultural operating conditions.

HIGHEST-QUALITY PRODUCTS ENTIRELY MANUFACTURED IN FRANCE

Founded in 1828 in Saint-Juéry, France, Forges du Saut du Tarn (FSDT) has maintained uninterrupted steel and tool production ever since.

Through our partnership with FSDT—OES manufacturer of original Kverneland® tines—we have developed hay tines exceeding OEM durability standards, validated by engineering tests.
Agri-Can further ensures performance through rigorous testing at our Canadian headquarters.

Below, discover a video introducing Forges du Saut du Tarn.

SEAL OF GUARANTEED QUALITY

At Agri-Can, quality is never left to chance.
Each hay tine undergoes a double series of rigorous tests to ensure performance and durability:

First inspection conducted by Forges du Saut du Tarn (FSDT), including strength and compliance testing prior to shipment.
Second verification performed at Agri-Can’s headquarters, where samples are tested on our in-house test bench to confirm and validate results.

This dual validation process makes Agri-Can the only company on the market to provide such a comprehensive quality control system, with both logos applied to each part as a guarantee of authenticity.

For complete traceability, each hay tine is steel-engraved with its batch number and production date, ensuring transparency and full compliance.

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER	CAPACITY	TORQUE
Conus I – 1-3/8’’	1300 lbs	332 lbf. ft
Conus II – 1-3/4’’	2500 lbs	516 lbf. ft
Conus III – 2’’	4400 lbs	516 lbf. ft

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Agri-Can, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

Product Details

Compatibility by brand name: ALÖ Quicke
HLA Attachments
Kverneland
Redrock Machinery
Valpadana
Metric Threads: 2.00
Total Length - mm: 810 mm
Total Length - Inches: 32''
Cone Length - mm: 85 mm
Cone length - Inches: 3.35''
Maximum Diameter - mm: 36 mm
Maximum Diameter - Inches: 1.42''
Minimum Diameter - mm: 25 mm
Minimum Diameter - Inches: 0.984''
Kverneland® Series: Conus I
