PTO Shaft Assembly with Shear bolt - Cat.6

PTO Shaft Assembly with Shear bolt - Cat.6

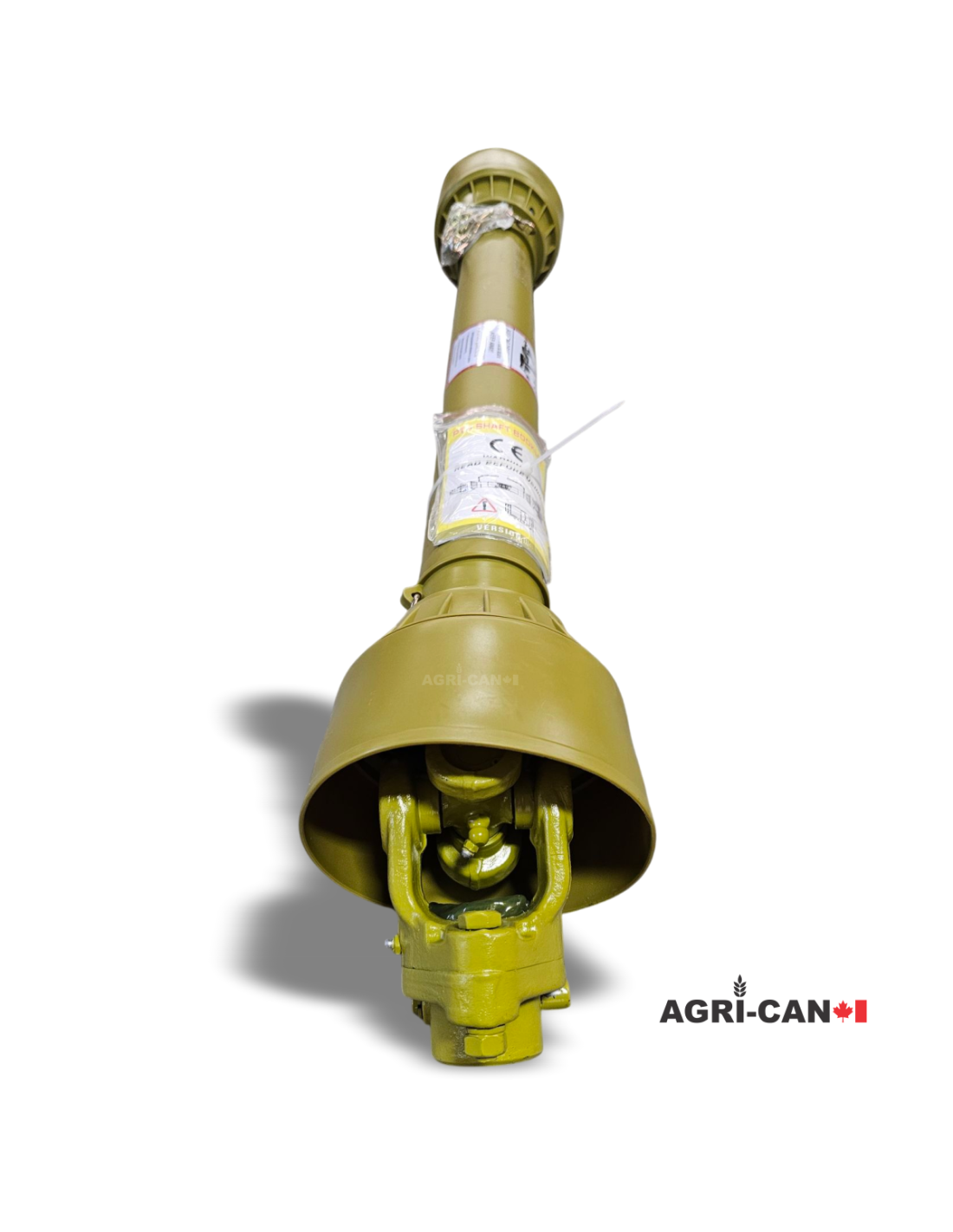

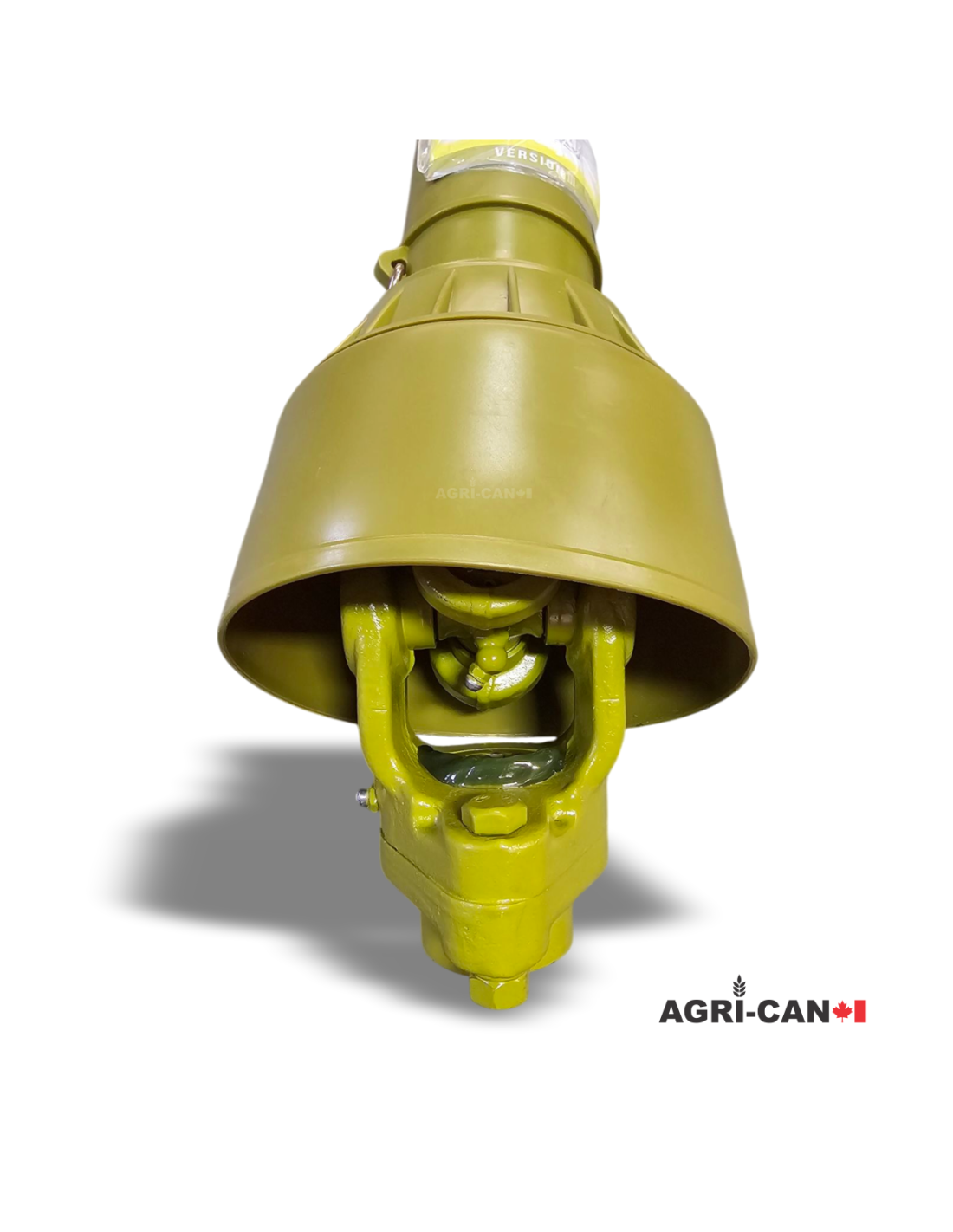

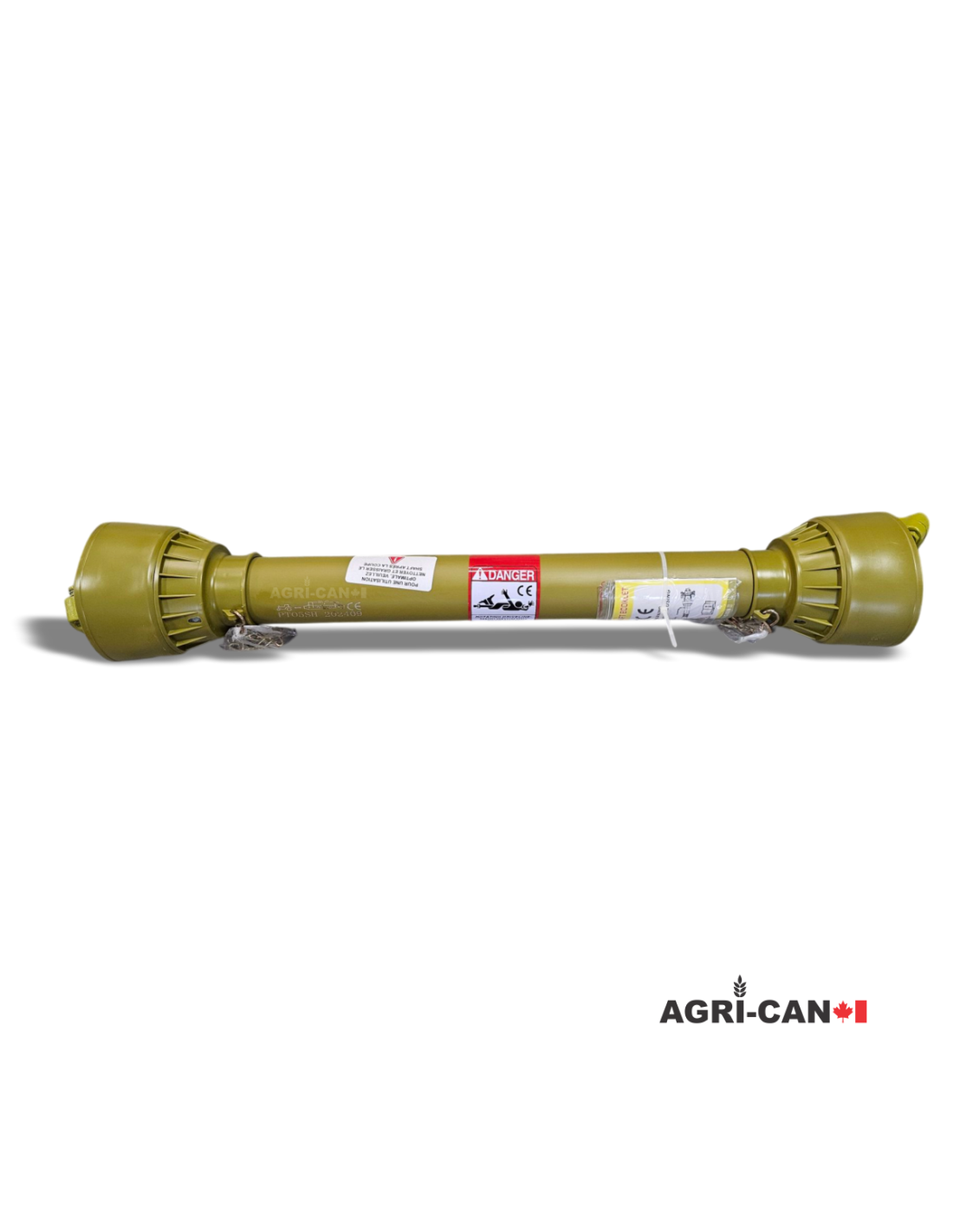

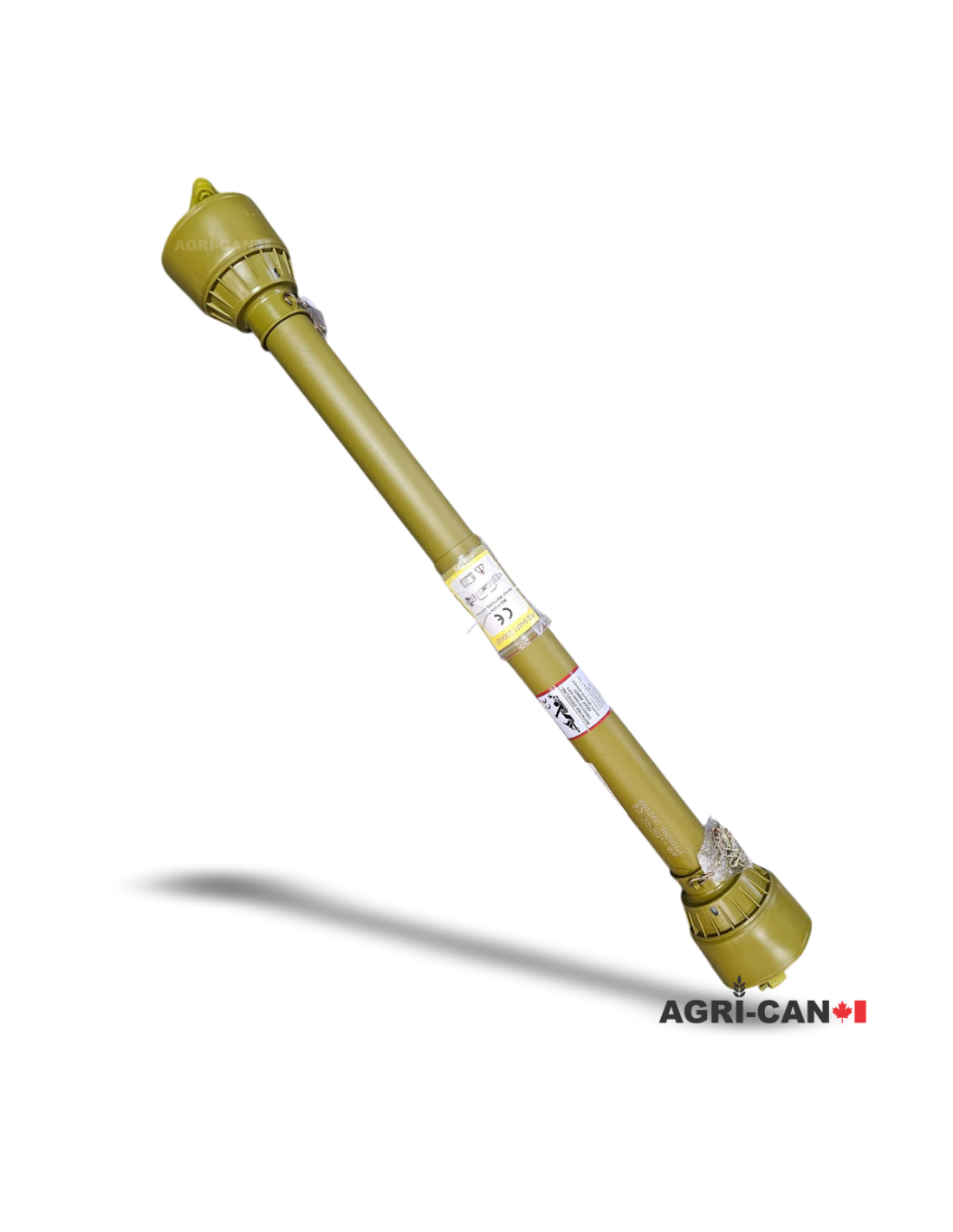

Complete PTO shaft assembly with shear bolt clutch.

Ideal for snow blower

In Stock
$395.95
Depending your choice at checkout. As fast as next day 8am

Description

Complete Driveline with Shear Bolt Clutch. 100 series, category 4 HD, size 6 driveline. Minimum C-to-C length: 45" (1160 mm), Maximum C-to-C length: 74" (1880 mm), Total collapsed length: 55" (1415 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 Spline with shear bolt clutch. Fits Bondioli & Pavesi 100 Series.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
C to C Max   1880 mm/ 74"
C to C Min   1160mm / 45"
Category   4 HD (64HP)
Implement   1 3/8" -6 w/ S.B. Clutch
Replaces   Bondioli Part No: CS43518
Series   100

Size

6

Total Collapsed Length

1415mm / 55"

Tractor

1 3/8"-6

Product Details

ACBP6SB
