PTO Shaft Assembly with Shear bolt - Cat.8

PTO Shaft Assembly with Shear bolt - Cat.8

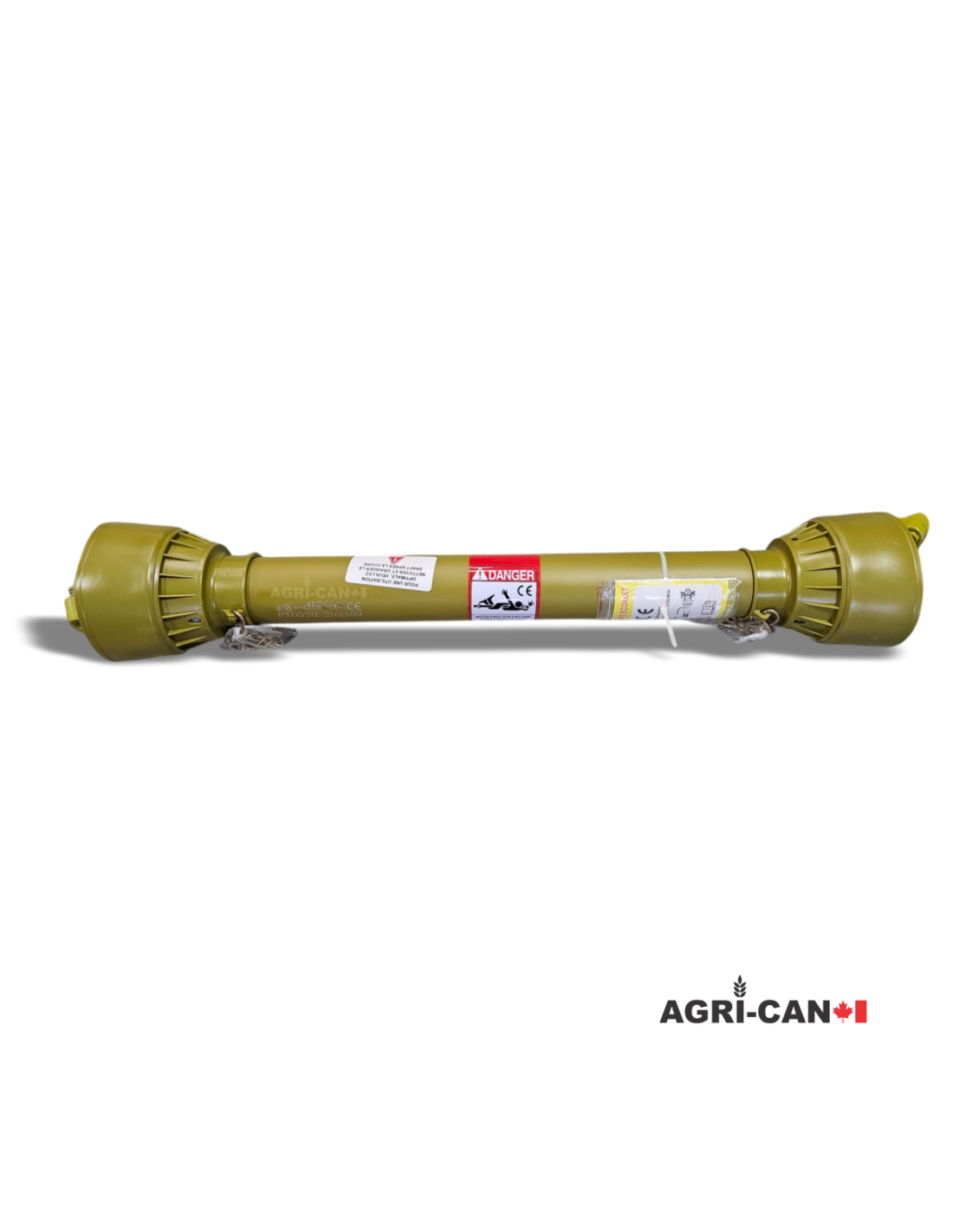

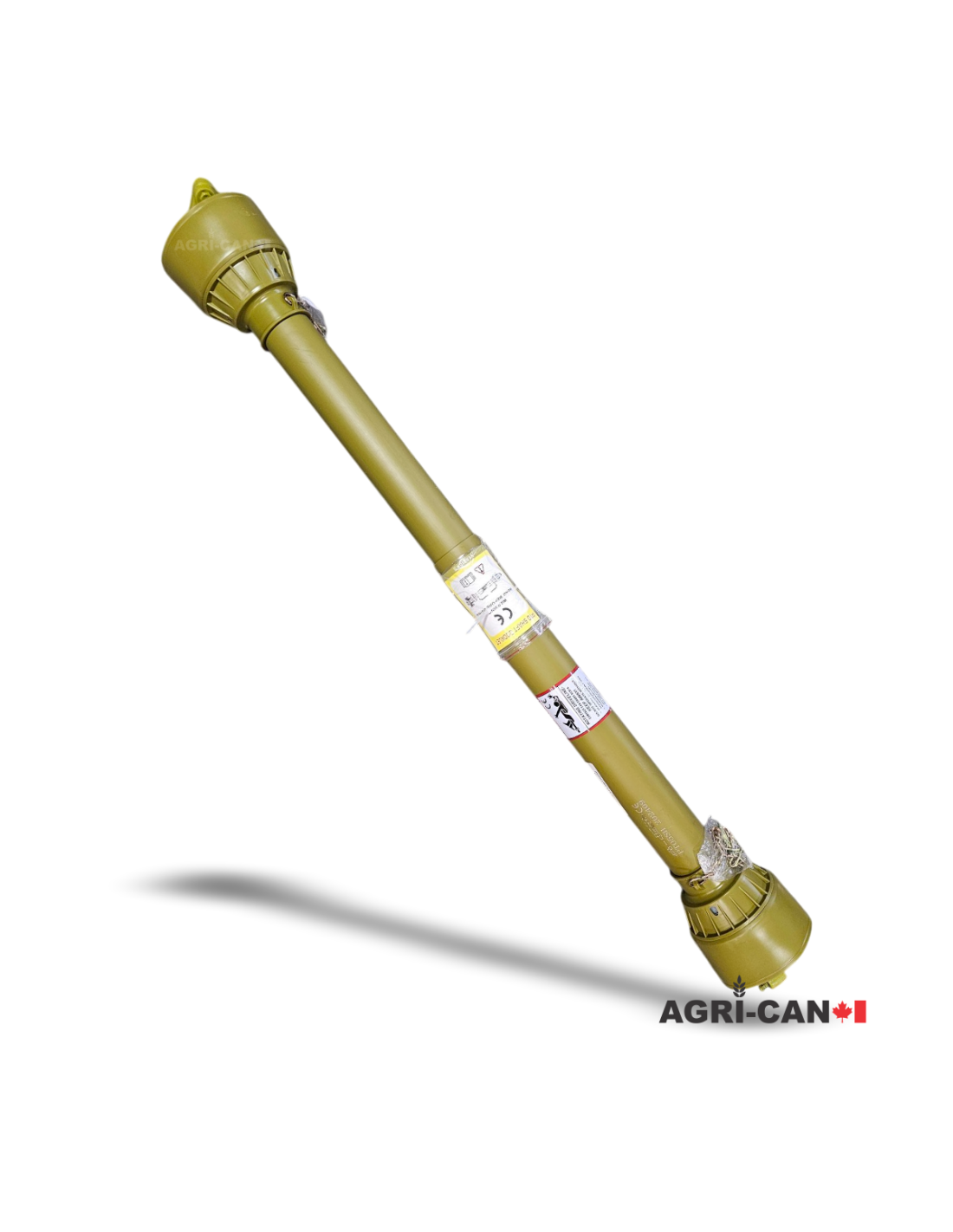

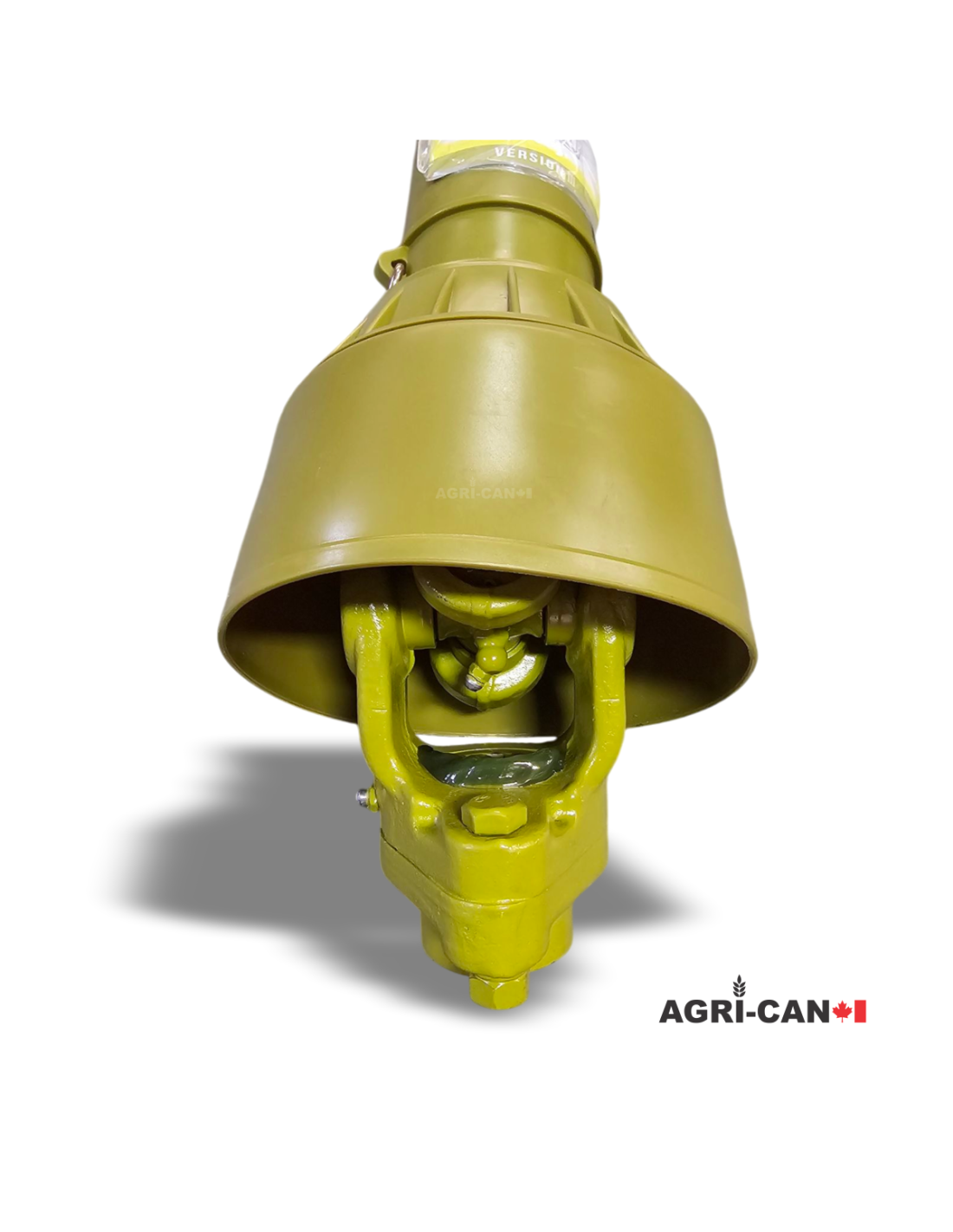

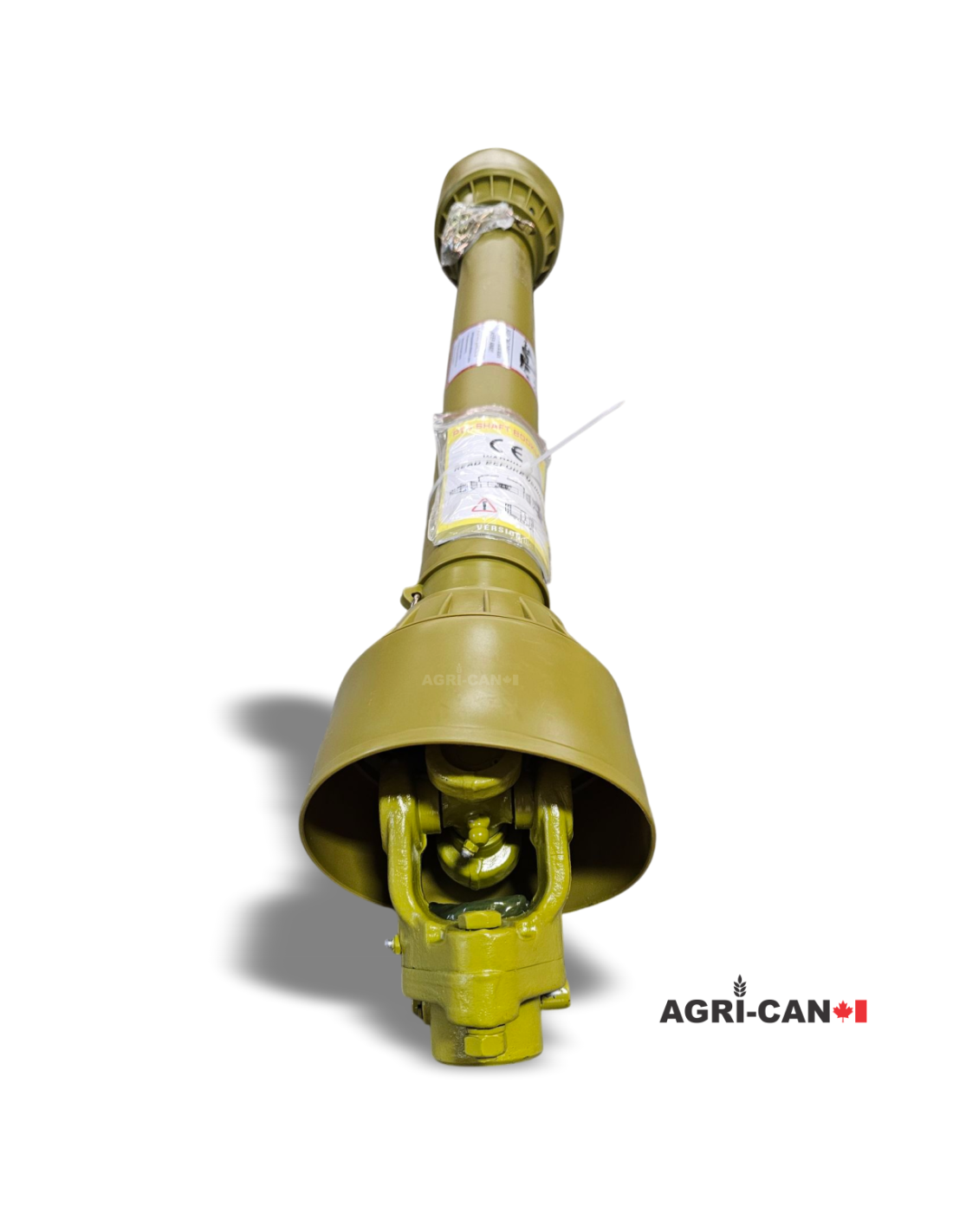

Complete PTO shaft assembly with shear bolt clutch. Ideal for snow blower

In Stock
Depending your choice at checkout. As fast as next day 8am


Complete Driveline with Shear Bolt Clutch. 100 series, category 6, size 8 driveline. Minimum C-to-C length: 45" (1150 mm), Maximum C-to-C length: 74" (1880 mm), Total collapsed length: 55" (1420 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/4'' 20 Spline with shear bolt clamp. Fits Bondioli & Pavesi 100 Series.
•  It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
C to C Max   1880 mm/ 74"
C to C Min   1150mm / 45"
Category   6 (47HP)
Implement   1 3/4" - 20 w/ S.B. Clamp
Series   100



Total Collapsed Length

1420mm / 55"


1 3/8"-6 spline QD
