3-Pin Male Socket, Reverse DIN 9680 Type – 1964989C1

3-Pin Male Socket, Reverse DIN 9680 Type –...

3-Pin Male Socket, Reverse DIN 9680 Type – 1964989C1

Name: 3-Pin Male Socket, Reverse DIN 9680 Type – 1964989C1
Brand: Erich Jaeger
SKU: 1964989C1E
Price: 24.37 CAD
Availability: InStock

3-Pin Male Auxiliary Flush-Mount Socket, 4-Bolt Fixing, DIN 9680 Type – Erich Jaeger 151166

In Stock

$24.37

As fast as next day 8am depending on your location

Description

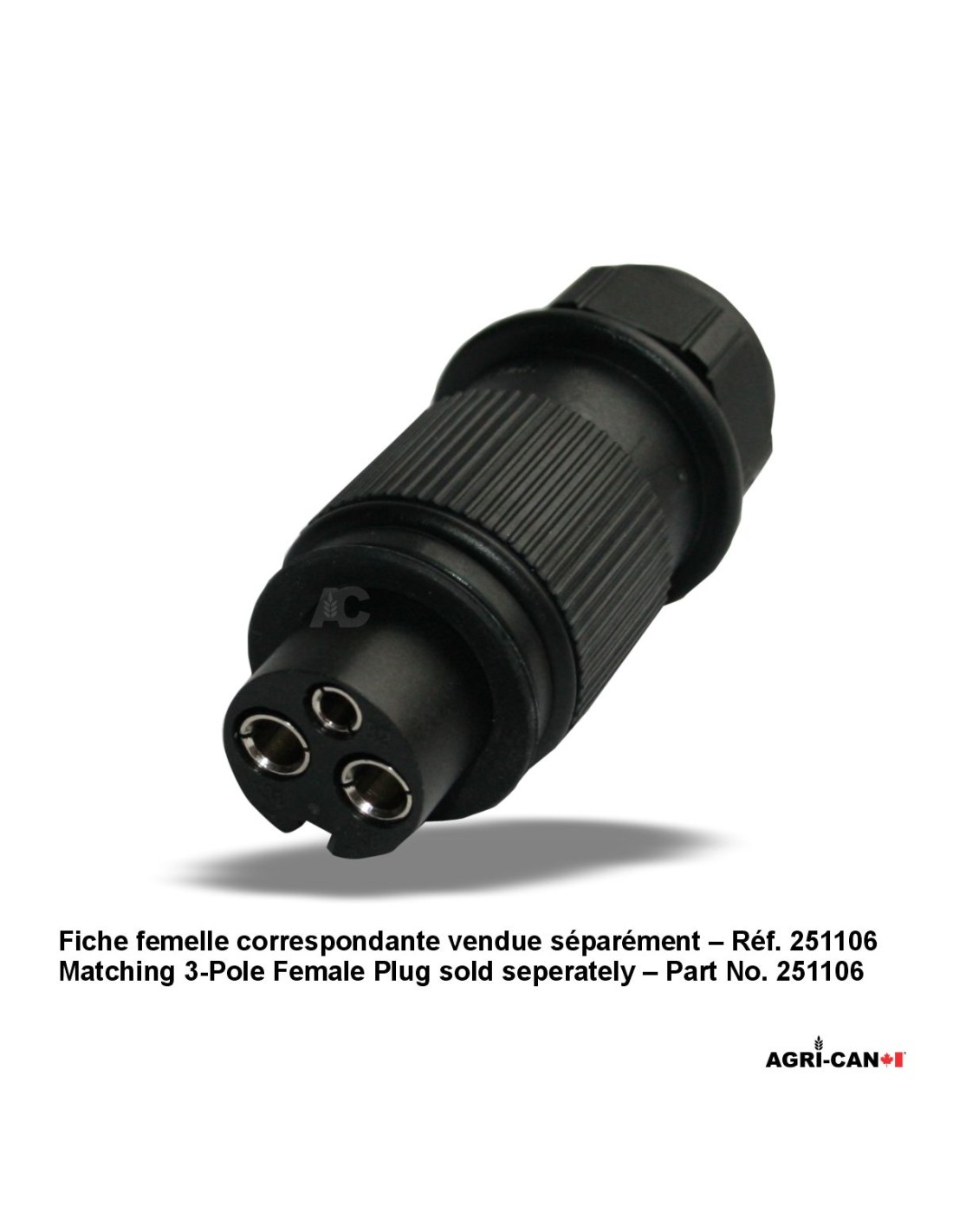

Erich Jaeger flush-mount auxiliary socket featuring 3 male pins, designed to power electrical equipment on tractors, agricultural machinery and trailers operating from 6 to 24 V. Its durable housing, protective cover and 4-bolt mounting flange provide a secure and reliable installation. It features rear flat-blade terminals and mates with the Erich Jaeger 251106 female plug. DIN 9680-similar design with IP54/IPX4 protection.

SPECIFICATIONS

Connection type - male/female	Male
Housing material	Composite
Protection class IP	X4 54
Series	A
Plug-in contacts	Flat terminal
Number of poles	3
Cable position type	Straight
Nominal voltage range	6-24 V
Contact surface	Nickel (Ni)
Type of seal	Grommet (included)
Design/Version	4-Bolt flange
DIN standard	9680 Similar - Reverse
