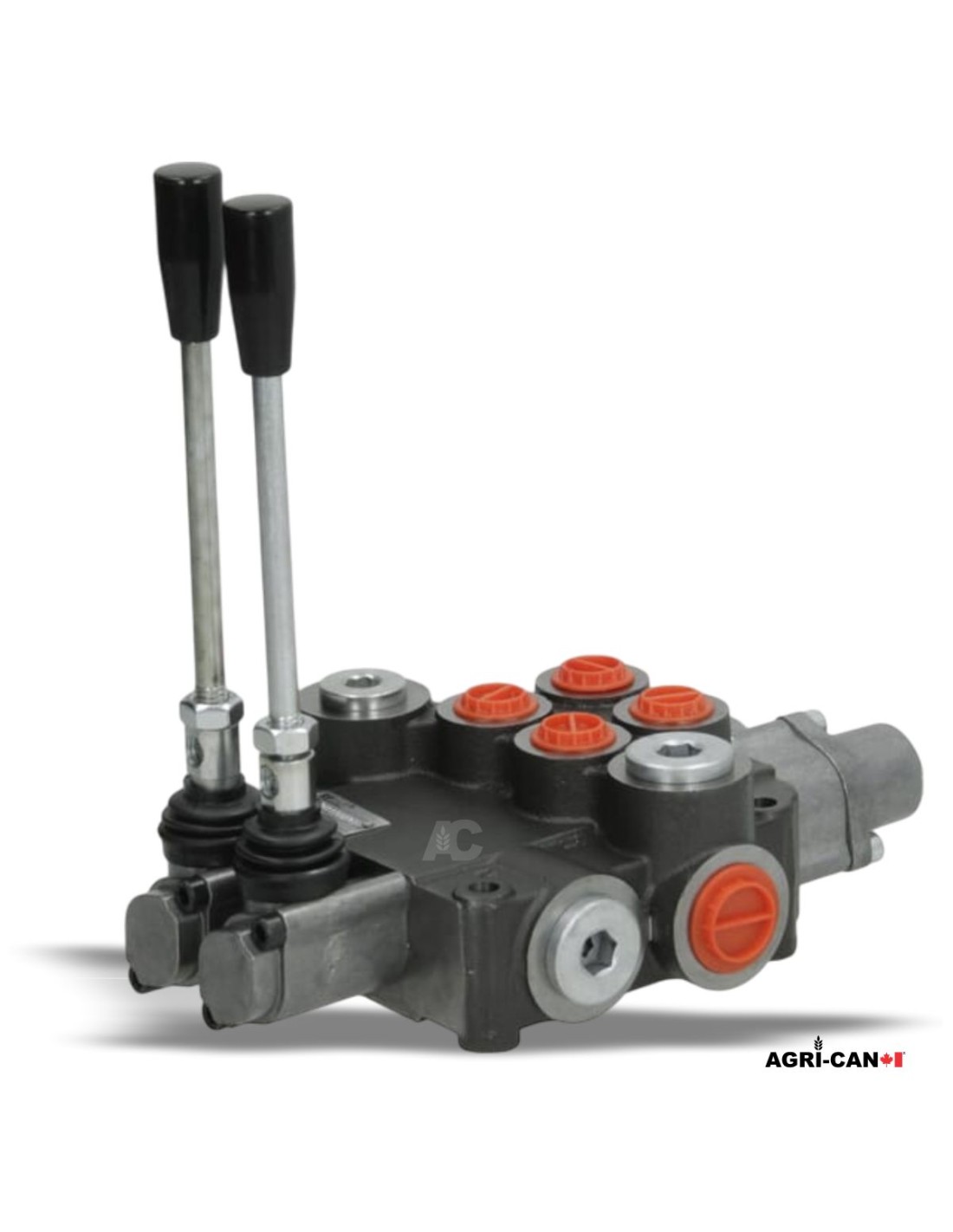

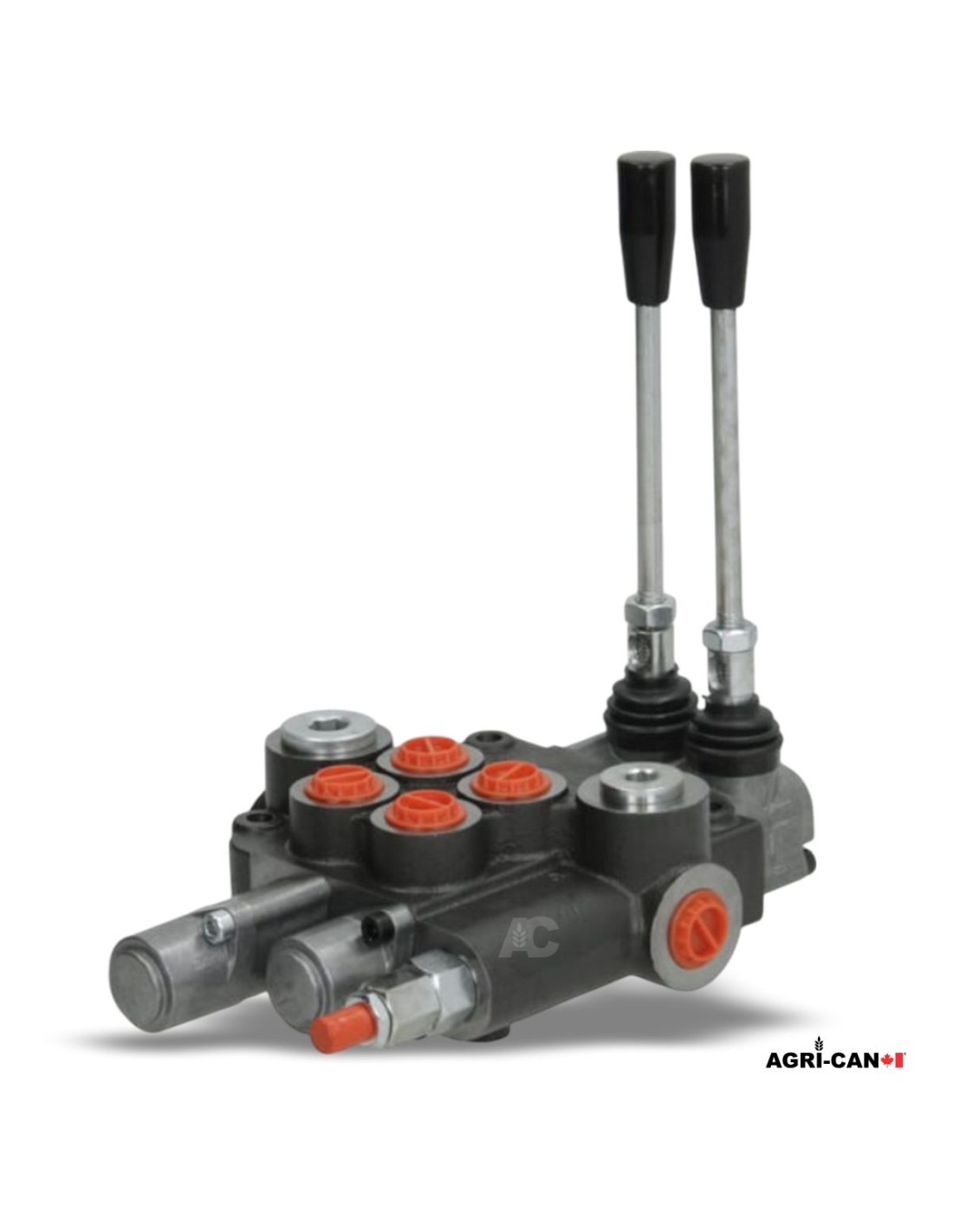

2-Section Hydraulic Monoblock Valve - 80 L/min. - SD11

High-quality 2-section monoblock hydraulic control valve designed for precise and reliable operation on agricultural, industrial and mobile hydraulic equipment.

Simply remove the two levers and install FK-212053 connectors for use with joystick cables.

This valve features a maximum flow rate of 80 L/min and a maximum working pressure of 300 bar. Its open-centre configuration makes it suitable for use in standard open hydraulic systems commonly found on tractors, front loaders, agricultural machinery, trailers and other hydraulic equipment.

The valve is equipped with an A-1 + L-12 spool configuration, including one double-acting spool with a float function in the fourth position. The spool automatically returns by spring and includes a detent to hold the lever in the float position.

The pressure and tank ports are fitted with 3/4" BSP threads, while the work ports use 1/2" BSP connections. The adjustable pressure relief valve has a setting range of 63 to 200 bar, providing additional protection for the hydraulic system.

Supplied complete with operating levers, this compact and durable valve is designed as a direct replacement for equivalent Walvoil SD11 control valves, including designation SD11/2-P(KG3-120)/18L/5Z13BZL/AET.

Key features include manual operation, nitrile rubber seals, low internal leakage and a compact monoblock design for easy installation and dependable long-term performance.

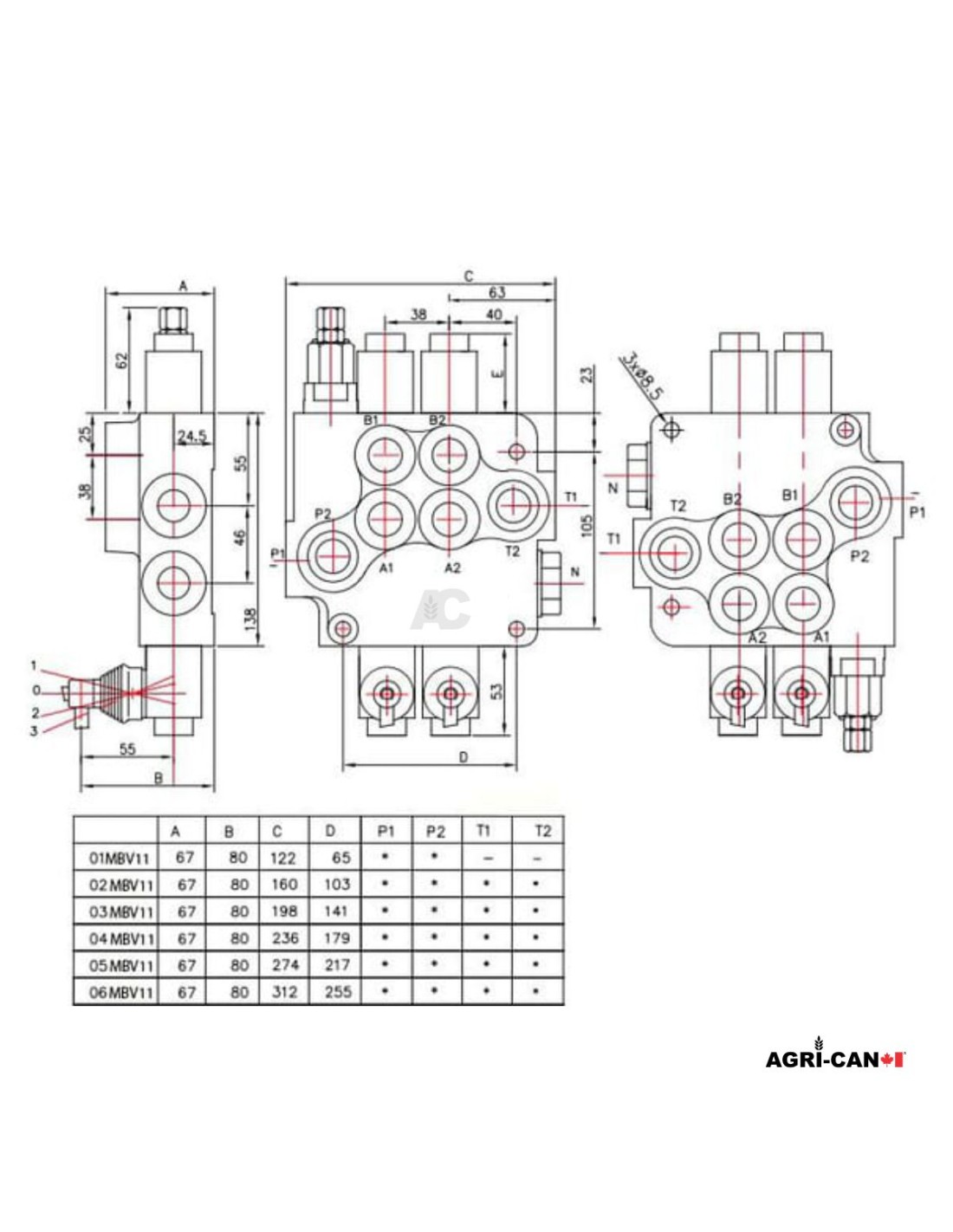

Technical data

Replaces OEM parts numbers :
