2-Section Hydraulic Monoblock Valve with Float- 50 L/min. - SD5

2-Section Hydraulic Monoblock Valve with Float-...

2-Section Hydraulic Monoblock Valve with Float- 50 L/min. - SD5

Name: 2-Section Hydraulic Monoblock Valve with Float- 50 L/min. - SD5
Brand: Agri-Can®
SKU: ACMBV52003
Price: 419.95 CAD
Availability: InStock

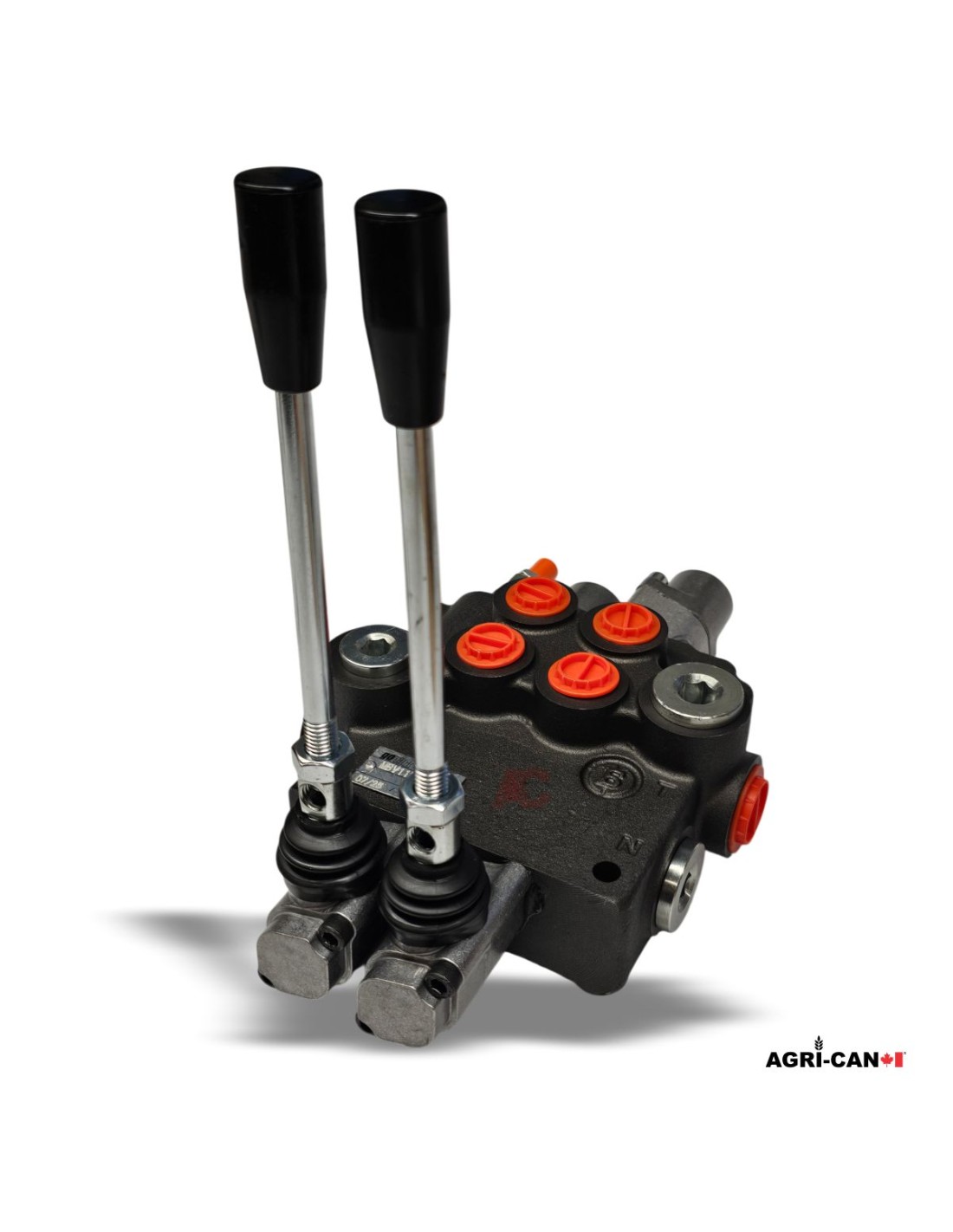

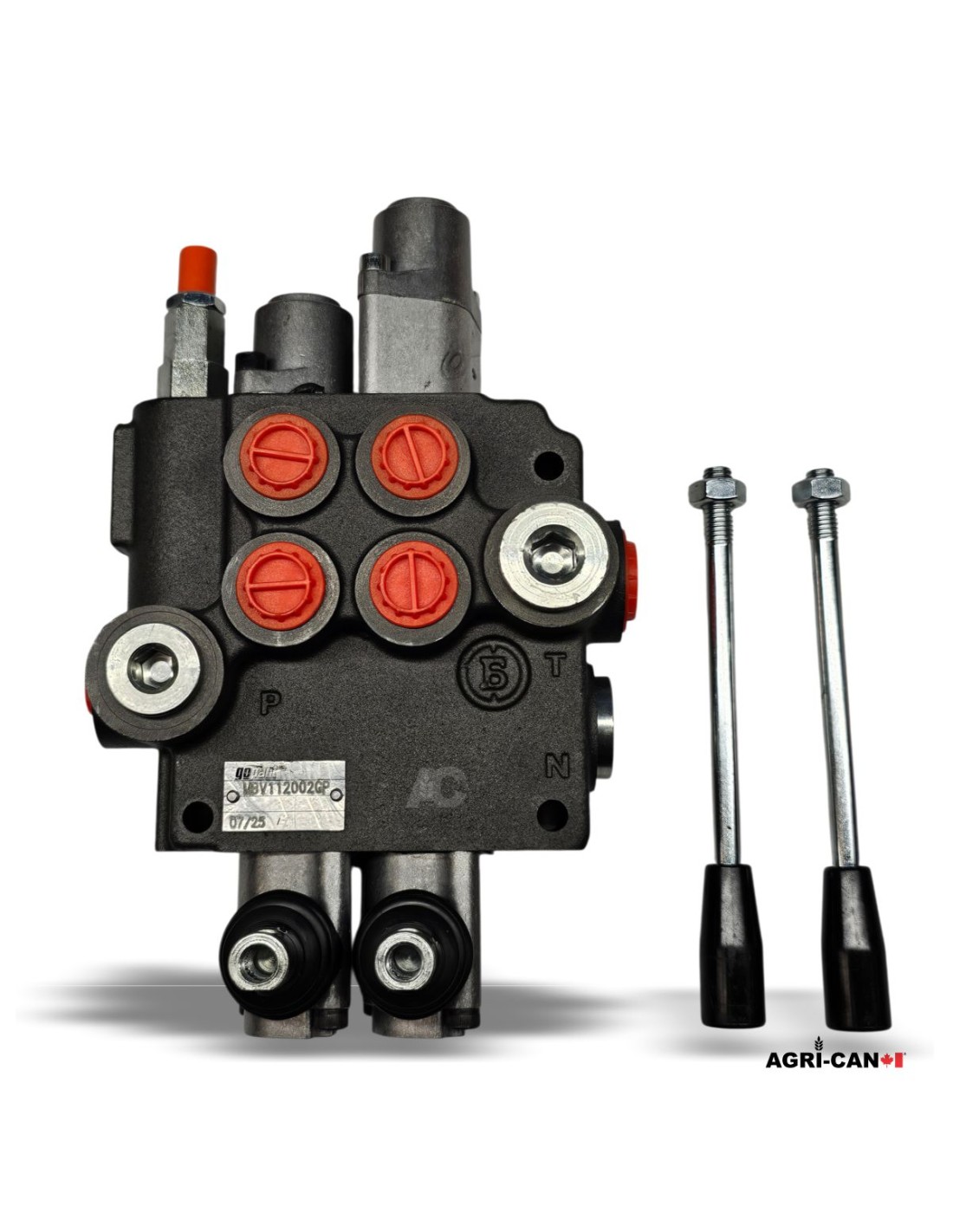

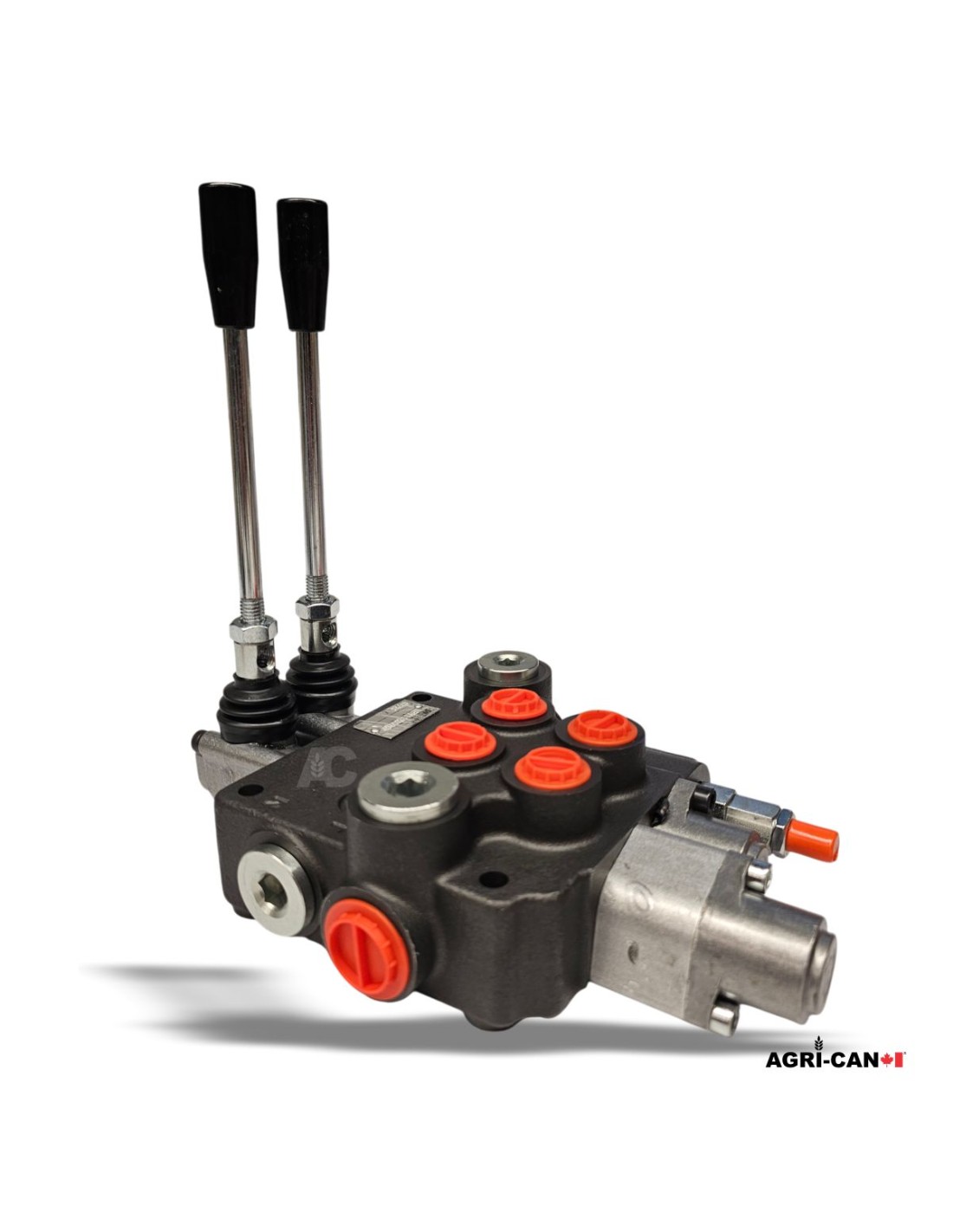

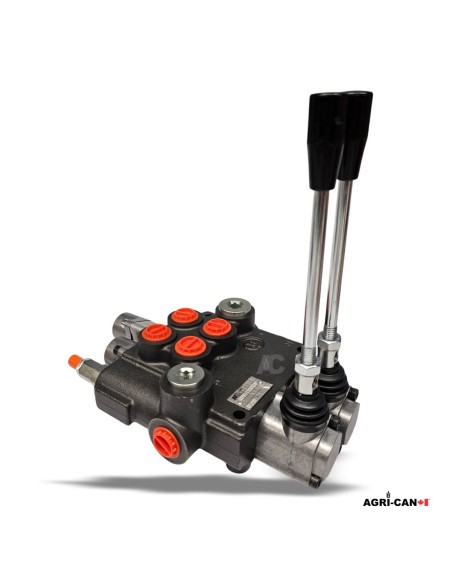

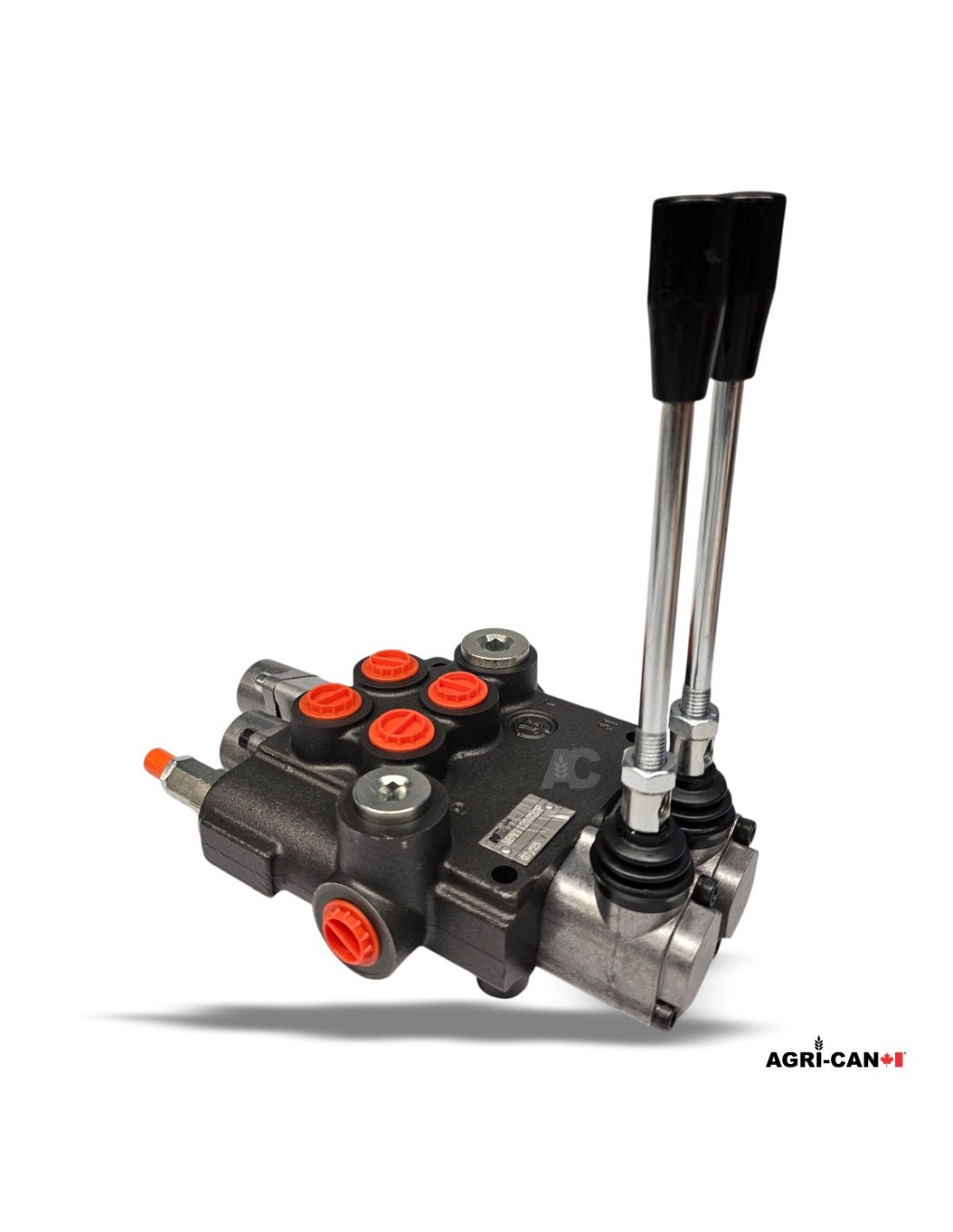

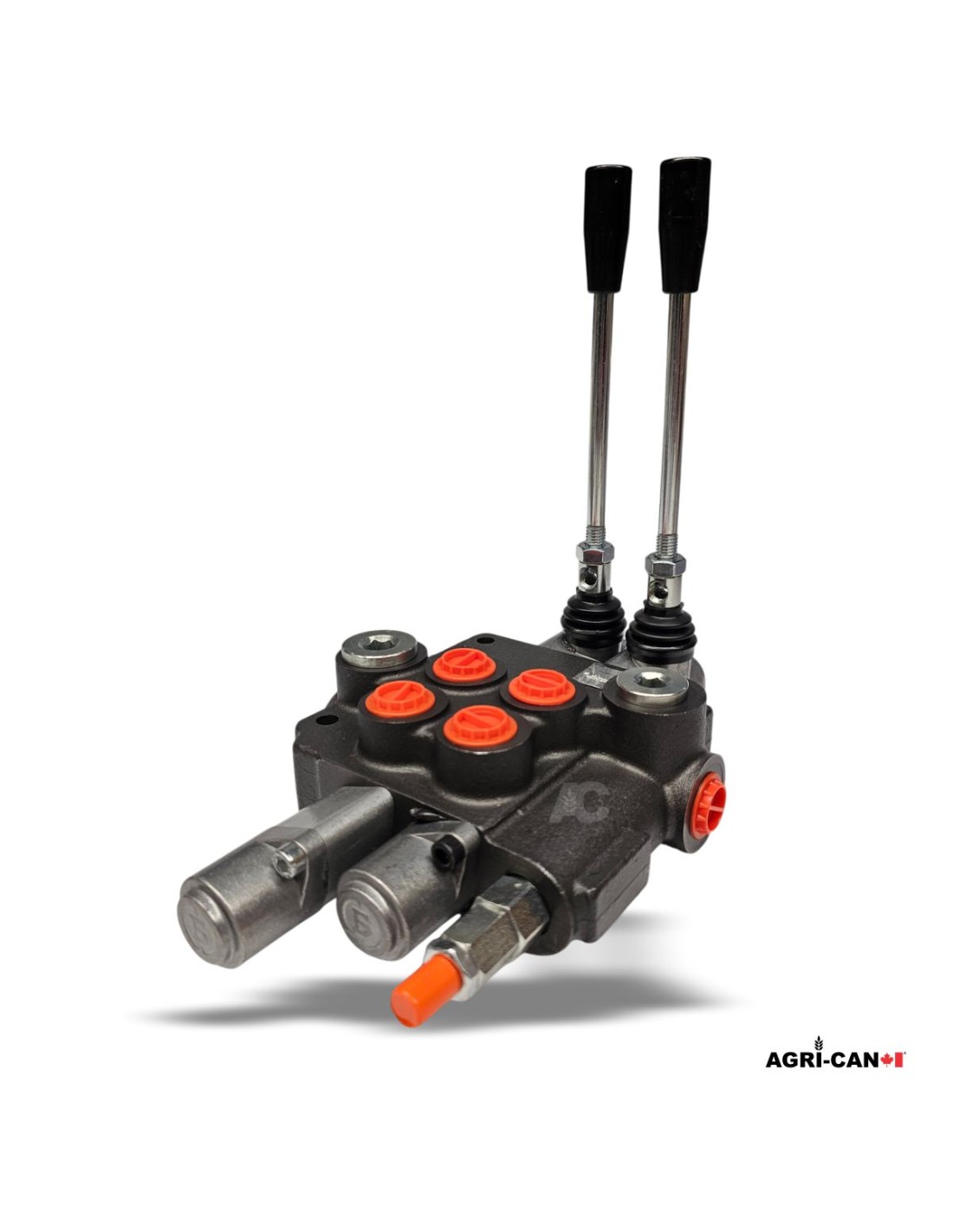

2-section monoblock hydraulic control valve with float position, with manual or cable actuation, 50 L/min maximum flow rate. Designed as a direct replacement for equivalent Walvoil SD5 and Nimco CV112 valves.

Your reference for this product

Don't forget to save your reference to be able to add it to your cart

In Stock

$419.95

As fast as next day 8am depending on your location

Resource Center

Description

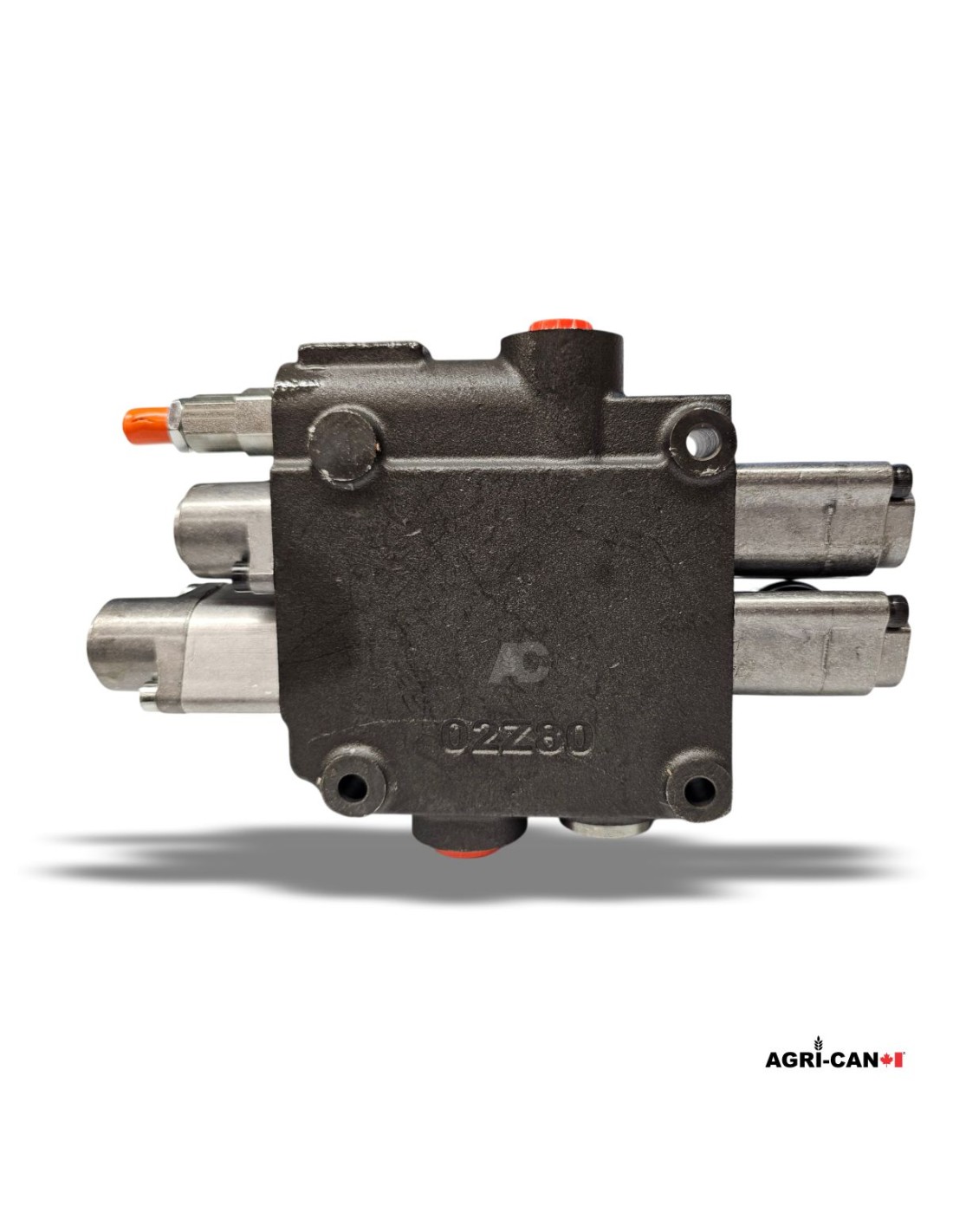

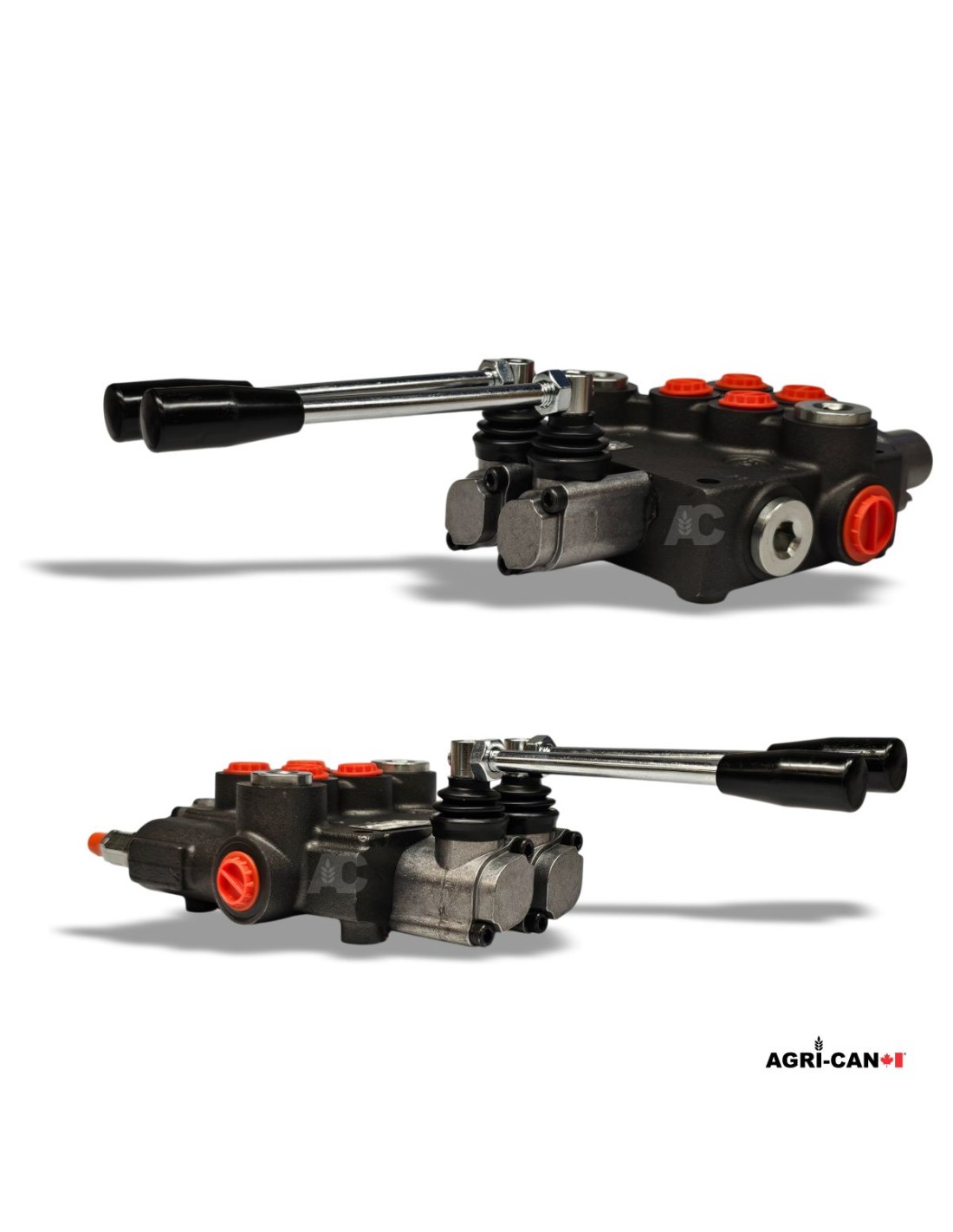

2-section monoblock hydraulic control valve designed to provide precise and reliable operation of hydraulic functions on front loaders, compact tractors, agricultural equipment and other mobile machinery.

Its configuration includes one double-acting spool with spring return and one double-acting spool with a float position. The float function allows the bucket or attachment to follow the ground contour freely, making it especially useful for grading, snow removal and material-handling applications.

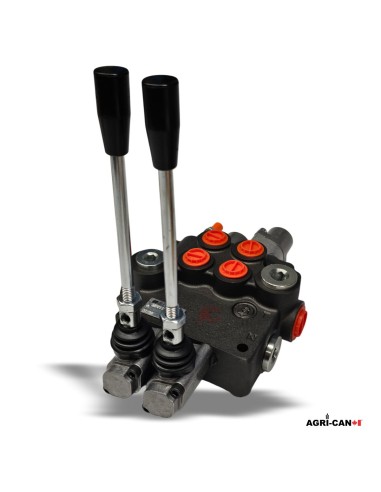

This open-centre valve is suitable for standard hydraulic systems and offers an excellent replacement option for equivalent Walvoil SD5, Gopart Z50 and Nimco CV112 control valves with matching configurations.

Compact, durable and easy to install, it is well suited for applications requiring dependable and smooth manual hydraulic control. Always verify the spool configuration, port threads, pressure-relief setting and mounting dimensions before installation.

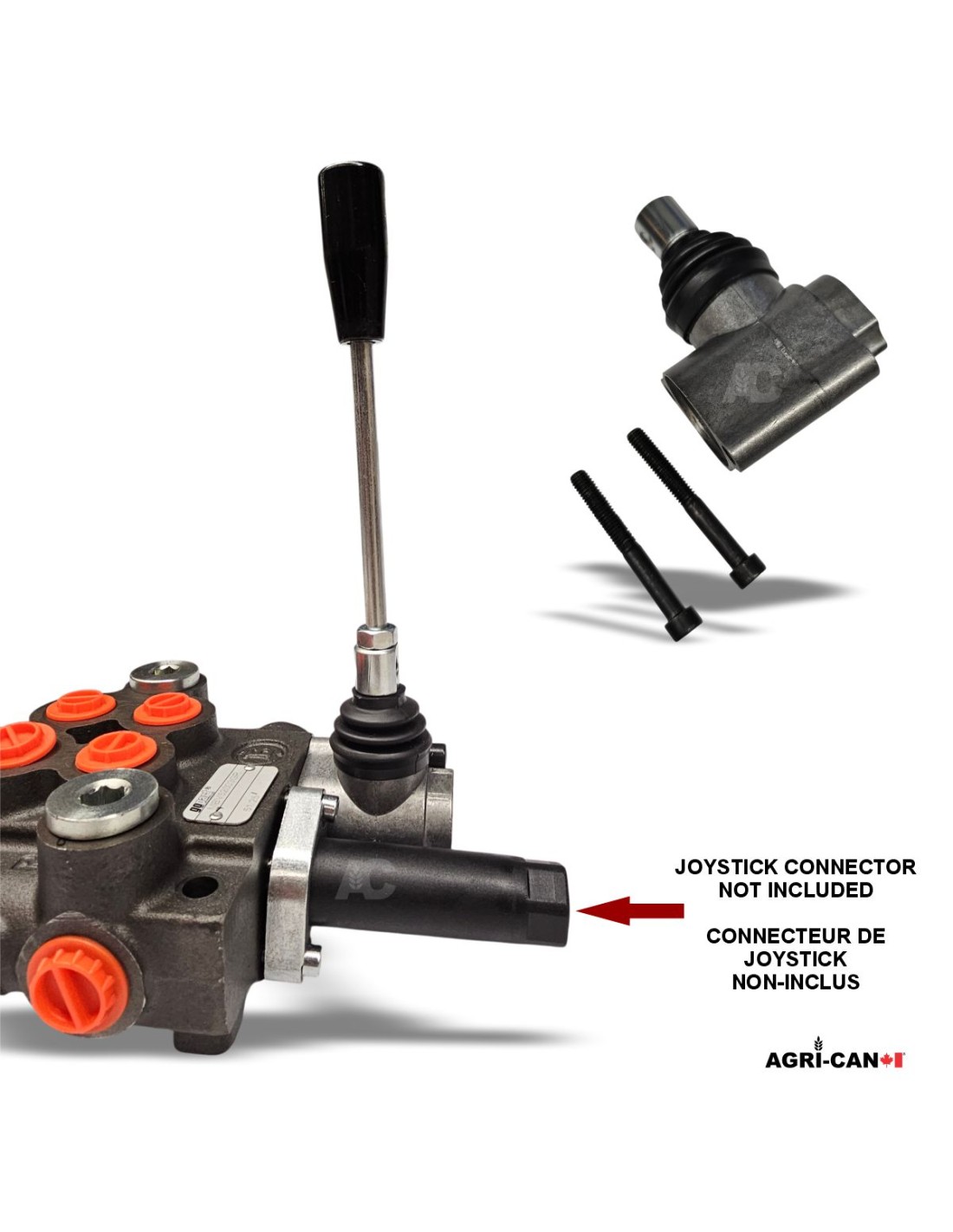

To use with control cables, remove the handles and use 2 connecting kits FK-212053.

Technical data

Number of sections	2
Type actuation	Hand operated (Joystick, Cable, and EHP also possible on this valve)
Max. flow rate	50 L/min.
Type	Monobloc
Pressure port P	3/8" BSP
Workports thread	3/8" BSP
Tank port T - Thread	1/2" BSP
Complete code	SD5/2-P(KG3-120)/18L/5DY13NZL/AET
Lever included	Yes
Spools and detends code	A-1 + K16 (5DY-13NZ)
Spools and detends description	1x double-acting with float in pos. 4, spring return with detent in 4th pos.
Outlet port option	Open centre
Valve series	Z50
Model code	Z50 A1K16(G3/8)KY1
Max working pressure	300 bar (4350 psi)
Pressure range relief valve	63-200 bar (913-2900 psi)
Max return line pressure	50 bar (725 psi)
Max. leakage	5 cm³/min

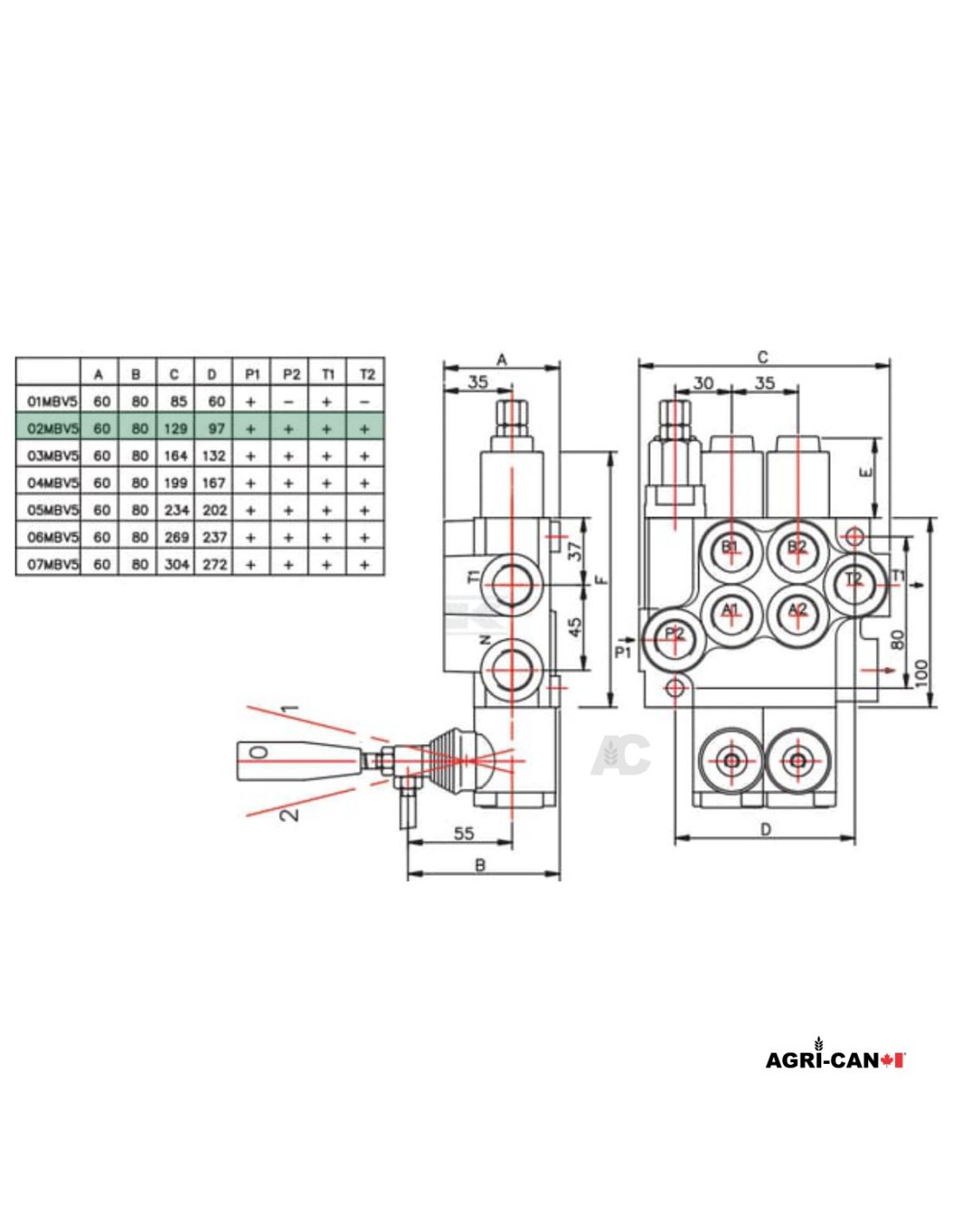

Handle length	80 mm
Total width	129 mm
Total height	60 mm
Mounting holes distance	97 mm

Replaces OEM parts numbers :

Badestnost	Z50 A1K16(G3/8)KY1 Z50-A1K16-G3/8-KY1 02Z50-A1K16-GKZ1 02Z50 A1K16 GKZ1
Walvoil	SD5 SD5/2 SD52003AEKIT SD52003 SD5/2-P-18-513-AET SD5/2-P-18-513L-AET 18-513-AET 18-513L-AET 102200540
Nimco Hydraulic Systems	CV112 10338-2S 10339-2S 10883-2S 12455-2S 14460-2S
Massey Ferguson / Agco	71516028 71516173 SL103337 7541902 10338-2S 10339-2S 10883-2S
Saturn / Q25	SQ252003 Q25 Q25 1 × DW + 1 × DW Float
Autres	87000928 02P40-1A1K16-GV1-11 P40 2 × DA Float P40 2 × DW avec position flottante ROZ2P80X1P 4109552 4108377 81571 80825 834010 1136103 143-13556 GOP-MBV52003GP ME87009733 554127 87000935

Product Details

Brand

Part Number ACMBV52003

In stock 4 Items

Reviews (0)

No reviews

ALO Brackets Quick Attach Set

Agri-Can®

AC2101

$159.95

2 Reviews

Set of 2 ALO Euro brackets with high-quality forged steel eye and hook

ALO Euro Quick Attach - Conversion Harness

ALO Euro Quick Attach - Conversion Harness 2

In stock Agri-Can Canada and USA

ALO Conversion harness

ALO Euro Quick Attach - Conversion Harness

Agri-Can®

AC2065

$679.95

2 Reviews

Permanent conversion harness to ALÖ Euro Norm - Mechanical locking - Fits most - No modifications required to the loader. 4400 lbs max capacity.

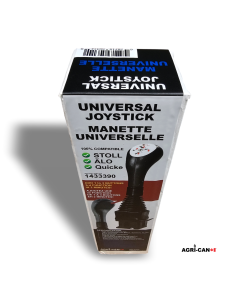

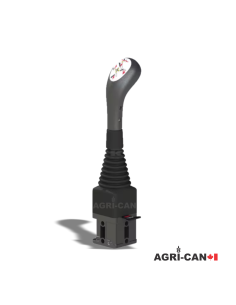

Universal joystick for tractor – 4 Positions + Float
