Universal handle for multifunction control joysticks, featuring 4 press buttons, dual proportional rollers + 1 safety switch.

Last items in stock
$449.95
As fast as next day 8am depending on your location

Description

Configurable replacement joystick handle.

With our high-quality joystick handle, replacing the multifunction handle on your tractor has never been easier. Simply screw the handle into place and connect it to the existing wiring.

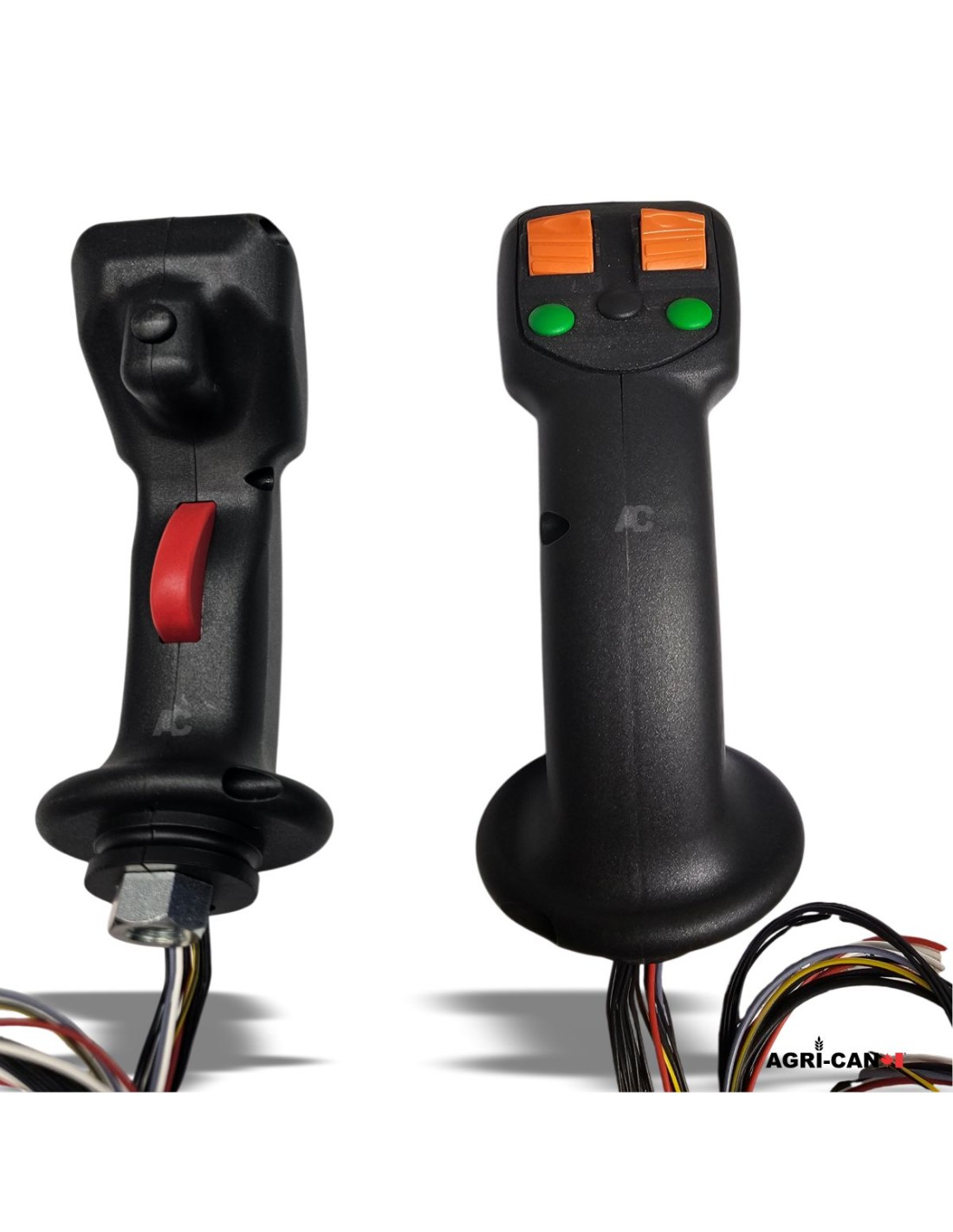

Includes an operator presence switch: This switch (the red lever underneath the handle) helps ensure the safety of the operator and anyone in the vicinity of the machinery. The operator must press the lever to enable the joystick functions.

Manufactured by Indemar Industriale in Italy, the OEM manufacturer of control components for ALÖ Quicke, Stoll, John Deere, and other leading brands, this handle is built to world-class quality standards.

No handle programming required

Heavy-duty and built to last

Standard Applications

  • Tractor loaders
  • Combine harvesters
  • Backhoes
  • Excavators
  • Robotic controls
  • Any other application requiring a joystick

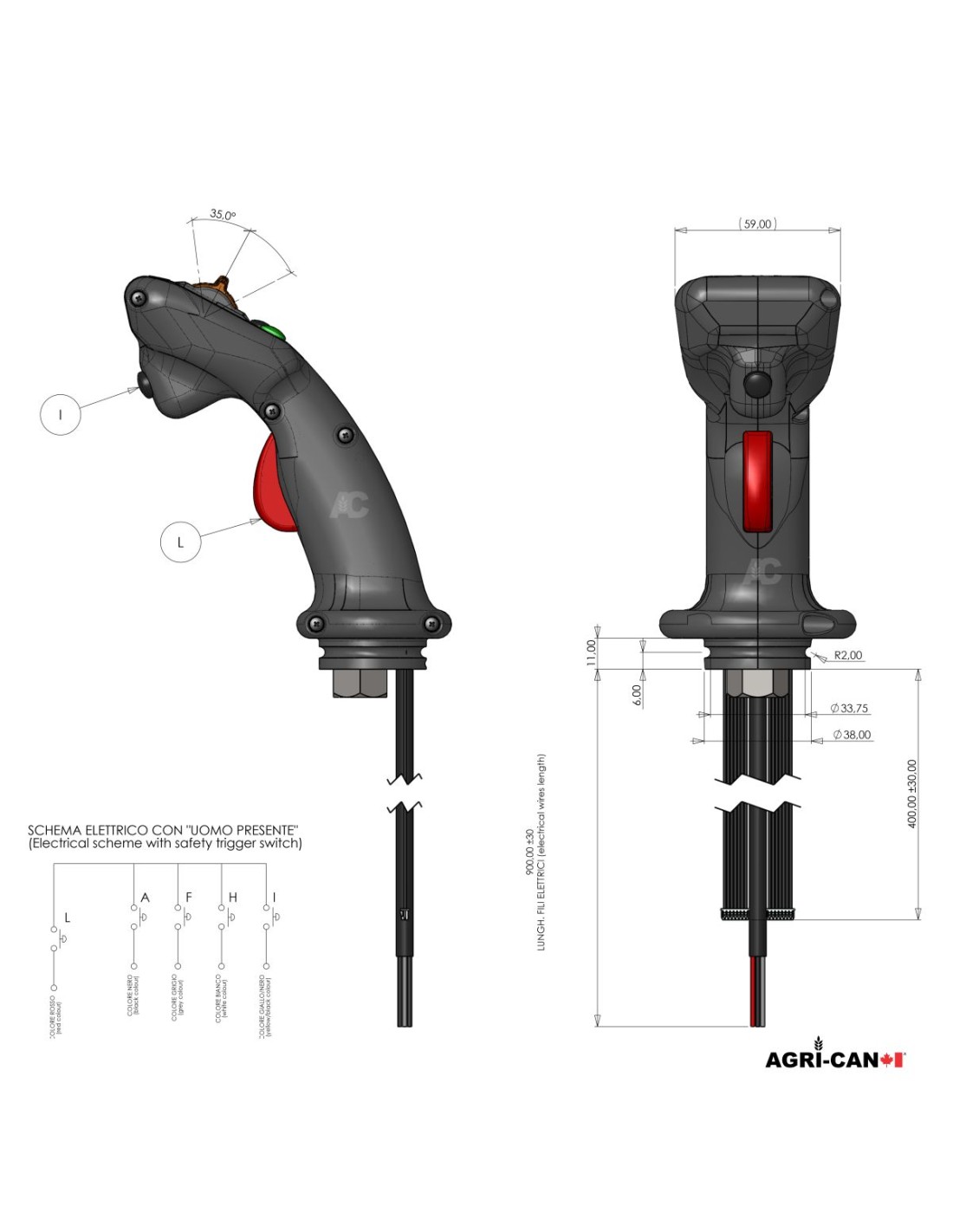

SPECIFICATIONS

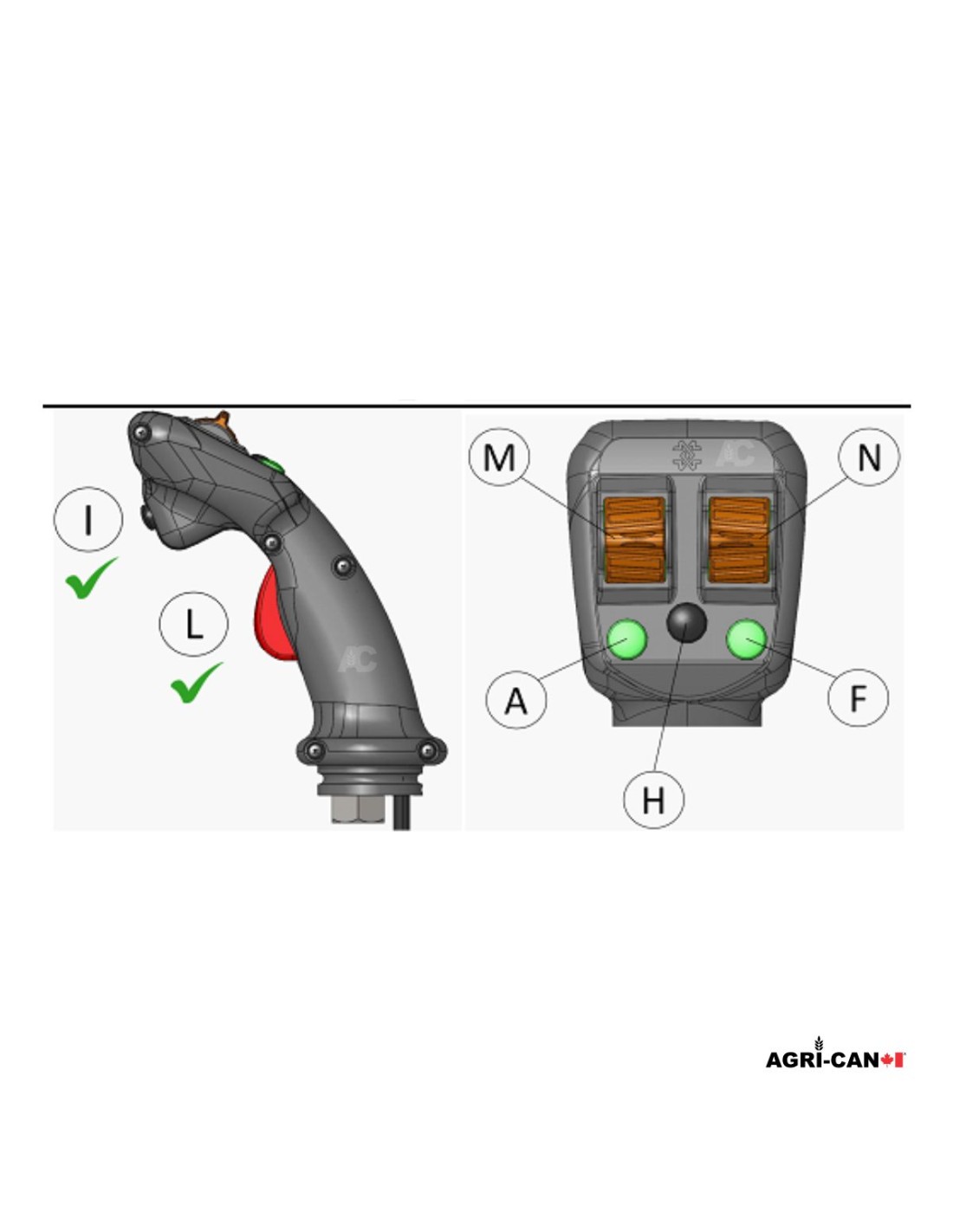

Number of Controls

4 push buttons

2 dual proportional rollers

1 operator presence switch

Additional Functions Possible

NO

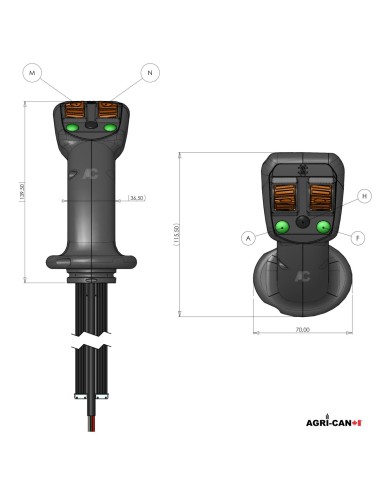

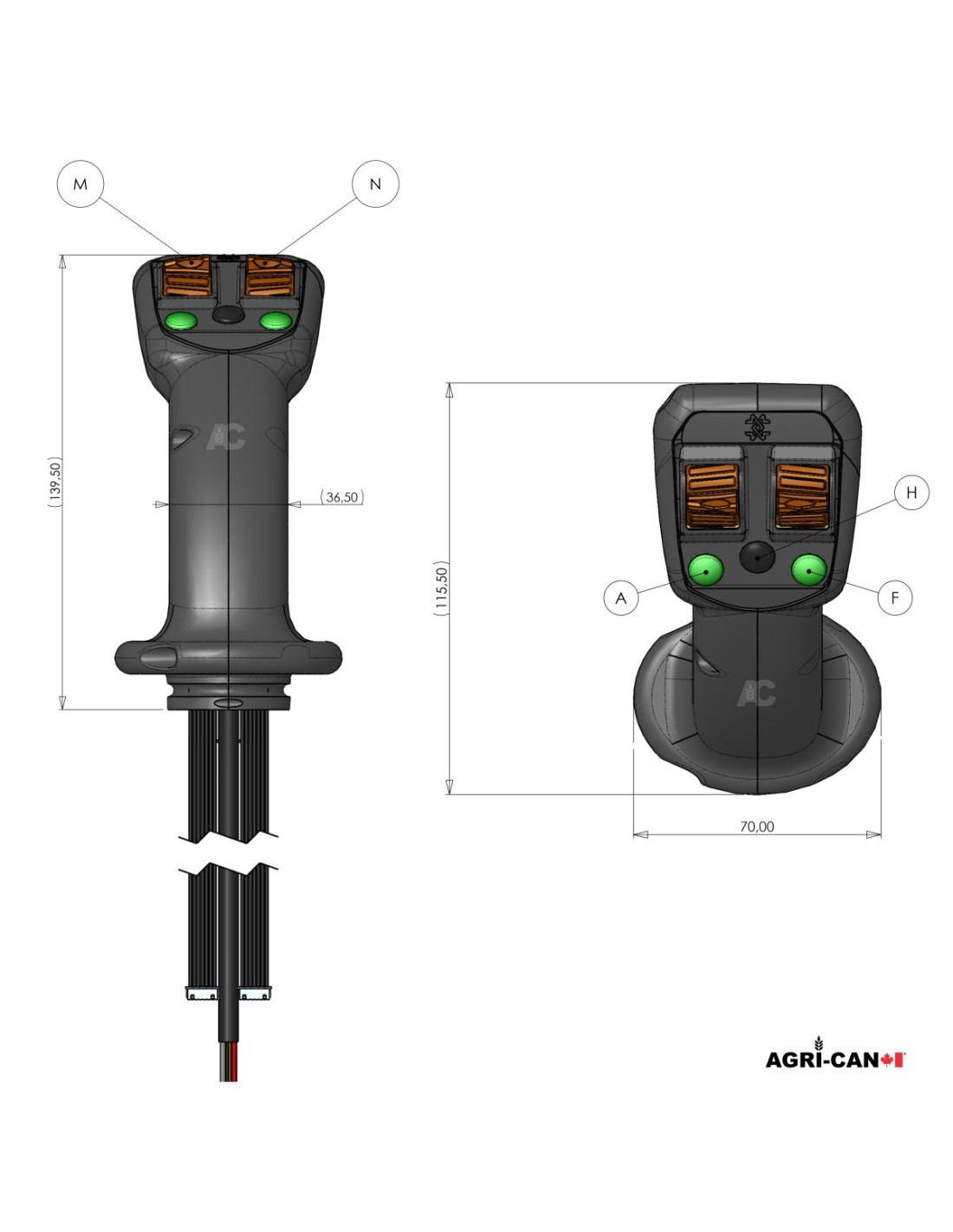

Handle Thread

M12 x 1.5 mm

Overall Height

139.50 mm

Handle Diameter

36.50 mm

Base Width

70.00 mm

Control Head Width

59.00 mm

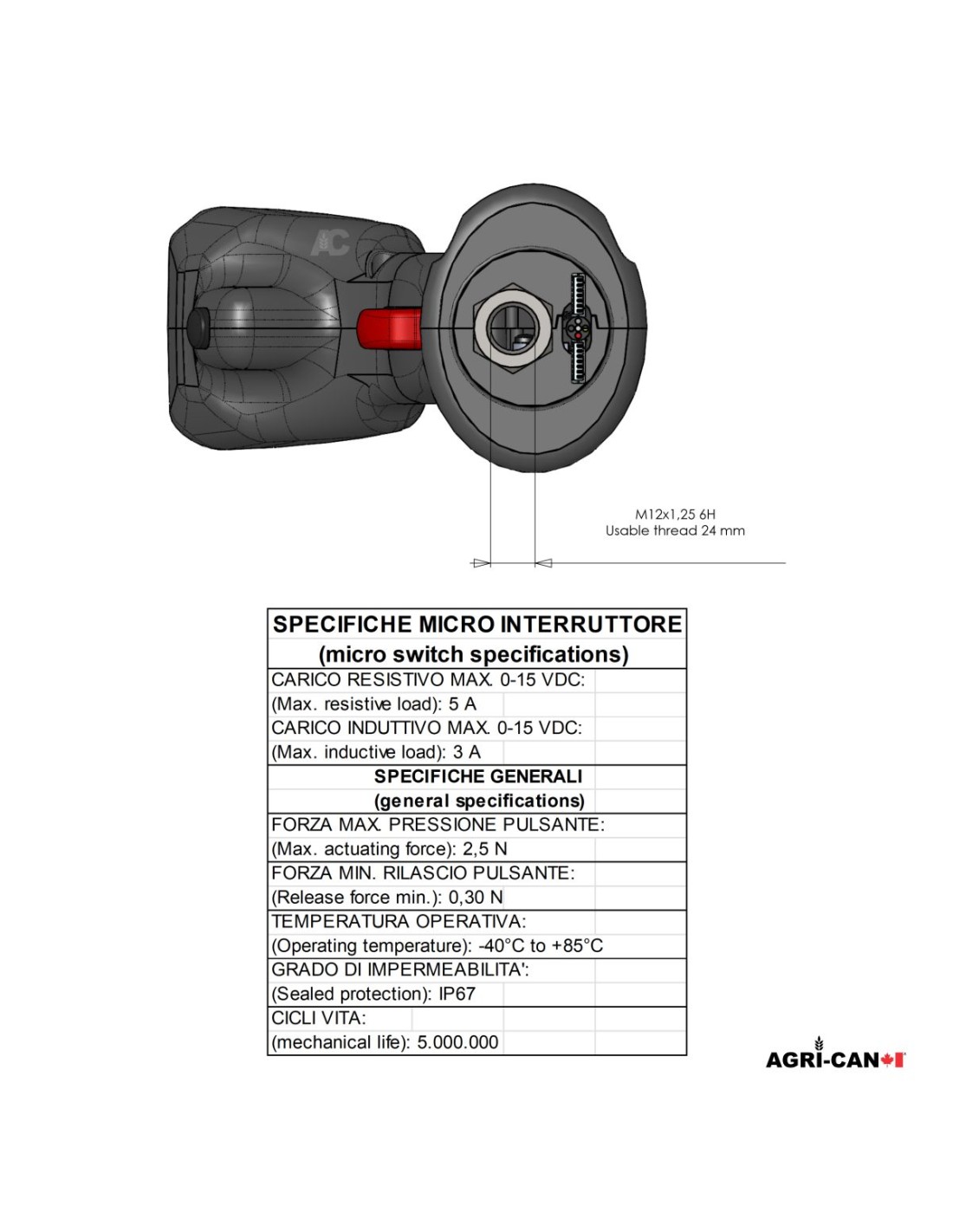

Voltage

0–15 VDC

Maximum Resistive Load

5 A

Maximum Inductive Load

3 A

Operating Temperature

-40°C to +85°C

Protection Rating

IP67

Mechanical Life

5,000,000 cycles



Replaces :

  • Indemar IP-962005
  • Indemar IP962005
  • Indemar 962005
  • Indemar IP-962 / série 962___
  • FAIE FA121498
  • FAIE 121498
  • Indemar / IKH FM951001
  • Indemar / IKH FM951002
  • Indemar / IKH FM951003
  • Indemar / IKH FM961045
  • Indemar / IKH FM961047

HIGH QUALITY – MADE IN ITALY

SAFETY WARNING

This handle is equipped with an operator presence switch (“safety switch”) that must be engaged in order to operate the joystick functions.

The safety switch must never be disabled, bypassed, modified, or otherwise rendered inoperative. Operating the equipment while the safety switch is disabled, bypassed, or defective constitutes improper use of the product.

To the fullest extent permitted by law, Agri-Can Products Inc. and the manufacturer disclaim any liability for property damage, personal injury, or other loss resulting directly or indirectly from operation of the joystick when the safety switch is not functioning or is not used in accordance with the manufacturer’s instructions.
