OEM Walvoil 2-Section Hydraulic Control Valve with Float Position – 45 L/min – SD52003

OEM Walvoil 2-Section Hydraulic Control Valve...

OEM Walvoil 2-Section Hydraulic Control Valve with Float Position – 45 L/min – SD52003

Name: OEM Walvoil 2-Section Hydraulic Control Valve with Float Position – 45 L/min – SD52003
Brand: Agri-Can®
SKU: SD52003
Price: 598.95 CAD
Availability: InStock

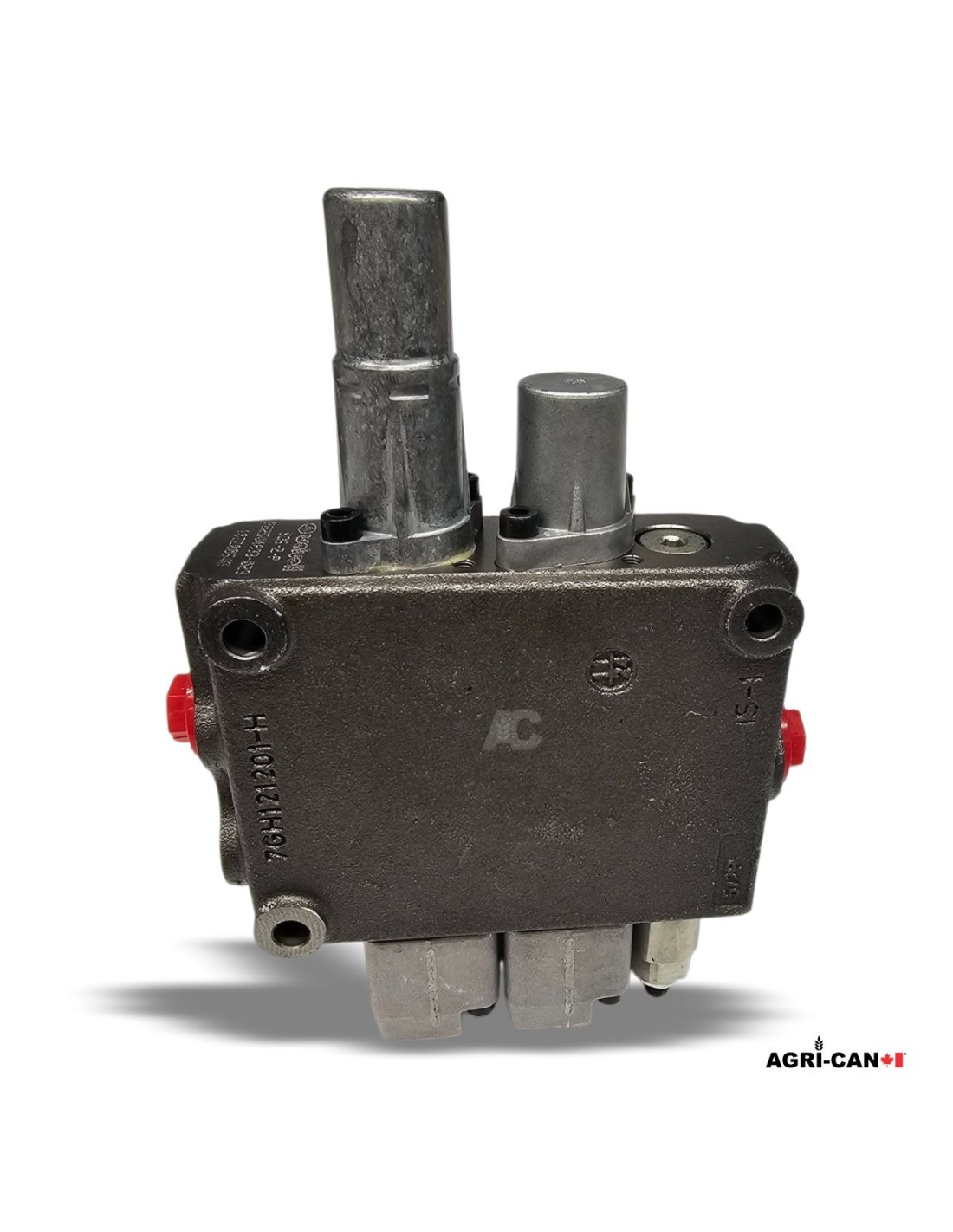

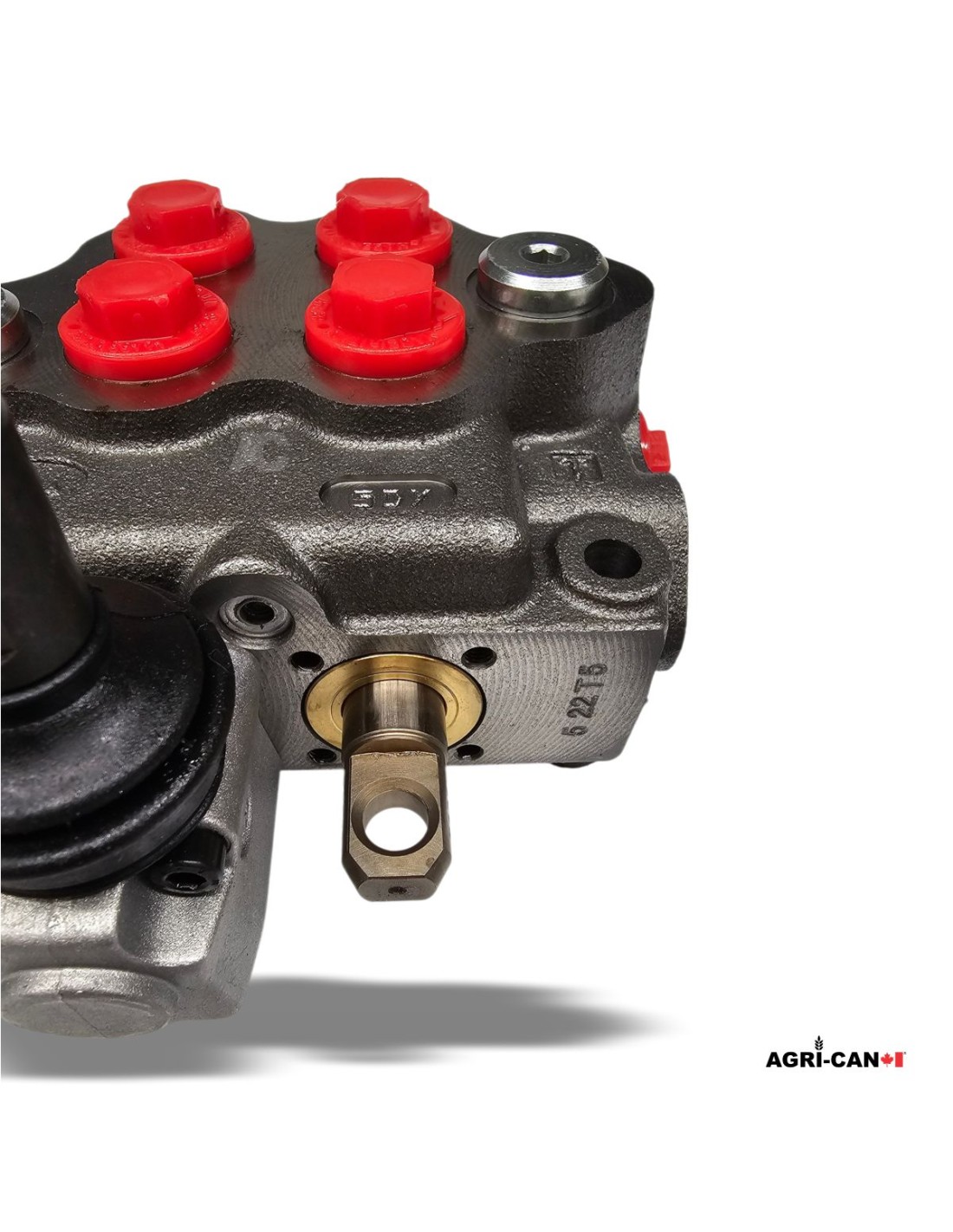

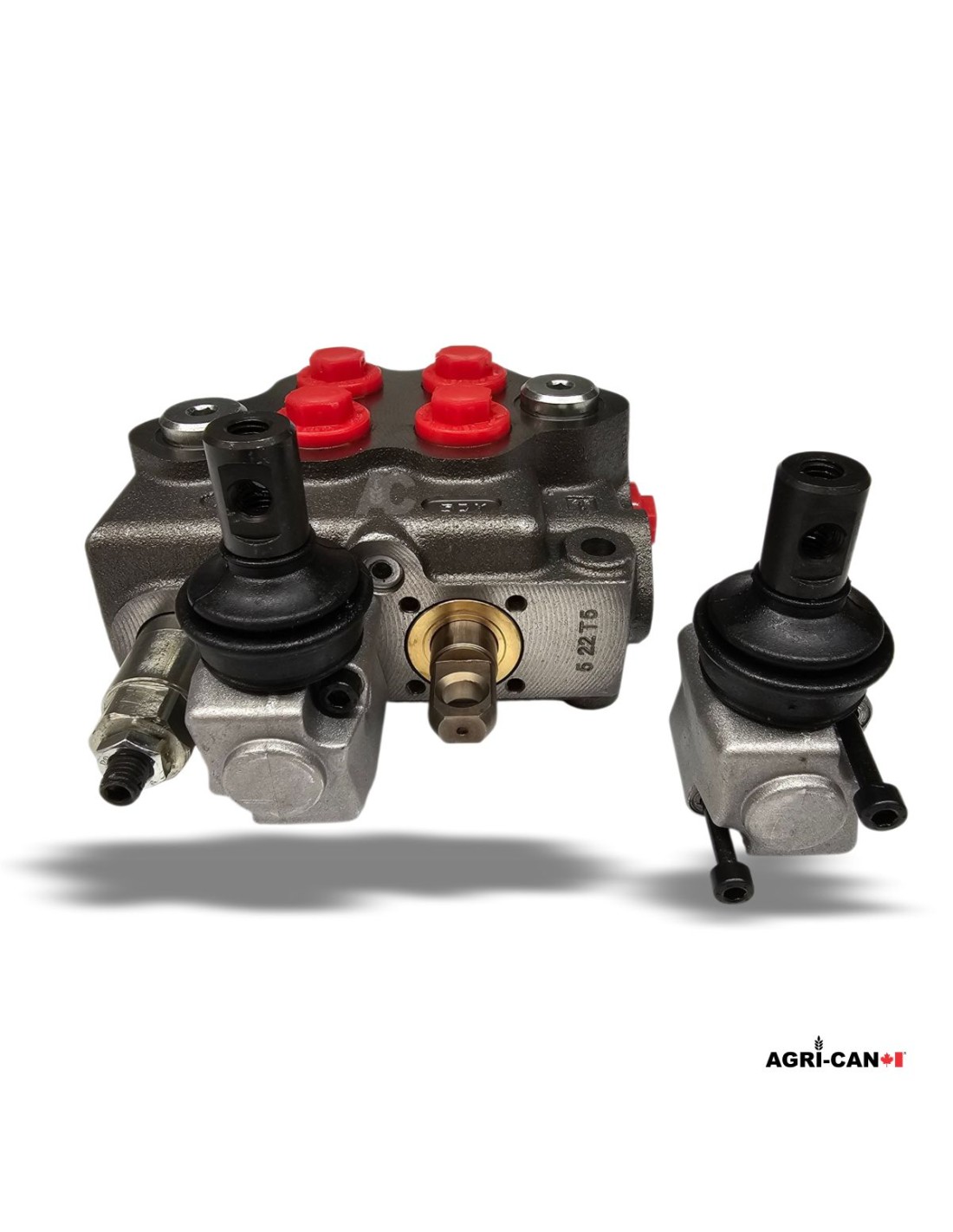

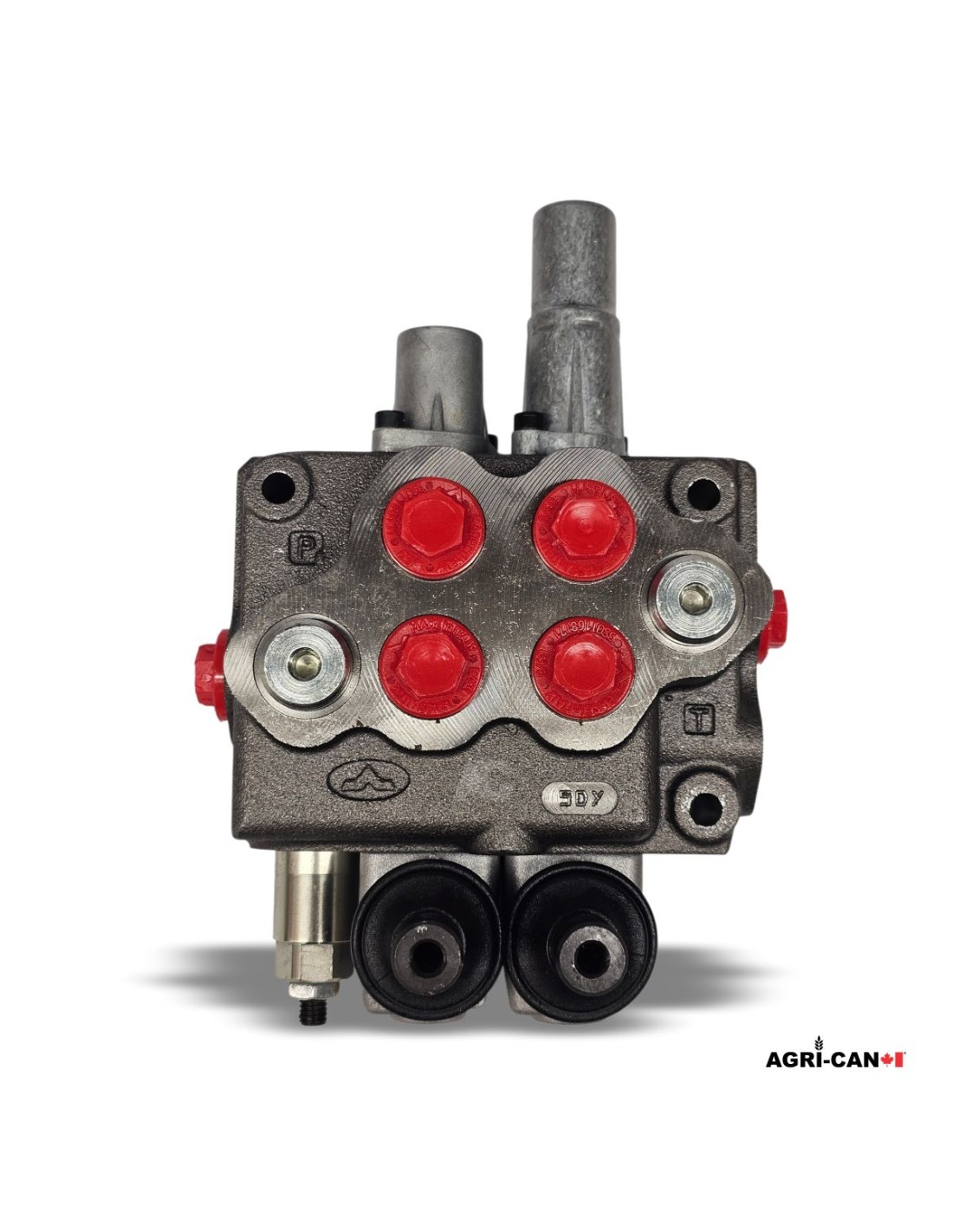

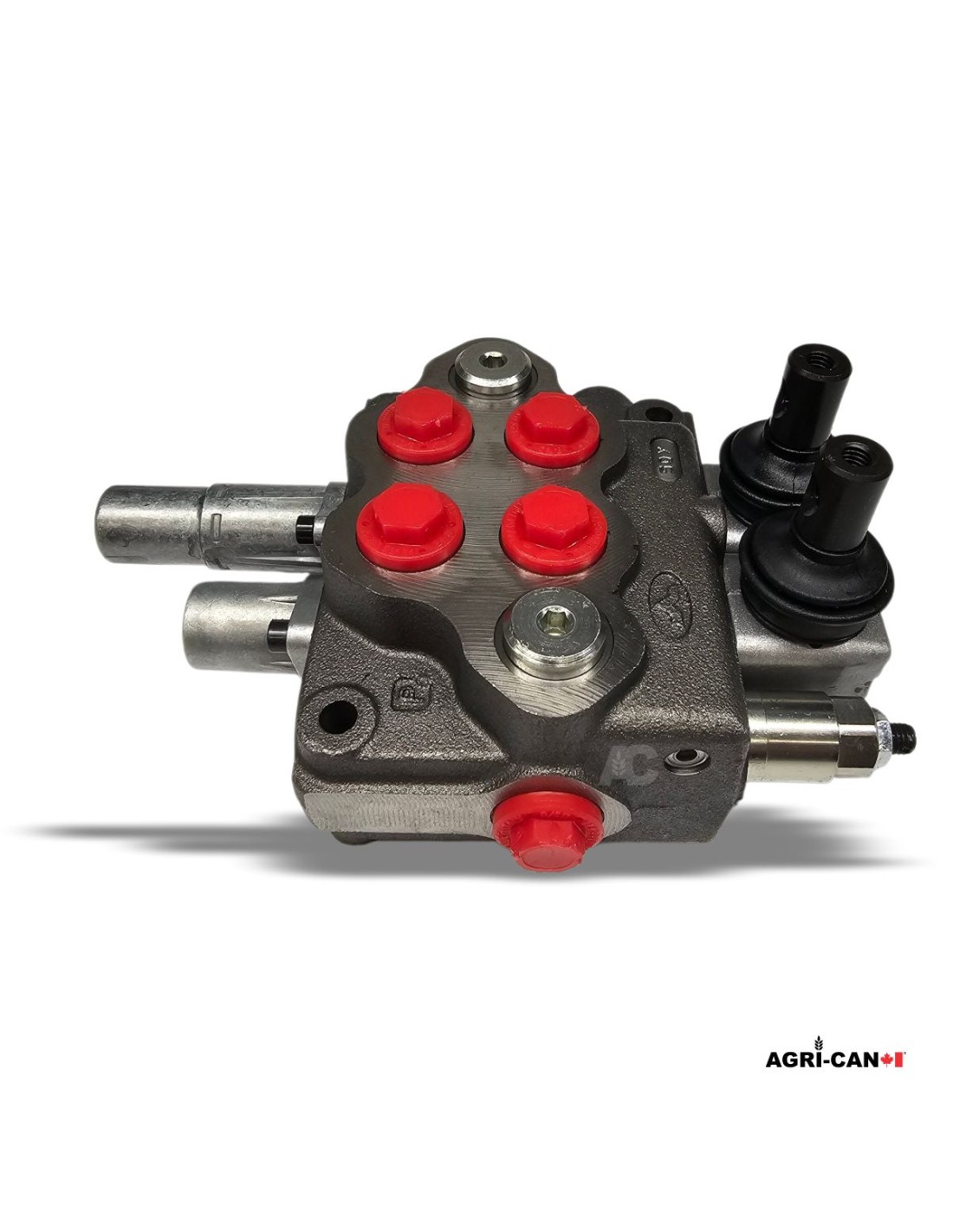

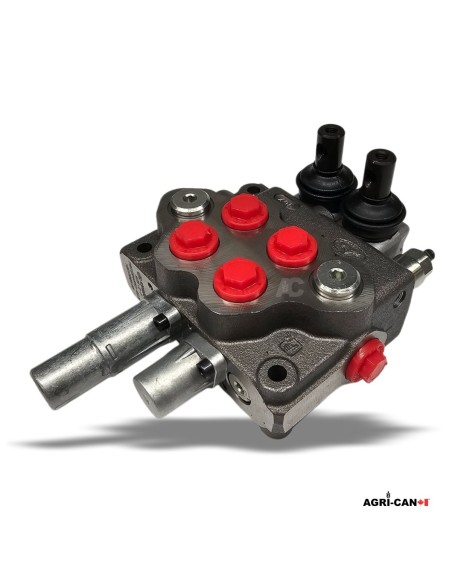

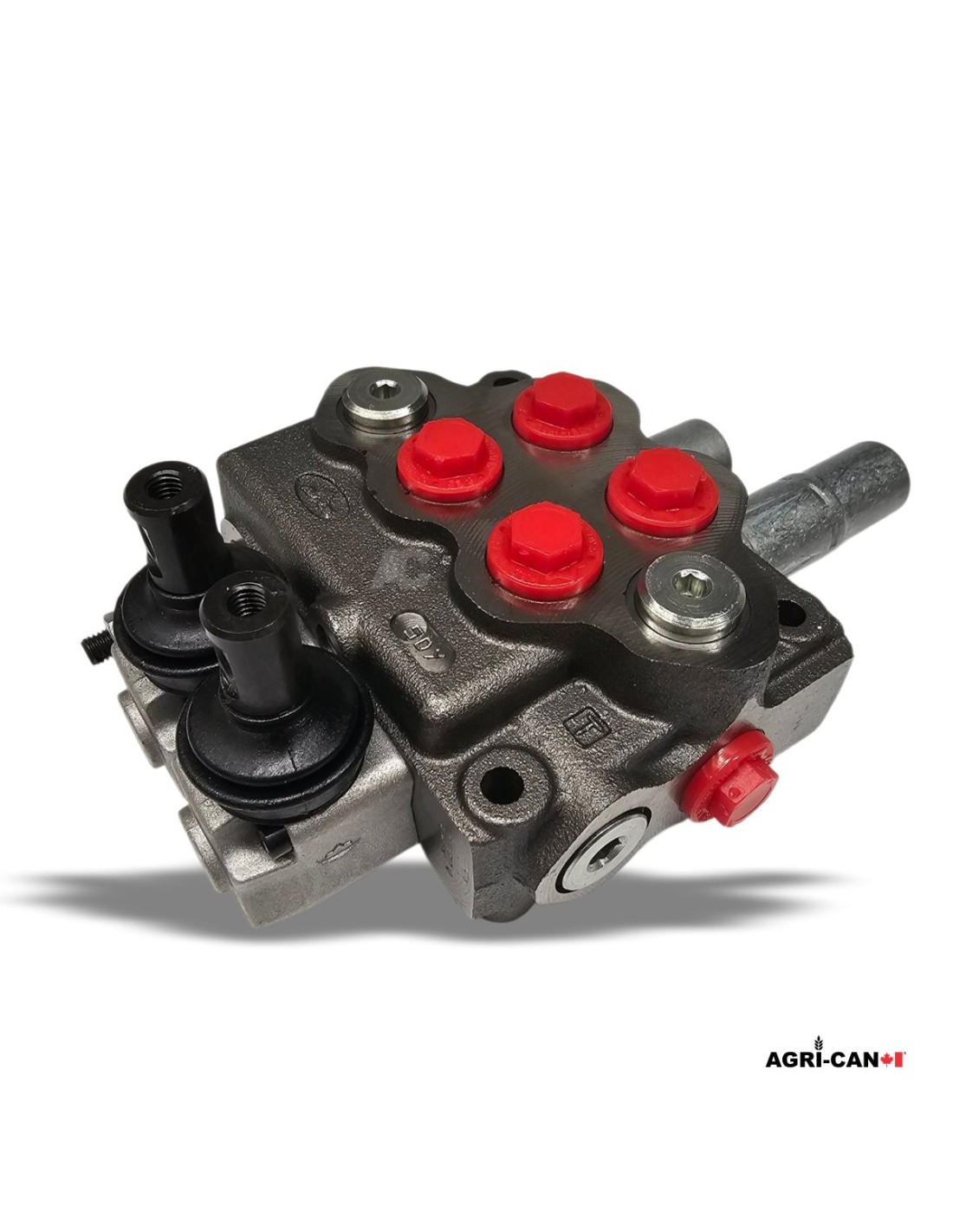

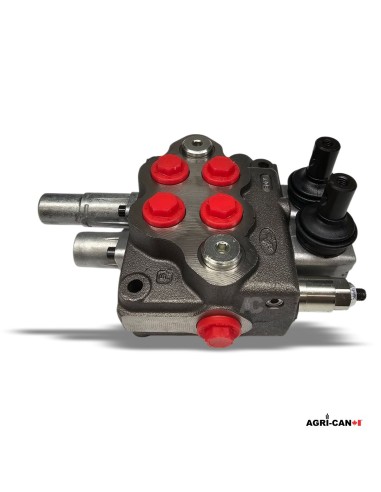

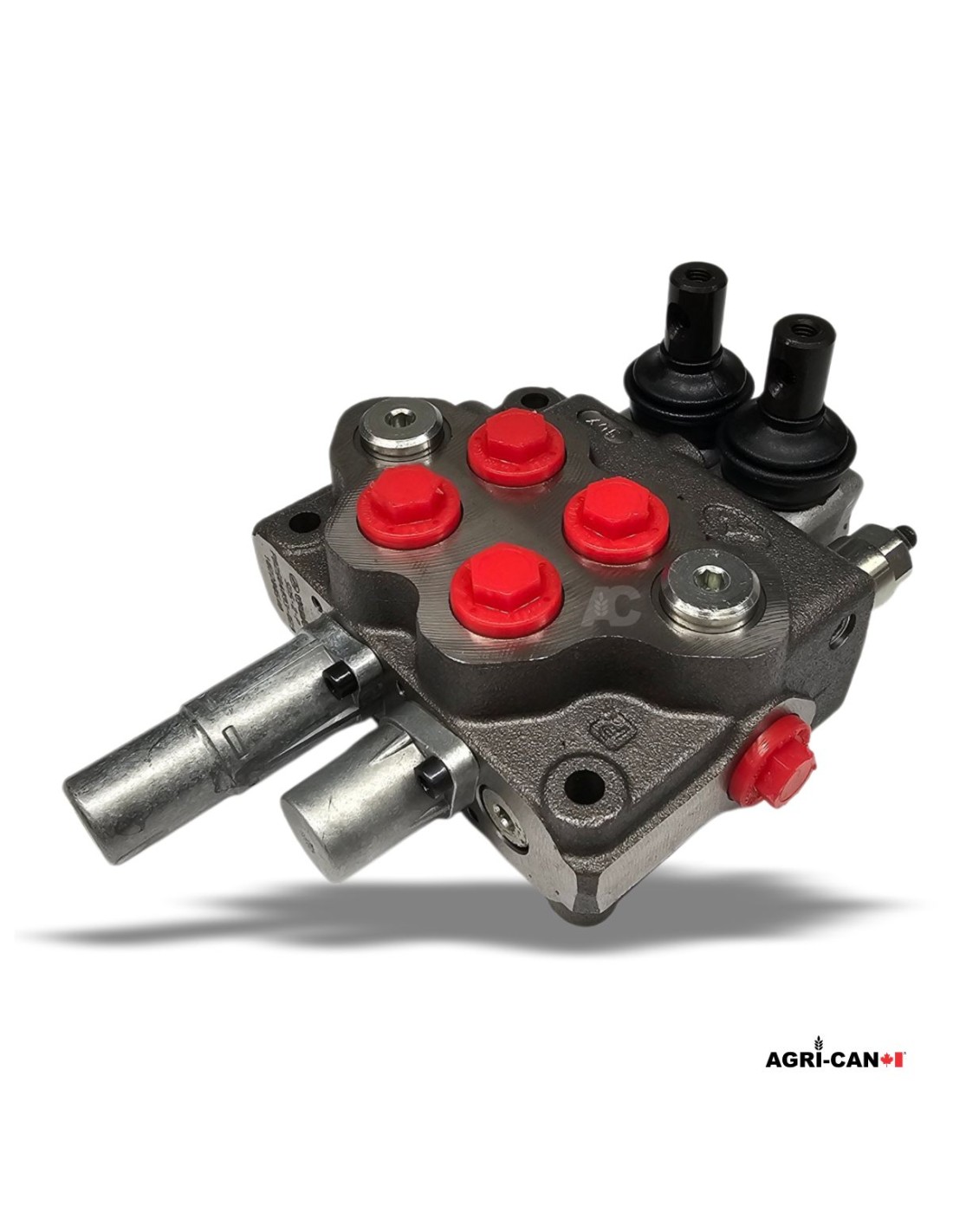

OEM Walvoil SD5 2-section hydraulic control valve with one standard double-acting spool and one double-acting spool with float position. Made in Italy.

Your reference for this product

Don't forget to save your reference to be able to add it to your cart

Last items in stock

$598.95

As fast as next day 8am depending on your location

Resource Center

Description

OEM Walvoil SD5 2-section monoblock hydraulic control valve designed for precise and reliable operation on front loaders, compact tractors and agricultural equipment.

The first section features a standard double-acting spool with spring return to neutral. The second section features a four-position double-acting spool with a detented float function, allowing the loader arms or attachment to follow the ground contour freely. This function is especially useful for grading, snow removal and other applications requiring the attachment to move independently with the terrain.

Its open-centre configuration is suitable for standard fixed-displacement hydraulic systems. The compact monoblock design provides smooth operation, dependable performance and long service life in demanding agricultural and mobile hydraulic applications.

Walvoil reference: SD52003

Made in Italy

Technical data

Number of sections	2

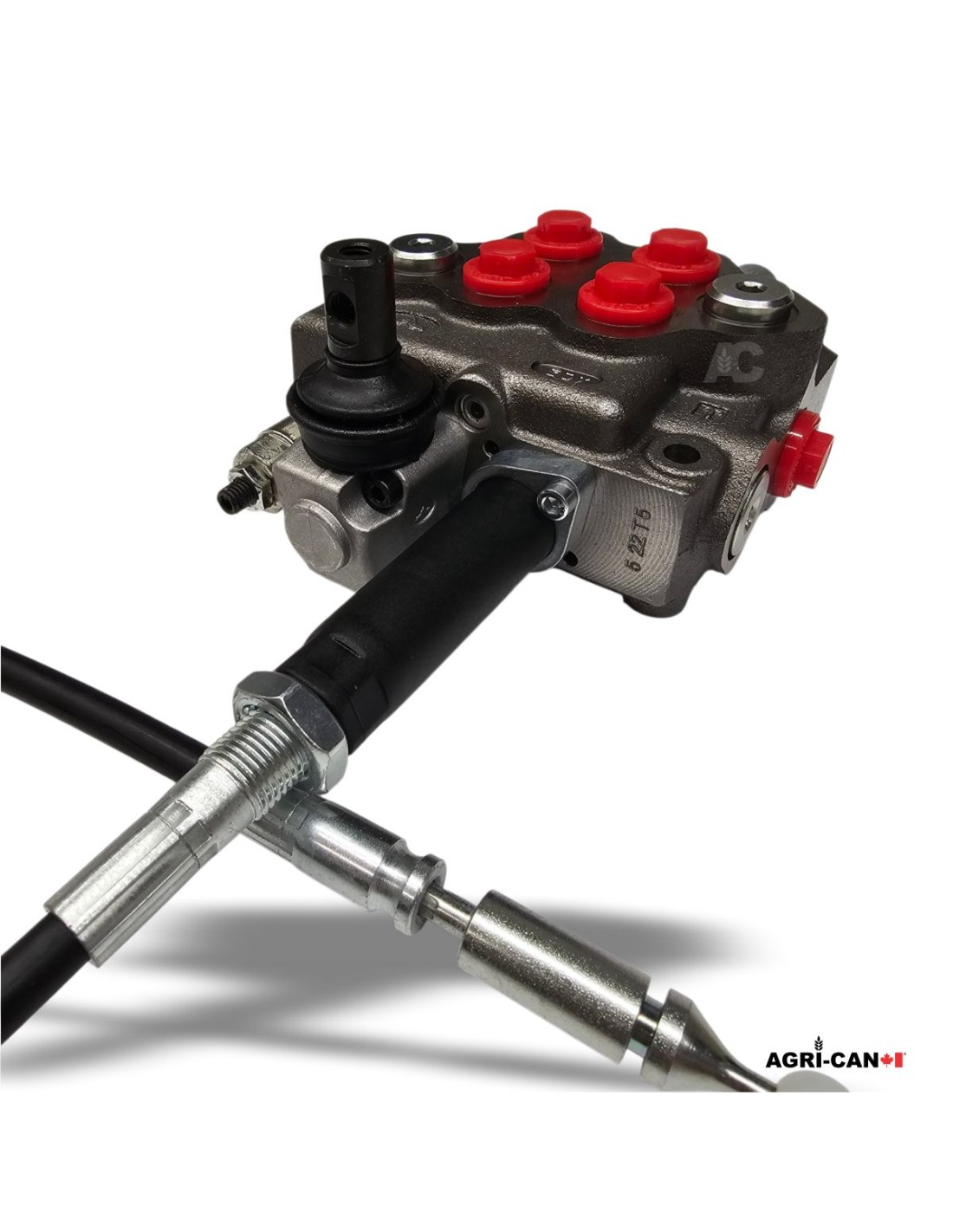

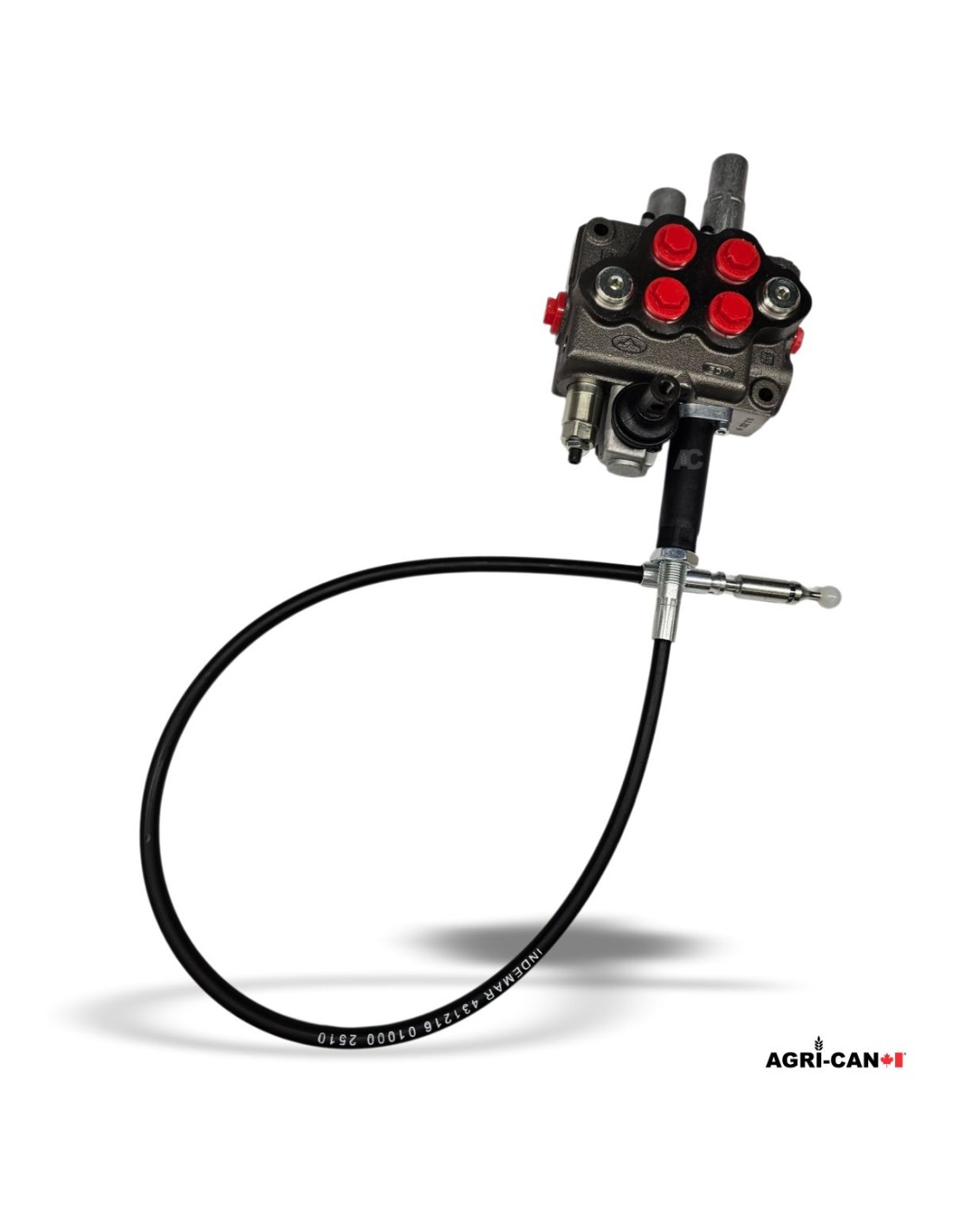

Type actuation	Hand operated (Joystick, Cable, and EHP also possible on this valve)
Max. flow rate	45 L/min. (12 GPM)
Type	Monoblock
Pressure port P	3/8" BSP
Workports thread	3/8" BSP
Tank port T - Thread	3/8" BSP
Complete code	SD5/2-P(KG3-120)/18L/5DY13NZL/AET
Lever included	No
Spools and detends code	1-8 + 5DY-13NZ
Spools and detends description	1x double-acting with float in pos. 4, spring return with detent in 4th pos.
Outlet port option	Open centre Parallel
Valve series	SD5
Model code	SD5/2-P-18-513-AET
Max working pressure	315 bar (4600 psi)
Pressure range relief valve	63-200 bar (913-2900 psi)
Max return line pressure	25 bar (363 psi)
Max. leakage	3 cm³/min
Handle length	N/A
Total width	139 mm
Total height	60 mm
Mounting holes distance	110 mm x 81 mm

Replaces OEM parts numbers :

Badestnost	Z50 A1K16(G3/8)KY1 Z50-A1K16-G3/8-KY1 02Z50-A1K16-GKZ1 02Z50 A1K16 GKZ1
Walvoil	SD5 SD5/2 SD52003AEKIT SD52003 SD5/2-P-18-513-AET SD5/2-P-18-513L-AET 18-513-AET 18-513L-AET 102200540
Nimco Hydraulic Systems	CV112 10338-2S 10339-2S 10883-2S 12455-2S 14460-2S
Massey Ferguson / Agco	71516028 71516173 SL103337 7541902 10338-2S 10339-2S 10883-2S
Saturn / Q25	SQ252003 Q25 Q25 1 × DW + 1 × DW Float
Autres	87000928 02P40-1A1K16-GV1-11 P40 2 × DA Float P40 2 × DW avec position flottante ROZ2P80X1P 4109552 4108377 81571 80825 834010 1136103 143-13556 GOP-MBV52003GP ME87009733 554127 87000935

Product Details

Brand

Part Number SD52003

In stock 1 Item

Reviews (0)

No reviews

ALO Brackets Quick Attach Set

Agri-Can®

AC2101

$159.95

2 Reviews

Set of 2 ALO Euro brackets with high-quality forged steel eye and hook

ALO Euro Quick Attach - Conversion Harness

ALO Euro Quick Attach - Conversion Harness 2

In stock Agri-Can Canada and USA

ALO Conversion harness

ALO Euro Quick Attach - Conversion Harness

Agri-Can®

AC2065

$679.95

2 Reviews

Permanent conversion harness to ALÖ Euro Norm - Mechanical locking - Fits most - No modifications required to the loader. 4400 lbs max capacity.

Universal joystick for tractor – 4 Positions + Float

Universal joystick for tractor – 4 Positions + Float 2

In Stock

Joysticks and Levers

Universal joystick for tractor – 4 Positions + Float

Indemar

1433390E

$209.95

1 Reviews

High-end universal joystick including 2 functions (4 positions plus float position) for STOLL, ÄLO, Quicke, and Massey Ferguson Loaders. The electric switch for 3rd function in the front is sold separately.

In Stock

Joystick Spare Parts

2-Button Third Function for STOLL Joystick

Indemar

3536580E

$86.09

Electric 2 buttons third function for our universal joystick 1433390E, and STOLL 1433390, CU300, WK350 and handle 1433920E

In Stock

Ball-end Cables

Joystick Cable with Ball End - 1500mm

Indemar

ACCWB1500

$129.99

59’’ / 1500mm High-quality joystick cable, made in Italy by the STOLL and ALÖ OEM manufacturer for Agri-Can.

In Stock

Clevis-end Cables

Joystick Cable with Clevis End - 1500mm (59'')

Indemar

AC731133-1500

$132.99

59’’ / 1500mm High-quality joystick cable with clevis end, made in Italy by the STOLL and ALÖ OEM manufacturer for Agri-Can.

In Stock

Universal Cables

Universal Joystick Cable M6 - 1500 mm (59")

Indemar

ACAKCZ1500

$119.99

1500 mm (59") High-quality joystick cable, made in Italy by the STOLL and ALÖ OEM manufacturer for Agri-Can.

In Stock

Control Cables

Control Cable with Compensator - 2000mm (79")

Indemar

AC732491-2000

$146.96

2000mm (79") High-quality control cable for throttle, levers and other application. Made in Italy by the OEM manufacturer for Agri-Can.

In Stock

Mounting Kits

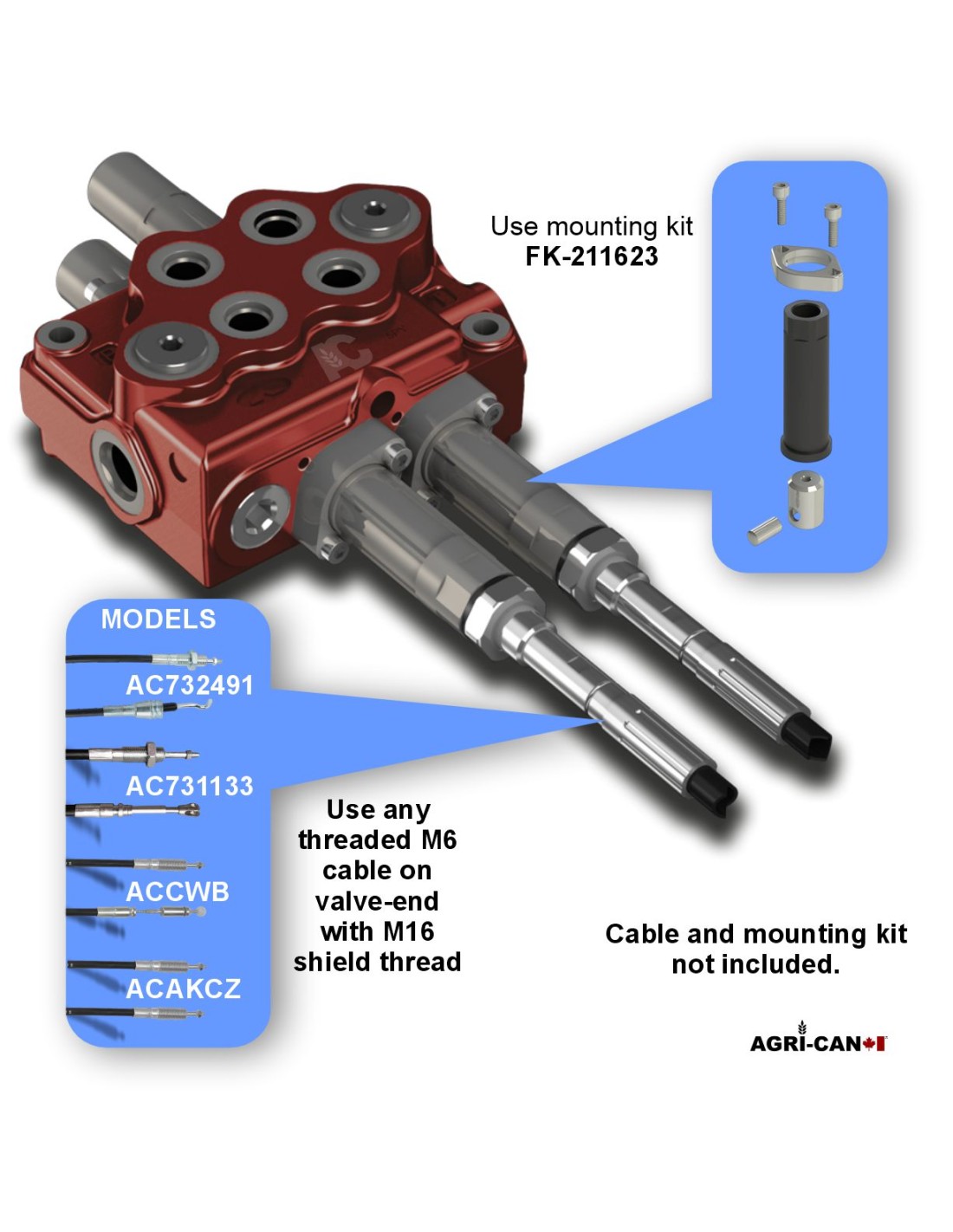

Cable Mounting Kit – Walvoil / Dura (SD 4/5/6/150)
