Joystick Cable with Ball End - 1500mm
IB-431216
Joystick Cable with Ball End - 1500mm
Joystick Cable with Ball End - 1500mm
IB-431216
Joystick Cable with Ball End - 1500mm

Joystick Cable with Ball End - 1500mm

59’’ / 1500mm High-quality joystick cable, made in Italy by the STOLL and ALÖ OEM manufacturer for Agri-Can.

In Stock
$90.99
Depending your choice at checkout. As fast as next day 8am

Resource Center

Description

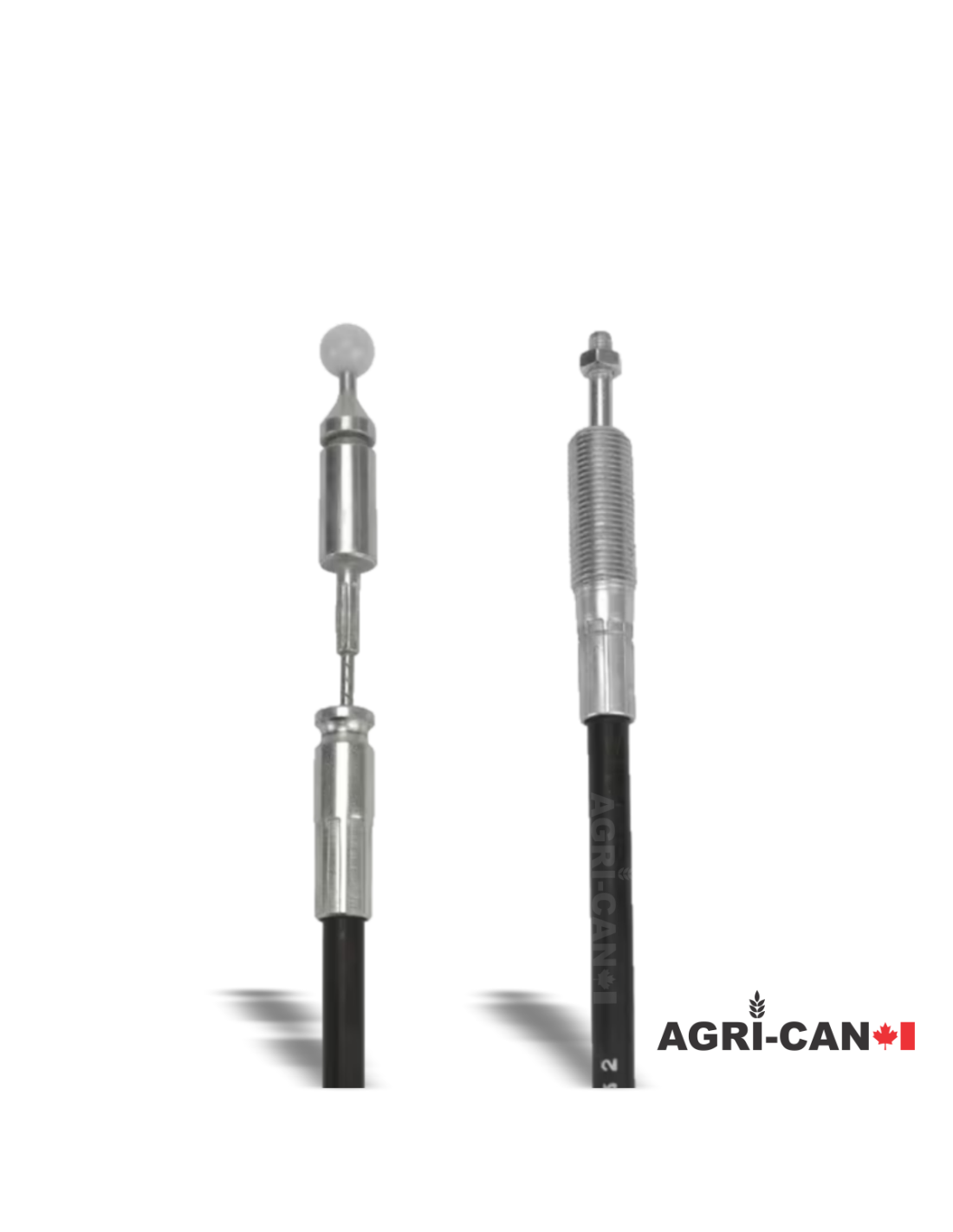

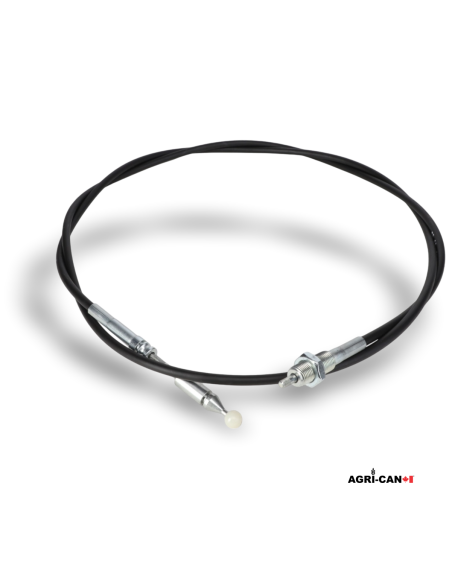

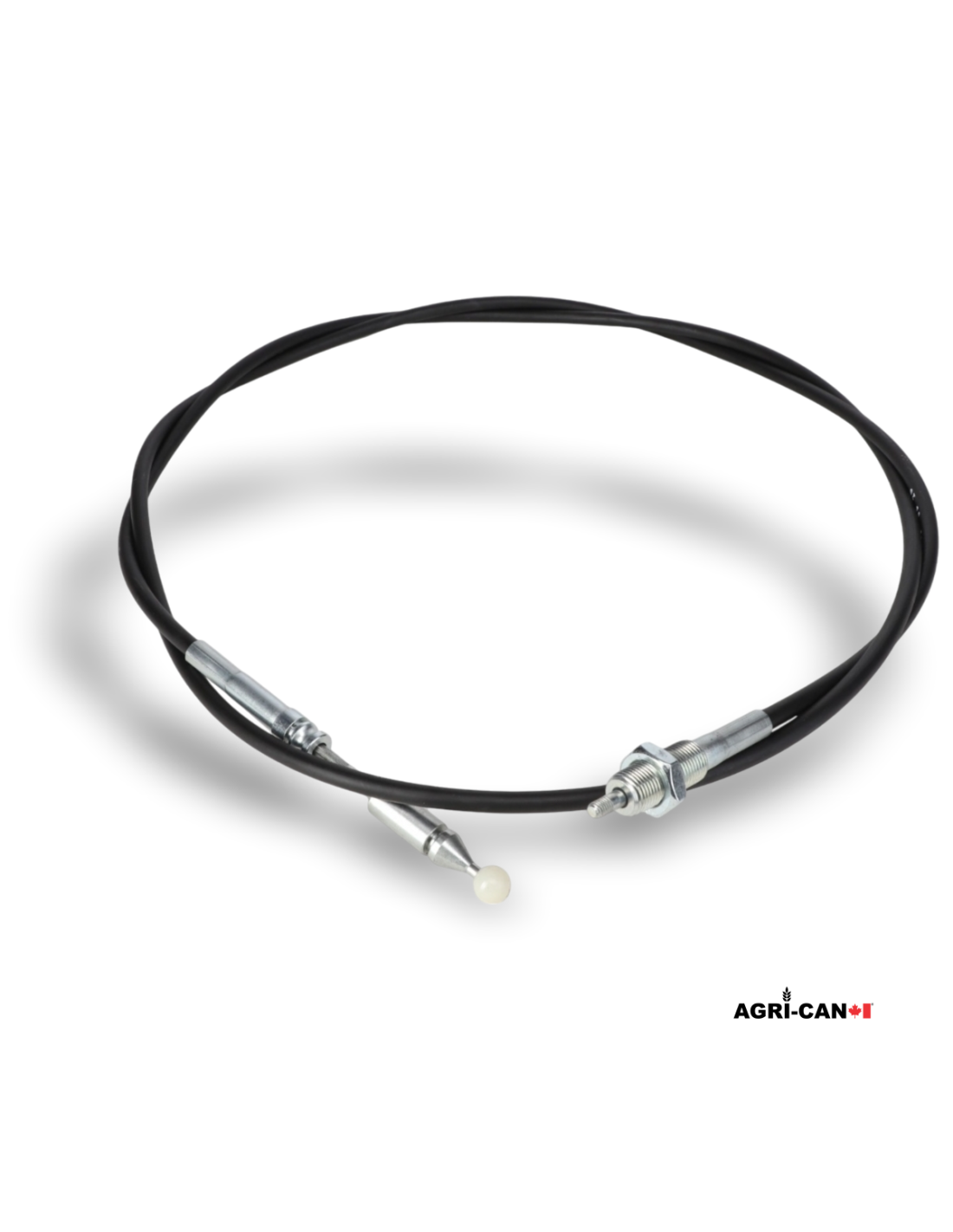

Bowden cable 59’’ / 1500mm High-quality joystick cable Morse style with ball-end

Fits most joystick systems

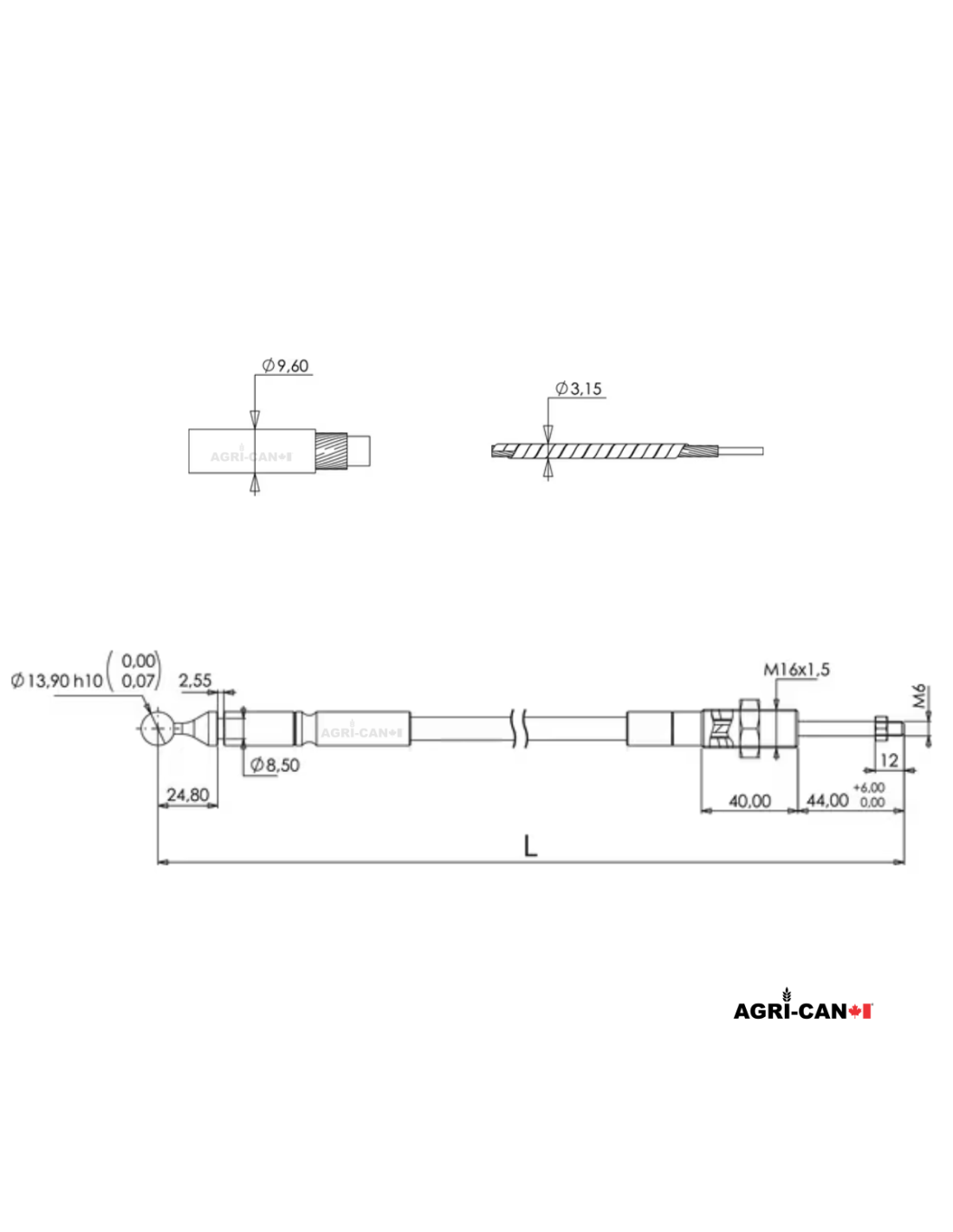

Specification

Maximum Cable Stroke

30mm (±2mm)

Ball-end Diameter

13.9mm

Bulkhead Thread

M16X1.5

Thread on Cable

M6

Thread Length

12mm

Maximum Load

3000 N

Minimum Bending Radius

200mm

Operating Temperature

-30°C up to +80°C

HIGH-QUALITY MADE IN ITALY BY THE STOLL, ALÖ QUICKE OEM MANUFACTURER FOR AGRI-CAN

Replaces OEM Parts: 0483180, 483180, IB-431216, 71512101, SL135767, IMCWB150, STP0483180

Compatibility

Click on a brand to see compatible models

FITS MOST

 Universal - Fits most tractors

Fits most tractors equipped with hydraulic loader joystick. If your cable has a ball-end, this is the part you need.

USEFUL INFORMATION:

The cable does not need to be the exact same length as the original one. It must be long enough to be installed without being stretched.

STOLL

  • FC 150 L
  • FC 150 H
  • FC 150 P
  • FC 250 L
  • FC 250 H
  • FC 250 P
  • FC 350 L
  • FC 350 H
  • FC 350 P
  • FC 450 H
  • FC 450 P
  • FC 550 H
  • FC 550 P
  • FE 650 P
  • FE 750 P
  • FE 850 P
  • FE 950 P
  • FE 650 H
  • FE 750 H
  • FE 850 H
  • FE 950 H
  • ProfiLine FZ
  • ProfiLine FS

Product Details

Compatibility by brand name
ALÖ Quicke
Agco Parts
Case IH
Deutz-Fahr
Fiat
Ford
HLA Attachments
John Deere
Kubota
Landini
Mahindra
Massey Ferguson
Mc Cormick
New Holland
Oliver / White
STOLL
Universal Tractor
Yanmar
Zetor
ACCWB1500
26 Items

Reviews (0)

No reviews
