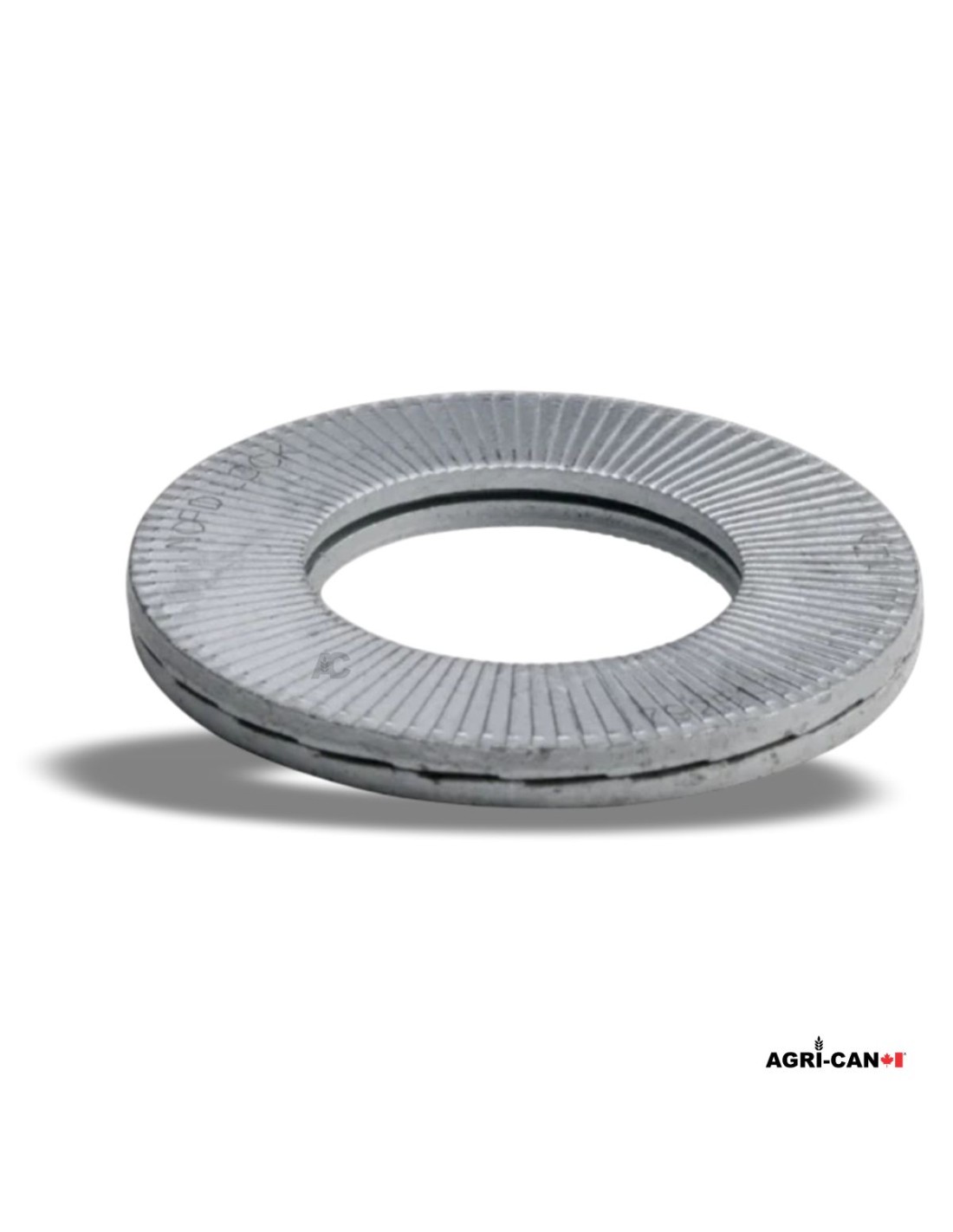

Nord-Lock M16 Double Lock Washer – Denis CIMAF / HORSCH

The Nord-Lock M16 double lock washer is designed to securely lock bolted joints exposed to severe vibration and dynamic loads. Its wedge-locking system prevents bolt loosening while maintaining a controlled preload in the joint.

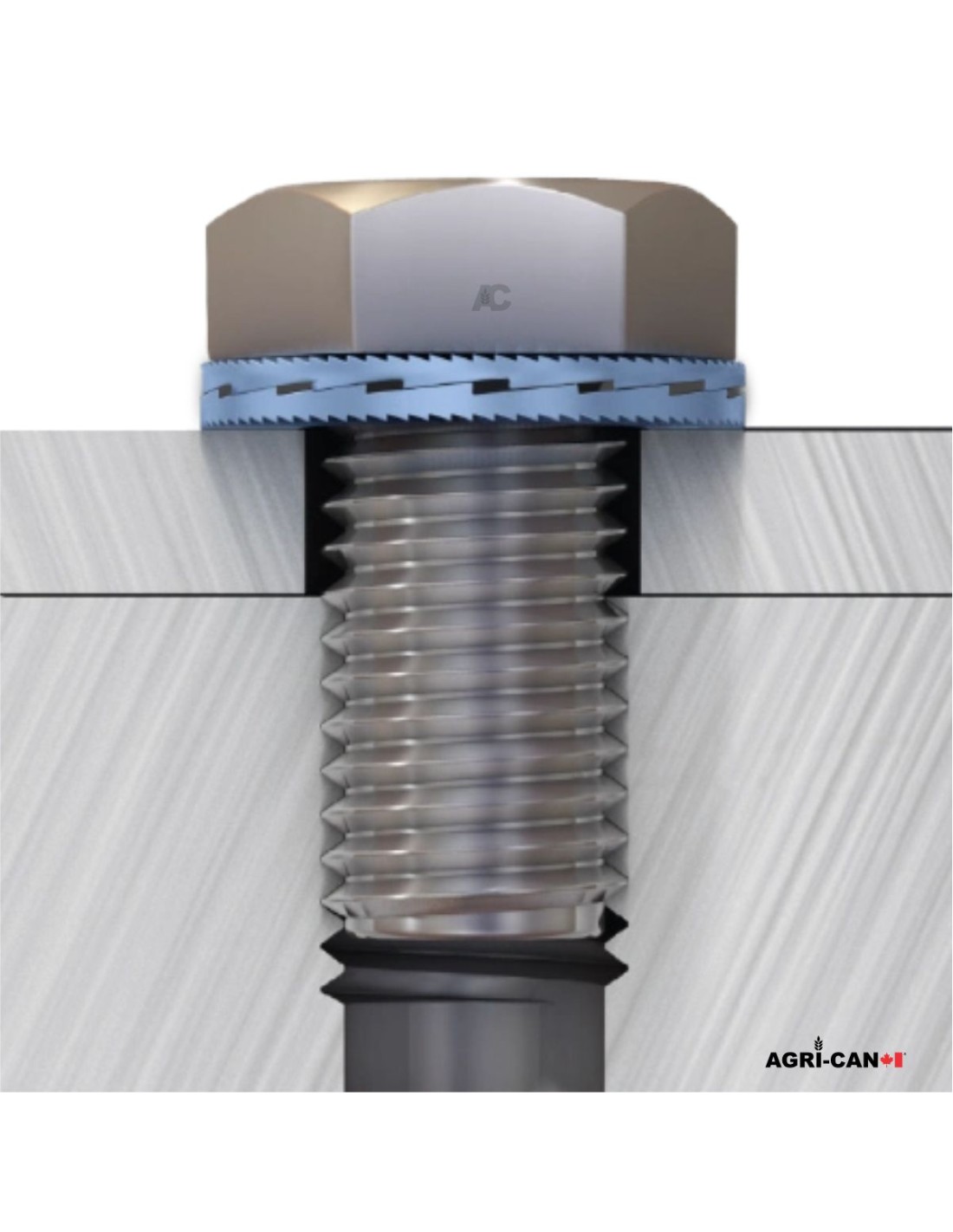

The serrated outer surfaces grip the contact material, while the internal wedge-shaped cams create a mechanical locking effect. Because the cam angle is greater than the pitch angle of the bolt thread, any loosening movement increases tension in the joint rather than allowing the bolt or nut to rotate loose.

REPLACES

DIMENSIONS

Features:

• Unique wedge-locking effect
• Easy installation thanks to the bonded washer pair
• Reusable
• Designed for extreme vibration
• Suitable for applications exposed to dynamic loads

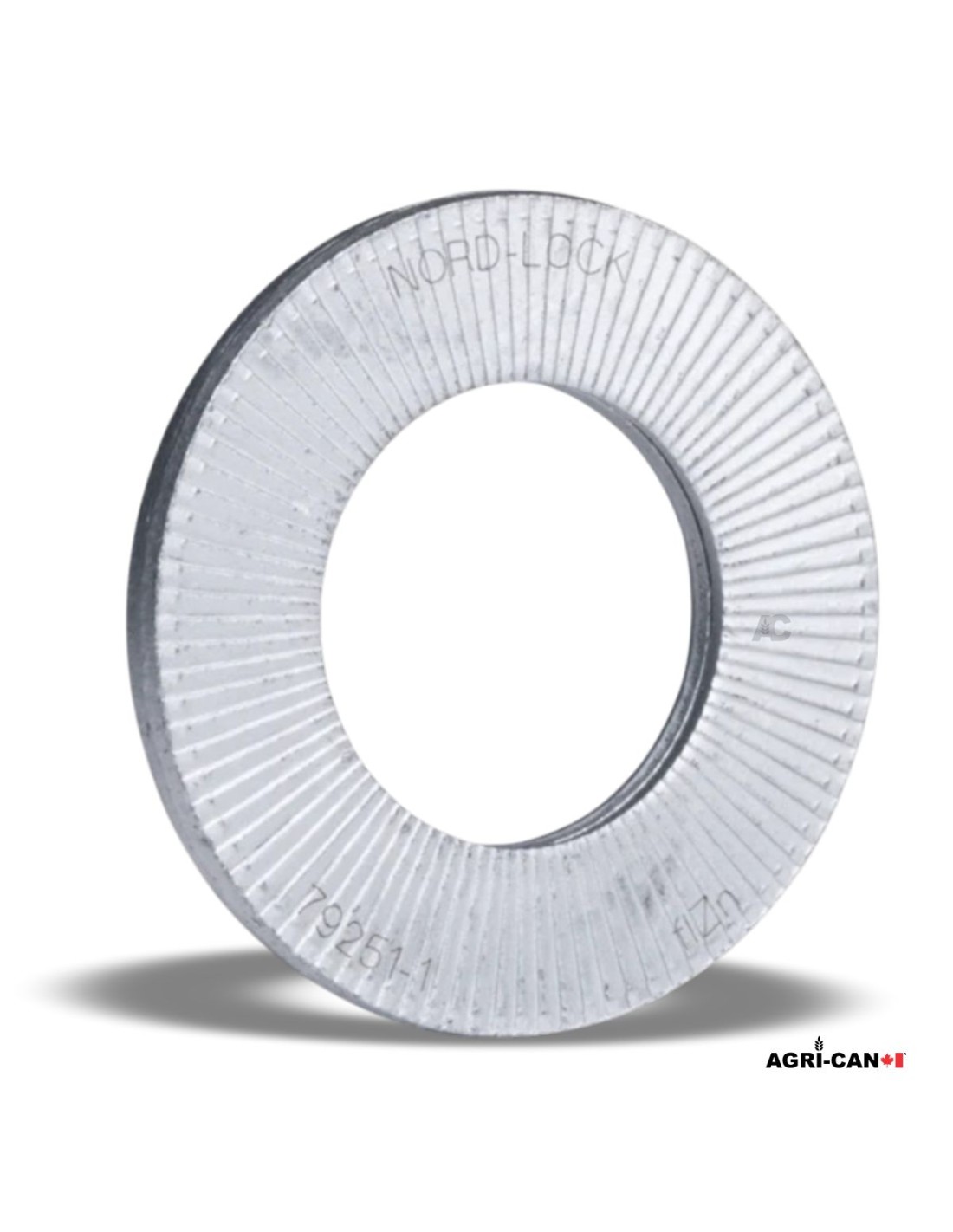

• Serrated outer surfaces grip the contact material
• Locking function is retained even when the joint is lubricated
• Provides excellent locking performance at both low and high preload
• Preload remains controllable
• Prevents loosening caused by vibration

Technical information: The material being secured must not be harder than the washers.
