49'' (1250mm) Front Loader Tine for Kverneland Conus III
49'' (1250mm) Front Loader Tine for Kverneland Conus III
49'' (1250mm) Front Loader Tine for Kverneland...
49'' (1250mm) Front Loader Tine for Kverneland...

49'' (1250mm) Front Loader Tine for Kverneland Conus III

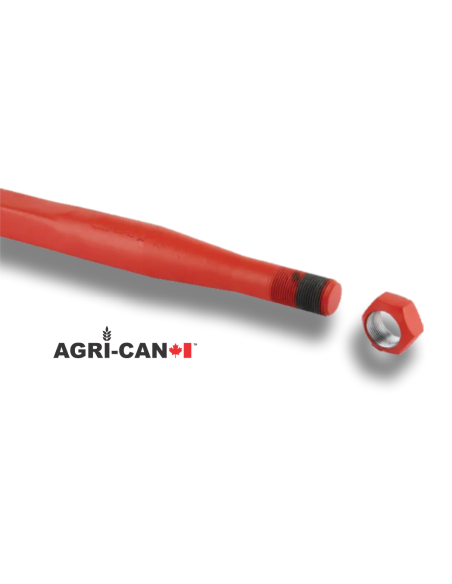

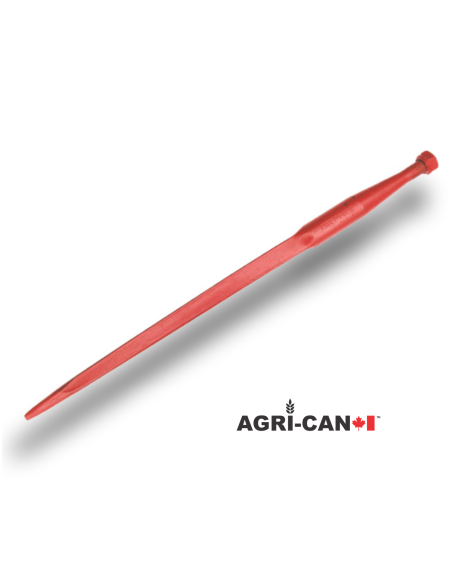

Forged round bale spear 55mm X 1250mm (2’’ X 49’’) replacement for Kverneland Conus III

In Stock
$244.95
Depending your choice at checkout. As fast as next day 8am

Description

Straight front loader and silage tines

  • Premium European quality
  • Includes the nut

Specification

Shape

Straight

Fitting type

Nut

Length

1250 mm (49'')

Max diameter

55 mm (2'')

Min connection diameter

33 mm

Max connection diameter

55 mm

Cone length

189 mm (7.4'')

Profile shape

Square

Point shape

Point

Color

Red

Thread diameter

33 mm

Pitch of thread

2.00 mm

Thread type

Metric

Replaces : 4098_1250, CONUS III, KK241127

  • Spear profile is rolled with state-of-the-art robot technology.
  • Tines: hardened and tempered (hardness 45 – 49 HRC)
  • Tine cone and thread are CNC machined.
  • Each tine is straightened at the end of the production process and checked visually.
  • Environmentally friendly powder-coated.
  • Only tested products receive the double quality seal (SHW logo with crown, Made in Germany, and production date).
  • Our products are “Made in Germany.”
  • A nut is included with all tines.

Compatibility

Kverneland

  • Conus III

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER

CAPACITY

TORQUE

Conus I – 1-3/8’’

1300 lbs

332 lbf. ft

Conus II – 1-3/4’’

2500 lbs

516 lbf. ft

Conus III – 2’’

4400 lbs

516 lbf. ft

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Agri-Can, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

Product Details

Compatibility by brand name
ALÖ Quicke
HLA Attachments
Kverneland
Massey Ferguson
Total Length - mm
1250 mm
Total Length - Inches
49''
Cone Length - mm
189 mm
Cone length - Inches
7.44''
Minimum Diameter - mm
33 mm
Minimum Diameter - Inches
1.30''
Kverneland® Series
Conus III
4098_1250
