Hydraulic Log Splitter Valve with Automatic Kick-Out – 18 GPM

Hydraulic Log Splitter Valve with Automatic...

Hydraulic Log Splitter Valve with Automatic Kick-Out – 18 GPM

Name: Hydraulic Log Splitter Valve with Automatic Kick-Out – 18 GPM
Brand: Agri-Can®
SKU: ACP81RSG
Price: 117.95 CAD
Availability: InStock

18 GPM hydraulic log splitter valve with automatic return detent and kick-out at the end of the cylinder stroke.

In Stock

$117.95

As fast as next day 8am depending on your location

Resource Center

Description

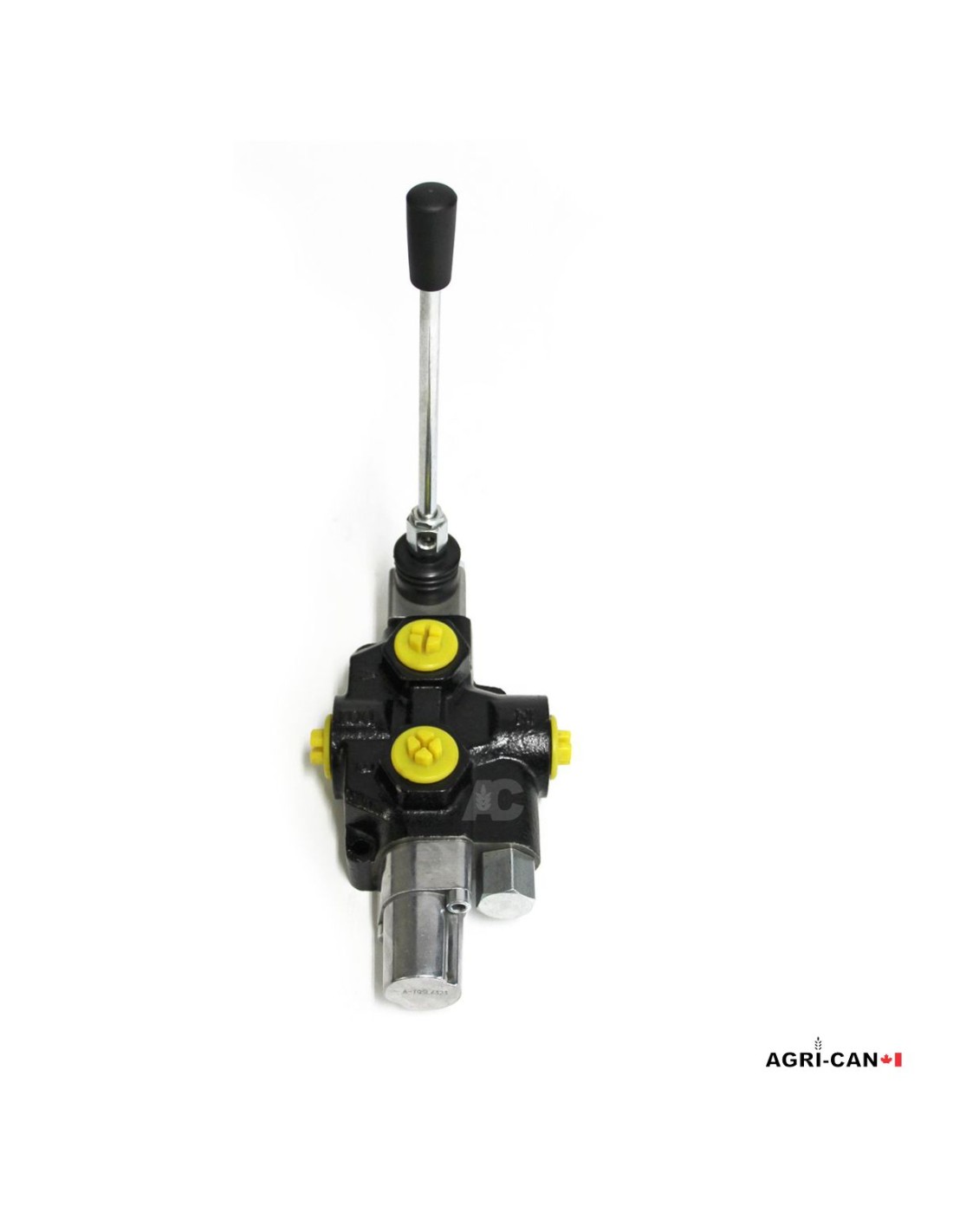

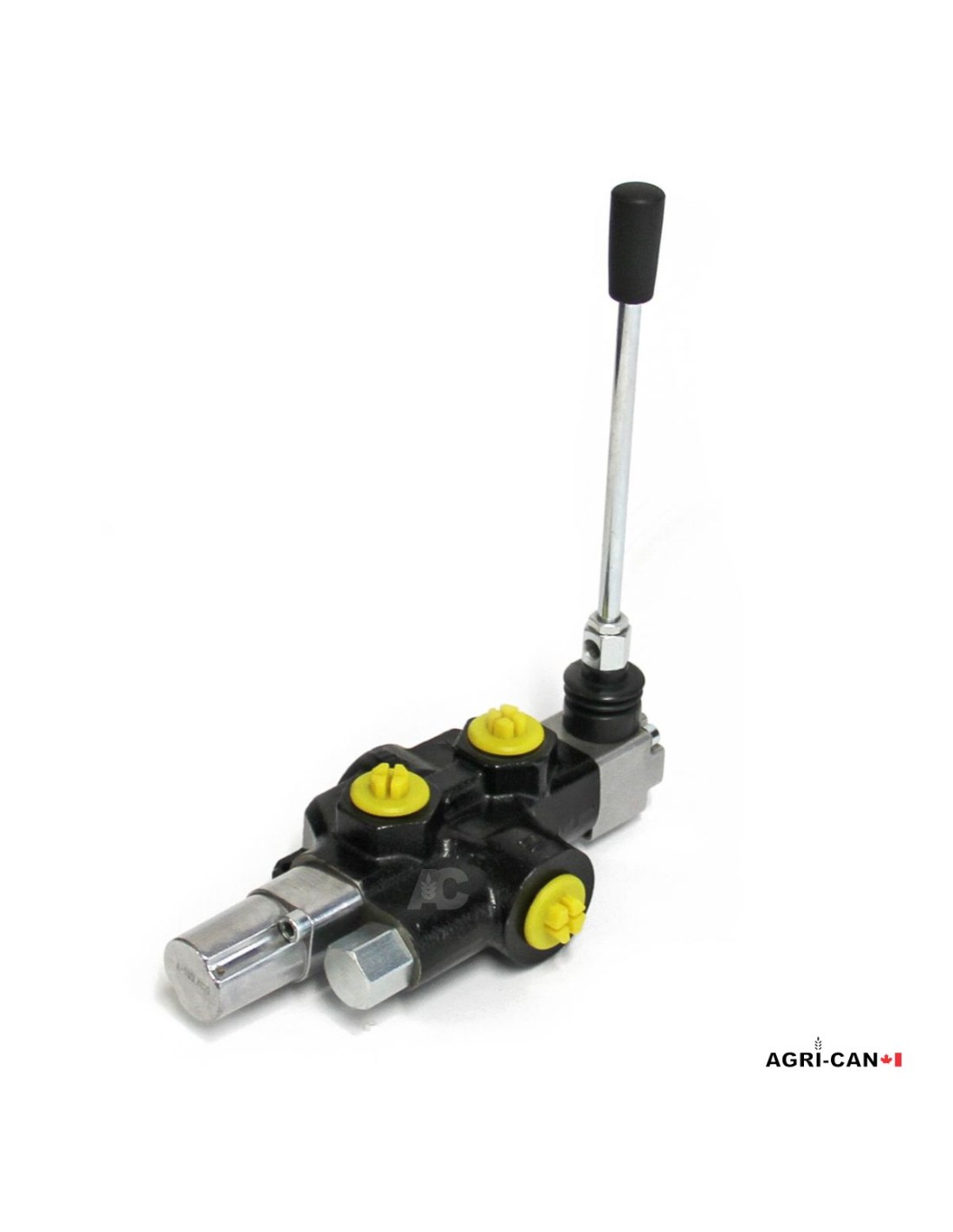

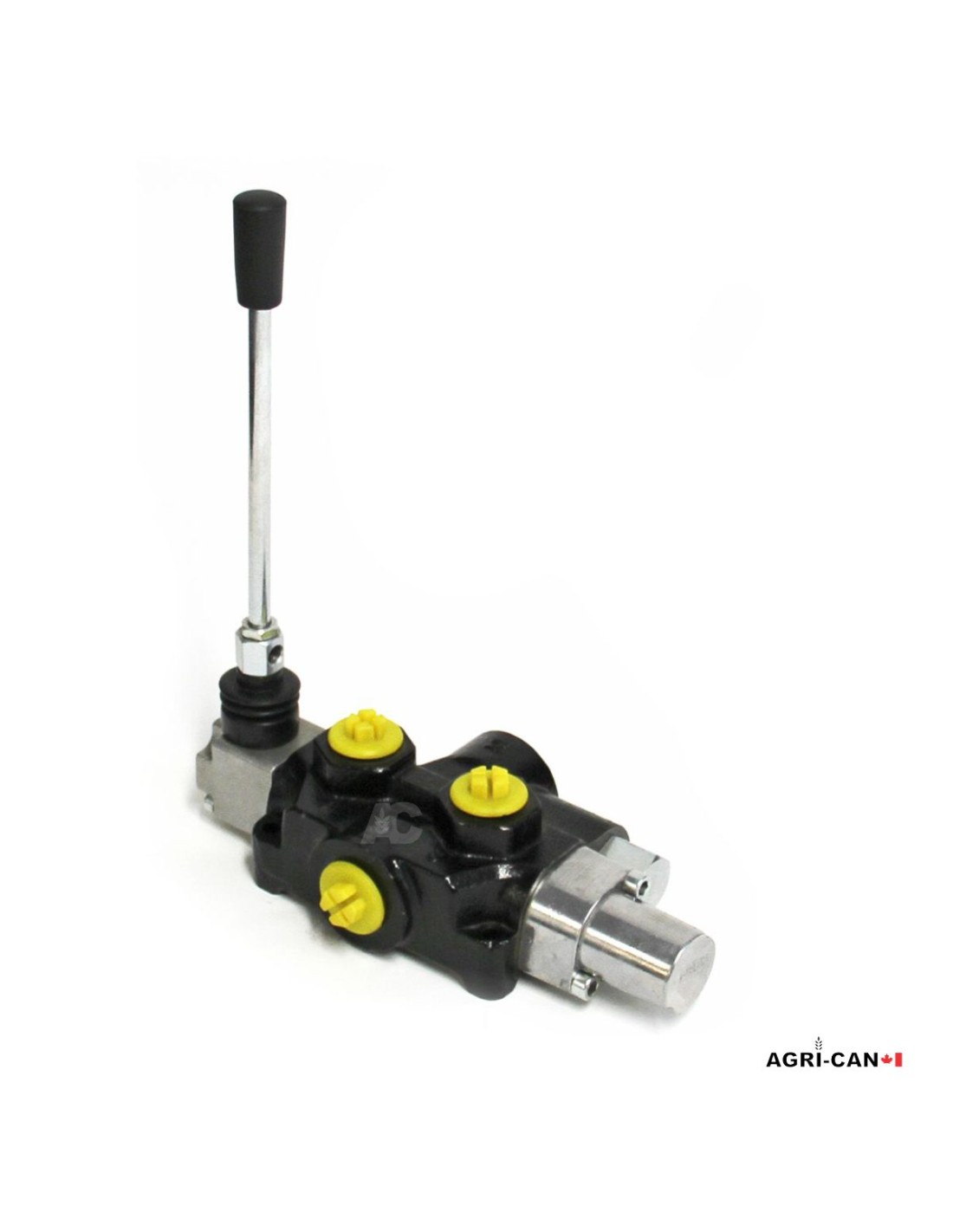

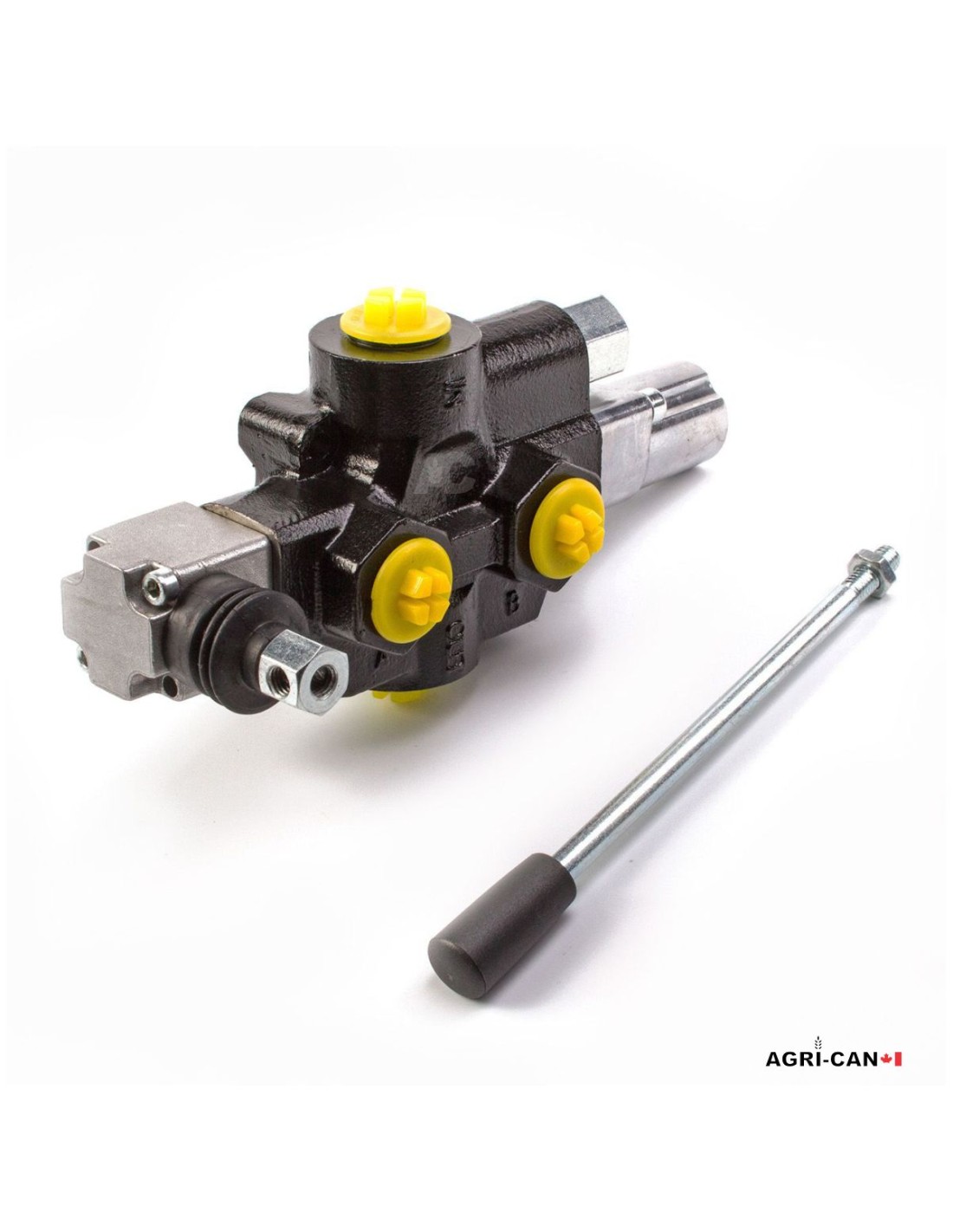

Heavy-duty hydraulic control valve designed specifically for log splitters equipped with a double-acting cylinder.

The valve features a spring return in the splitting direction and a detent in the return direction, allowing the cylinder to retract automatically without requiring the operator to hold the lever. When the cylinder reaches the end of its return stroke and hydraulic pressure rises, the automatic kick-out mechanism releases the detent and returns the lever to neutral.

With a maximum flow rate of 18 GPM and a maximum working pressure of 3,000 psi, this valve is suitable for residential, agricultural and professional log splitters.

It is equipped with a SAE 10 ORB inlet and SAE 8 ORB work ports, making it easy to install on many North American hydraulic systems.

Ideal as a replacement valve or for the construction of a new hydraulic log splitter.

Made in Europe

Technical data

Number of sections	1
Type actuation	Hand operated (Joystick, Cable, also possible on this valve)
Max. flow rate	18 GPM (68 L/min.)
Type	Monoblock
Pressure port P	SAE 10 ORB
Workports thread	SAE 8 ORB
Tank port T - Thread	SAE 10 ORB
Complete code	SD11/1-P(KG4-210)/1(9A)L/AET-PSL-SAE
Lever included	Yes
Spools and detends code	1-9A (A-2)
Spools and detends description	1 double-acting spool with spring return on one side and a detent with automatic kick-out on the other.
Outlet port option	Open centre, tandem spool
Valve series	LS
Model code	LS186SBC
Max working pressure	3000 psi (207 bar)
Integrated pressure relief valve	YES

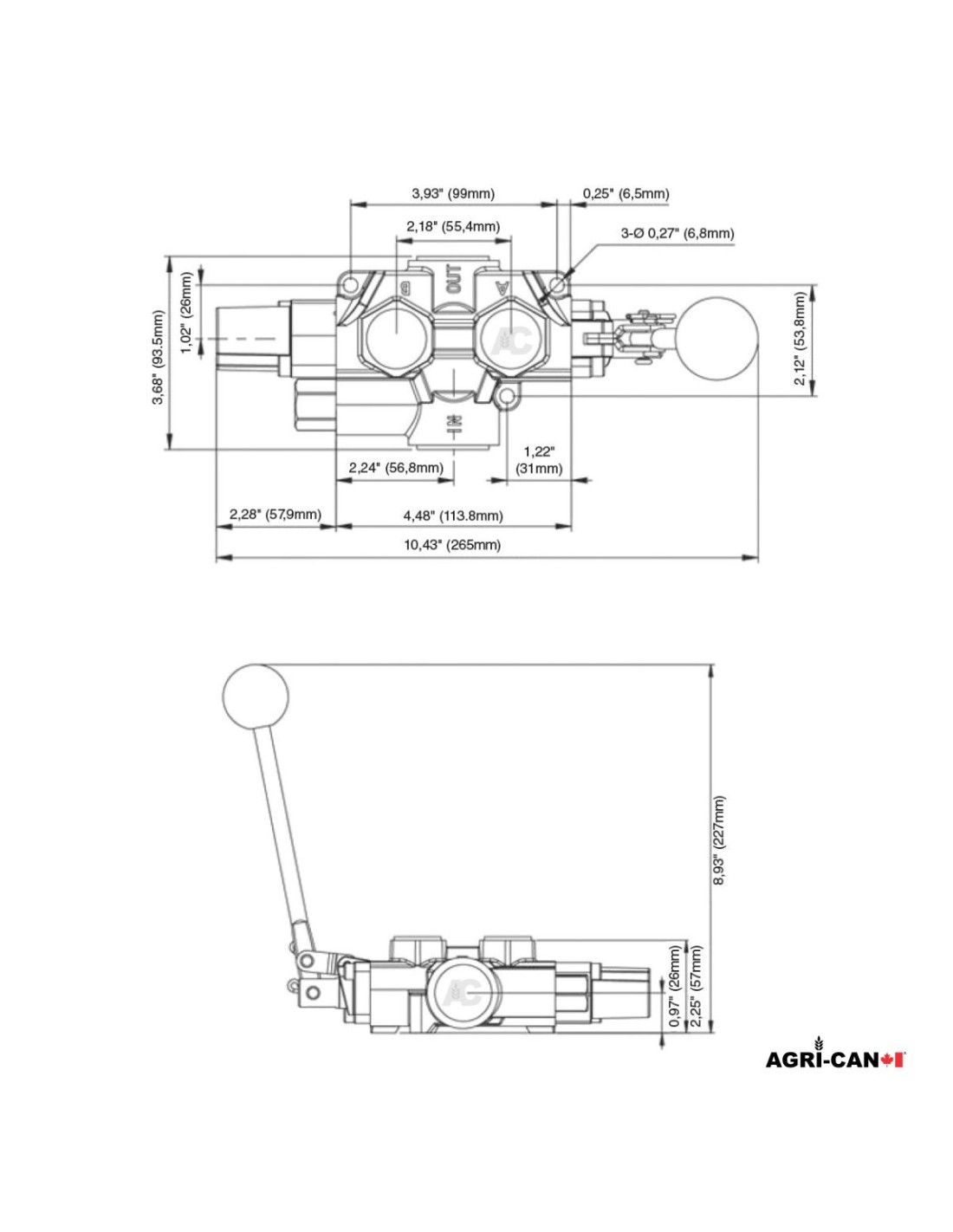

Handle length	8” (203 mm)
Total width	3.68” (93.5 mm)
Total height	2.25” (57 mm)
Mounting holes distance	3.93” (99 mm) x 2.12” (53.8 mm)

Replaces OEM parts numbers :

Brand Hydraulics	PLS50T4JRSH, PLS755T4JRSH, PLS120T4JRSH, LS Series, LS valve
Princess Manufacturing	LS-3000, LS-3000-1, LS3000, WLS-800, WLS800, 660130001, 900245, 9-12474
Chief / Bailey Hydraulics	450084, 220884, 117082099
Dynamic Fluid Components	JPLS-3000, LS255NBA43, 9-7724
Badestnost	P81-A, P81-A2, P81A2, P81-A2-G12, P81A2G, P81-RS, P81-RS-G12, P81RSG
Walvoil	SD5, SD5/1, SD11, SD11/1
Princess Auto / Powerfist	8457442, PA0008457442
CNH	BCLS25TEH, BCLS25T3, BCLS28TDH, BCLS37TDH, BNLS25TEH, BNLS25T3, BNLS28TDH, BNLS37TDH
Massey Ferguson / Agco	SP390406, SP401625H, 79021466D

Others	108360, S.101727, MBV51004KR, MBV5/1-A2-KZ1, Z50 A2(G3/8)KY1, MBV51004GP, P81A2G, 9-7724, 9-12474, 900245
