32'' (820mm) Front Loader Tine for Kverneland Conus II, Massey Ferguson, Stoll, and Quicke ALO

Name: 32'' (820mm) Front Loader Tine for Kverneland Conus II, Massey Ferguson, Stoll, and Quicke ALO
Brand: SHW
SKU: KK241160AE
Price: 119.95 CAD
Availability: InStock

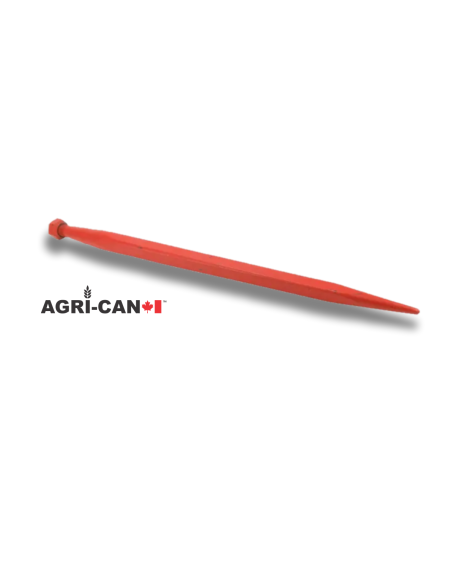

Forged round bale spear 44mm X 810mm (1¾’’ X 32’’) replacement for Kverneland Conus II, Massey Ferguson, Stoll, ALO Quicke, and other brands.

In Stock

$119.95

Depending your choice at checkout. As fast as next day 8am

Resource Center

Description

Straight front loader and silage tines

Premium European quality
Made in Germany
Includes the nut

Specification

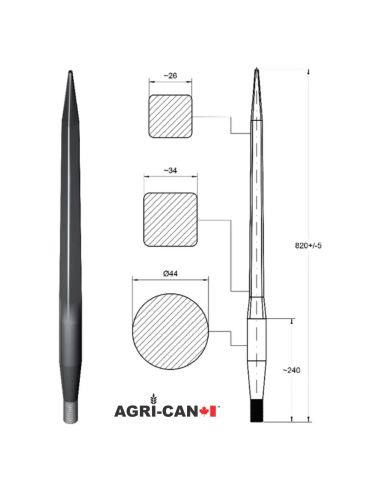

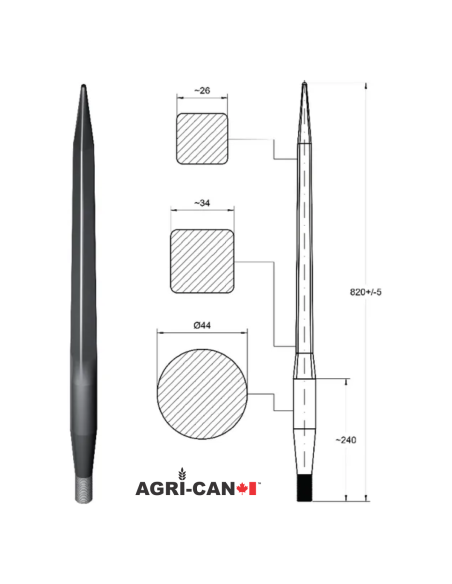

Shape	Straight
Fitting type	Nut
Length	810 mm
Max diameter	44 mm
Min connection diameter	28 mm
Max connection diameter	44 mm

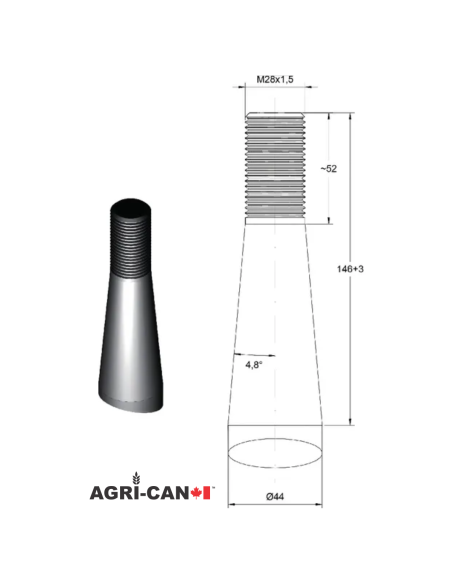

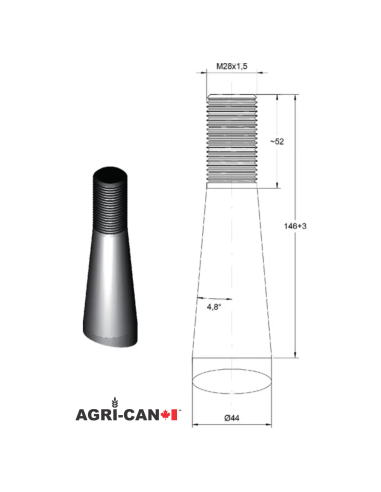

Cone length	90 mm
Profile shape	Square
Point shape	Point
Color	Red
Thread diameter	28 mm
Pitch of thread	1.50 mm
Thread type	Metric

Replaces OEM Part # : KK241160A, KK241160, AL5068003, ACP0293630, 5068003, 241160, KK241160M28, 241160M28, 5068114-17, 4077/850, 4077/820, 4077/810, 0476240

Spear profile is rolled with state of the art robot technology
Tines: hardened and tempered ( hardness 45 – 49 HRC)
Tine cone and thread are CNC machined
Each tine is straightened at the end of the production process and checked visually
Environmentally friendly powder coated
Only tested products receive the double quality seal (SHW logo with crown, Made in Germany, and production date).
Our products are “Made in Germany”

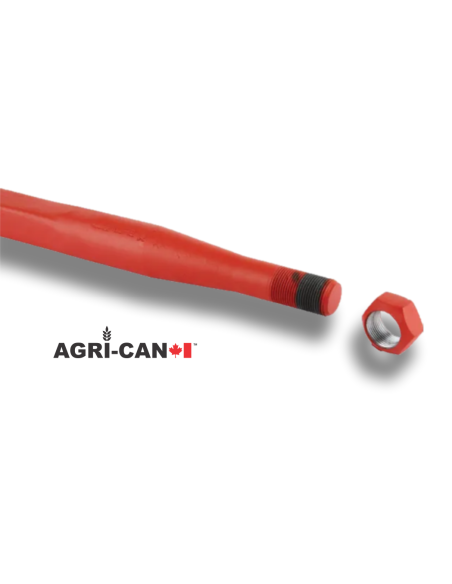

A nut is included with all tines

Compatibility

Kverneland

Conus II

ALO Quicke

Bale Fork
Bale Fork MK1
Silocut SE
Silocut SG
Silocut
Silocut MG

Stoll

Robust Series
FC
FZ
HS
1.3m
1.5m
1.7m
2.05m
2.4m
3718550
3378240
3611810
6606680
VARIOUS

Agco Parts

Bale Fork
Bale Fork MK1
Silocut SE
Silocut SG
Silocut
Silocut MG

Lawrence Edwards

Various

McHale

Various

Parmiter

Various

Valpadana

Various

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER	CAPACITY	TORQUE
Conus I – 1-3/8’’	1300 lbs	332 lbf. ft
Conus II – 1-3/4’’	2500 lbs	516 lbf. ft
Conus III – 2’’	4400 lbs	516 lbf. ft

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Agri-Can, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

Product Details

Compatibility by brand name: ALÖ Quicke
Agco Parts
HLA Attachments
Kverneland
Lawrence Edwards
Massey Ferguson
McHale
Parmiter
STOLL
Valpadana
Total Length - mm: 810 mm
Total Length - Inches: 32''
Cone Length - mm: 114 mm
Cone length - Inches: 4.49''
Maximum Diameter - mm: 44 mm
Maximum Diameter - Inches: 1.75''
Minimum Diameter - mm: 28 mm
Minimum Diameter - Inches: 1.10''
Kverneland® Series: Conus II
