39'' (980mm) Front Loader Tine for Kverneland Conus II, Stoll, Quicke ALO, Redrock, Twose

Name: 39'' (980mm) Front Loader Tine for Kverneland Conus II, Stoll, Quicke ALO, Redrock, Twose
Brand: Forges du Saut du Tarn
SKU: KK241161AE
Price: 124.95 CAD
Availability: InStock

Forged round bale spear 45mm X 990mm (1¾’’ X 39’’) replacement for Kverneland Conus II, Stoll, ALO Quicke, Twose, and Redrock tine forks

Last items in stock

$124.95

As fast as next day 8am depending on your location

Resource Center

Description

Straight front loader and silage tines

Premium European quality - Made in France by the OES of Kverneland
Includes the nut

Specification

Shape	Straight
Fitting type	Nut
Length	990 mm (39'')
Max diameter	45 mm (1¾'')
Min connection diameter	28 mm
Max connection diameter	44 mm
Cone length	110 mm
Profile shape	Square
Point shape	Point
Color	Red
Thread diameter	28 mm
Pitch of thread	1.50 mm
Thread type	Metric

Replaces : KK241161, KK241161A, KK241100, KK241107, 241100, KK241161M28, 241107, 241161M28, 109031, 750164, 5068010, AL5068010, ACP0301630

Spear profile is rolled with state-of-the-art robot technology
Tines: hardened and tempered ( hardness 45 – 49 HRC)
Tine cone and thread are CNC machined
Each tine is straightened at the end of the production process and checked visually
Environmentally friendly water-based resistant paint. Protects your animals from paint chips.
Only tested products receive the double quality seal (Agri-Can and Forges du Saut du Tarn logos, Made in France, and production date).
Our products are entirely “Made in France”
The appropriate nut is included with all tines

Compatibility

Kverneland

Conus II

ALO Quicke

Multi Bale
Universal Fork
Silopush
Silograb XL

Agco Parts

Multi Bale
Universal Fork
Silopush
Silograb XL

Lucas Metal Works

Various

Parmiter

Various

Twose

Various

Valpadana

Various

IMPORTANT

DANGER TO YOUR LIVESTOCK

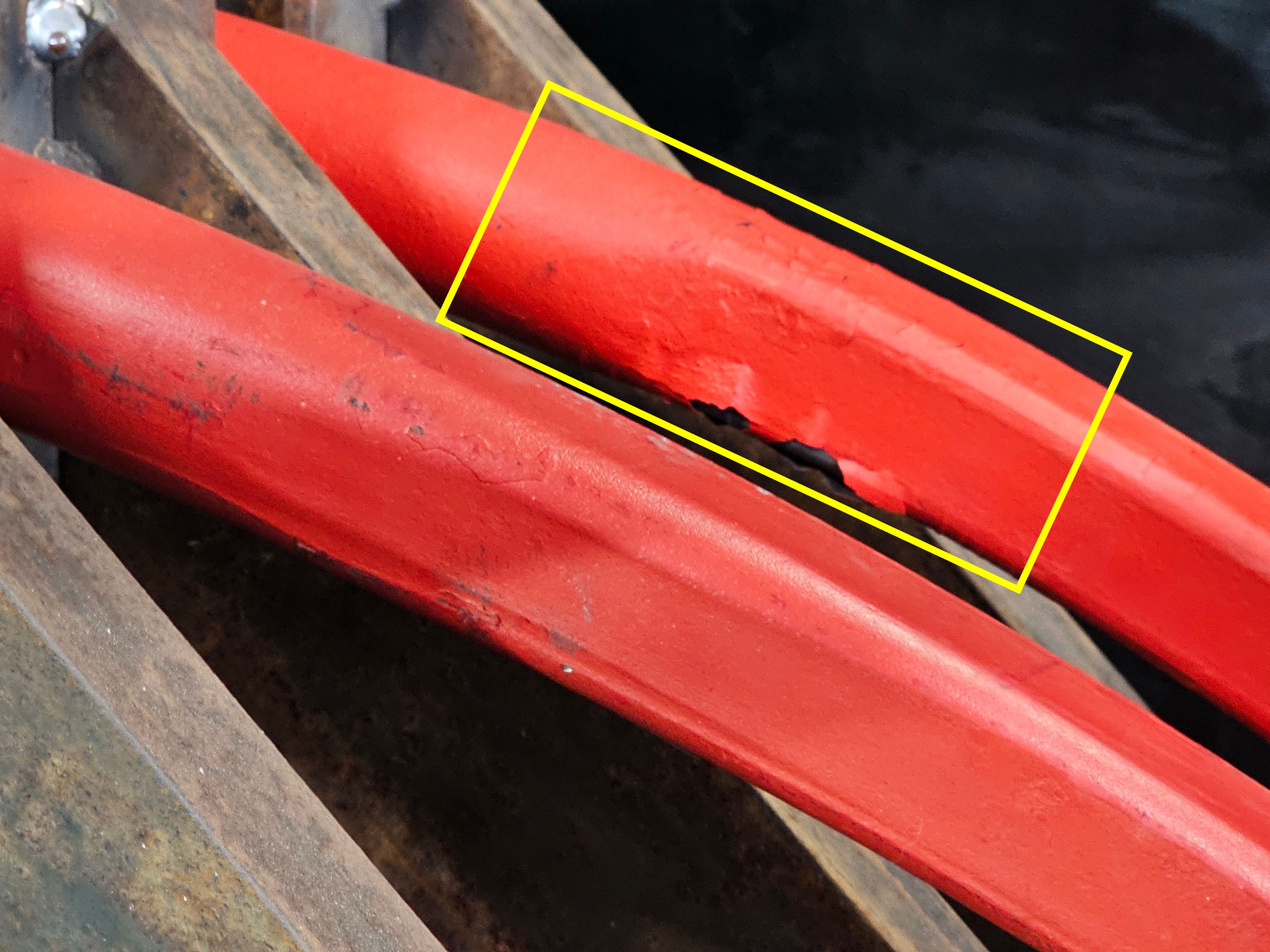

Bench tests performed by our engineering team have shown that the coating used on certain competitor spikes is either powder-based or thermoplastic. This type of paint tends to chip and flake off, as shown in the yellow box in the photo above.

These flakes can end up in the hay and be ingested by animals, which represents a serious potential risk for animal health and for overall feed safety. The Canadian Food Inspection Agency (CFIA) strictly regulates the presence of physical contaminants in livestock feed.

The first spike shown in the image is an Agri-Can model, tested at the same time. Our test bench is designed to test two spikes simultaneously. Note the smooth surface, with no steel or paint flakes on the Agri-Can spike.

Our high-resistance, flexible coating is a water-based paint, free from solvents and added plastics. It is specifically designed for strong adhesion to the metal and to reduce the risk of chipping under real agricultural working conditions.

Products of the highest quality, entirely made in France

In 1828, by royal decree, the manufacture of steel and tools began in Saint-Juéry. Production has been continuous ever since.

Today, FORGES DU SAUT DU TARN (FSDT) comprises three specialist brands offering wear parts for Material Handling and Grinding, Soil Preparation, and Viticulture.

Whether for original equipment or replacement, our parts meet the same high standards of design, manufacturing oversight, quality, and service. As the original equipment manufacturer (OES) of Kverneland® forks, this forge's reputation speaks for itself.

Thanks to our partnership with FSDT, we have jointly developed forks that are more durable than the original Kverneland forks, supported by engineering tests. Agri-Can has invested in the development and design of a test bench at its Canadian headquarters to subject the products to rigorous testing, ensuring the highest quality.

Below, you can see a video introducing the Forges du Saut du Tarn.

Seal of Assured Quality

At Agri-Can, quality is never left to chance.
Each hay spike undergoes two rigorous tests to guarantee performance and durability:

First check carried out by FSDT, including resistance and conformity tests before shipment.
Second verification carried out directly at our Agri-Can headquarters, where samples are submitted to our own test bench to confirm the quality of the results.

This double validation makes Agri-Can the only company on the market to ensure such complete quality control, with our joint logos affixed to each piece as a guarantee of authenticity.

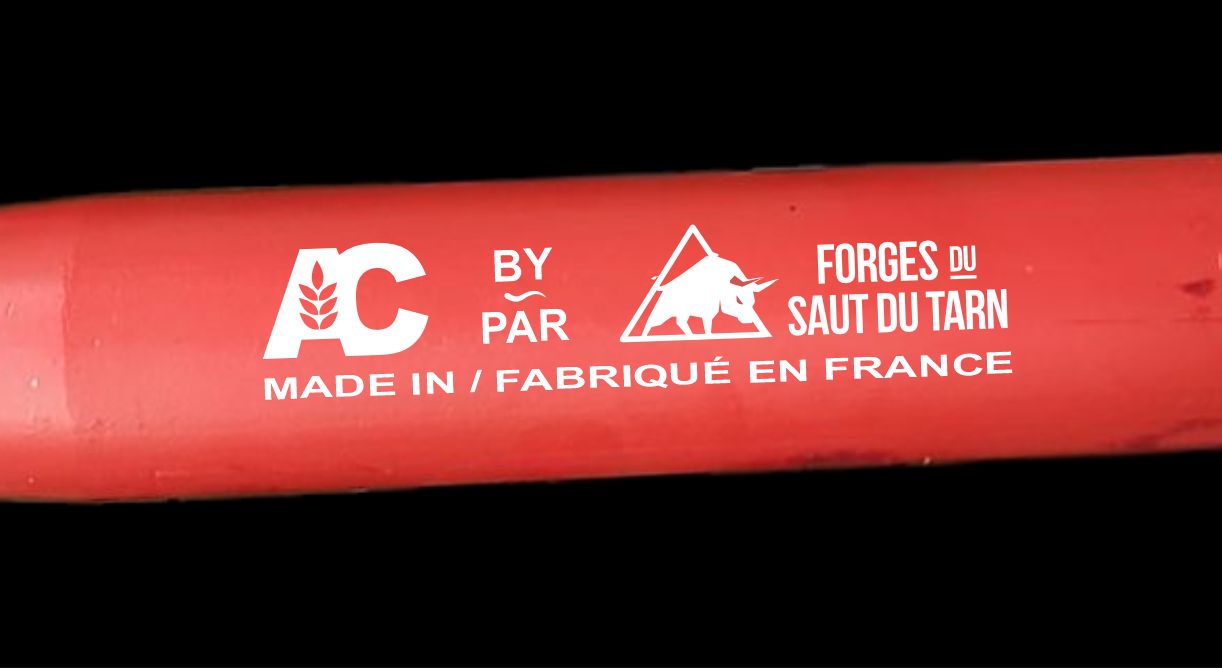

For complete traceability, each loader tine is also engraved in the steel with its batch number and production date — a guarantee of transparency and compliance.

WARNING

THE NUTS MUST BE TIGHTENED ACCORDING TO THE CHART BELOW AFTER 5 HOURS OF OPERATION USING AN APPROPRIATE TORQUE WRENCH.

DIAMETER	CAPACITY	TORQUE
Conus I – 1-3/8’’	1300 lbs	332 lbf. ft
Conus II – 1-3/4’’	2500 lbs	516 lbf. ft
Conus III – 2’’	4400 lbs	516 lbf. ft

Clause de non-responsabilité

This equipment must be used with caution by capable and competent persons under supervision, if necessary. Although of very high quality, the use of any equipment, including this one, involves a potential risk of injury or death. You accept and assume full responsibility for all injuries, damages (economic and non-economic), and losses of any kind that may occur, and you hereby release and discharge Agri-Can, its insurers, employees, officers, directors, partners, and agents from all claims, demands, damages, rights of action, or causes of action, present or future, whether known or unknown, anticipated or unforeseen, arising out of or related to the use of this equipment.

Product Details

Compatibility by brand name: ALÖ Quicke
Agco Parts
HLA Attachments
Kverneland
Lucas Metal Works
Massey Ferguson
Parmiter
Redrock Machinery
Twose
Valpadana
Total Length - mm: 980 mm
985 mm
Total Length - Inches: 39''
Cone Length - mm: 110 mm
Cone length - Inches: 4.33''
Maximum Diameter - mm: 44 mm
45 mm
Maximum Diameter - Inches: 1.75''
Minimum Diameter - mm: 28 mm
Minimum Diameter - Inches: 1.10''
