49'' (1250mm) Front Loader Tine for Kverneland Conus II, Quicke ALO, Stoll
49'' (1250mm) Front Loader Tine for Kverneland Conus II, Quicke ALO, Stoll
49'' (1250mm) Front Loader Tine for Kverneland...
49'' (1250mm) Front Loader Tine for Kverneland...

49'' (1250mm) Front Loader Tine for Kverneland Conus II, Quicke ALO, Stoll

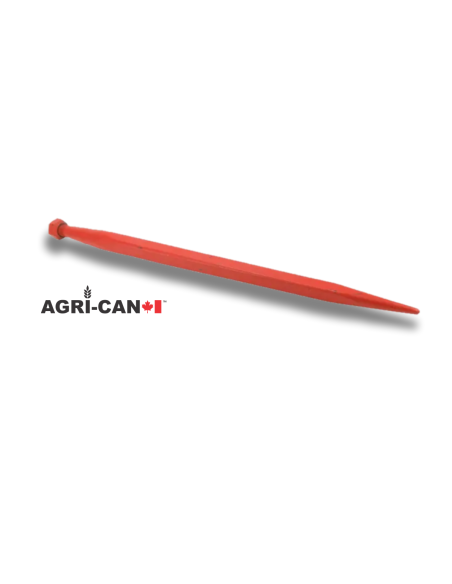

Forged round bale pick 45 X 1250 mm (1¾’’ X 49’’) replacement for Kverneland Conus II, Stoll, ALO Quicke, and other brands.

In Stock
$169.95
Depending your choice at checkout. As fast as next day 8am

Description

Straight front loader and silage tines

  • Premium European quality - Made in Germany

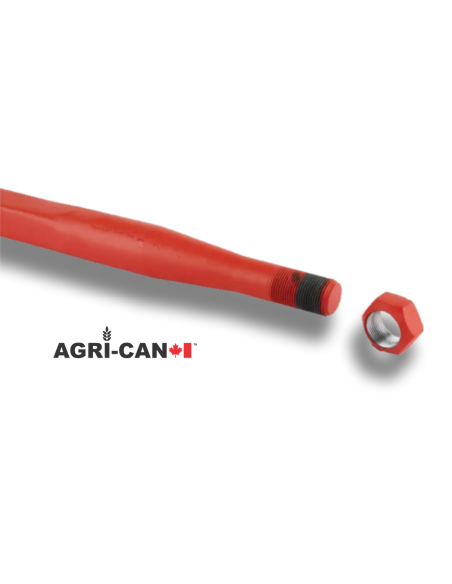

  • Includes the nut

Specification

Shape

Straight

Fitting Type

Nut

Length

1250 mm (49’’)

Max Diameter

45 mm (1¾’’)

Min Diameter

32 mm

Min Connection Diameter

45 mm

Cone Length

90 mm

Profile Shape

Square

Point Shape

Point

Color

Red

Thread Diameter

28 mm

Thread Pitch

1.50 mm

Unit

Metric

Replaces : KK241161, KK241161A, KK241100, KK241107, 241100, KK241161M28, 241107, 241161M28, 109031, 750164, 5068010, AL5068010, ACP0301630, 1330130

  • Spear profile is rolled with state-of-the-art robot technology.
  • Tines: hardened and tempered (hardness 45 – 49 HRC)
  • Tine cone and thread are CNC machined.
  • Each tine is straightened at the end of the production process and checked visually.
  • Environmentally friendly powder-coated.
  • Only tested products receive the double quality seal (SHW logo with crown, Made in Germany, and production date).
  • Our products are “Made in Germany.”
  • A nut is included with all tines.

Compatibility

Kverneland

  • Conus II
ALO Quicke

  • Multi Bale
  • Universal Fork
  • Silopush
  • Silograb XL
Stoll

  • ROBUST SERIES
  • H
  • HD
  • HS
  • 3611920
  • 3378240
  • 3411860
  • 3550590
  • 3608420
  • 3718550
  • 1339660
  • VARIOUS
Massey Ferguson

  • Various
Strimech

  • Various
Laurence Edwards

  • Various
Valpadana

  • Various

High-quality Products Made in Germany

Since 1596, SHW has been manufacturing forgings. With its state-of-the-art factory, SHW is a leader in the manufacturing of very high quality hay spears.

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER

CAPACITY

TORQUE

Conus I – 1-3/8’’

1300 lbs

332 lbf. ft

Conus II – 1-3/4’’

2500 lbs

516 lbf. ft

Conus III – 2’’

4400 lbs

516 lbf. ft

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Agri-Can, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

Product Details

Compatibility by brand name
ALÖ Quicke
HLA Attachments
Kverneland
Massey Ferguson
Total Length - mm
1250 mm
Total Length - Inches
49''
Cone Length - mm
90 mm
Cone length - Inches
3.54''
Maximum Diameter - mm
45 mm
Maximum Diameter - Inches
1.75''
Minimum Diameter - mm
32 mm
Minimum Diameter - Inches
1.26''
Kverneland® Series
Conus II
KK241162AE
