32'' (820mm) Cranked Silage Tine for Kverneland Conus I, ALO Quicke, Redrock, and Valpadana
32'' (820mm) Cranked Silage Tine for Kverneland Conus I, ALO Quicke, Redrock, and Valpadana
32'' (820mm) Cranked Silage Tine for Kverneland...
32'' (820mm) Cranked Silage Tine for Kverneland...

32'' (820mm) Cranked Silage Tine for Kverneland Conus I, ALO Quicke, Redrock, and Valpadana

Forged Cranked Silage Tine 32’’ (820mm) for Kverneland Conus I, ALO Quicke, Redrock, and Valpadana

Last items in stock
$119.95
Depending your choice at checkout. As fast as next day 8am

Description

Cranked silage tine 810mm X 36mm with M24X1.5 nut – Made and forged in Germany

  • Includes the nut

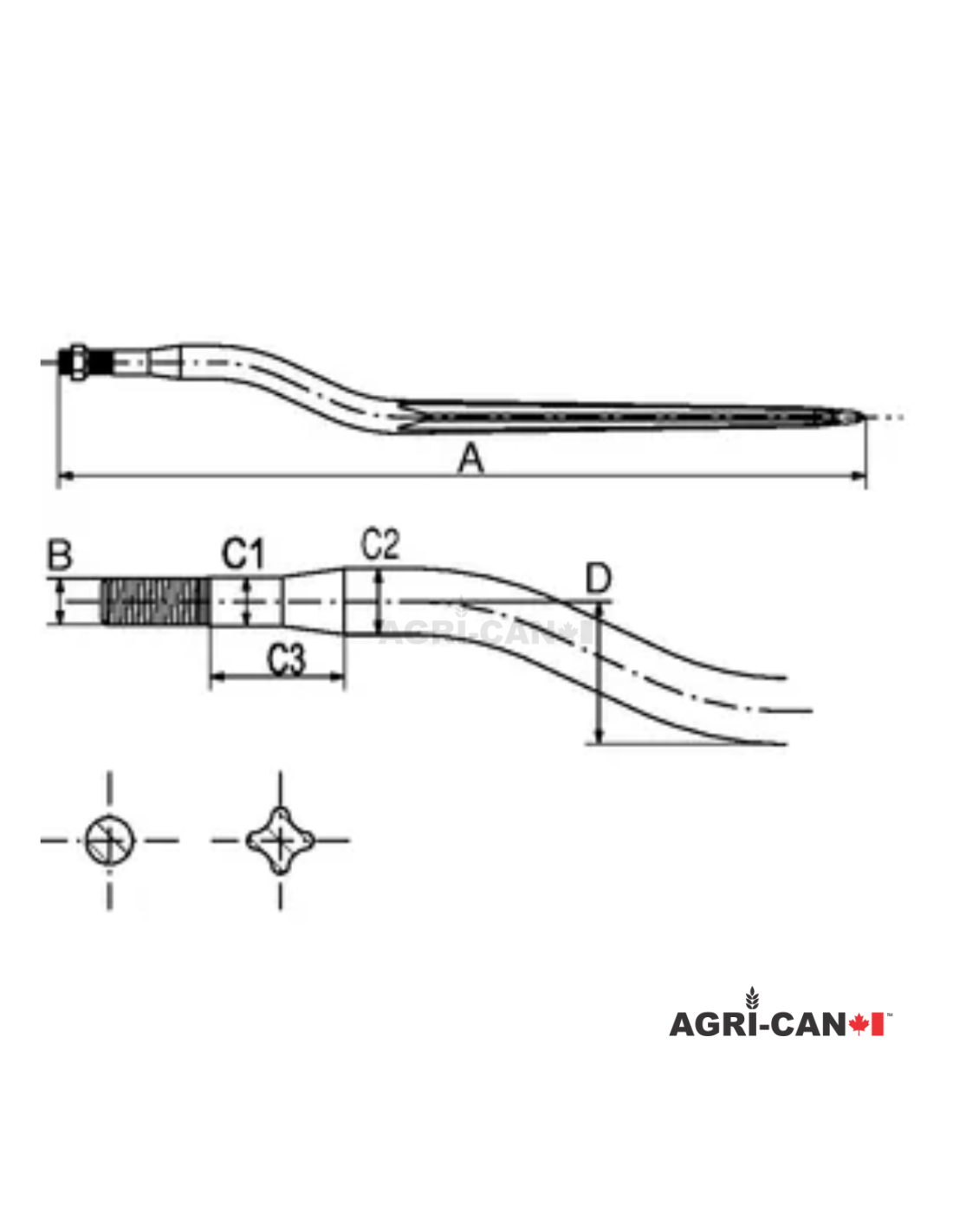

Dimension :

A - Length

820 mm

C2 - Max diameter

36 mm

C1 - Min connection diameter

25 mm

Max connection diameter

36 mm

C3 - Cone length

85 mm

D - Crank height

58 mm

Profile shape

Square

Point shape

Point

Colour

Red

B - Thread diameter

24 mm

Pitch of thread

1.50 mm

Thread type

Metric



Replaces OEM Part #: KK221195, 221195

Compatibility

Kverneland

  • Conus I
HLA Attachments

  • LDFE Series
  • MFE Series (OEM uses 35'')
  • MFE.GRS Series (OEM uses 35'')
ALÖ Quicke

  • Various
Stoll

  • ROBUST SERIES
  • FC
  • FZ
  • 1.3m
  • 1.5m
  • 1.7m
  • 2.05m
  • 2.4m
  • 3718550
  • 6678240
  • 3611810
  • Various
Valpadana

  • Various

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER

CAPACITY

TORQUE

Conus I – 1-3/8’’

1300 lbs

332 lbf. ft

Conus II – 1-3/4’’

2500 lbs

516 lbf. ft

Conus III – 2’’

4400 lbs

516 lbf. ft

Disclaimer

This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any equipment, including this one, involves the potential risk of injury. You accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Agri-Can, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages, rights of action, or causes of action, present or future, whether the same be known or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.

Product Details

Compatibility by brand name
ALÖ Quicke
HLA Attachments
Kverneland
Redrock Machinery
Valpadana
Total Length - mm
810 mm
Total Length - Inches
32''
Cone Length - mm
85 mm
Cone length - Inches
3.35''
Maximum Diameter - mm
36 mm
Maximum Diameter - Inches
1.42''
Minimum Diameter - mm
25 mm
Minimum Diameter - Inches
0.984''
Kverneland® Series
Conus I
KK221195E
2 Items
