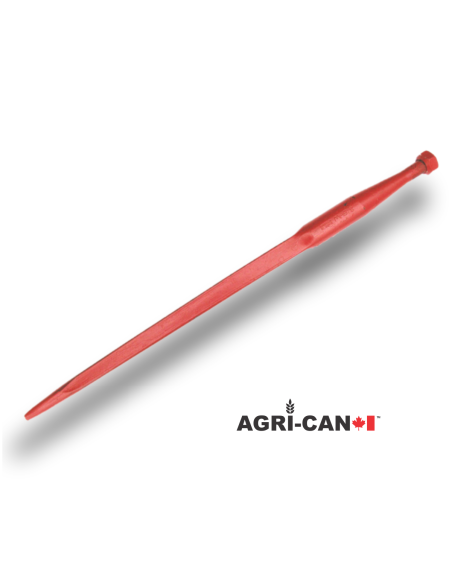

27'' (680mm) Front Loader Tine for Kverneland Conus I, Stoll, Lawrence Edwards et Valpadana

Name: 27'' (680mm) Front Loader Tine for Kverneland Conus I, Stoll, Lawrence Edwards et Valpadana
Brand: Agri-Can®
SKU: KK221193
Price: 70.95 CAD
Availability: InStock

Forged round bale spear 36mm X 680mm (27'’) replacement for Kverneland Conus I, Stoll, Lawrence Edwards et Valpadana.

In Stock

$70.95

Depending your choice at checkout. As fast as next day 8am

Resource Center

Description

Straight front loader and silage tines

Premium European quality
Includes the nut

SPECIFICATION

Shape	Straight
Fitting Type	Nut
Length	680mm (27’’)
Max Diameter	36 mm (1.42’’)
Min Diameter	20 mm
Min Connection Diameter	35 mm
Cone Length	85 mm
Profile Shape	Square
Point Shape	Point
Color	Red
Thread Diameter	20 mm
Thread Pitch	1.50 mm
Unit	Metric

Replaces : KK221193, KV221193, 221193

Spear profile is rolled with state-of-the-art robot technology.
Tines: hardened and tempered (hardness 45 – 49 HRC)
Tine cone and thread are CNC machined.
Each tine is straightened at the end of the production process and checked visually.
Environmentally friendly powder-coated.
Only tested products receive the double quality seal (SHW logo with crown, Made in Germany, and production date).
Our products are “Made in Germany.”
A nut is included with all tines.

Compatibility

Kverneland

Conus I

Stoll

Various

Lawrence Edwards

Various

Valpadana

Various

WARNING

NUTS MUST BE RETIGHTENED ACCORDING TO THE INSTRUCTED TORQUE BELOW AFETR 5 HOURS OF OPERATION USING A TORQUE-CONTROLLED SPANNER.

DIAMETER	CAPACITY	TORQUE
Conus I – 1-3/8’’	1300 lbs	332 lbf. ft
Conus II – 1-3/4’’	2500 lbs	516 lbf. ft
Conus III – 2’’	4400 lbs	516 lbf. ft
