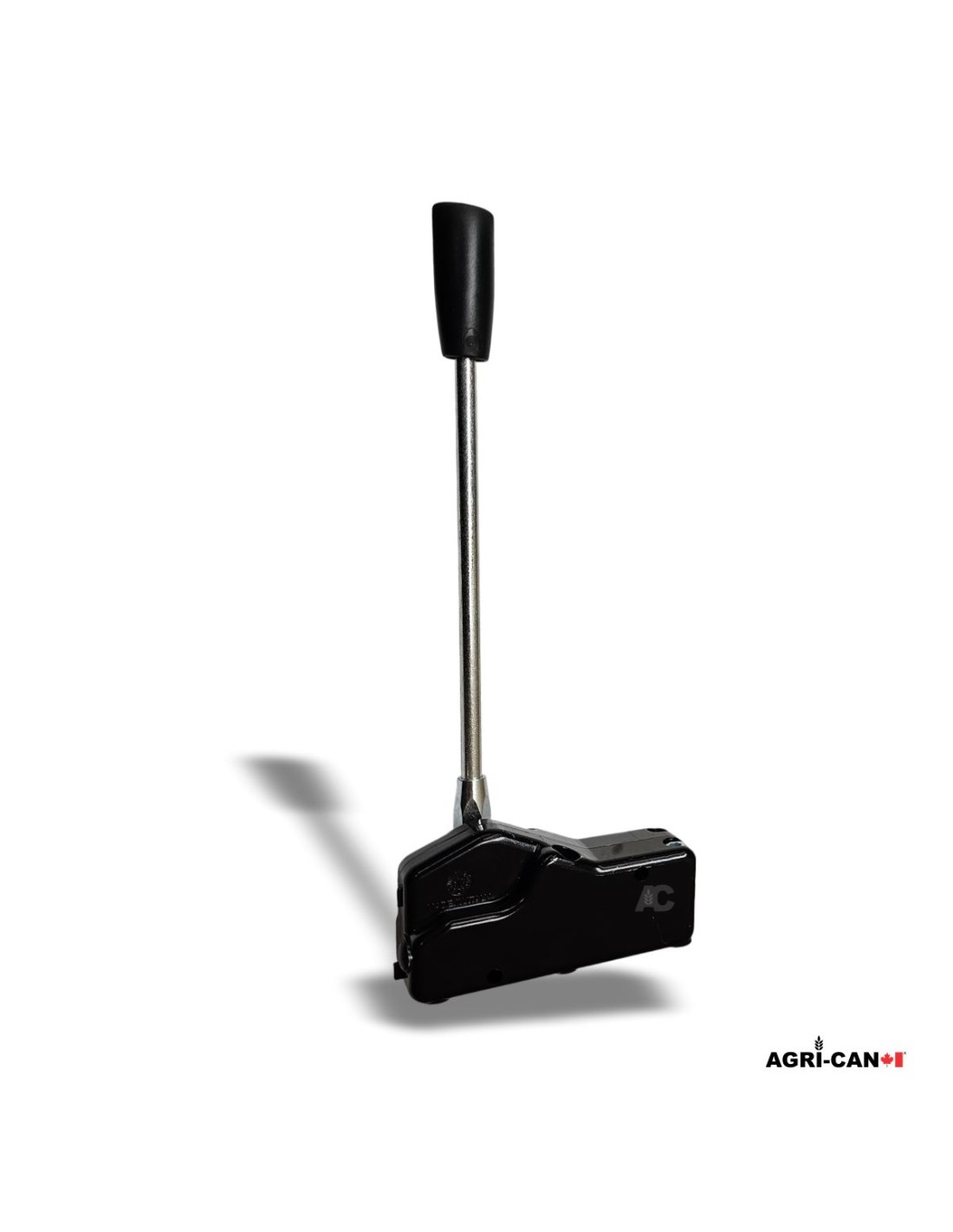

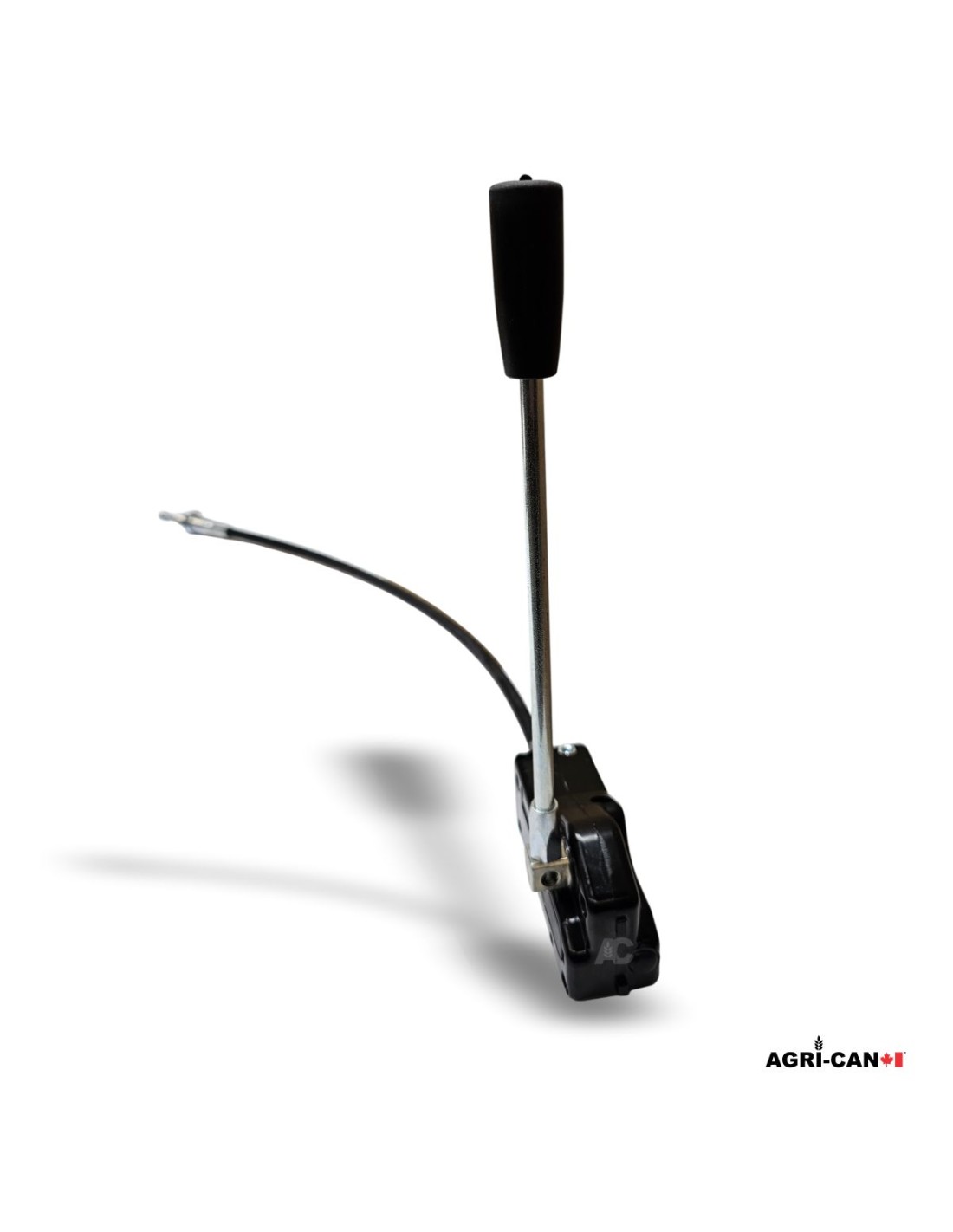

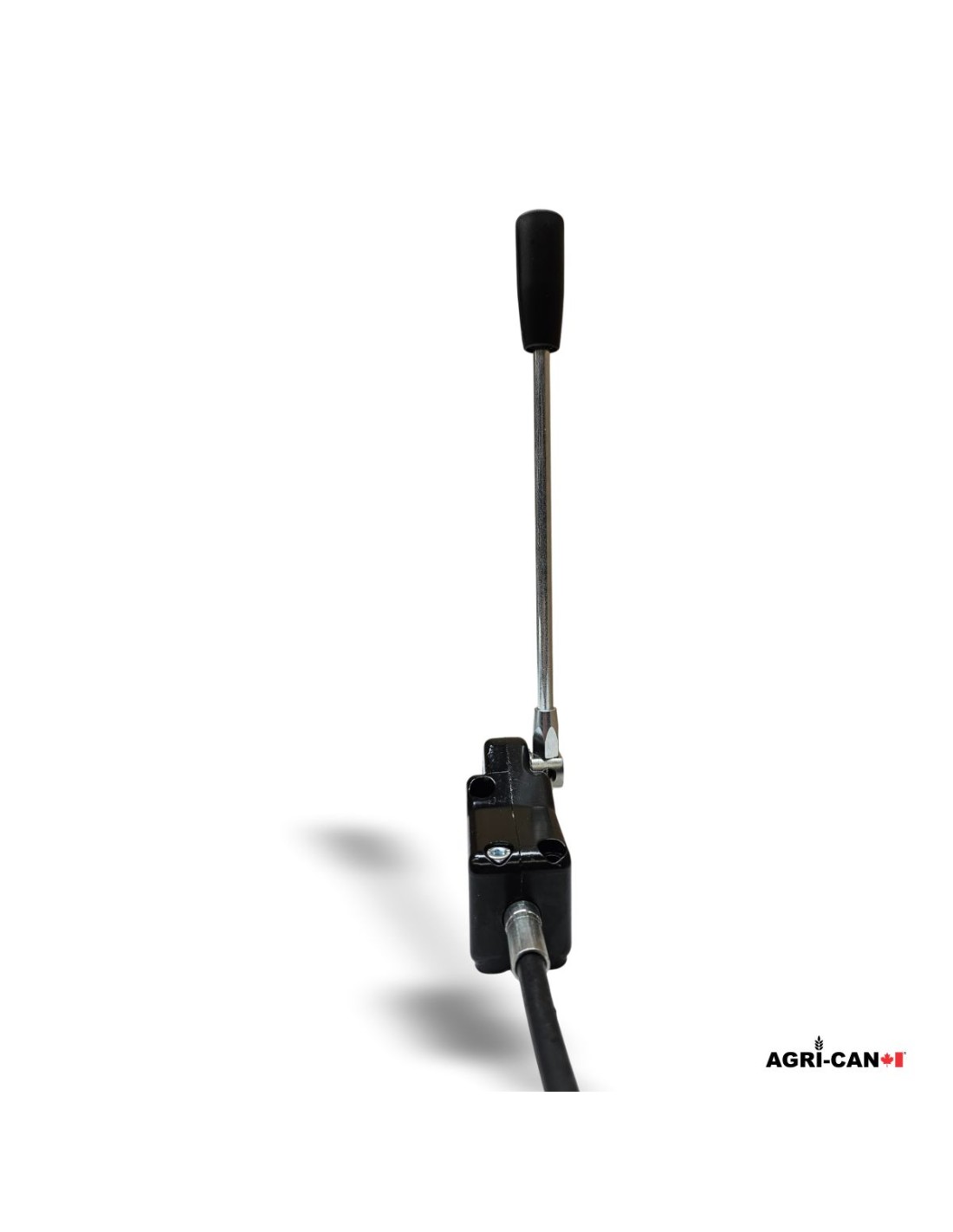

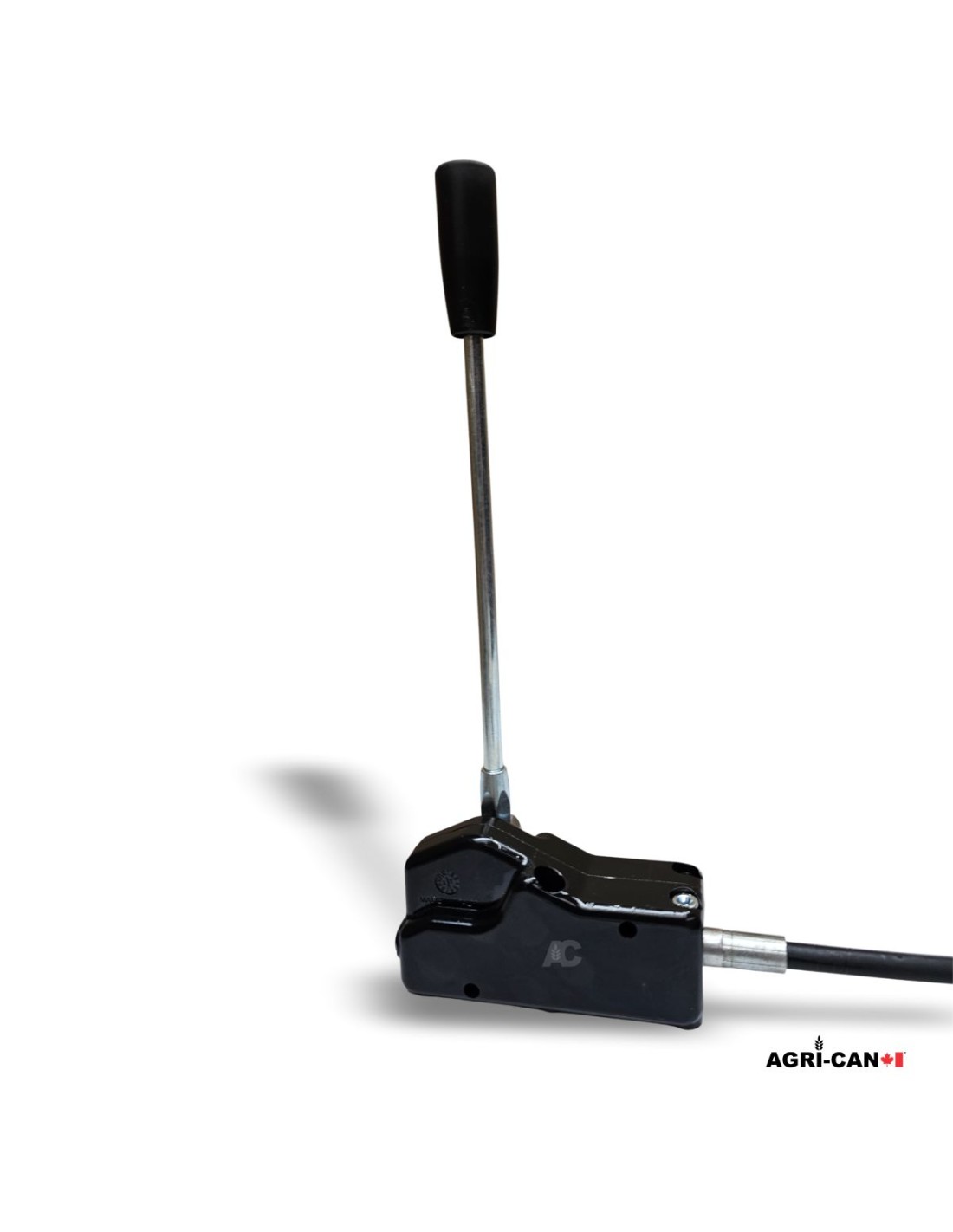

Indemar single lever for remote cable operation of a hydraulic control valve. Ideal for log splitters, dump bodies, trailers, cranes, and specialized vehicles. Suitable for individual use or for combining multiple units, the IS-3047 features a modular housing designed to interlock side by side and create a multi-function control station.

In Stock
$84.95 $99.95 -$15.00
As fast as next day 8am depending on your location
Time left

Resource Center

Description

The Indemar IS-3047 single lever provides remote cable operation of one hydraulic control valve function. Its compact and durable design is suitable for agricultural, industrial, forestry and material-handling equipment.

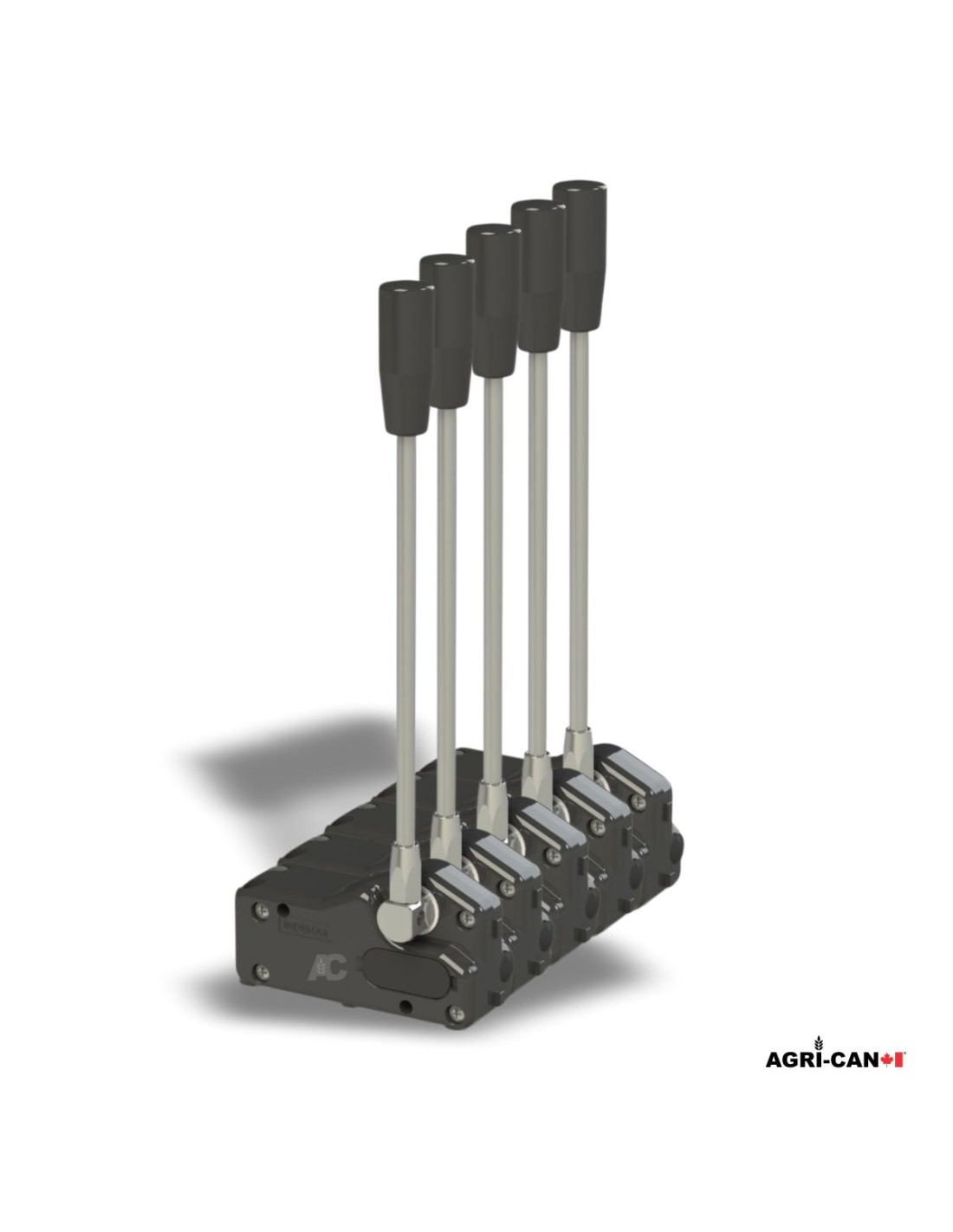

It can be installed individually or combined with additional levers to create a multi-function control station. Supplied with its control rod and knob, it provides precise and reliable hydraulic spool operation.

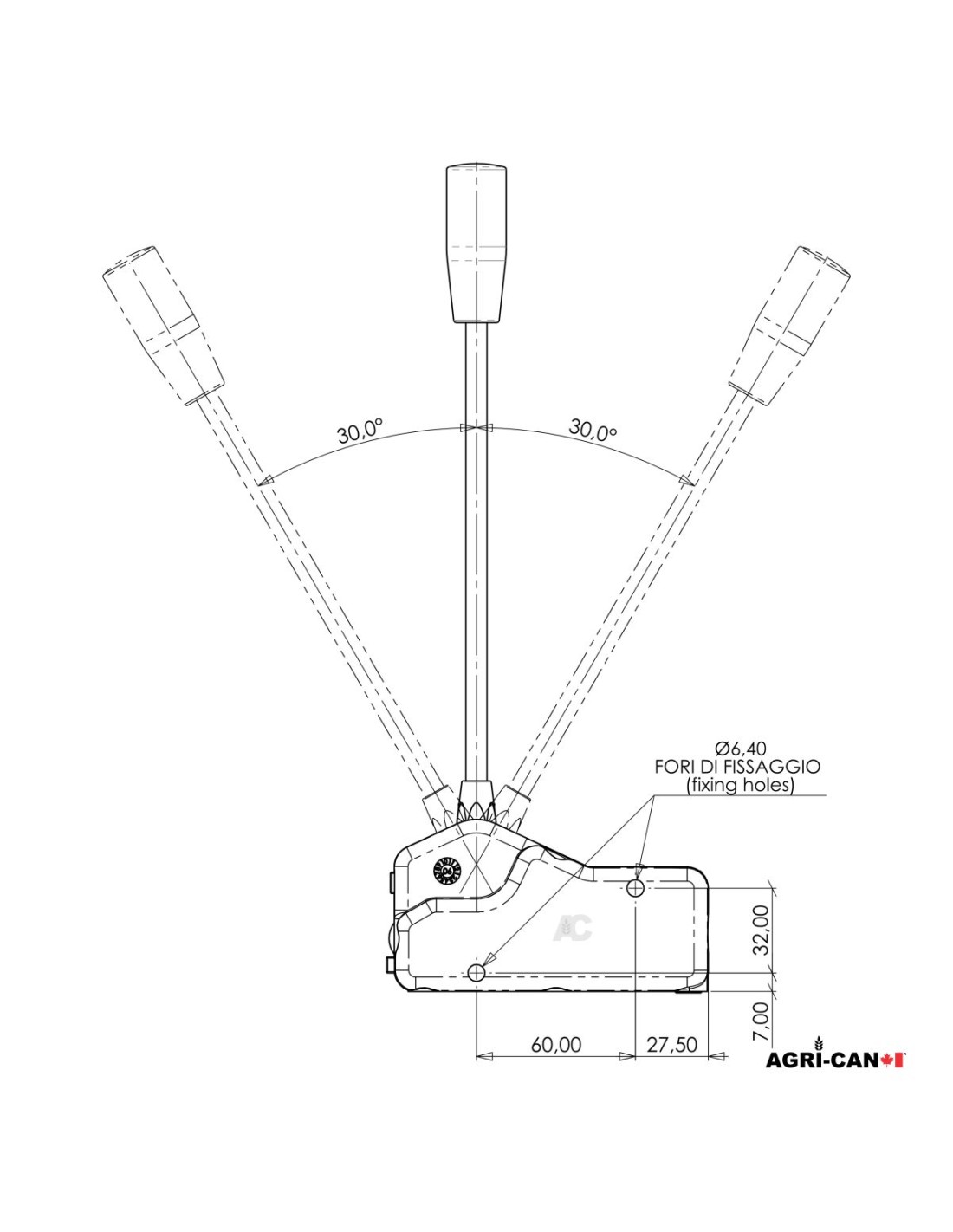

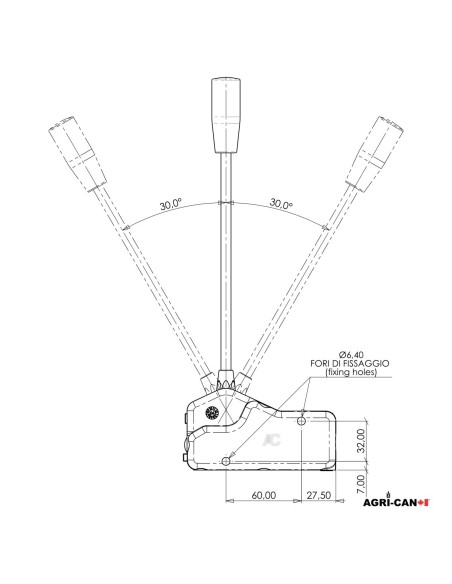

Specification

Number of functions

1

Number of actuation directions

2

Number of push-buttons

0

Maximum cable stroke

25 mm

Lever ratio

9.0:1

Operating temperature range

-30° C à +80° C

Lever thread

M6

Control cable compatibility

Clevis-end cable AC731133

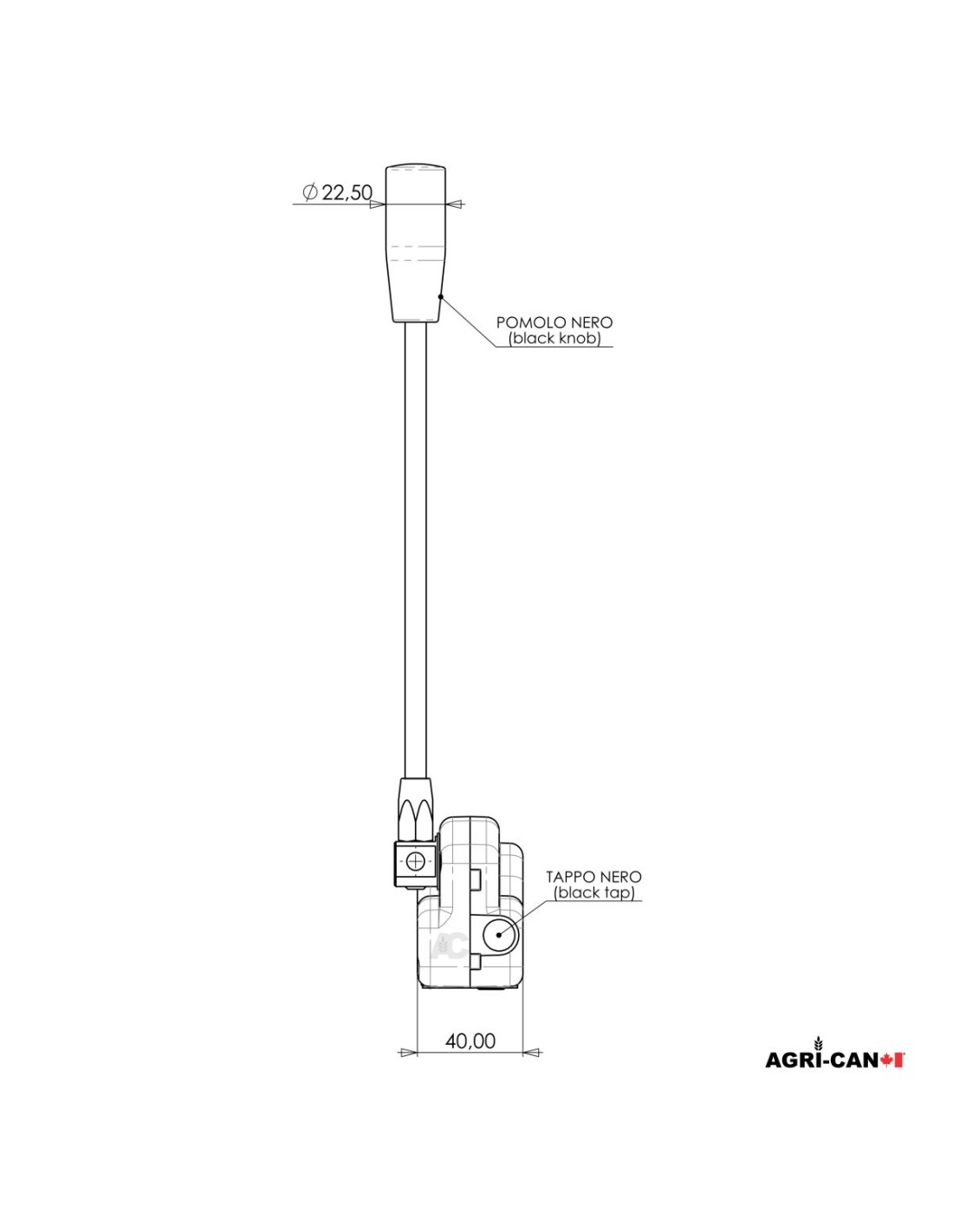

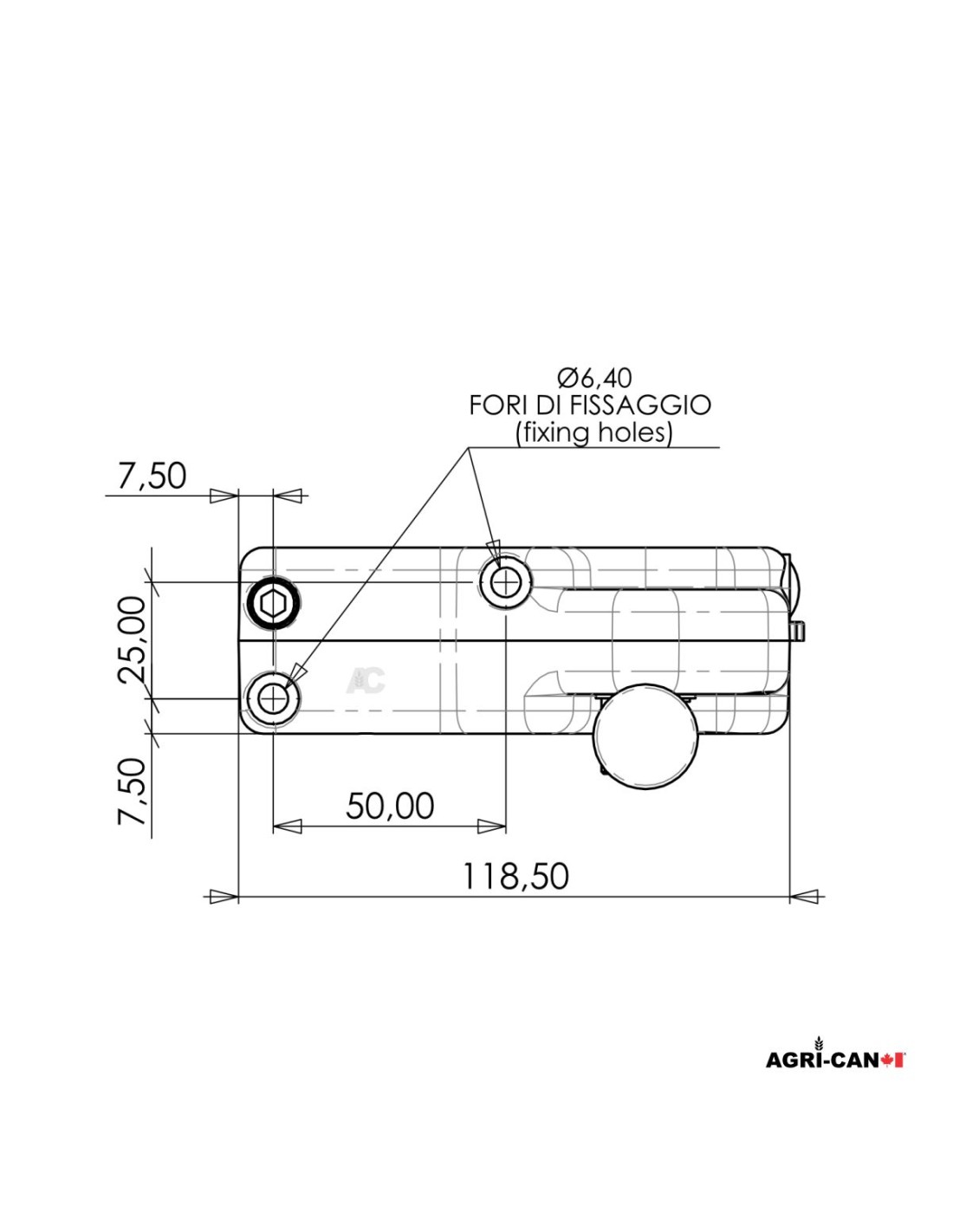

Base width

40 mm

Base length

118.50 mm

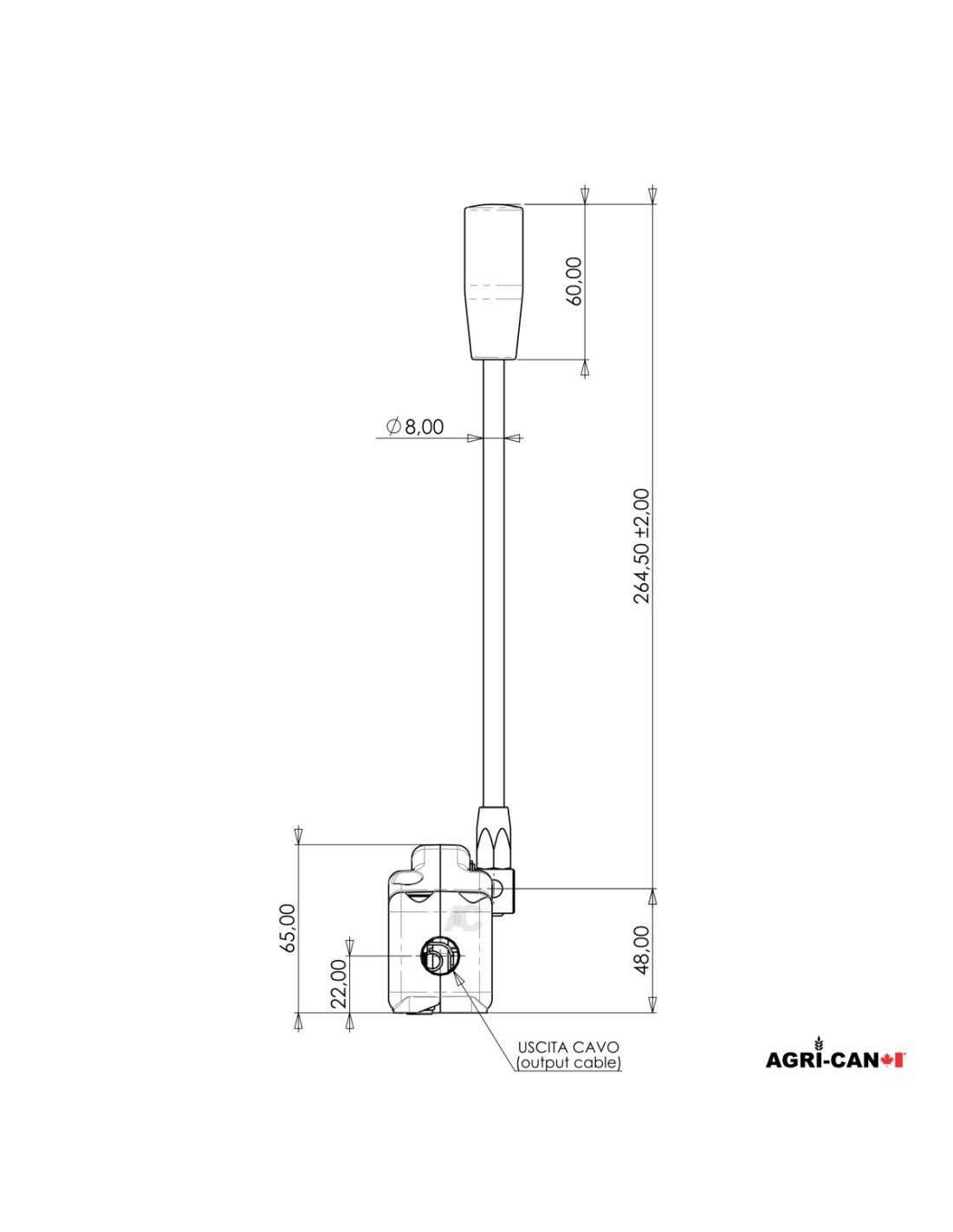

Overall height

264.50 mm

Lubrication

HHS 2000

Replaces:

Indemar IS-3047, IS3047, IS 3047, 3047, 87000976, 00976; Bondioli & Pavesi, Indemar France and Metal-Fach ZII75008006; Fournial 31083220; MCH Hydraulics RCL3047; Hydraulic Stock JOY-DZ3047 et VSDZ3047; Hycon Hydraulics 3047 CABLE LEVER; HTL Hydraulics IS-3047; R-IS-3047, IS-3047 R.
